ToolMod Pro-Audio Module System
User Manual
TM215b
Stereo Mastering Peak-Limiter

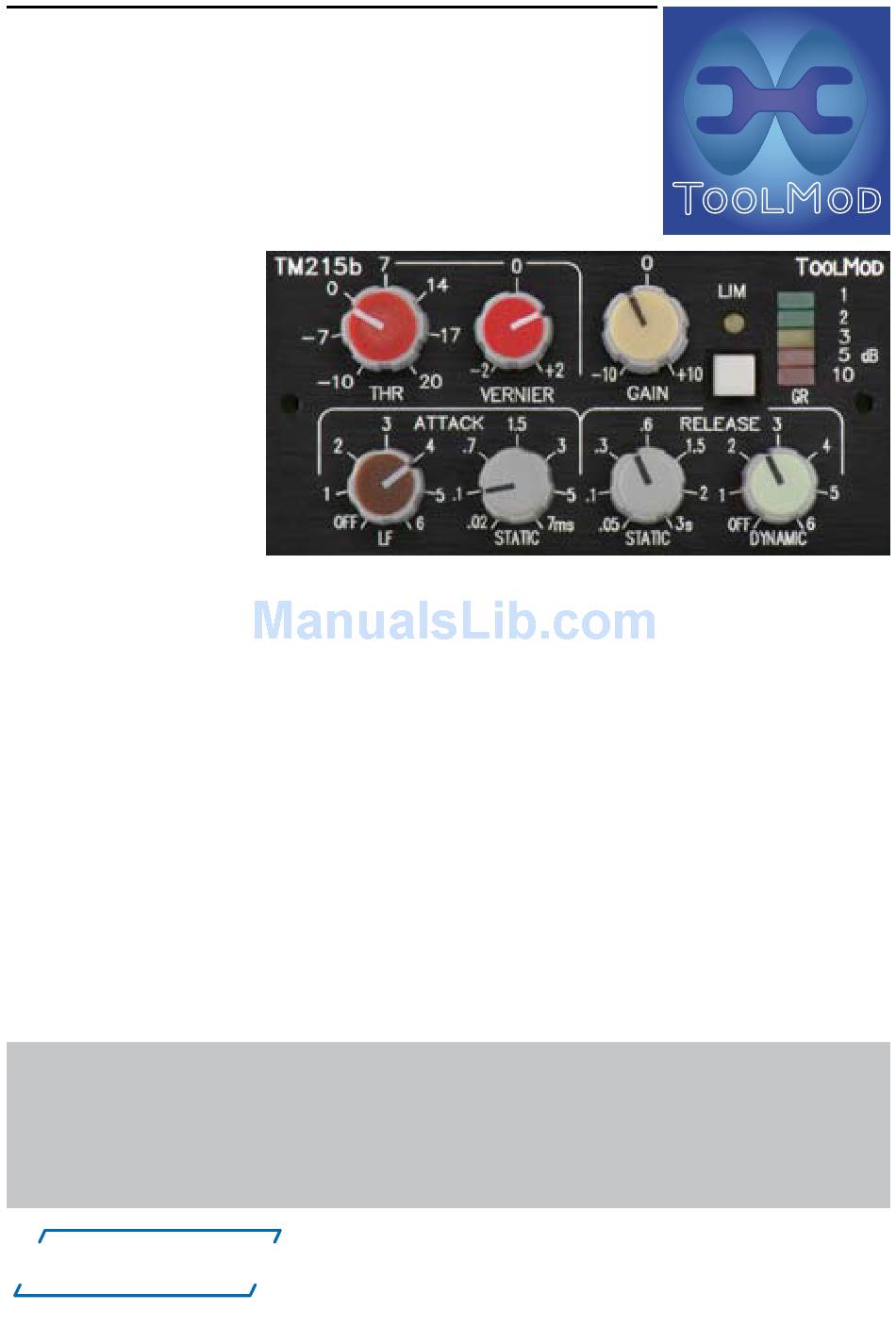

The TM215b is a very
fast stereo peak limit-
er that can be used to
limit the input level of
a/d converters. Special
additional features ma-
ke the inaudible regu-
lation of short signal
peaks possible.
Horizontal and vertical
versions are available.
Both versions are elec-
trically identical. Only
the orientation of the lettering and the knobs are different. The TM215b can be in-
stalled in any ToolMod frame.
Content
Hint
We assume that you are familiar with the basic princip-
les of pro audio devices. Therefore, the explanations
in this manual are limited to the special features and
functions of the particular module. General informati-
on on many pro audio topics can be found on our web site
http://www.adt-audio.com
This manual is a supplement to the ToolMod User Manual that contains extensive
information and safety instructions on the ToolMod® Pro-audio Module System by
adt-audio®. If you don't have the ToolMod User Manual ask for a copy by email or
fax, or download a PDF-version from one of our websites. It is imperative that you
take account of the hints and safety instruction in the ToolMod User Manual that
are not repeated in this supplement for a particular module.
adt-audio
®
analoge + digitale Tonstudiotechnik Karl Juengling
Email: info@adt-audio.com • Web: www.adt-audio.com + www.adt-audio.de
Inh. Dipl.-Ing. Gerd Juengling e. K.
4-6, Scholtwiese • Gladbeck • 45966 • NRW • Germany
Phone: 0049 2043 51061 • Fax: 0049 2043 56844

®
