General Characteristics:

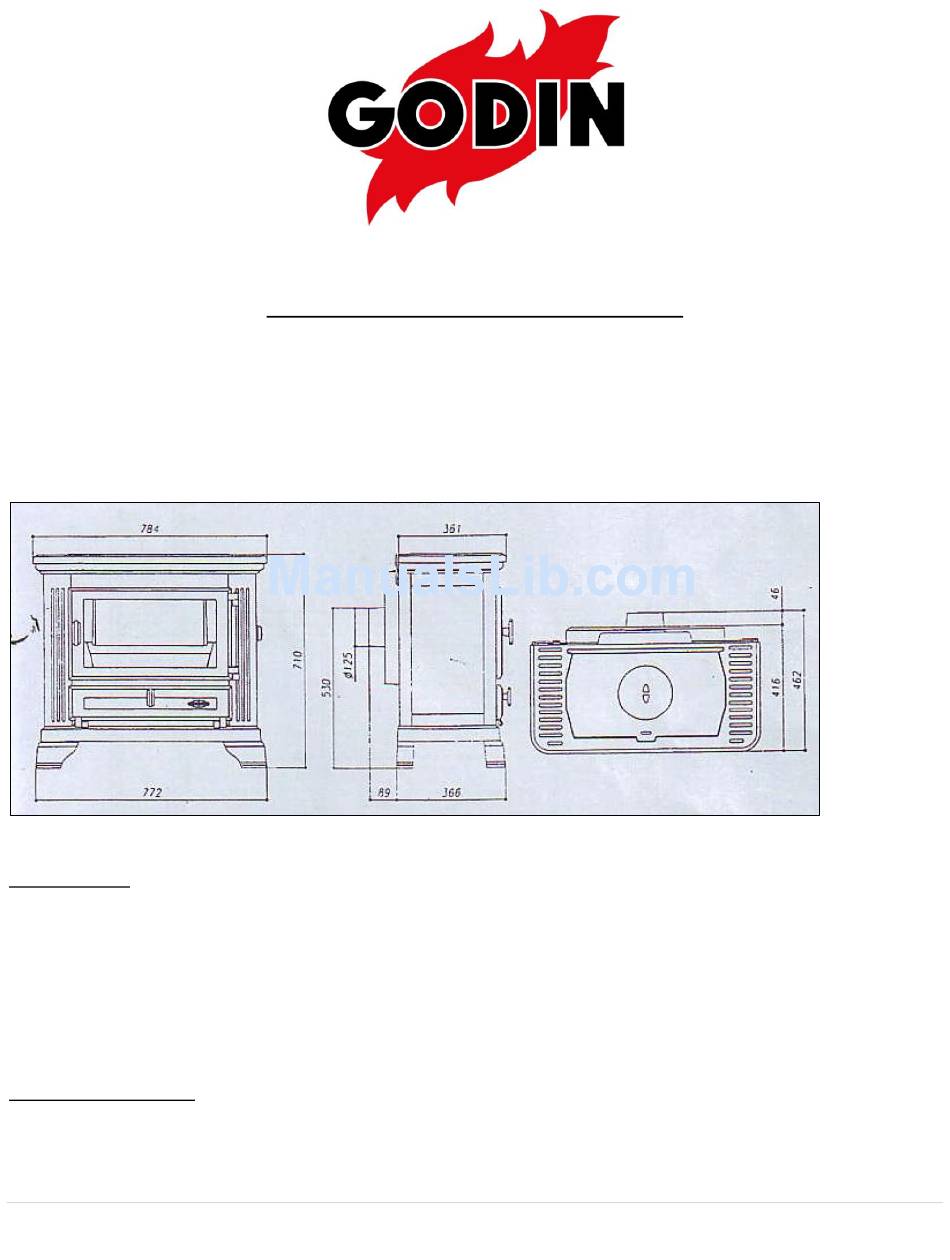

Overall dimensions: H 710mm x W 772mm x D 462mm
Firebox: H 270mm x W 400mm x D 200mm
Rear flue outlet diameter: 125mm
Distance between floor and top of rear flue outlet: 530mm
Technical Data:
Maximum heating output:
Rated heated volume:
Normal speed consumption:
Low speed consumption:
Burn duration at low speed:
Thermostatic air intake regulation using control knob on the right side panel of the heater.
Chimney & Connection:
Before the installation is carried out, ensure that the chimney is in good condition and will provide adequate draw, i.e.
1.5mm WG (0.06''WG)
The chimney should be well insulated
1 |
P a g e
Instruction Manual: Le Jurassien Ref 3701
9.5kW
380m3
anthracite: 1.3kg/h
anthracite: 0.3kg/h
more than 10 hours
wood: 4kg/h
wood: 0.6kg/h
Advertisement
Related Manuals for Godin Le Jurassien 3701
Summary of Contents for Godin Le Jurassien 3701
- Page 1 Instruction Manual: Le Jurassien Ref 3701 General Characteristics: Overall dimensions: H 710mm x W 772mm x D 462mm Firebox: H 270mm x W 400mm x D 200mm Rear flue outlet diameter: 125mm Distance between floor and top of rear flue outlet: 530mm Technical Data: Maximum heating output: 9.5kW...
- Page 2 It must be airtight and its area of cross section must be constant. The minimum area of cross section must be no less that 2.5dm2 (39sq. inches). On the other hand, an excessively large area of cross section results in too great a volume, which is difficult to heat and is one of the principal causes of a poor draw.
- Page 3 Ensure that the floor can support the weight of the unit. If necessary a weight-bearing slab (cement, stone or tile) may have to support the unit. Pipes that are used must be of the correct diameter and should preferably be enamelled as these are more resistant to corrosion.
- Page 4 Never seal off incoming air vents into the room. Air vents should be situated in positions where it is unlikely that they would be accidentally blocked. The heater uses air that comes into the room in order to operate correctly – it is important that this air supply can renew itself from an external source.
- Page 5 Both sweep and inspect your chimney at least once a year. Clean the heater and check the door seals. Inspect the internal airways and chimney (and flues and remove the cleaning trap door) at least once per heating session. Use the GODIN NET product to clean the window (Godin ref 0009). P a g e...
- Page 6 The cast-iron parts can be regularly maintained using the black graphite paste (Godin ref. 0012). This is applied cold as a polish. Once it has dried a soft cloth can be used to shine it up. The high heat spray paint (Godin ref. 0001) can be used on the external parts of the heater if a more uniform and even finish is desired.
-
Page 7: Warranty Conditions
Only burn dry wood, which has been stored for at least 2-3 years. Humidity in the wood goes from 15% to 50% (for wet wood). Using wet wood will damage the chimney and may cause chimney fires. Firewood should ideally have been felled 2 years previously (3 years is even better). In principle, all wood, contains the same calorific value versus weight. - Page 8 Godin SA will not be responsible for any installation, assembly, dismantling costs and consequential removal of the appliance. Consequently Godin SA, cannot be held responsible for any materials loss or human accidents, being a result of incorrect installation non – observing the legal provisions and regulations (for example, lack of ground connection, incorrect draft of the chimney etc...).
- Page 9 In case of a problem occurred during your guarantee period, please contact your retailer providing him with a copy of your bill and guarantee containing the appliances product codes, the retailers stamp, the date of the appliance installation. P a g e...
