Boss Audio Systems MGR450B User Manual

USER MANUAL
Thank you for purchasing this
QUICK INSTALLATION GUIDE

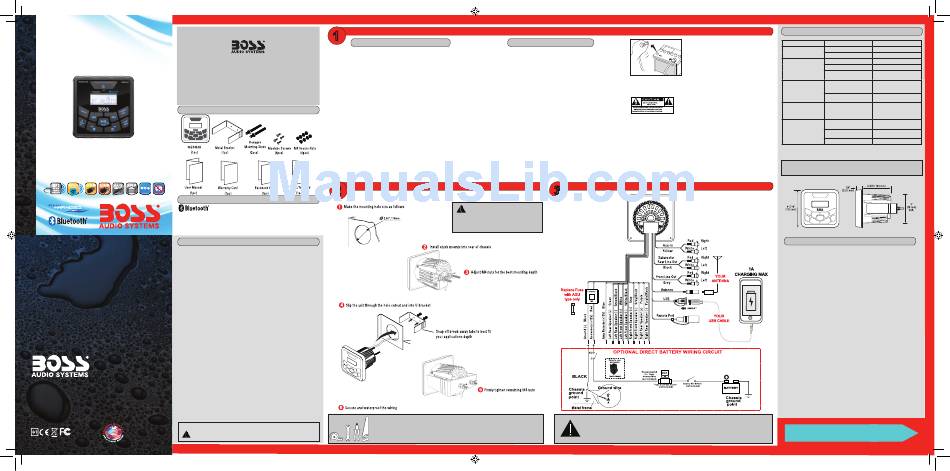

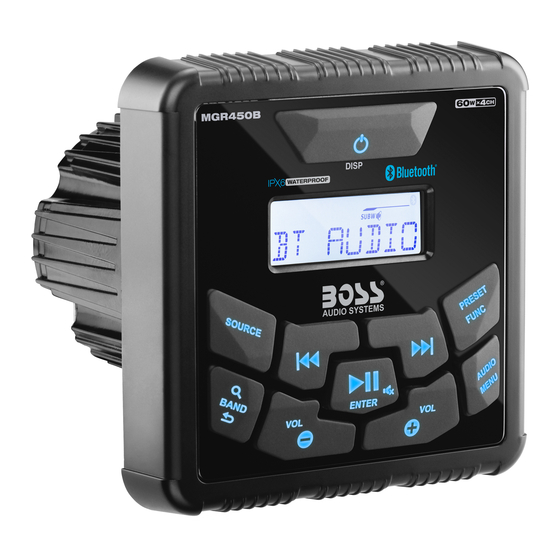

MGR450B MGR450B Bluetooth Marine Gauge
Digital Media AM/FM Receiver
Please read thorough these instructions
carefully so you will know how to operate
your model properly. After you have finished
reading the instructions, keep this document in
a safe place for future reference.
BLUETOOTH® (Audio Streaming)
Marine Gauge Digital Media
AM/FM Receiver
FEATURING ZERO STANDBY CURRENT DRAIN
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks is under
license. Other trademarks and trade names are those of their
respective owners.
USER MANUAL
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
QUICK INSTALLATION GUIDE
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
MGR450B
that may cause undesired operation of this device.
This transmitter must not be co-located or operated in conjunction
BLUETOOTH MARINE GAUGE DIGITAL MEDIA
®
with any other antenna or transmitter. The Bluetooth antenna cannot
AM/FM RECEIVER
be removed (or replaced) by user. This equipment complies with
FCC/ IC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure
Guidelines and RSS-102 of the IC radio frequency (RF) Exposure
rules. This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it should be installed and
operated keeping the radiator at least 20 cm or more away from
person's body (excluding extremities: hands, wrists, feet and
ankles). Alteration or modifications carried out without appropriate
authorization may invalidate the user's right to operate the
equipment.
iPod ® and iPhone ® are registered trademarks of Apple Inc.
NOTE: This equipment has been tested and found to comply with
registered in the USA and other countries.
the limits for a Class B digital device, pursuant to Part 15 of the FCC
BOSS Audio Systems is not affiliated with Apple Inc.
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030 the interference by one or more of the following measures:
www.bossaudio.com • Relocate or reorient the receiving antenna.
800-999-1236 US Toll-free
• Increase the separation between the equipment and receiver.
805-751-4853 Customer Service • Connect the equipment into an outlet on a circuit different from
tech support: www.bossaudio.com/support/technical-support that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY
Copyright © 2017
RESULT IN HAZARDOUS RADIATION EXPOSURE.
0417 VER:1.0 EN PRINTED IN CHINA
1
IMPORTANT SAFETY PRECAUTIONS
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
• Do not turn up the volume so high that you can't hear what's
around you.
• Use caution or temporarily discontinue use in potentially
hazardous situations.
• Do not operate mobile video equipment while driving a motorized
vehicle – safe driving and safety consideration of others should
always be your highest priority.
THIS PACKAGE CONTAINS
• Set your volume control at a low setting, then slowly increase the
sound until you can hear it comfortably without distortion, or ear
discomfort.
• In the event you should notice smoke, strange noises or odor from
this product, or any other abnormal signs, immediately turn off the
power and consult your dealer or the nearest authorized
BOSS AUDIO Service Center
may result in permanent damage to the system.
2
INFORMATION TO THE USER
FCC COMPLIANCE STATEMENT
!! WARNING !!
BEFORE YOU START
INSTALLATION PRECAUTIONS
Always consult with a professional installer
• Do not attempt to install or service this product by yourself.
Installation or servicing of this product by persons without
professional training and experience in electronic equipment and mo-
torized vehicle accessories may be dangerous and could expose you
to the risk of electric shock, injury or other hazards
• Refer any repairs to a qualified BOSS AUDIO SYSTEMS Service
Center
• The MGR450B should be wired directly to a vehicles battery
• When wiring directly to the vehicles battery, be sure to disconnect
the batteries negative terminal wire before starting any wiring
procedures, if extending the main power primary wire, it is
suggested that an optional fuse and fuse holder (not included) with
minimum rating of 20 Amperes be in-line with the positive battery
terminal
• The ground cable length should be as short as possible, if
extending from you battery, be sure to use a proper gauge rating for
the length of the run, use only high quality copper primary type wire
Using this product in this condition • The MGR450B has a IPX6 weather resistant design, it should not be
submerged in or under water under any circumstances
• Do not use abrasive cleaning materials on the lens or bezel
• Use only the installation parts provided with the MGR450B
3
SUGGESTED MOUNTING METHODS
CAUTION!!
Using other mounting methods may void
this warranty
TOOLS NEEDED:
- Measuring Tape / Ruler
- Wrench and/or Pliers
- Hole Saw
- Crimp Tool
To avoid potential shorts in the electrical
system, be sure to disconnect the (–)
Unit will not turn on
battery cable before installation. Use this
unit with a 12-Volt battery and negative
grounding only. Failure to do so may result
in a fire or malfunction.
No sound is heard
When replacing the fuse, be sure to only use a
Cannot pair Bluetooth
fuse of the rating specified on this product. To
avoid short-circuiting, cover any disconnected
The audio quality is poor
leads with insulating tape. It is specially impor- after connection with a
Bluetooth enabled device
tant to insulate any unused wires, which if left uncovered may cause a
short circuit. When connecting other devices to this product, refer to
the manual for the product to be connected. The black cable is ground,
make sure to connect the ground wire first.
Unit has become
unresponsive
Ensure that the ground cable is properly connected to metal parts of
the vehicles body frame or direct to the battery if your vehicle does not
have a grounded chassis frame. The ground cable of this units power
amp and a second powered system must be connected to the frame
separately with different screws. If the screw for the ground wire
loosens or falls out, it could result in fire or malfunction.
WIRE DIAGRAM
FM TUNER FREQUENCY RANGE
• USA
• Europe
• Asia
• Australia 87.5~108MHz
• Usable Sensitivity: 12dB (S/N=30dB)
• Bands: 2
AM TUNER FREQUENCY RANGE
• USA
• Europe
• Asia
• Australia 522~1620KHz
• Usable Sensitivity: 40dB (S/N=20dB)
• Bands: 1
WEATHER BAND SELECTION
• CH.1 162.400MHz
• CH.2 162.425MHz
• CH.3 162.450MHz
FOR CHARGING ONLY: Cell Phone and iPod
• CH.4 162.475MHz
Media Playback Not Supported
• CH.5 162.500MHz
• CH.6 162.525MHz
• CH.7 162.550MHz
• Bands: 1
BLUETOOTH
• BT: 3.0
• BT Range: 33Ft / 10M (Class 2)
• BT Profiles: A2DP / AVRCP 1.3
USB DRIVE MEDIA SUPPORTED
• MP3
• WMA
• 65,000 Songs
• 32GB / FAT 32
• USB 2.0 High Speed
• USB Output Voltage: 5VDC @ 1A
CAUTION!!
Do not ground or short the speaker leads
TROUBLESHOOTING GUIDE
TROUBLE CAUSE SOLUTION
The fuse is blown Check / replace the fuse
Ignition not engaged Turn ignition to on position
Blown speaker Replace faulty speaker
Volume is low / muted Press the volume level up
Check your devices playing /
Device is paused or muted volume status
Refer to the user manual of the
The Bluetooth function of the device for how to enable the
device is not enabled Bluetooth function
The MGR450B BT memory Follow how to reconnect a
is full device in section E
Move the device closer to the
audio system or remove any
obstacle between the device
The Bluetooth reception is poor and the systems antenna
Disconnect power for
Power glitch or interference 10 seconds to reset
Charge battery, run the engine
Low battery power to recharge the battery
Reset the main system Follow steps in section B
TECHNICAL SUPPORT
1-805-751-4853
www.bossaudio.com/support
SPECIFICATIONS
INTEGRATED AMPLIFIER
87.5~107.9MHz • MOSFET
87.5~108MHz • MAX Continuous Output: 240W
87.5~108MHz (All channels driven)
• PEAK Power Rating: 60W / channel
• Channels: 4
• Class: AB
• Frequency Response: 20-20kHz
• 4Ω stable
530~1710KHz
522~1620KHz CHASSIS
522~1620KHz • Button Backlight Illumination: BLUE LED
• F/R/S RCA Preamp Output: 2VRMS
• RCA Input Impedance: 10kΩ
• LCD: TN Type / Active Matrix
GENERAL
• Power Source: 14.4VDC
(10.8V ~ 16V allowable)
• Grounding System: Negative type
• Maximum Current Consumption: 15A
• 3-way protection circuitry (thermal,
overload, and speaker short protection)
• Unit Weight: 1.08lbs / 0.52kg
• Storage Temperature:
-22 o F to 176 o F / -30 o C to 80 o C
• Operation Temperature:
-4 F to 158 F / -20 C to 70 C
o o o o
• Replacement Fuse: 15A
(Replace with AGU Fuse Type Only)
Specifications subject to change without notice
QUICK START GUIDE
