USER'S MANUAL
BVCP9675
BLUETOOTH® | MP3-COMPATIBLE AM/FM RECEIVER
BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
www.bossaudio.com
800-999-1236 US Toll-free
805-751-4853 Customer Service
tech support: www.bossaudio.com/support/technical-support
0517
iPhone® is a trademark of Apple, Inc. registered in the U.S. and other countries. BOSS Audio Systems is not affiliated with Apple, Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.
Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product
with iPhone or iPad may affect wireless performance.

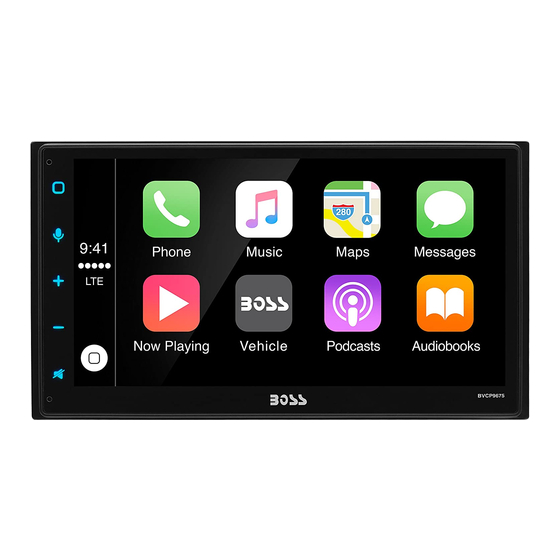

USER'S MANUAL
BVCP9675
BLUETOOTH® | MP3-COMPATIBLE AM/FM RECEIVER
FEATURING 6.75" (171 mm) CAPACITIVE TOUCHSCREEN
Advertisement
Table of Contents
Related Manuals for Boss Audio Systems BVCP9675
Summary of Contents for Boss Audio Systems BVCP9675
- Page 1 Apple, Inc. registered in the U.S. and other countries. BOSS Audio Systems is not affiliated with Apple, Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.
-
Page 3: Table Of Contents
Contents Contents……………………………………...2 Bluetooth® ……………….……………….19 Radio………………………………………….23 Notes……………………………………………………………4 Cautions………………….………………………………….19 Display Overview………………………………………..23 FCC Statement……………………………………………..6 Setup & Connections………………………………….19 Controls……….…………………...……………………….23 Cautions…………………………………………………….7-9 Phonebook…………………………………………………19 Tuning……………………...………………………………..23 About this Manual………………………………..………9 Device Status……………………………………………..19 Bands……………………………………………..…..……..23 California Prop. 65…..……………………………………9 Calling..………………………………………………………20 RBDS…………………………………………………………..23 History………………………………………………………..20 Basic Product Operation …………….10 Presets……………………………………………………….23 Private Mode……………………………………………..20 What comes in the box……………………………….10 Call Waiting….…………………………………………….20 Favorites…………………………………………………….23 Product Basics……………………..……..………..11-16... - Page 4 Contents General Settings.………………………..26 Bluetooth® Settings.……………………27 Connections……………………………….….30 Cautions…….…..……………………………………….….26 Power….…..……………………………………….………..27 Cautions & Warnings…………………...………..30-33 Date & Time…..……………………………………….….26 Auto Connect……………………………….…………….27 Warnings…………………...……………………………….36 System Language.……………………………………….26 Auto Answer………………………………………………27 Power …………………………………….……………….….30 User Interface…………………………………………….26 Phonebook Download………………………………..28 Speaker…….………………………………………………...31 Rear View Settings………………………………………26 Contact Display…………………………………………..28 Pre-amp Outputs………………………………….…..…32 Power Off Delay………………………………………….26 Device Name………………………………………………28 Camera…………………………………………………..…...33 Factory Settings………………………………………….26 Radio Settings.……………………………28...
-
Page 5: Notes
Bluetooth instructions/procedures. Failure to observe SIG, Inc. and any use of such marks by the instructions/procedures can result in Boss Audio Systems is under license. injury or damage to the product and/or Other trademarks and trade names are those property. - Page 6 This Page Intentionally Left Blank...
-
Page 7: Fcc Statement
Caution FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. - Page 8 Using this product in this condition may result in permanent damage to the system. Installation Precautions Boss Audio Systems does not recommend to install the product yourself. We recommend to have it professionally installed by a certified professional. Always consult with a professional installer .
- Page 9 Caution Before Installing To avoid potential shorts in the electrical system, be sure to disconnect the (–) battery cable before installation. Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
-
Page 10: About This Manual
Caution Images and Video Watching video while driving is against Federal, State, and Local laws. Drive safely, know and obey traffic rules. Watching this screen and making selections while driving can lead to a serious accident. Check surroundings for safety while camera images are displayed. Do not use features of this product while driving if it cannot be operated safely and legally in your location. -
Page 11: Basic Product Operation
Basic Product Operation What comes in the box Hardware Connections Qty 1 BVCP9675 Qty 1 Power/Speaker Harness Qty 1 Trim Ring Qty 1 Hands-free Microphone Qty 1 Mounting Hardware Set Qty 1 Audio Pre-amp Harness (Not Pictured) Qty 1 External Source Harness... - Page 12 Basic Product Operation Front Detail Microphone Power/Home Siri Button Volume Control Mute/Screen Off System Reset...
- Page 13 Basic Product Operation Rear Detail USB 2 Charging/USB Media Playback Apple CarPlay Radio Antenna Input USB 1* (1 A Charging) Power / Speaker I/O Ports Harness Rear Camera Input *Lightning Cable Not Included 15 Amp Mini-ATM Fuse Camera Power Output Front, Rear, Sub Outputs Hands-free Remote Output (500 mA Max)
-
Page 14: Product Basics
Basic Product Operation Product Basics Power On /Standby Siri 1. Touch once to Power ON -Touch to command 2. Touch and Hold for Standby NOTE NOTE CarPlay must be active In Standby Mode, the LED will slowly pulse on and off. Display Off Touch and Hold Mute Volume... -
Page 15: Using/Caring For The Touchscreen
Basic Product Operation Using and Caring for the Touchscreen Use: This head unit utilizes a Capacitive Touchscreen, the same type that is used on high-end mobile devices. It should be used for and cared for like that type of device. As with all capacitive type technology, if your fingers are wet or sweaty, it will not function properly. Do not allow any sharp objects to come in contact with the screen glass. -
Page 16: Product Setup
Basic Product Operation Product Setup (Date & Time) Setup Option A: CarPlay Method Setup Option B: Date and Time Additional Setup pg. 26 General > Language Connect your Apple ® device using a Light- ning® cable*. The CarPlay USB port must be Audio >... -
Page 17: Navigating The Menus
Basic Product Operation Navigating the Menus Media Camera CHECK SURROUNDINGS BEFORE PROCEEDING Aux-In Home CarPlay Radio Settings Hands-free... -
Page 18: Apple Carplay
Apple CarPlay Using CarPlay Connecting to CarPlay USB Port 1 Gestures & Control Note Connect the CarPlay compatible device Basic controls, but not limited to: Apple CarPlay usage is limited while driving. via Lightning® cable (not included). Functions, contents, and usability is Touch The iPhone will load the CarPlay determined by the App provider(s). -
Page 19: Carplay Display
Apple CarPlay Using CarPlay How to Disable Apps CarPlay Display Setup NOTE Using your iPhone: 1. Using your iPhone: Only Apps with the icon can be removed from CarPlay. Settings > Notifications > App to Disable Settings > General > CarPlay To Disable other Apps see pg. -
Page 20: Bluetooth
Touch Search to begin searching for devices 1. Touch Contact > Download Contacts will always be stored once Mobile Device: downloaded Search for BOSS AUDIO BVCP9675 iOS Devices: Settings > Bluetooth To Download History: Android Devices: Settings > Connections > 1. Touch History > Download... -
Page 21: Calling
Contacts must be downloaded to search. Auto Download Phonebook: OFF Searching History 1. Touch First Name First: ON Swipe Up or Down to search Device Name: BOSS AUDIO BVCP9675 2. Enter the Contact Name, then For all settings see pg. 26... -
Page 22: Audio
To play media through Bluetooth, the mobile Playback access is also available through the device must be Paired and Connected to the Media Player Touch BVCP9675, see pg. 22. 1. Touch Available sources will display 1. Touch (Bluetooth and USB) Note The music will play automatically. -
Page 23: Media
Media USB Playback Navigating Menu WARNING Watching videos or photos while driving is Touch Touch against Federal ,State, and Local laws. Do not use features of this product if it cannot be operated safely and legally in your The music will play automatically. To browse contents Swipe location. -
Page 24: Radio
Radio AM/ FM Controls Favorites and Presets Station Listings Settings Settings Favorites Bands Touch Touch Favorite Set Tuning To remove a favorite, Touch To search for stations: Search Browsing Favorites Touch and Hold Touch Manual Seek Touch To return the Tuner screen Touch Swipe to quickly tune Auto Search &... -
Page 25: Aux-In
Aux In/Camera External Source Reverse View Playback (Audio Only) WARNING When the vehicle is put into reverse gear, the Never rely solely on the rear view camera; camera will display the image on the screen. always check your surroundings before Touch proceeding. -
Page 26: Audio
Audio Adjustments Note Internal Amp To access the EQ menu The EQ can also be directly accessed while To reduce the possibility of noise entering the changing the volume. The volume display will signal chain when utilizing the audio pre-amp show the EQ icon, you can touch to access the outputs, the internal amp can be turned OFF Touch... -
Page 27: General Settings
Settings General Date & Time System Language Power Off Delay Time Zone Touch to change Touch Adjust to correctly display time English (Default), Spanish Some vehicles during crank to start will Default Setting: (GMT-08:00) Pacific Time (US) Note interrupt the accessory power. CarPlay is independent of the system If the product re-boots during crank to start, Date... -
Page 28: Display Settings
Settings Display Bluetooth LED Touch Buttons Bluetooth Blur Effect Panel Light Touch Touch Touch Six preset colors can be chosen for Touch Power On/Off Bluetooth Menu to menu animation adds a blur effect buttons, or chose below... Default Setting: ON Illumination Control Swipe Note... -
Page 29: Phonebook Download
Touch Default Setting: America 2 US Tuner Spacing: FM (200 KHz), AM (10 KHz) BOSS AUDIO BVCP9675 The radio will automatically tune in to traffic European Spacing: FM (50 KHz), AM (9 KHz) The friendly name can be changed to display information broadcasts while receiving FM on the mobile device. -
Page 30: Steering Wheel Controls
Settings Steering Wheel Controls Programming Functions Reset SWC About Touch Touch Displays the system information: Operating System To program the SWC buttons from the vehicle Touch Software Version Touch MCU Version Touch Hardware Version Touch Hardware ID Touch the Button to be CarPlay MAC Address programmed, the corresponding Steering Wheel Button. -
Page 31: Connections
Connections Power Note CAUTION It is recommended to have the product Unused input/output wires need be installed by a certified installation insulated with tape, heat shrink, or crimp professional. connectors. Never use wire nuts. CAUTION Before installation, or wiring connections, disconnect the negative (-) battery terminal to prevent damage to the product, and/or possible injury. -
Page 32: Speaker
Connections Speakers CAUTION Do not chassis ground any speaker wire leads. CAUTION Only use 4-8 Ω Speakers Do not use 1-3 Ω Speakers CAUTION Do not bridge any of the channels, they are only to be wired in stereo mode. Note Location to plug in Unused speaker wires need be insulated with... -
Page 33: Pre-Amp Outputs
Connections Audio Pre-amp Note CAUTION Remote Out is 500 mA max output rating. If pre-amp outputs are being used exclusively, If several amplifiers are to be used, it is turn Off the internal amp of the product, to recommended to use a relay for the Remote reduce the possibility of noise entering the Out trigger. -
Page 34: Camera
Connections Camera & Aux In WARNING Never rely solely on the rear view camera; always check your surroundings before proceeding. Images may appear reversed Do not use a feature of this product if it cannot be operated safely and legally in your location. -
Page 35: Connections
Connections Steering Wheel Controls Up to 12 Buttons can be programmed. Key 1 (Tip) See pg. 29 GND (Ring) Note SWC Interface A separate interface might be needed for your (Not Included) vehicle application. It is recommend that you consult with a professional installer. Mic Location SWC Location AM/FM Ant. -
Page 36: Usb
Connections USB 2 USB 1 Media Playback CarPlay USB 1 & 2 Port Length 3 ft. Note Android device playback is not supported from either of the USB ports. Lightning® Cable (not included) -
Page 37: Warnings
Connections Parking Brake WARNING Improper connection or use of the parking brake status wire, (i.e. defeating the safety feature) violates Federal, State, and Local laws. This may lead to injury, property dam- age, and/or death. WARNING Watching videos or photos while driving is against Federal , State, and Local laws. -
Page 38: Hands-Free Mic
Connections Hands-free Mic Placement Every vehicle will perform differently due to layout, interior materials, etc... shaded areas are the recommended locations for best microphone performance. Items to look for before placement: Do not place in front of air vents. If the vehicle has tweeters placed on sail panels, do NOT locate the mic on steering column area. -
Page 39: Troubleshooting
Troubleshooting Issues Solution Cause No Sound Go to Settings > Audio > Internal Amp ON Internal amplifier is off Touch the volume. Product is muted Check the external amplifiers are on. External amplifiers Check the remote output wire has voltage Change the audio source Audio source Media Not Supported... - Page 40 Unit is unresponsive Processor has frozen Press the RESET button on the front panel See pg. 11 If you have questions about this product: Customer Service 805-751-8453 M-F 8:30a-5:00p (PST) Tech Support: www.bossaudio.com/support/technical-support © 2017 Boss Audio Systems BVCP9675_0617_4...
-
Page 41: Specifications
Specifications General Audio Cont’d Power Input………………………….10.8 V—16 V DC USB Spec………….…………...USB 2.0 (High-Speed) Pre-amp Output…………………………………..3 Pairs Nominal………………………...14.4 V DC USB Current….……………………………..1.5 A (Max) Front………………………2V, Full-Range Current Consumption……….. …………10 A (Max) File System……………………………………………FAT32 Rear………………………..2V, Full-Range Fuse Type……………………………………….Mini-ATM Audio Playback Sub(Mono)………………………..2V, LPF Dimensions (H x W x D)……………..4”... -
Page 42: User's Notes
User’s Notes...
