LightViper EF-2 User Manual

Physical layer ethernet fiber optic converter

Advertisement

Quick Links

USER MANUAL FOR
EF‐2 Physical Layer Ethernet
Fiber Optic Converter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for LightViper EF-2

  • Page 1 USER MANUAL FOR  EF‐2 Physical Layer Ethernet  Fiber Optic Converter...
  • Page 3   Warning for Your Protection  1. Read these instructions  2. Keep these instructions  3. Heed all warnings  4. Follow all instructions  5. Do not use this apparatus near water.  6. Clean only with a dry cloth.  7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.  8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.  9. Do not defeat the safety purpose of the polarized or grounding‐type plug. A polarized plug has two blades with one wider than the other.  A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the  provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.  10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit  from the apparatus.  11. Only use attachments/accessories specified by the manufacturer.  12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with  the apparatus.  When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from  tip‐over.     13. Unplug this apparatus during lightning storms or when unused for long periods of time.  14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has  been damaged  in any way, such as power‐supply cord or plug is damaged, liquid has been spilled or objects have  fallen into the  apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.  The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.   “WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.” ...
  • Page 4 Registration  Be sure to register your LightViper product, either by filling in the enclosed Registration Card or by completing the on‐line registration form  at our Web site:  http://lightviper.com/register  If you do so, FiberPlex can contact you with any update information. As enhancements and upgrades are developed, you will be contacted at  the registration address. Please read this manual ‐ if you call for technical support, we’ll assume that you have.   Please address any inquiries to your dealer or directly to FiberPlex at:  FiberPlex Inc.  10840‐412 Guilford Rd.  Annapolis Junction, MD 20701  301.604.0100 Fax: 301.604.0773  sales@fiberplex.com  Warranty, Service and Terms and Conditions of Sale    For information about Warranty or Service information, please see our published ‘Terms and Conditions of Sale’. This document is available  on fiberplex.com  or can be obtained by requesting it from sales@fiberplex.com or calling 301.604.0100.   ...
  • Page 5: Declarations Of Conformity

    Disposal  Disposal of Packing Materials   The packing materials have been selected with environmental and disposal issues in mind. All packing material can be recycled. Recycling  packing saves raw materials and reduces the volume of waste. If you need to dispose of the transport packing materials, please try to use  recyclable means.  Disposal of Used Equipment   Used equipment contains valuable raw materials as well as materials that must be disposed of professionally. Please return your used  equipment via an authorized specialist dealer or via the public waste disposal system, ensuring any material that can be recycled is. Please  take care that your used equipment cannot be abused. After having disconnected your used equipment from the mains supply, make sure  that the mains connector and the mains cable are made useless.  Declarations of Conformity  Class A Equipment ‐ FCC Notice  This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These  limits are designed to provide a reasonable protection against harmful interference when the equipment is operated in a commercial  environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the  instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to  cause harmful interference, in which case the user will be required to correct the interference at their own expense.           Disclaimer  The information in this document has been carefully checked and is believed to be accurate at the time of publication. However, no  responsibility is taken by us for inaccuracies, errors, or omissions, nor is any liability assumed for any loss or damage resulting either directly    or indirectly from use of the information contained within it.  ...
  • Page 6: Standard Components

    Introduction  Congratulations on your purchase of a LightViper system. LightViper products are designed, engineered and manufactured by FiberPlex Inc.,  experts in fiber optics with decades of experience. Our work in audio and data communications products is known in US government  applications worldwide.  LightViper products combine our fiber optic technology with the highest standards in audio engineering.  The EF‐2  You have purchased the LightViper EF‐2 system, 2 channel Physical Ethernet Fiber Optic Transport System (FTS) that has ability to pass  standard 10 Base‐T and 100 Base‐T Ethernet communications as well as many proprietary Physical Ethernet based data such as those made  by AVIOM™.  The Fiber Advantage  Fiber optics offer many advantages over copper:   Transmits light rather than electrons   Transmission over greater distances (more than 2 Km [1.25 mile])   Complete electrical isolation   Immunity to RFI and EMI   Eliminates ground loop problems   Can be routed overhead, through walls, or underground   Avoids foot traffic while maintaining aesthetics  Functional Considerations  The Light Viper EF‐2 is a very simple device. It is designed to be completely transparent to the data. A single EF‐2 actually contains 2  completely isolated and independent channels of Physical Ethernet. Each channels configuration is completely separate from the other. To  be completely transparent to the data requires some initial switch settings to achieve the desired result. These settings are described in the  later part of this document.  Standard Components  In its standard configuration, the Light Viper EF‐2 is made up of three primary components.  2 ea. Ethernet Transport device (EF‐2) — This is the hardware interface. One unit is placed on each end of the fiber connection. Each EF‐2  can handle two independent Physical Ethernet channels on up to 4 fibers.  The Fiber Cable (TFC‐0000‐04) — The lightweight “tactical grade” fiber ‘cable’ that carries the digital signal between the stage and mixer  boxes. Either PVC or Plenum rated fiber is recommended (VFC‐0000‐D, VFC‐0000‐DP) for installation use.  Additionally an EF‐2 configuration can use the following component:  TAC‐4 Connector Panels (VPL‐11, VPL‐12, VPL‐13) – These 1U rack panels contain (1), (2), or (3) panel mount  TAC‐4 connectors mounted respectively and allow connection between tactical grade fiber to the ST  connectors on the EF‐2 units.   ...
  • Page 7: Getting Started

    Getting Started  Setup  Setting up, and using your Light Viper EF‐2 is a quick and simple process.  Just follow these steps:  Mount one EF‐2 in a rack close to the Ethernet source.  Mount the other EF‐2 in a rack close to the Ethernet destination.  Connect the units to either AC power using the IEC connector or 12VDC using the green modular connector.  Connect and run the Fiber between the two units, power up and check the ‘link’ light on both units  Set the switches for the appropriate signal.  Connect the data connections to the RJ‐45 jacks.  The specific functions of the Light Viper EF‐2 (direction, polarity, etc.) are addressed within this manual.   ...
  • Page 8: Indicators And Controls

    Indicators and Controls         Data connection   The data connection to the EF‐2 is made via a Neutrik™ Ethercon RJ‐45 connector. It uses a standard Ethernet pinout which is  configured using the Polarity Switch. See appendix for a detailed pinout.   Data Status LEDs   A Yellow indication on the upper LED marked “TP RX” indicates that receive data is being detected on the twisted pair. The lower LED  indicates the Link status on the twisted pair. See appendix for more detail.   Polarity Switch   Setting this switch to   or  sets the pinout of TX and RX to accommodate connection to various devices. With a setting of  “Auto”, the EF‐2 will determine the correct pinouts for the TX and RX. See the appendix for more detail.   Directional Mode Switch   The OPT RX and OPT TX positions are both unidirectional modes. In the OPT RX position, data is received by the fiber optic input and  transmitted out to the RJ‐45 connector. In the OPT TX position data is received by the RJ‐45 connector and transmitted to the fiber  optic output. The TX/RX position is a bidirectional mode which acts as a standard Ethernet connection. See the appendix for more  detail.   Fiber Connections   The EF‐2 comes standard with LC fiber connectors. ST, tactical grade TAC‐4 connectors, or Neutrik™ OpticalCon connectors are available as options. In  live production use, it is recommended to fit the units with LC connectors and utilize the VPL‐11, 12, or 13 panels containing 1, 2, or 3, TAC‐4 panel  mount connectors respectively. TAC‐4JR –LC connectors have LC pigtails which connect with the LC connectors on the EF2. Alternately the TAC‐4FR  connector can be mounted directly on the chassis of the EF2. Always be sure to use appropriate fiber and compatible connectors.   Fiber Status LEDs   A Yellow indication on the upper LED marked “OPT RX” indicates that receive data is being detected on the fiber connection. The lower  LED indicates the Link status on the fiber connection. See appendix for more detail.   Power LED  A green LED indicates the power supply is operating correctly.   DC Power Connector  The EF‐2 can run on 9‐24VDC connected via this connector.   AC Power Connector  The EF‐2 runs on a full range switching power supply. It will accept voltages from 90‐250 VAC. This connector also serves as a fuse  holder. Replace fuse only with a 1 Amp 250V (T1AL250V) slo‐blo fuse.     ...
  • Page 9 Using the Light Viper EF‐2  Standard Ethernet connection       ...
  • Page 10 Standard AVIOM PRO‐16 connection   ...
  • Page 11 Fiber Options  Tactical grade military fiber (TAC‐4)   Used for live production applications (P/N TFC‐0000‐04). Weighing 8.4 lbs.(12.6kg) for(300)feet, this cable contains  (4) fibers and therefore it is capable of carrying the signals of (2) systems on a single cable. The TAC‐4 connectors  are hermaphroditic and can be connected to one another. Multimode fiber can transport signals up to 2km (1.25  miles).          TAC-4 Neutrik OpticalCon ®  Fiber  This fiber cable contains (2) fibers and is also a tactical grade fiber   (P/N TFC‐0000‐02OC).       Neutrik OpticalCon   Fiber Cable & Panel Mount Connector     PVC fiber  PVC duplex fiber contains (2) fibers. Plenum rated fiber is also available. The installer can terminate the fiber  themselves, or Fiberplex can supply it pre‐terminated. This fiber is also available with a strain relief and  “pulling eye” which reduces on site labor.       Plenum Install Fiber    ...
  • Page 12 LightViper EF‐2 Card Specifications  Specifications  • 2 Channel Physical Ethernet Fiber Transport  • 9‐24 VDC Power Option  • Cable runs over 1.25 miles with no loss  • High quality Neutrik® connectors  • Rugged fiber cable smaller in diameter than standard mic cable  • Heavy gauge steel construction  • Single direction physical layer support  • 1U Rack mount   • Supports all Ethernet based protocols (eg. CobraNet, HiQ Net, EtherSound,  • Extended range and flexibility means limitless routing options  Aviom, etc)  General Specifications  Latency  100 ns Operating Temp  0 to +50°C ambient temperature. Minimum Typical Maximum Unit Power Requirements  AC Voltage Universal  50/60 Hz, IEC Connector  AC Power  Watts DC Voltage  DC Power  Watts 12.5" L X 8.75" W X 4 H Dimensions ...
  • Page 13 Appendix  Polarity Switch Settings        RJ‐45 straight pinout  Pin  Direction  Description  1  Out  Transmit +  2  Out  Transmit ‐  3  In  Receive +  4        5      6  In  Receive ‐  7      8        This setting is for the RJ‐45 PINOUT ONLY, and is not intended to imply that all “straight” cables will establish a link in this setting.   If a link can not be established with the   pinouts than use the  setting to reverse the pinouts.  The unit will attempt to determine correct pinouts for the transmit and receive pairs.  If the transmit and receive pairs are  reversed, the unit will swap both pairs internally to establish a link.  Auto   ...
  • Page 14 Led indicators    Label  Color  Description  Green  Power supply is operating properly.  Power  PWR  Off  Check that the 1 Amp Slo‐Blo fuse is not blown.  Yellow  10BASE‐T twisted pair link has been established.  Green  100BASE‐TX twisted pair link has been established.  Off  No twisted pair link pulses detected.   TP Link  Ethernet    Aviom’s Personal Mixers do not transmit link pulses for the EF‐2 to detect. Therefore this LED will always be off. For  link indication, Aviom’s Personal Mixers have an LED labeled “A‐NET Active”.  TP RX  Yellow  Twisted pair receive data is being detected.  Yellow  10BASE‐FL optical link has been established.  Green  100BASE‐FX optical link has been established.  Off  No optical link pulses detected or optical level too low. Check that the opposite unit has power and that the fiber optic  Link  cables are properly connected. The transmit output from one end should go to the receive input at the opposite end.    Or switch setting is in the OPT TX position, which is a uni‐directional mode where data can only be received by the RJ‐ Optical  45 and transmitted to the fiber optic output. Therefore, optical link pulses can not be received by the fiber optic input.  Yellow  Optical receive data is being detected.  Off  No optical receive data detected. ...
  • Page 15: Final Assembly Drawing

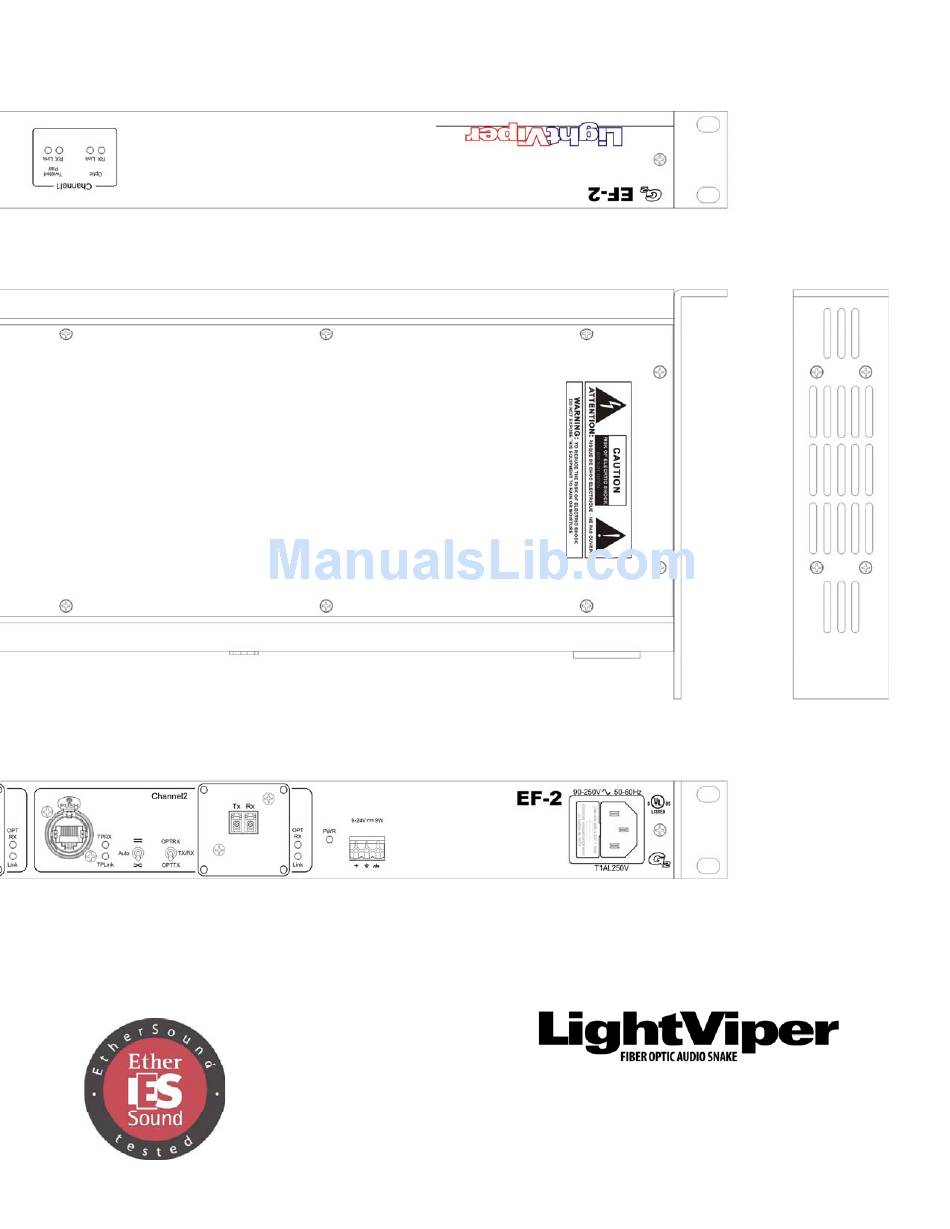

    Final Assembly Drawing      ...
  • Page 16 This page intentionally left blank   ...
  • Page 17   This page intentionally left blank    ...
  • Page 18 18040-412 Guilford Rd. • Annapolis Junction, MD 20701 fiberplex.com • sales@fiberplex.com • 301.604.0100 LVEF2UM 8/2011 ...
