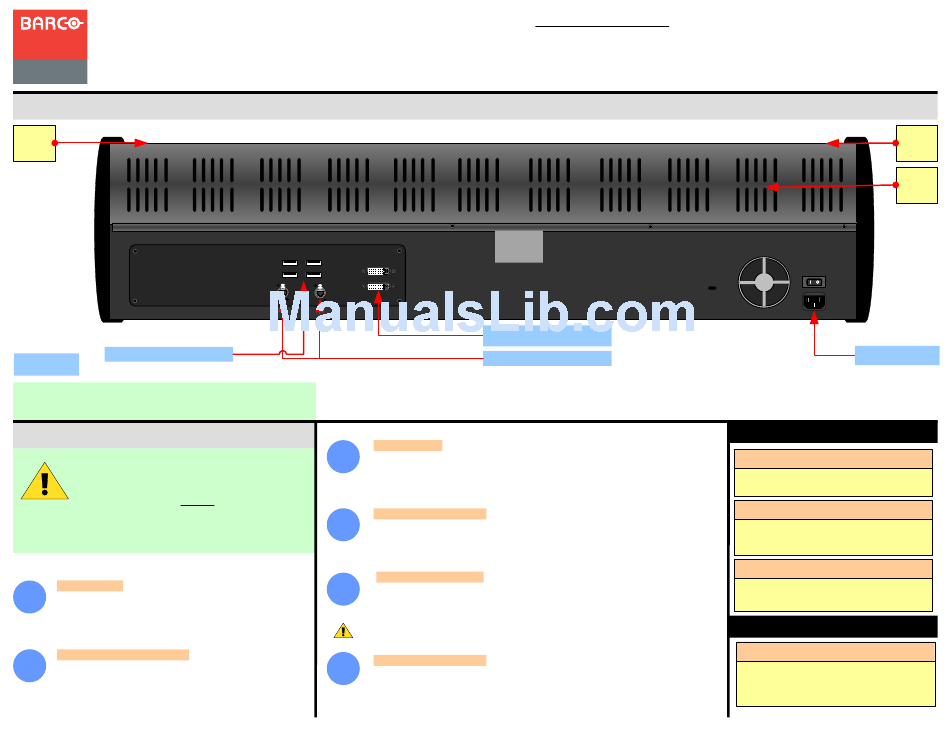

Barco EC-200 Quick Start Manual

Event Master Series EC-200
Quick Start Guide - Setup
Visibly yours
Script
Light
4 x USB A
EC-200 Rear
Panel
For detailed installation instructions, refer to "
controller connection"
of the User's Guide.
System Setup
System setup is comprised of sequences,
each of which includes many steps.
For error-free setup, always refer to the
associated section in Chapter "Controller
Configuration" of the User's Guide.
Connections — Connect the mains supply, USB keyboard
1 and Mouse (optional). Connect an Ethernet cable to the Event
Master processor, VP emulator or network switch. Mains
cables are provided for US and European plugs. Network
connector 1 is static IP 192.168.0.180 Network connector 2
is DHCP assigned IP.
Power Up and Status Check — Power up the
2
EC-200 by the power switch close to the power connector.
Unit should begin to power up within 10sec.
Event Master Series Controller Installation: System Connection, startup and shut down
USB
DVI-D
EC-200
Start Up order — The EC-200 has a very uncomplicated start up to the user. The two
3
screens have a Barco Logo that will light up and disapear when the EC-200 activates the
screen controller. Once the EC-200 start, screens will show a brief moment of white text
on black and then show the controller menupage on the left screen and the configuration
page on the right screen.
Startup state of the desk — Once the EC-200 is connected and started it will retrive
4
the configuration of the connected processor. If there is no configuration it will have to
be assigned.
Communications Setup — Connected processors should show up in in the left side of
5
the Configuration menu page. If there is no processor listed the Communication Setup
Tab should be checked for settings.
Tip — If the network switch or other devices are not configured to allow for Auto
Discovery the Manual Connect can be used to add a Procesor.
Shutting down the desk — The EC-200 has no shut down procedure as it is meant to
6
be able to lose power without any problem for the user. Prior to turning off mains power,
it is recommended to press the save icon to save the settings to the video processor and
back up the show settings.
The only thing before simply power off the desk with the power switch is to press the
Save Icon and to make a Back Up of the show.
Barco Technical Support:
USA: +1 (866) 374-7878
EMEA : +32 (56) 36 8019
CHINA : 40088 22726
BARCO
EC-200 Event Controller
DVI-D Screen output 1 and 2
Ethernet Connection 1 and 2
www.barco.com/support/eSupport.aspx
AC 110 – 240V IEC
LEDs
Rear light
The Red backlight on the EC indicates power is on.
This light can be adjusted in the Settings Menu
Scriptlight
Two flexible scriptlight connections and a LED
powered light adapter is supplied. Light can be
adjusted for brightness.
Work Light
White light under the hand rest is for reading show
scripts. This light can be adjusted in the Settings
Menu
Indications
Blue LEDs in Destination
If the Blue LED´s of the Destination buttons chase
back and forth they indicate that the communication
with the host controller is not established. For EC-200
this does not happen unless a failure.
P/N 60600333, Rev 00
Script
Light
Rear
light
