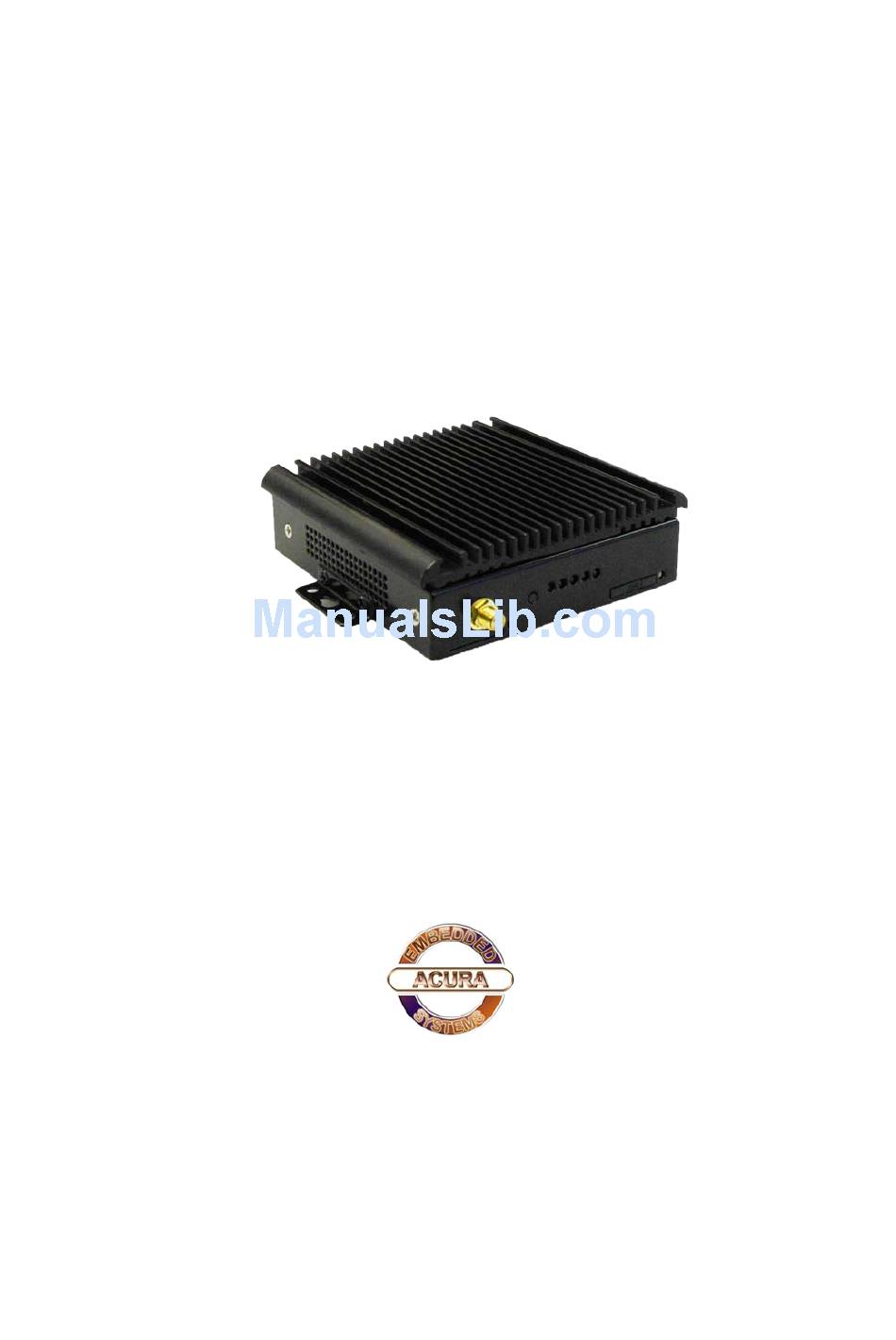

- Page 1 AcuConnect-LTE-V2 VPN Router User Manual Acura Embedded Systems Inc.
-
Page 2: Table Of Contents
Content ..................Chapter 1 Product Specification ......................1.1 Overview ..................... 1.2 Technical Support ...................... 1.3 Specification ..................1.4 I/O Interface and LEDs ....................... 1.5 Dimensions ........................1.6 Note ....................... Chapter 2 Configure ....................... 2.1 Connection .............. 2.1.1 Computer network configuration .................. -
Page 3: Chapter 1 Product Specification
Chapter 1 Product Specification 1.1 Overview ACUCONNECT-LTE router with 4G and WIFI provides users the high speed, always online and transparent data transmission communication network. Its reliable and standard industrial design meet the most of needs of Electronic Power System Automation, Industry Monitoring, Transportation Management, Weather, Environment Protection, Pipe Network Monitoring, Finance and Bond industries. -
Page 4: I/O Interface And Leds
1.4 I/O Interface and LEDs AUX Cell Antenna Reset Button Wi-Fi (LED) VPN (LED) LAN (LED) LTE (LED) POWER (LED) SIM Card Slot MAIN Cell Antenna UART port LAN Port DC IN 8~30 V Wi-Fi Antenna 1.5 Dimensions Dimensions Size (Unit: mm) 1.6 Note Please install the router and SIM card before... -
Page 5: Chapter 2 Configure
Chapter 2 Configure 2.1 Connection 2.1.1 Computer network configuration Find “Local Area Connection”, and choose “Properties” Choose “Internet Protocol”, Choose automatically or input IP manually 2.1.2 Login the router Open the Web browser, and type http://192.168.8.1 into the address field and press Enter. -
Page 6: Configure Parameters
2.2 Configure Parameters 2.2.1 Router webpage 2.2.2 Operation mode NAT: Network Address Translation Note: The default setting is Gateway mode. Bridge: All Ethernet and wireless interfaces are bridged into a single bridge interface. Gateway: The first Ethernet port is treated as WAN port. The other Ethernet ports and the wireless interface are bridged together and are treated as LAN ports. -
Page 7: Lan Settings
2.2.4 LAN settings Setting the LAN parameters, include IP address, sub mask, DHCP, etc LAN2 Default Gateway: Here you can set a different IP, with it you can access the router. 2.2.5 DHCP clients List the Clients which gain IP address from DHCP . -
Page 8: Vpn
2.2.7 VPN 2.2.7.1 IPSEC • IPSec connect name: make sure the name in client and server are same, we suggest to use domain name(111.vpn1.com). if you want to build a point-to-point channel, the IPSec name have to be written as DEV+equipment ID+name(DEV281250D52F2A1452.vpn1.com), and make sure both the client and server are inputting Client equipment ID. - Page 9 • Remote IP address: Fill the IP of the remote router. • Authentication: Commonly, Pre-Shared Key is chosen. And the Client and Server must choose the same key. • Advanced AKE settings: There are some encryption methods in this field. You must use the settings in this field when VPN tunnel needs to be built between client and other brand VPN server.
-
Page 10: Dtu
2.2.7.2 PPTP 2.2.7.3 L2TP 2.2.8 DTU DTU settings. -
Page 11: Snmp
• DTU status: open and close DTU • Baud rate: support 300/1200/4800/9600/19200/38400/57600/115200bps • Link Type: Server link or Client link can be chosen in the DTU configure table. If using it as Server, we suggest you to use fixed IP of the SIM card. •... -
Page 12: Wireless Settings
Master. This switchover occurs in 3 to 10 seconds. • VRRP Active: Check to enable VRRP • VRRP ID: Enter the Group ID for this set of redundant routers. • Priority: (1-255)In a VRRP group, the larger number is Master, the smaller is Slave(backup) •... - Page 13 The basic parameters of Wi-Fi setting. The Radio function enable and disable. The network mode supports 802.11 b/g/n (draft). Support multi-SSID up to 8. 2.2.11.2 Wireless Security/Encryption Settings The SSID select from multi-SSID setting. • Security mode include: disable, open, share, wep auto, WPA, wpa-psk, wpa2, wpa2-psk, wpa- psk/wpa2-psk, wpa/wpa2, 802.1X.
-
Page 14: Firewall
2.2.12 Firewall 2.2.12.1 MAC/IP/Port Filter Settings This section is mainly about MAC/IP/Port filter settings • Basic Settings: Open the filter setting and set the filtering principle. • MAC address: Fill the MAC address which needs to filter. • Destination IP: IP of the target computer( the computer which data packet will be sent to) •... -
Page 15: Administration
port. Computers and routers use ports as a way to organize network data. Different types of data, such as web sites, file downloads, and online games, are each assigned a port number. By using port forwarding, the router or firewall sends the correct data to the correct place. •... - Page 16 2.2.13.1 Management • Select Language • Administrator Settings. The default both are admin. • Web Port, default Port is 80, Support 1~65535. • NTP Settings DDNS: support Dyndns.org/freedns.afraid.org/www.zoneedit.com/www.no-ip.com 2.2.13.2 Reboot settings ICMP This function will detect the status of 3G by ping and complete the corresponding actions according to the ping result.
-
Page 17: Software Upgrade
• Check Count: when ping detection arrives to default time, but still cannot access, then the router will reboot. • Reboot Count before Sleep: when continuous reboot times arrive to default value, the router will enter sleeping mode. This setting is to prevent the router to reboot continuously when cannot ping access caused by service IP’s error. -
Page 18: Chapter 3 Faq
2.2.13.5 Flow Statistics Display the statistics information of system flow. 2.2.13.6 System log From the system log you can read the various situations after the system starts. Chapter 3 FAQ • SIM Card Status shows “Not Ready” It means the SIM card is not found, you can take SIM card out, and insert it again. - Page 19 1) Check RJ45 cable, make sure it is correctly connected. 2) Make sure the PC and router are in same network segment. 3) Disable the PC network card, and re-enable it. 4) Reset the router. Press Reset button for several seconds, it will load to factory settings.
- Page 20 With the unique set of products, Acura Embedded Systems remains committed to its goal of providing trouble-free and customer-friendly service. A special customer service unit has been set up specifically to cater to our esteemed customers' needs. Technical Support: North American Technical support contact your...
