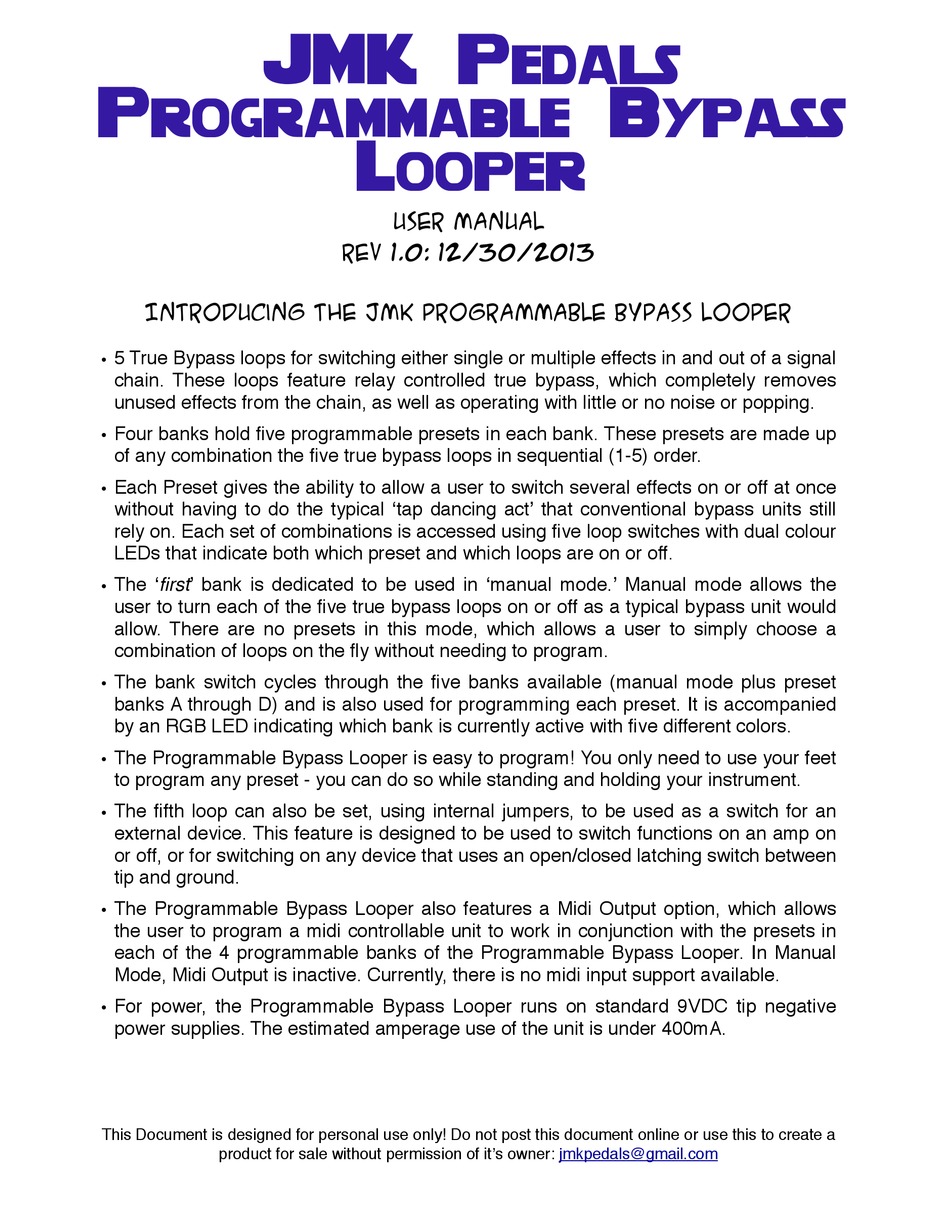

Introducing the JMK Programmable Bypass Looper

• 5 True Bypass loops for switching either single or multiple effects in and out of a signal

chain. These loops feature relay controlled true bypass, which completely removes

unused effects from the chain, as well as operating with little or no noise or popping.

• Four banks hold ﬁve programmable presets in each bank. These presets are made up

of any combination the ﬁve true bypass loops in sequential (1-5) order.

• Each Preset gives the ability to allow a user to switch several effects on or off at once

without having to do the typical ʻtap dancing actʼ that conventional bypass units still

rely on. Each set of combinations is accessed using ﬁve loop switches with dual colour

LEDs that indicate both which preset and which loops are on or off.

• The ʻﬁrstʼ bank is dedicated to be used in ʻmanual mode.ʼ Manual mode allows the

user to turn each of the ﬁve true bypass loops on or off as a typical bypass unit would

allow. There are no presets in this mode, which allows a user to simply choose a

combination of loops on the ﬂy without needing to program.

• The bank switch cycles through the ﬁve banks available (manual mode plus preset

banks A through D) and is also used for programming each preset. It is accompanied

by an RGB LED indicating which bank is currently active with ﬁve different colors.

• The Programmable Bypass Looper is easy to program! You only need to use your feet

to program any preset - you can do so while standing and holding your instrument.

• The ﬁfth loop can also be set, using internal jumpers, to be used as a switch for an

external device. This feature is designed to be used to switch functions on an amp on

or off, or for switching on any device that uses an open/closed latching switch between

tip and ground.

• The Programmable Bypass Looper also features a Midi Output option, which allows

the user to program a midi controllable unit to work in conjunction with the presets in

each of the 4 programmable banks of the Programmable Bypass Looper. In Manual

Mode, Midi Output is inactive. Currently, there is no midi input support available.

• For power, the Programmable Bypass Looper runs on standard 9VDC tip negative

power supplies. The estimated amperage use of the unit is under 400mA.

This Document is designed for personal use only! Do not post this document online or use this to create a

product for sale without permission of itʼs owner:

Looper

User Manual

Rev 1.0: 12/30/2013
