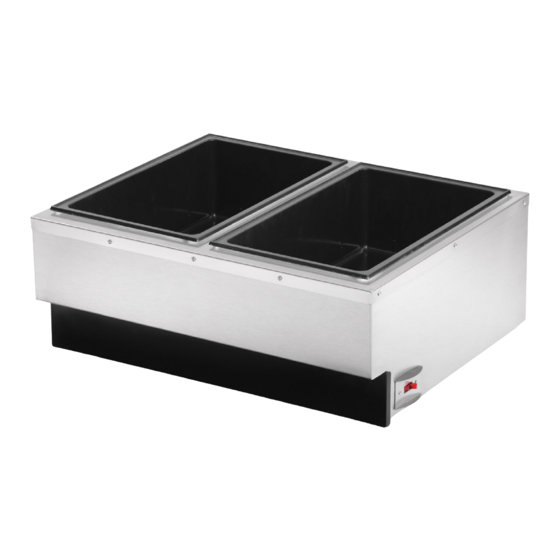

Vollrath Cayenne 72789 Operator's Manual

Full-size and dual warmer
Hide thumbs

Advertisement

Quick Links

Download this manual
ENGLISH
Operator's Manual
CAYENNE
FULL-SIZE AND DUAL WARMER
®
Item
Description
Voltage
Watts/Amps
Plug
72789
Dual Warmer
120
1400 (11.6 Amps)
5-15P
Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this
packaging to ship the equipment if repairs are needed.
Doc. No. 2350080-1 en Rev. 10/10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cayenne 72789 and is the answer not in the manual?

Questions and answers

Related Manuals for Vollrath Cayenne 72789

Summary of Contents for Vollrath Cayenne 72789

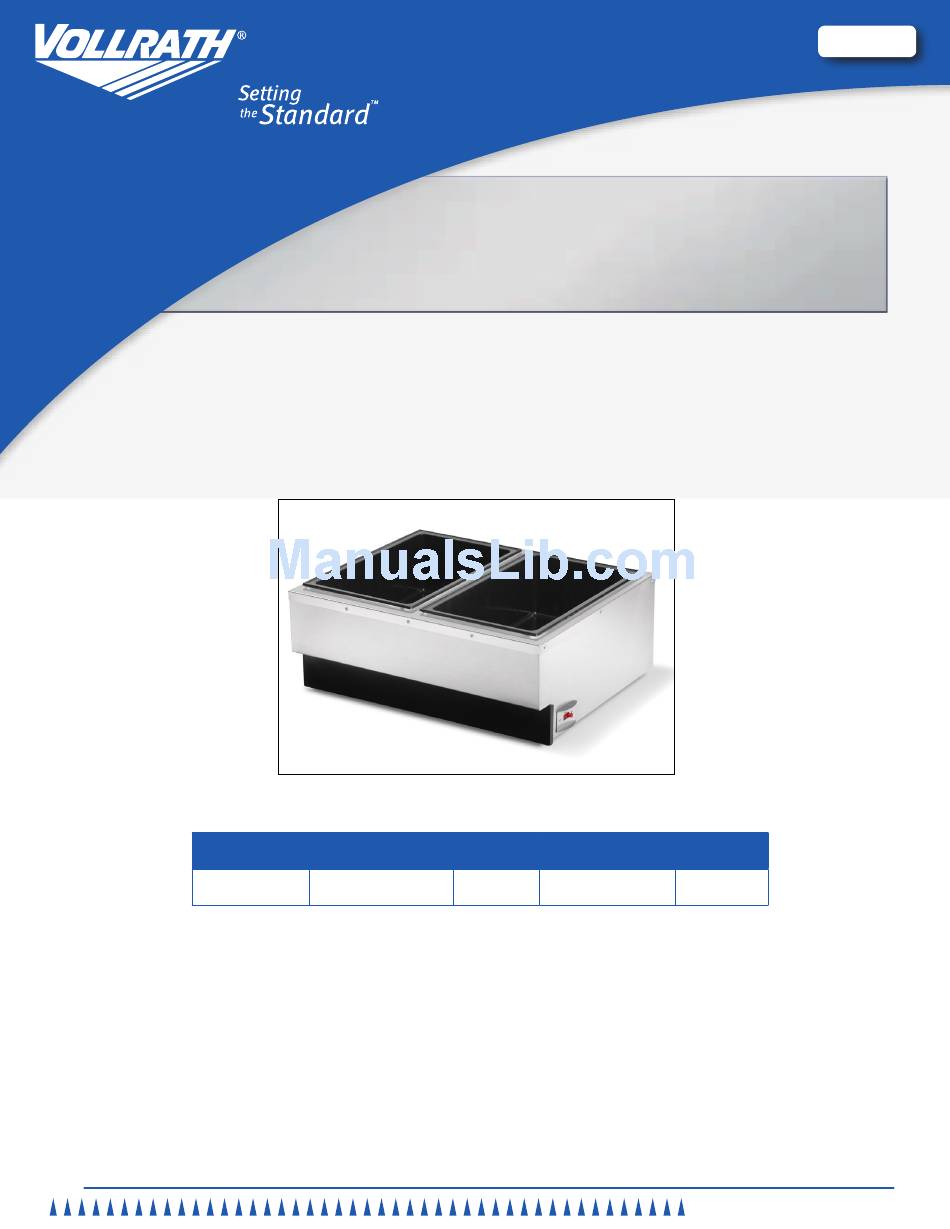

  • Page 1 1400 (11.6 Amps) 5-15P Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed.

  • Page 2: Safety Precautions

    ountertop arming and isplay afety recaUtionS npacking the qUipment and nitial etUp When no longer needed, dispose of all packaging and materials in an To ensure safe operation, read the following statements and environmentally responsible manner. understand their meaning. Please read carefully. 1.

  • Page 3: During Operation

    ountertop arming and isplay eatUreS and ontrolS peration WARNING Electrical Shock Hazard. Keep water and other liquids from entering the inside of the unit. Liquid inside the unit could cause an electrical shock. Do not damaged power cord. Do not over fill wells, pans or trays. Liquid could contact the electrical components and cause a short circuit or an electrical shock.
  • Page 4 There are no user serviceable parts within this appliance. To avoid serious injury or damage, never attempt to repair the equipment or replace a damaged power cord yourself. Do not send equipment directly to the Vollrath Company. Please contact the qualified professional repair service listed below.
  • Page 5 ountertop arming and isplay electrical drawing lement and witch armer Callout Description 120V Control Thermostat Heating Element, 120V ~ 700 Watt High Limit Switch Low Water Sensor Switch Light, Low Water Warning, 120V electrical drawing - c ~ 72789 ayenne armer onnection ox and...

  • Page 6: Spare Parts List

    ountertop arming and isplay Spare partS liSt - for the armer Part Part Callout Description Callout Description Number Number 44455 Pane, Control 17023 Cord 6ft, 120V, 10A, 5-15p 17012 Knob, Control 17024 Strain Relief 17074 Thermostat, Short Capillary 17650 Decal, Hand Tighten 1755901 Pilot light, Blue, 120V 17950...
  • Page 7 ountertop arming and isplay Spare partS liSt - for the armer Part Part Callout Description Callout Description Number Number 43385 26952 Bushing, Snap 43386 Drop in Well, Complete Assembly 43393 Support, Right 23091 Pop Rivet 23475 Tricnut, 1/4”-20 UNC 21826 Pop Rivet 43394 Support, Left...
  • Page 8 ountertop arming and isplay Spare partS liSt - o ptional erchandiSer omponentS Part Callout Description Number 22963 Plug, 1" square, Plastic,Qty 4 43395 Leg, Canopy, Qty 2 43398 Menu Board Assembly 43397 Canopy Assembly #10 Flat Washers, Qty. 4 #10-24 Hex Nuts, Qty. 8 #1/4”...
  • Page 9 ountertop arming and isplay oteS ’ peratOr anual...
  • Page 10 MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE As The Vollrath Company LLC’s only responsibility and the purchaser’s only remedy, for any breach of warranty, The Vollrath Company LLC will repair or, at its option, replace the defective product or part without charge, except as otherwise provided below: •...

  • Page 11: Warranty Registration

    ONLINE: Register your warranty on-line now at www.Vollrathco.com NO WEB ACCESS: If you do not have access to the web, kindly register by completing the warranty registration form and faxing it to The Vollrath Co. LLC office in the country of purchase.
  • Page 12 The Vollrath Company, L.L.C. Technical Services: 800.628.0832 1236 North 18th Street Service Fax: 920.459.5462 Sheboygan, WI 53081-3201 U.S.A. Canada Service: 800.695.8560 www.vollrathco.com Main Tel: 800.628.0830 Fax: 800.752.5620 © 2010 The Vollrath Company, L.L.C.
