for use with Horizon Elite 1010,1410, 1810 and 2110 Ice Machines
Order parts online
www.follettice.com
(1) Horizon Elite
Chewblet
(purchased separately)
Following installation, please forward this manual
Ice Manager
™
Ice Machine
®
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

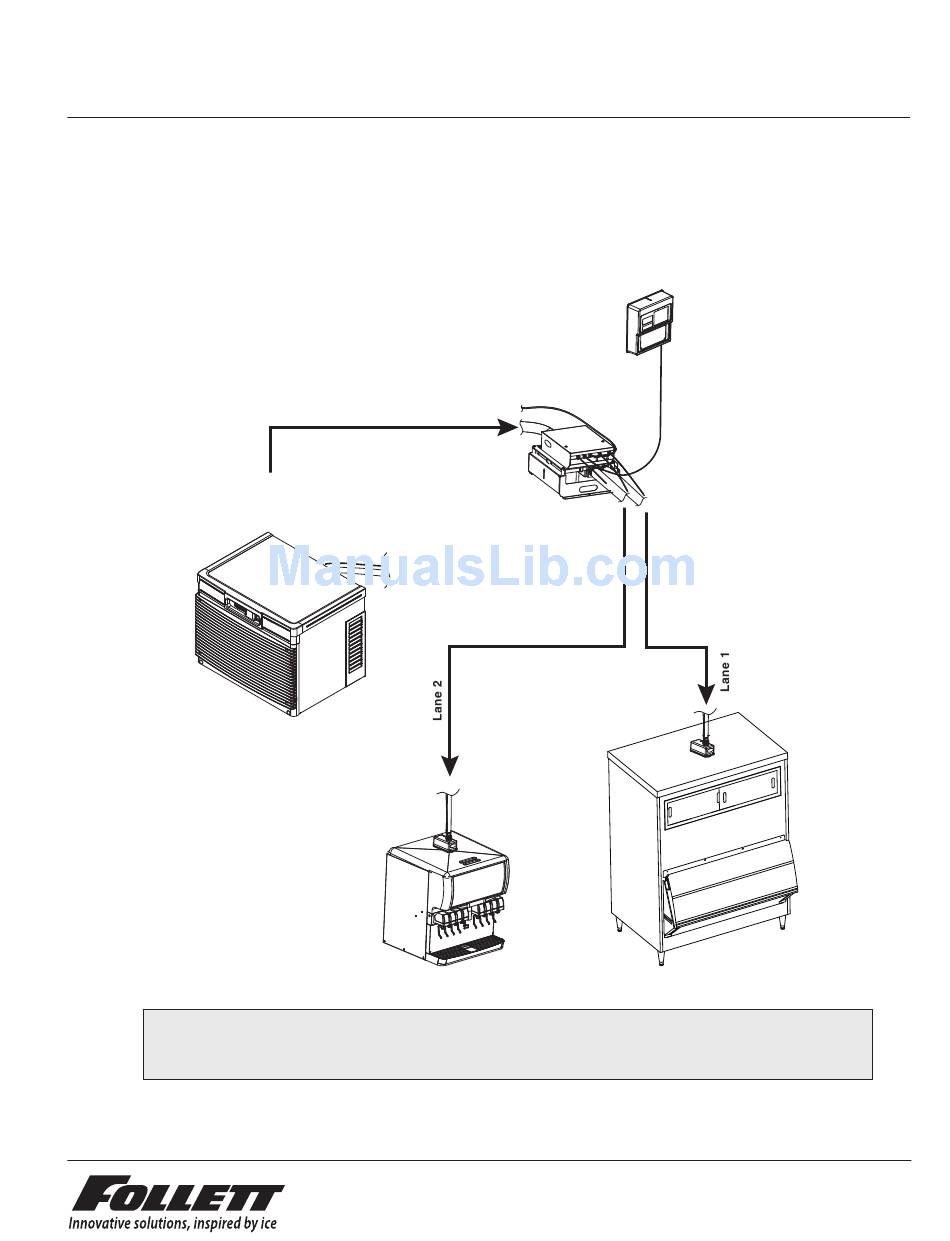

Diverter Valve System
™
Operation and Service Manual
Ice Manager
Control Panel
Ice Manager
Diverter Valve
(2) ice storage units
(purchased separately)
Any combination of bins or dispensers
01096148R01
Advertisement
Table of Contents
Related Manuals for Follett Ice Manager
Summary of Contents for Follett Ice Manager
- Page 1 Ice Manager Diverter Valve System ™ for use with Horizon Elite 1010,1410, 1810 and 2110 Ice Machines Order parts online Operation and Service Manual www.follettice.com Ice Manager Control Panel Ice Manager Diverter Valve (1) Horizon Elite ™ Chewblet Ice Machine ®...
- Page 2 P Cornelius Profile (482 kg) 208-230/60/3. HM Horizon PR150 1410 up to Micro Chewblet 1466 lbs (665 kg) 1810 up to 1790 lbs (812 kg) 2110 up to 2039 lbs (925 kg) Ice Manager Diverter Valve System Operation and Service Manual...
-
Page 3: Table Of Contents
Ice Manager diverter valve wiring diagram ........ -
Page 4: Welcome To Follett
Before you begin After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary. -
Page 5: Specifications
Drain line – 15' (4.6m) 3/8" nylon tubing, supplied Temperature requirements Ice Manager components, including ice transport tube, must be operated in ambient temperatures between 40 F and 120 F (5 C and 49 C). Relative humidity not to exceed 55%. -
Page 6: Operation
LED screen will still flash, but the alarm will not (2) ice storage units resume. (purchased separately) See troubleshooting guide on page 26 for causes. Any combination of bins or dispensers Ice Manager Diverter Valve System Operation and Service Manual... -
Page 7: Cleaning And Preventive Maintenance
Periodic cleaning of Follett’s Ice Manager diverter valve system is required to ensure peak performance and delivery of clean, sanitary ice. Cleaning of the Ice Manager system, in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent. Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed every 6 months or more often if conditions dictate. - Page 8 Note: Do not use bleach to sanitize or clean the icemaker. Fig. 3 5. Replace cover on cleaner cup. Machine will clean, then flush 3 times in approximately 15 minutes. Wait until machine restarts. Fig. 4 6. Press power switch OFF. Ice Manager Diverter Valve System Operation and Service Manual...
- Page 9 Fig. 6 8. To sanitize Lanes 1 and 2, diverter valve must be in manual mode. Press the MODE SELECT button on the Ice Manager control panel. Manual light will come Mode on. If auto light comes on, press MODE SELECT select button again.
- Page 10 Fig. 10 13. Re-wet brush with sanitizer and scrub diverter valve inlet for at least 60 s, re-wetting the brush with sanitizer as needed. Ice Manager Diverter Valve System Operation and Service Manual...
- Page 11 60 seconds, re-wetting the brush with sanitizer as needed. Note: Inlet must be scrubbed with both Lane 1 and Lane 2 settings to be sure each lane is cleaned and sanitized. Ice Manager Diverter Valve System Operation and Service Manual...
- Page 12 18. Re-connect ice transport tube to Lane 1 (Fig. 15.1), Lane 2, (Fig. 15.2) and inlet (Fig. 15.3). Fig. 16 19. To sanitize Lane 1 ice transport tube – Press ice machine power switch OFF. Ice Manager Diverter Valve System Operation and Service Manual...
- Page 13 Fig. 17 20. Verify that Ice Manager is in manual mode. Manual light should be on. If auto light is on, press MODE SELECT button to switch to manual mode. Mode select Icemaker Auto Manual Fig. 18 21. Press LANE 1 button. Lane 1 light will come on.
- Page 14 25. Push both Sani-Sponges down ice transport tube with supplied pusher tube. Fig. 21 26. Remove 16” (407 mm) pusher tube. Fig. 22 27. Reconnect coupling. Press ice machine power switch ON. Ice pushes Sani-Sponges through tube. Ice Manager Diverter Valve System Operation and Service Manual...
- Page 15 29. To sanitize Lane 2 ice transport tube – Press ice machine power switch OFF. Fig. 25 30. Verify that Ice Manager is in manual mode. Manual light should be on. If auto light is on, press MODE SELECT button to switch to manual mode.
- Page 16 33. Using disposable food service grade gloves, insert dry Sani-Sponge. 34. Insert Sani-Sponge soaked in SafeClean Plus (from Step 4). 35. Push both Sani-Sponges down ice transport tube with supplied pusher tube. Ice Manager Diverter Valve System Operation and Service Manual...
- Page 17 Sani-Sponges and ice for 10 minutes. Collect 5.5 lbs (3 kg) of ice from unit. Discard ice and Sani-Sponges. Fig. 32 39. Press MODE SELECT button on Ice Manager control Mode panel to switch to auto mode. Auto light will come on. select...
-
Page 18: Service
• Ice level sensor / ice distribution module for lane 2 System operation The Ice Manager diverter valve system is designed to control the feeding of ice from one Horizon ice machine to two ice storage units. There are different ice level set-points for ice storage units. -
Page 19: Diverter Valve Module
Divert paddle (Fig. 38) Located inside of the body of the diverter valve module, the divert paddle is driven by the gearmotor and switches ice flow from one internal channel to another. Ice Manager Diverter Valve System Operation and Service Manual... -
Page 20: Ice Manager Diverter Valve Wiring Diagram
Ice Manager diverter valve wiring diagram Ice Manager Diverter Valve System Operation and Service Manual... -
Page 21: Control Panel
Placing the system in MANUAL MODE will also prevent the alarm from sounding. The error message on the LCD screen will still flash, but the alarm will not resume. See troubleshooting guide for causes. Ice Manager Diverter Valve System Operation and Service Manual... -
Page 22: Ultrasonic Sensor
The ultrasonic sensor measures ice level in each ice storage unit. The sensor outputs an analog voltage between 0.5vdc and 4.5vdc corresponding the ice black level distance from the face of the sensor. yellow Ice Manager Diverter Valve System Operation and Service Manual... -
Page 23: Ice Level Set Points
Dif: 3.0" 3" To view ice levels Fig. 45 1. Locate LED screen on Ice Manager control panel. Initial screen Mode Lane 2 Setup: Lane 1 will show ice levels for lane 1 and lane 2 and diverter valve select Full: 10.0"... -
Page 24: Troubleshooting
2 to free divert paddle jamming inside the diverter valve • Mechanical linkage between the • Check the linkage between the gearmotor and divert paddle is gearmotor and divert paddle disconnected Ice Manager Diverter Valve System Operation and Service Manual... -
Page 25: Ice Shortage Without Audible Alarm
• Check ice level set-points. Be sure they match factory settings or drop-in requirements shown in the Ice level set point section of this manual on page 24 Ice Manager Diverter Valve System Operation and Service Manual... -
Page 26: Service Parts
Grommet 205577A Main control board 00173955 Switch, magnetic (1) 00168096 Not shown O-ring, ice tube 00144675 Not shown Power cord 00153130 Not shown Elbow, drain 00159178 Not shown Hose, drain 206429 Ice Manager Diverter Valve System Operation and Service Manual... -
Page 27: Control Panel
Control panel Order parts online www.follettice.com Reference # Description Part # Control module (includes gray control cable) 00159350 Membrane switch 00172627 Control panel board 00172684 Control panel cover 00175133 Ice Manager Diverter Valve System Operation and Service Manual... -
Page 28: Sensor Distribution Unit
Nut, wing and rod 00182469 Distribution unit 00146803 Nut, hex stainless steel 1/4-20 200864 Carriage screw, 1/4-20 2/5” long 00134312 Sensor, ultrasonic 00175174 Insert 00146738 Thumb screw 00150755 Sensor distribution assembly 00149377 Ice Manager Diverter Valve System Operation and Service Manual... -
Page 29: Follett Vision™ Vu155 Ice Manager Kit
Lid, rear, 155 sensor 00182568 Vision sensor cable 00167098 Polywire tube, insulated see page 35 Clamp, hose 500378 00145342 Coupling (includes 00145300) 00175141 O-ring 00145300 Bulkhead fitting 00155747 Nut, bulkhead fitting 00155788 Ice Manager Diverter Valve System Operation and Service Manual... -
Page 30: Follett Vision™ Vu300 Ice Manager Kit
Order parts online www.follettice.com Reference # Description Part # Sensor, ultrasonic, service 00175174 Tube, sensor mount 00164152 Locking ring, coupling 00164632 Gasket, coupling 00126532 Coupling, sensor mount 00164145 Bracket, ice tube 00175208 Ice Manager Diverter Valve System Operation and Service Manual... -
Page 31: Cables
00174896 Not shown Shuttle assy., heavy spring 00185140 * All ice transport tube includes insulation, shipped loose. Ice Machine Retrofit Kits Reference # Description Part # Not shown HCD/HCC 1010/1410 01116177 Ice Manager Diverter Valve System Operation and Service Manual... - Page 32 Ice Manager Diverter Valve System Operation and Service Manual...
- Page 33 Ice Manager Diverter Valve System Operation and Service Manual...
- Page 34 Ice Manager Diverter Valve System Operation and Service Manual...
- Page 35 Ice Manager Diverter Valve System Operation and Service Manual...
- Page 36 Horizon, Ice Manager, SafeCLEAN, Sani-Sponge, RIDE and Vision are trademarks of Follett LLC. Follett and Chewblet are registered trademarks of Follett LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA 01096148R01 Toll free (877) 612-5086 • +1 (610) 252-7301 ©...
