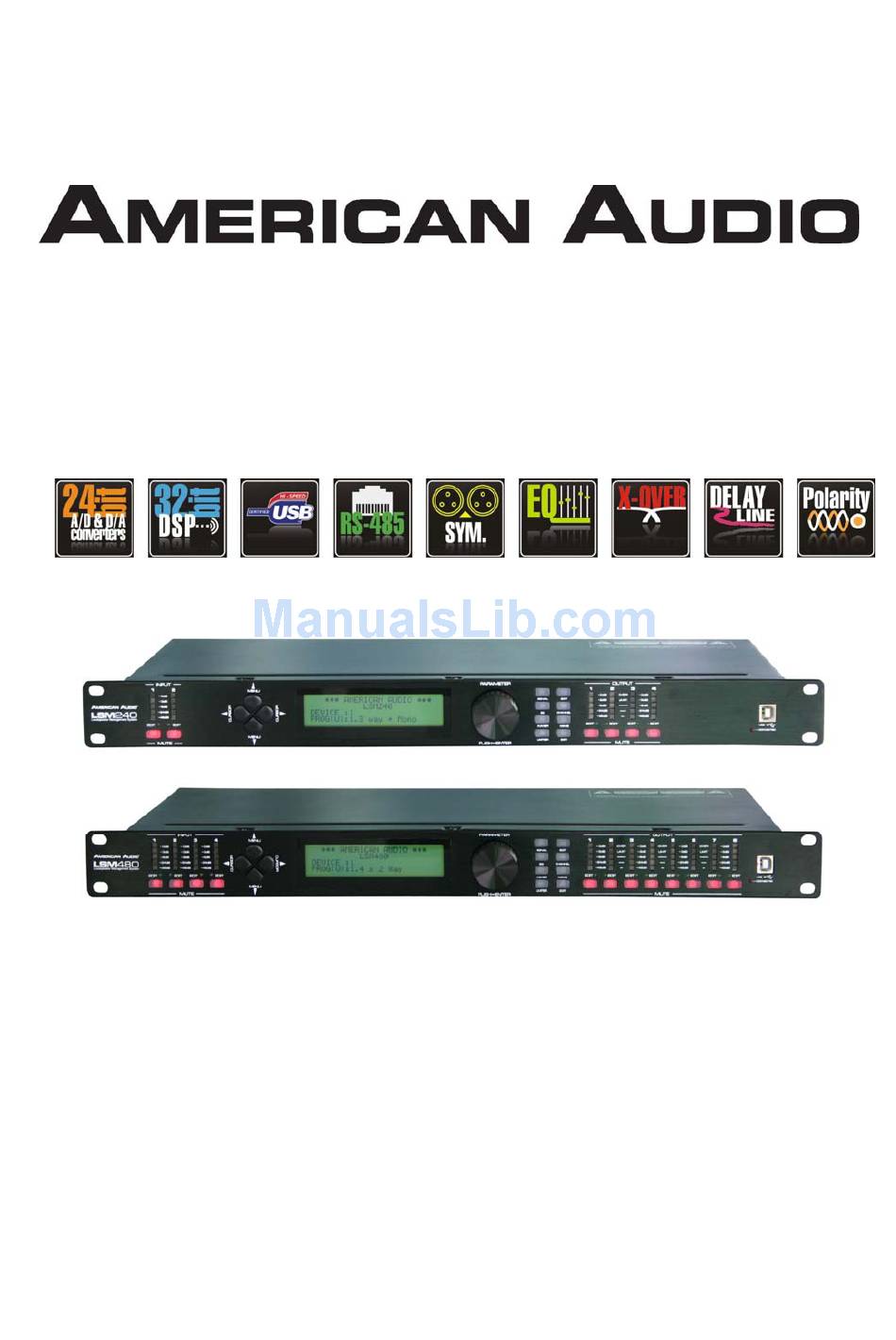

- Page 1 LSM240 LSM480 Featuring: Digital loudspeaker management system Quick Start and Reference Guide 8/09 American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page © ®...
-
Page 2: Loading The Software
USB driver (CP210x USB to UART to Controller - USB\CP210x_VCP_Win2K_XP_S2K3.exe) FOLLOW THE STEPS BELOW 1. Open the USB driver folder and click on CP210x_VCP_Win2K_XP_S2K3.exe. Follow the Silicon CP210x prompt wizard. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page © ®... - Page 3 Click on the “+” sign and listed should be “CP210x USB to UART to Controller”, followed by the assigned COM Port number. In this case it was COM5. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
- Page 4 CP210x, and select update driver software and browse to driver containing folder by default is under c:\ ( or d:\ depending where you extract to) Silabs\MCU\CP210x\Windows_2KXP_S2K3 and click OK to install the driver again. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
- Page 5 6. When the LSM control software is open it should look like the following 7. Click on the LSM240 or LSM480 or click on the menu bar, Device, and choose either LSM240 or LSM480 to access the main control GUI.
- Page 6 Once the correct COM Port and Device ID are selected , click OK and Connecting menu will pop up and communication between software and controller are built successfully. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
- Page 7 2. Program – user can store up to 30 programs to and from PC and controller User Program – user can store to PC or recall own program to and from controller (1-20 prog.) Factory Program – extra user space (21-30 prog.) American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
- Page 8 5. Copy – copy channel’s setting from one channel to the others 6. All Program – Download stored programs from PC to controller. Or upload programs from controller and store in PC. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
- Page 9 Programs are download successfully. Click on Upload button, data is uploading to PC. Choose a file name and location where you want to save and click save American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
- Page 10 NOTE: the default password is 1 and universal password for the controller or control software is 666666. You can change your password by click on Modify_PassWord. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page © ®...
- Page 11 8. Data Display – display or print the complete setup parameters or configurations. 9. Device – display the system information: such as product name, product type, production date, version etc. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
-
Page 12: Input Channel
Normal or Mute input channel Input gain control. You can click on the Group1 buttons to synchronize the level setting Polarity setting + or – Delay American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page © ®... - Page 13 Pointing the mouse above the graphical display curve of EQ1, 2, 3, 4, 5, 6 like , you can drag your mouse to make changes. The changes will effect instantly to the controller or Input Equalizer menu. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
-
Page 14: Output Channel
OUTPUT CHANNEL - Mixer - Output Gain Setup the linkage for different Output channels for synchronize level adjusting. American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page © ®... - Page 15 - Output Delay -Output Equalizer American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page © ®...
- Page 16 - Crossover setup for Output channels. You can adjust the crossover point by dragging the mouse on the main graphical display Dragging the mouse on to adjust the desire crossover point American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page © ®...
- Page 17 - Output Limiter, to set up the Threshold, Attack and Release time for output channel Normal or Mute output channel LMS480 GUI control software Control software GUI is basically the same as LSM240, just with more input and output channels American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
- Page 18 Then we can open multiple GUI to control multiple controllers. Note: do not forget to assign different Device IDs for each controller. Specification changes without further notices American Audio - www.AmericanAudio.eu - LSM Quick Start and Reference Guide Page ©...
