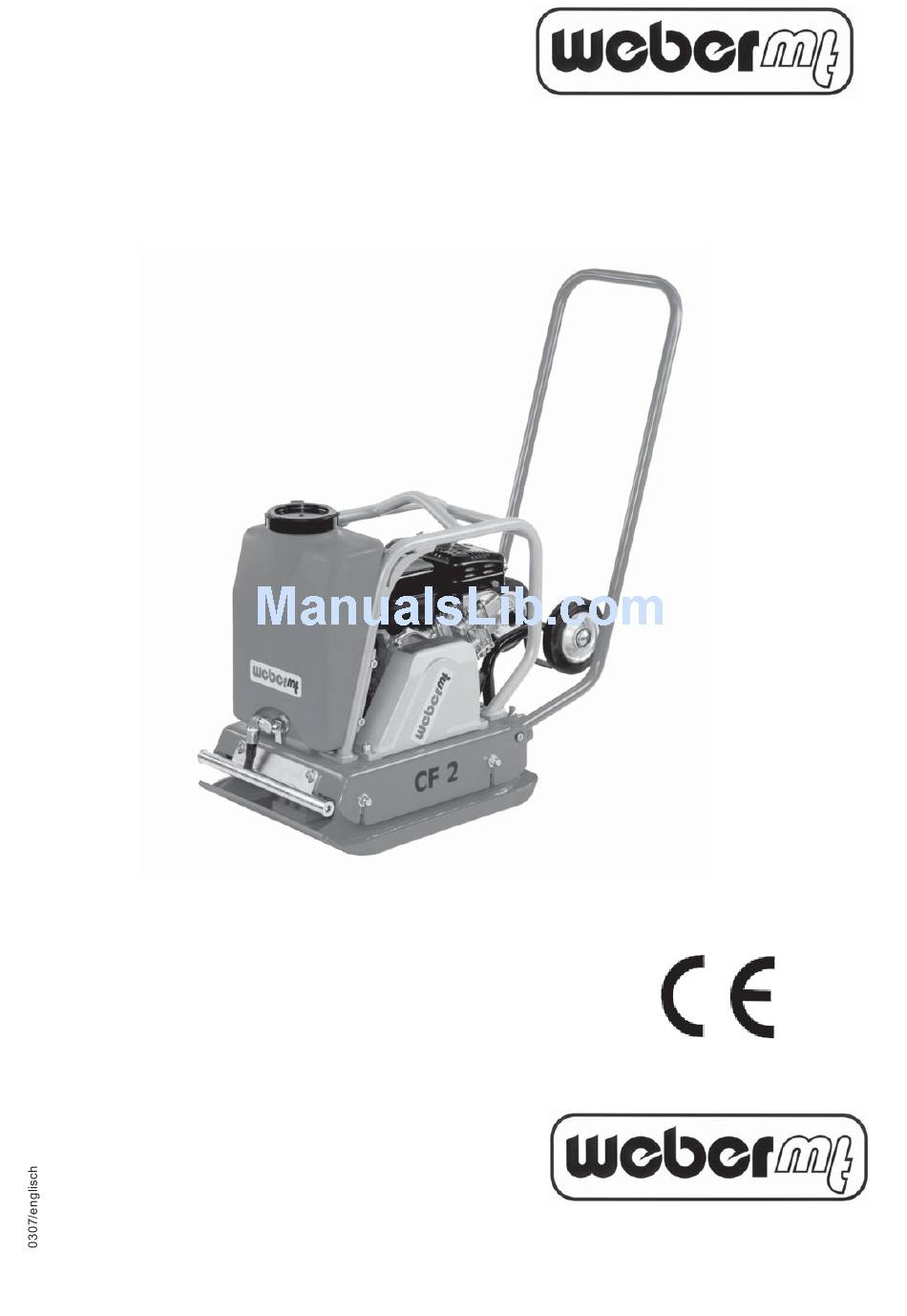

Page 1: Maintenance Instructions
OPERATING AND MAINTENANCE INSTRUCTIONS CF 2 Robin EX17D Weber Maschinentechnik GmbH P. O. Box 21 53, D-57329 Bad Laasphe-Rückershausen Honda GX160 Phone ++27 54 / 398-0 Telefax (++ 27 54) 3 98-101 (Reception) & 3 98-102 (Spare Parts) - Page 2 CF-2...
-
Page 3: Preface
Preface These operating and maintenance instructions describe the safe operation of the CF-2 soil compactors. Please read this operation manual and familiarize yourself with all details of your compactor before operating the machine for the first time. Carefully follow all instructions and always carry out the described operations in the indicated order. -
Page 4: General Safety Instructions
General Safety Instructions General All safety notes (see also explanations of the pictogram meanings in the preface) must be read and observed (any lack of clarity must be dispelled before the compactor is put into operation), because otherwise the use of the machine may * constitute a risk to life and limb of the user * impair the soil compactor and other valuable property. -
Page 5: Table Of Contents
Table of Contents Paragr. Title ............Page Paragr. Title Page Preface........3.3.3 Cleaning/Replacing the Fuel General Safety Instructions ..Filter ............ 26 3.3.3.1 CF-2 Robin Table of Contents ..... 3.3.4 Checking the Condition and Tension Technical Description ....of the Vibrator V-Belt ......27 3.3.5 Replacing the V-Belt ...... -
Page 6: Technical Description

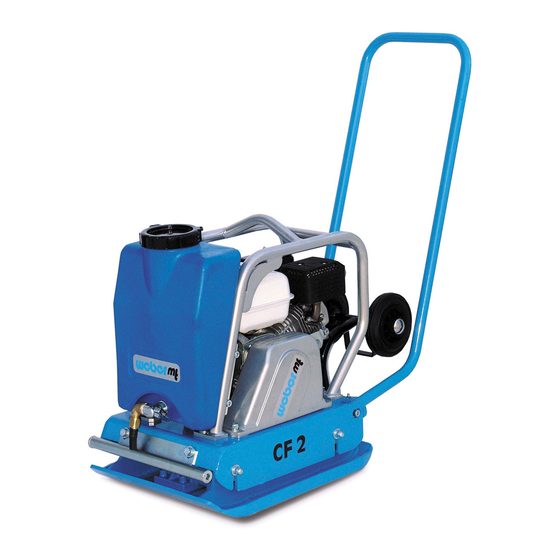

1. Technical Description 1.1 Illustration Figure 1 Overall View CF 2 1 Water tank (option) Base plate 2 Fuel tank V-belt guard 3 Handle Water sprinkler system (option) 4 Undercarriage (option)(not shown) Engine 5 Engine bracket Vukollan plate (option) (not shown) -
Page 7: Machine Description
1.2 Machine Description The CF 2 soil compactors are machines of the walk-behind type used for compaction in road and trench construction. Propulsion The CF-2 is driven by a Robin gasoline engine (1/9) or a Honda gasoline engine. Important! Please refer to paragraph 1.3 (Specifications) for performance details of the engine and the whole machine. -
Page 8: Specifications
1.3 Specifications CF 2 Robin CF 2 Honda Weight Operating weight CECE in kg Dimensions Overall length (in mm) 1030 1030 Overall width (in mm) Height with handle folded down (in mm) Base plate length, contact area (in mm) Transport dimensions LxWxH (in mm) - Page 9 CF 2 Robin CF 2 Honda Noise and Vibration Data Sound pressure level LPA (at the operator's place, acc. to 2000/14/EG, in dB(A)) Sound power level (acc. to 2000/14/EG, in dB(A)) Hand/arm vibration (Weighted root mean square acceleration at the handle, determined acc.
-
Page 10: Operation
Operation 2.1 Safety Precautions for the Operation Safety and Protective Devices Before every shift, the operator must check the operativeness of all controls and safety elements as well as the proper installation of all protective devices. The compactor is only allowed to be operated with all protective devices in place. -
Page 11: Transport
2.2 Transport Short distances on the job site can be covered by the compactor under its own power in accordance with paragraph 2.6. For transporting the compactor over long distances, however, the machine can be transported by means of a special undercarriage (refer to paragraph 2.4.4). -
Page 12: Checking The Fuel Level
2.4.1 Checking the Fuel Level - Put the soil compactor out of operation as described in paragraph 2.7. - Clean the area around the filler neck. - Undo the tank cap (4/1) to open the fuel tank (4/2). Caution! Only fill the tank up with clean regular gasoline. Refer to paragraph 3.4 for quantities and specifications. -
Page 13: Fitting The Damper Plate
2.4.3 Fitting the Damper Plate - Put the soil compactor out of operation as described in paragraph 2.7. - The spring bar (8/2) must be engaged. Warning! If the spring bar is not engaged, the soil compactor cannot be held in tilted position. - Push the handle (8/1) down to lift the front part of the soil compactor. -
Page 14: Fitting The Water Sprinkler System
2.4.5 Fitting the Water Sprinkler System - Fasten the sprinkler tube (12/1) with the two screws (12/2) at the front. - Tighten the two screws (13/2) to fit the water tank (13/1) to the protection frame. - When the stop valve (13/3) is opened, water is sprayed in front of the machine's base plate (12/1). -
Page 15: Starting The Engine
2.5 Starting the Engine Danger! Before starting the machine, always ensure that nobody is in the danger area of the Stop compactor and that all protective devices are properly in place. When starting the compactor in closed premises, always ensure a proper ventilation - Danger of poisoning! Start Caution! -
Page 16: Starting The Honda Engine
2.5.2 Starting the Honda Engine - Put the stop switch (19/1) to START. Stop - Push the gasoline cock (20/1) to position "ON" - Push the gas lever (20/2) approx. 1/3 to the left side. - In case of a cold engine and/or low ambient temperatures, Start fully close the choke (20/3) (choke to the left side). -
Page 17: Compaction Work
2.6 Compaction Work - Start the soil compactor (refer to paragraph 2.5). When the engine has warmed up: - Push the engine speed adjusting lever (16/1) to the right side on the Robin engine and fully to the left side to full speed position (20/2) on the Honda engine. -
Page 18: Putting The Compactor Out Of Operation
2.7 Putting the Compactor out of Operation Before work breaks and at the end of every day's shift, the compactor must be parked on a stable base which should be as horizontal as possible. Warning! If the compactor causes an obstruction when being parked, precautionary measures must be taken in order to make the machine visible. -
Page 19: Stopping The Honda Engine
2.7.2 Stopping the Honda Engine - Push the gas lever (28/1) to the right side and let the engine idle for some minutes. - Push the gasoline cock (29/1) to the left side to the "OFF" position. - Turn the stop cock (30/1) into the direction of "STOP". -
Page 20: Maintenance
Maintenance 3.1 Safety Precautions for Maintenance Work Checks Depending upon the operating conditions, soil compactors must be made subject to an expert's check for operational safety when required, but at least once a year. The inspection results must be recorded in writing and kept at least until the next inspection. -
Page 21: Maintenance Survey
3.2 Maintenance Survey Any maintenance work which must be performed on the compactor is listed in two charts. The first chart (paragraph 3.2.1) indicates the initial maintenance work which has to be carried out once at a certain time after commissioning. The routine maintenance work indicated in the second chart (paragraph 3.2.2) has to be repeated at regular intervals. -
Page 22: Routine Maintenance
3.2.2 Routine Maintenance Maintenance Maintenance Maintenance Work Remarks/ Interval Item Notes Check for visible damage, Every 8 operating hours Whole machine leaks etc. Clean and check the air filter Air filter element for damage, replace it # 3.3.2 if required Engine - Check the engine oil level # 2.4.2... -
Page 23: Description Of The Maintenance Work
3.3 Description of the Maintenance Work 3.3.1 Changing/Adding Engine Oil - Put the soil compactor out of operation as described in paragraph 2.7. Caution! Drain off the engine oil at operating tempertature and with the soil compactor standing horizontally on the ground only. - Put a drain pan under the outlet. -
Page 24: Cleaning/Replacing The Air Filter Cartridge
3.3.2 Cleaning/Replacing the Air Filter Cartridge 3.3.2.1 CF 2 Robin Remove the wing nut (32/1) and the air filter cover (32/2). Pull out the air filter element (33/2) and the pre-cleaner (33/3). Wash the pre-cleaner (33/3) in benzine and let it dry. -
Page 25: Honda
3.3.2.2 CF-2 Honda - Remove the wing nut (34/2) and the air filter cover (34/1). - Pull out the air filter element (35/1) and remove the foam pre-cleaner (35/ - Wash out the foam pre-cleaner (35/2) in benzine and let it dry. Environment Hazard! Dispose of the washing solution in an environmentally-friendly manner... -
Page 26: Cleaning/Replacing The Fuel Filter
3.3.3 Cleaning/Replacing the Fuel Filter - Put the soil compactor out of operation as described in paragraph 2.7. 3.3.3.1 CF 2 Robin - Take the cover off the tank (37/2). - Take the strainer (37/1) out of the tank (37/2) and clean it. -
Page 27: Checking The Condition And Tension Of The Vibrator V-Belt
3.3.4 Checking the Condition and Tension of the Vibrator V-Belt - Put the soil compactor out of operation as described in paragraph 2.7. - Remove the V-belt guard (39/1) by undoing the screws (39/2). - Check the condition of the V-belt (40/1) (cracks, broken out flanks, wear). -
Page 28: Changing The Vibrator Oil
3.3.6 Changing the Vibrator Oil Caution! Change the oil at operating temperature only. - Remove the V-belt guard (42/1). - Loosen the V-belt (refer to paragraph 3.3.5). - Undo the four screws (42/3) on both sides of the engine bracket (42/2). - Take the engine bracket off the base plate. -
Page 29: Consumables And Quantities
3.4 Consumables and Quantities Assembly Consumable Quantity Quantity Group Summer Winter CF-2R CF-2 HD Quality Engine Engine oil SAE 10 W 40 0.6 l 0. 6 l (-10 ~ + 50 °C) API - CD CE or SHPD or CCMC - D2 - D3 - PD1 Regular gasoline, unleaded 3.6 l 2.5 l... -
Page 30: Malfunctions During Operation
Malfunctions During Operation 4.1 General If a malfunction occurs on the soil compactor, proceed as follows: - Put the soil compactor out of operation as described in paragraph 2.7. - Determine the source of the malfunction (refer to paragraph 4.2 - Trouble Shooting). - Eliminate the malfunction (refer to paragraph 3 (maintenance work) and paragraph 2 (Description of the various controls). -
Page 31: Trouble Shooting
4.2 Trouble Shooting Failure Possible Cause Remedy Remarks Perform the start procedure Mistake in operating the unit # 2.5 as described Soil compactor does Lack of fuel Check the fuel level # 2.4.1 not start Dirty fuel filter Replace the fuel filter # 3.3.3 Clean/replace the air filter Dirty air filter... -
Page 32: Preserving The Machine
Preserving the Machine If the soil compactor is planned to be put out of operation for an extended period of time (approx. 1 ... 6 months), e. g. during the winter season, it must be stored in a frost-proof and dry room. Before storing the machine, however, the preservation measures described in paragraph 5.1 must be taken. -
Page 35: Weber Maschinentechnik Gmbh
6 6 6 6 6 Weber Maschinentechnik GmbH For problems, questions and further information refer to one of the following addresses: in Germany WEBER Maschinentechnik GmbH Telefon + 49 (0) 2754 - 398-0 Postfach 2153 Telefax + 49 (0) 2754 - 398101-switchboard 57329 Bad Laasphe - Rückershausen + 49 (0) 2754 - 398102- spare parts- directlinie... - Page 36 > Vibratory Plate Compactors > Vibratory Tampers > Vibratory Rollers > Joint Cutters > Poker Vibrators and Converters > Vibrating Motors > Stone Saws > Rotary Trowels > and many others Weber MASCHINENTECHNIK GmbH Im Boden D- 57334 Bad Laasphe - Rückershausen P.
