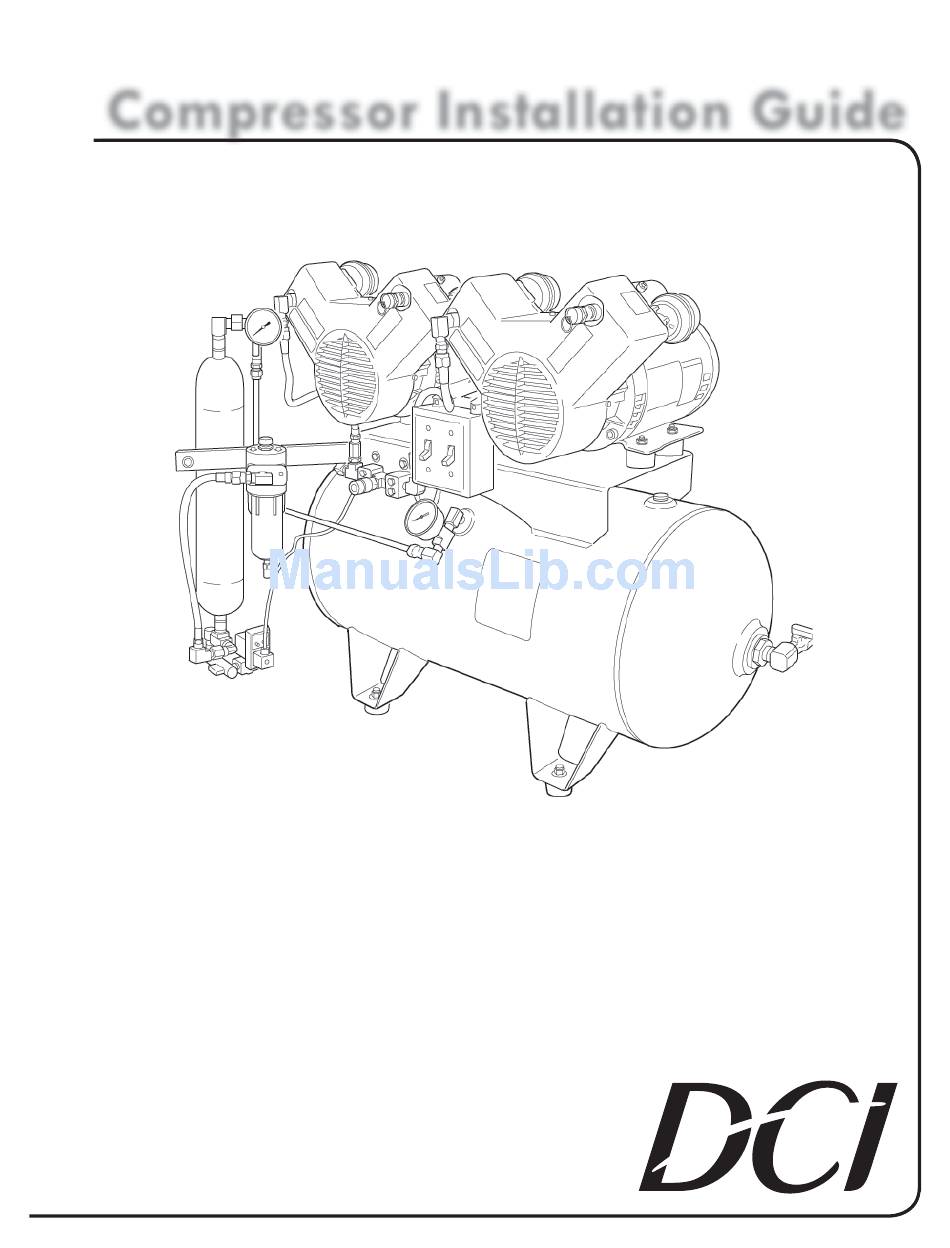

- Page 1 Compressor Installation Guide C Series COMPRESSOR • C1103 • C1203 • C2106 • C2206 • C3210 92094, Rev. D, 08/13 Copyright © 2006 DCI. All Rights Reserved.
- Page 2 www.dcionline.com w w w. d cio nl i n e. com...
- Page 3 Compressor Oil-Less Tank Power Power # Heads Model # # of Heads Tank Size Voltage Breaker Size Amps C1103 Horizontal 20 gal. 20 Amps 13.4 C1203 Horizontal 20 gal. 230V 20 Amps C2106 Horizontal 20 gal. 115V 30 Amps 26.8 C2206 Horizontal 20 gal.
-
Page 4: Installation Kit
C Series Installation Guide Compressor Installation Kit Installation Kit Installation Kit The C - Series is shipped with the following: Lock Washer Flat Washer Antivibration Foot Wire Nuts Split Bushing 6 ft. Hose Conduit Connector You must provide: • Fittings and bushings as required to connect the fl... -
Page 5: Site Requirements
C Series Installation Guide Site Requirements Compressor Site Requirements Site Requirements Clearance Adequate clearance as shown below for servicing and air circulation — room • temperature should be maintained between 40°F and 100°F when the motors are running. A fl at, level fl oor that provides stable support. •... - Page 6 C Series Installation Guide Unpacking Unpacking packing Step One: Unbolt the crate from the pallet and remove crate intact. Returns must be in the original packaging. Retain the packaging until NOTE: installation and test are complete. Step Two: Remove the four bolts that secure the C - Series to the pallet and put them with the other packaging.
- Page 7 C Series Installation Guide Unpacking Unpacking Step Four: Grasp the C - Series by the tank and move it into position. Returns must be in the original packaging. Retain the packaging until NOTE: installation and test are complete. 1 .8 00.6 24.2 793...
-
Page 8: Installation
C Series Installation Guide Installation Installation packing Electrical Step One: Make sure the power supply is turned off and matches the voltage rating of the motors. Note: Appropriate Breaker size is listed on the machine data tag. Step Two: Connect the power, making sure to adhere to all local and state codes. Connect the “Green”... -
Page 9: Start-Up & Test
C Series Installation Guide Start-Up & Test Unpacking Start-Up & Test Step One: Turn off the switches on the front of the compressor. Step Two: Ensure that the dryer by-pass shut-off valve is open. Step Three: Ensure that strainer shut-off valve is open. Step Four: Close outlet valve on the compressor tank. - Page 10 C Series Installation Guide Start-Up & Test Unpacking Start-Up & Test Step Seven: As the tank pressurizes, watch the pressure gauge. If the pressure switch is functioning normally, the motors will shut off at approximately 100 PSI. Wait fi ve minutes and watch the gauge to ensure there are no leaks in the C Series.
- Page 11 C Series Installation Guide Start-Up & Test Unpacking Start-Up & Test Step Nine: Release air using the purge-valve TEST button and watch the pressure gauge to see when the motors start. The motors should start when the pressure drops to approximately 80 PSI. You may have to push the TEST button 100xkPa several times before enough air is...
- Page 12 2005 Pressure 2013 Switch Relief Valve 2012 2856 Intake Element Pressure Gauge 2135 2002 Check Valve 1 hp Head Data Tag Outlet Ball Valve 2856 Pressure Gauge 2859 Petcock Valve 2014 Drying Chamber Bypass Valve Assembly 2008 Indicator 2135 Check Valve 2003 Coalescing Filter 2006 Coalescing Element 2007 Float Drain...
-
Page 13: Electrical Schematic
C Series Installation Guide Electrical Schematic Unpacking Electrical Schematic 1 .8 00.6 24.2 79 3... -
Page 14: Plumbing Schematic
C Series Installation Guide Plumbing Schematic Unpacking Plumbing Schematic Left Right Motor Motor Check Check Aftercooling Valve Valve Tubing Coalescing Filter Dryer Bypass Ball Valve Flow/Check Condensate Drain Storage Drying System Tank Pressure Gauge Strainer Shutoff Valve Time Purge Valve www.dcionline.com w w w. - Page 15 1 .8 00.6 24.2 79 3...
- Page 16 305 N. Springbrook Road Newberg, Oregon 97132 USA 503.538.8343 800.624.2793 www.dcionline.com...
