Meteor 2300
Meteor 2300F
Meteor 2300LE

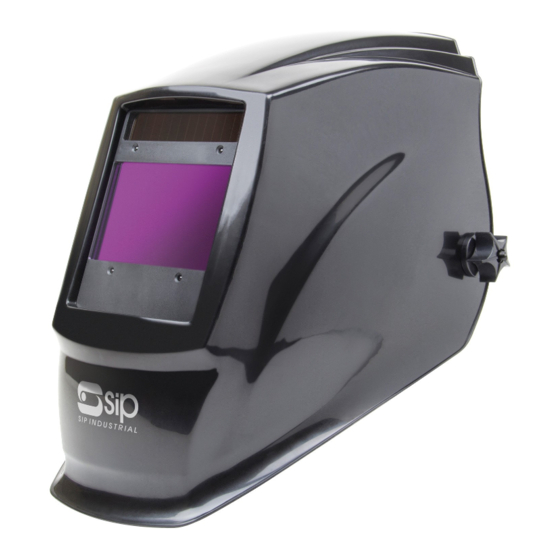

Electronic Headshield
02884, 02886 & 02889
Please read and fully understand the instructions in this manual
before operation. Keep this manual safe for future reference.
1
Advertisement
Table of Contents
Related Manuals for SIP Meteor 2300
Summary of Contents for SIP Meteor 2300
- Page 1 Electronic Headshield will allow the recycling of raw materials and help protect the environment. FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP DIRECTLY ON: TEL: 01509500400 02884, 02886 & 02889 EMAIL: sales@sip-group.com or technical@sip-group.com www.sip-group.com Please read and fully understand the instructions in this manual before operation.
- Page 2 Conforms to the requirements of the following directive(s), as indicated. 89/686/EEC Personal Protective Equipment (PPE) Directive And the relevant harmonised standard(s), including: DIN EN 379:2003+A1:2009 Signed: …………………………………... Mr P. Ippaso - Managing Director - SIP (Industrial Products) Ltd Date: 23/11/2015.
-
Page 3: Table Of Contents
NOTES CONTENTS Page No. Description Contents Safety Symbols Used Throughout This Manual Safety Instructions Technical Specifications Guarantee Getting To Know Your Headshield Operating Instructions Maintenance Troubleshooting Exploded Drawing & Parts List Declaration Of Conformity... -
Page 4: Safety Symbols Used Throughout This Manual
The headshield should not be modified or used for any application other than that for which it was designed. Ref. No. Description SIP Code Ref. No. Description SIP Code It was designed to protect the eyes and face from sparks, spatter, and harmful radia- tion under normal welding conditions. - Page 5 MAINTENANCE INSTRUCTIONS….cont SAFETY INSTRUCTIONS….cont CHECK FOR DAMAGED PARTS: Before every use of the headshield, a lens or other part Remove the old battery. that is damaged should be carefully checked to determine that it will operate correct- Fit the replacement battery (+) upwards. ly and perform its intended function.
-
Page 6: Technical Specifications
From inside the helmet, remove the screw on the filter holder. Push the 2 tabs outwards and lift the filter holder up. This SIP electronic headshield is covered by a 12 month parts and labour warranty Remove the filter lens. -
Page 7: Getting To Know Your Headshield
OPERATING INSTRUCTIONS….cont GETTING TO KNOW YOUR HEADSHIELD Below is a guide to help select the correct shade for the power and type of welding application. Welding Type PAC (Plasma Arc Cutting) Welding Current (A) 60-150 150-250 250-500 Shade Welding Type Mig Heavy (Metal Inert Gas) Welding Current (A) 80-100... -
Page 8: Operating Instructions
GETTING TO KNOW YOUR HEADSHIELD….cont OPERATING INSTRUCTIONS….cont Sensitivity: 12 13 The sensitivity can be adjusted between 1 and 4, depending on your requirements. If the welding current is too small, turn it to a higher setting. If the welding current is too high, turn it to a lower setting. Delay: 0.4S The delay can be adjusted by turning the dial clockwise to ei-...
