Summary of Contents for Lisle Digidown Blue
-

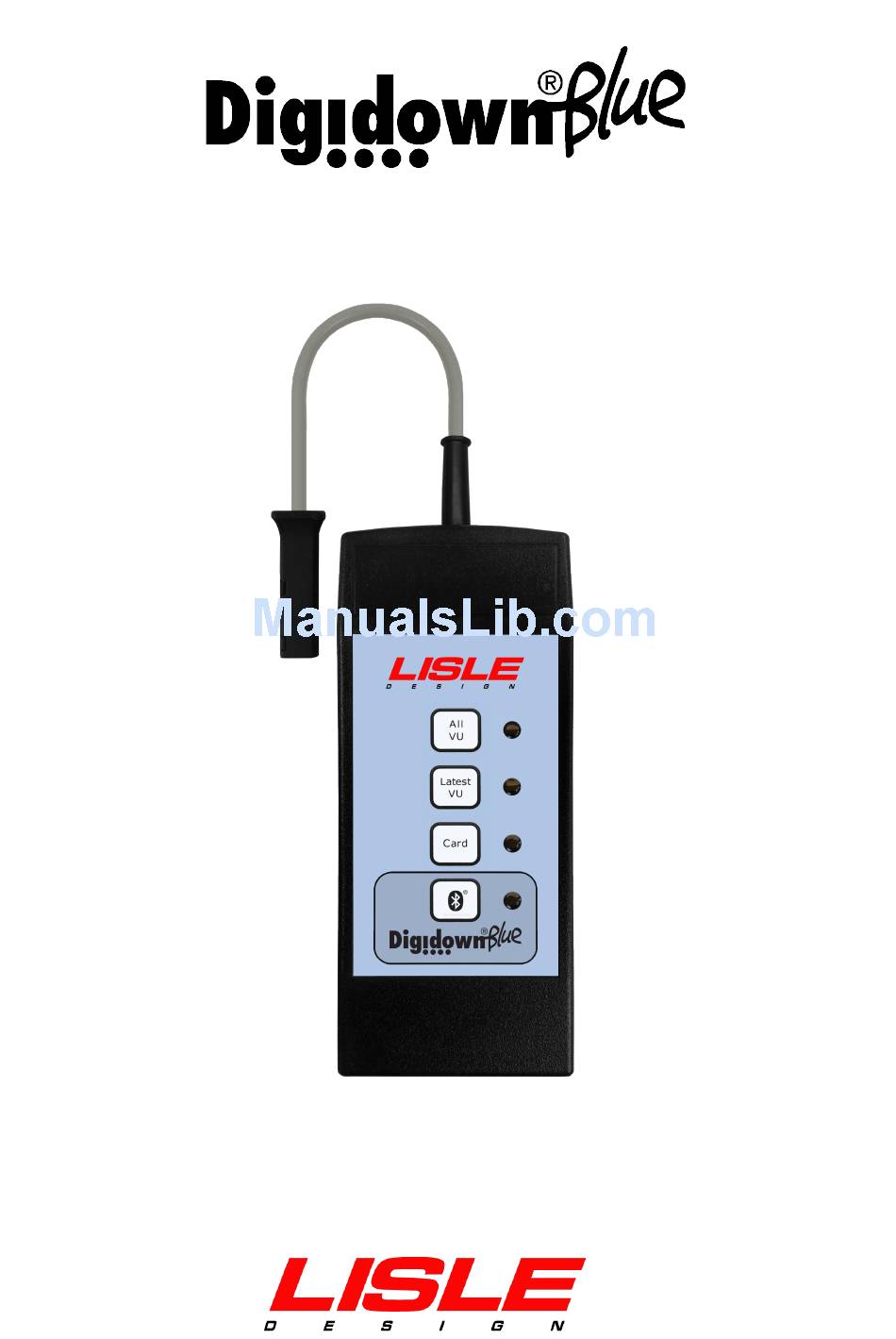

Page 1: Operating Instructions

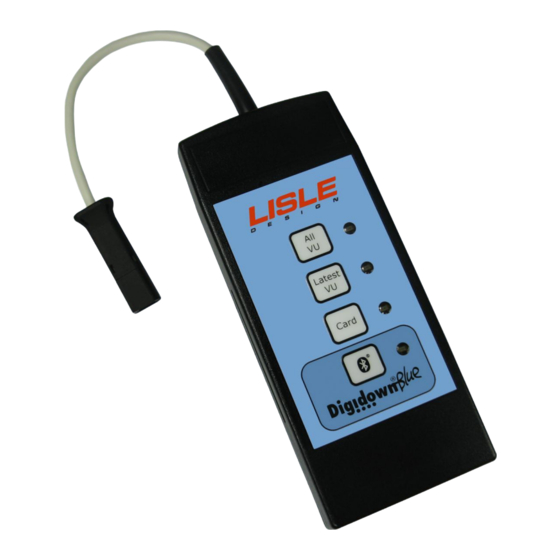

Digital Tachograph Combined Download Device with Bluetooth Operating Instructions... - Page 2 Phone”. NOTE: DO NOT try to remove the latched memory card by pulling on the end of the card. Push it back into the Digidown Blue. This will release the SD card and it will spring out for easy removal.
- Page 3 VU. Please note that Digidown should NOT be connected to an analogue (chart-recording) tachograph. To begin press any of the 3 top buttons on the Digidown Blue to initiate the download. If no Company, Workshop or Control card in inserted and the VU needs authenticating the blue light next to the Bluetooth button will flash.
- Page 4 Read the SD Memory Card To read the SD card: Connect the Digidown Blue to a PC via the USB port. The Digidown will appear as a standard removable disk drive. Alternatively remove the SD card from the Digidown Blue and use a separate SD card reader.
- Page 5 Download Digidown Configuration Tool from the Support tab in lisledesign.com/products/digidown-blue Connect Digidown Blue to a PC via the USB cable Run the configuration tool and follow instructions on screen. NOTE: Available file name formats include: VDO/European format DDD, Short file name ESM/CRD, Spanish format TGD, French format V1B/C1B &...
- Page 6 Run the app and follow the instructions on screen. The Setup Wizard will start automatically the first time. It will perform an Internet Check and a Bluetooth Check. Then it will prompt for your email FROM name and address and it will send a Test email to confirm. If prompted for a pass code while Bluetooth pairing with the Digidown Blue use code 6543.
-
Page 7: Error Conditions
LED status / Error indication The LEDs are used to show the status of the download and any error. The patterns used are: Normal Operation – 3 red LEDs: Each of the red LEDs blinking Power is on and Digidown is ready briefly in turn Single LED flashing about twice per Digidown is busy downloading data... - Page 8 Check that there are files to be uploaded (If using phone) Check that the associated phone is in Digidown Blue mode and check any message on the phone’s display. (If using Digidown Base) Check that the unit is in range of the Digidown Base box ...
