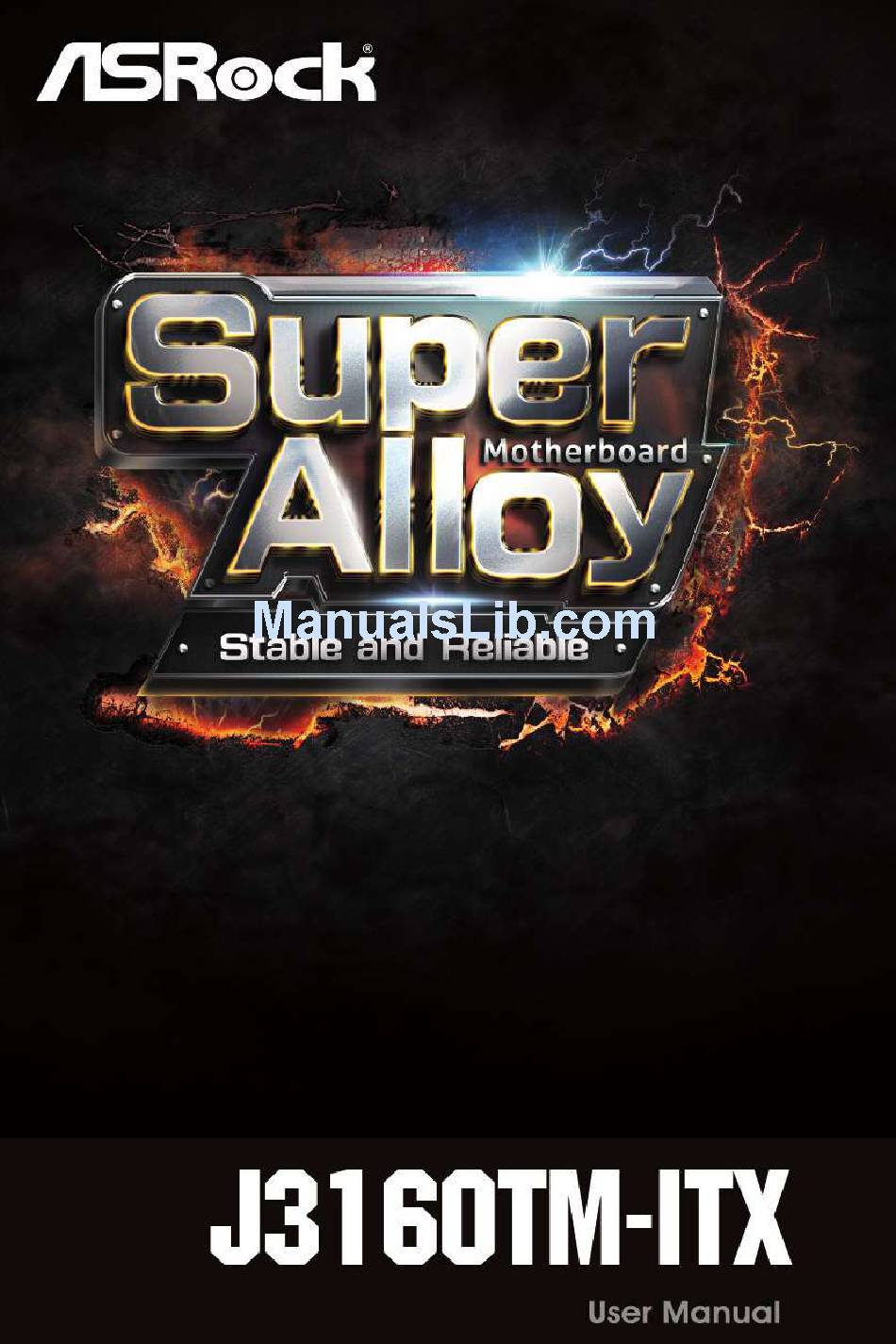

ASROCK J3160TM-ITX User Manual

ASROCK J3160TM-ITX User Manual

Super alloy
Hide thumbs Also See for J3160TM-ITX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J3160TM-ITX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK J3160TM-ITX

Summary of Contents for ASROCK J3160TM-ITX

  • Page 2: Copyright Notice

    (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI™...

  • Page 4: Table Of Contents

    Expansion Slots (PCI Express Slots) Jumpers Setup Onboard Headers and Connectors Chapter 3 Software and Utilities Operation Installing Drivers ASRock Live Update & APP Shop 3.2.1 UI Overview 3.2.2 Apps 3.2.3 BIOS & Drivers 3.2.4 Setting Chapter 4 UEFI SETUP UTILITY Introduction 4.1.1...
  • Page 5 Advanced Screen 4.3.1 CPU Configuration 4.3.2 Chipset Configuration 4.3.3 Storage Configuration 4.3.4 IntelRMT Configuration 4.3.5 Super IO Configuration 4.3.6 ACPI Configuration 4.3.7 USB Configuration 4.3.8 Trusted Computing Tools Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen...

  • Page 6: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 7: Specifications

    1.2 Specifications Platform • Thin Mini-ITX Form Factor • Solid Capacitor design • Intel® Quad-Core Processor J3160 (up to 2.24 GHz) Memory • Dual Channel DDR3/DDR3L Memory Technology • 2 x DDR3/DDR3L SO-DIMM Slots • Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory • Max.
  • Page 8 • 1 x DC Jack (Compatible with the 19V power adapter) • 1 x D-Sub Port • 1 x HDMI Port • 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) • HD Audio Jacks: Microphone / Front Speaker (Supports...
  • Page 9 Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat- ing systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

  • Page 10: Motherboard Layout

    J3160TM-ITX 1.3 Motherboard Layout USB3_4_5 PANEL1 CIR1 PLED PWRBTN SATA_POW1 SATA3_2 SATA3_1 HDLED RESET DC Jack ATX19V_IN1 MONITOR_SWITCH1 PLED1 BKT_PWR1 PNL_PWR1 USB6 CPU_FAN1 CHA_FAN1 USB4_5 USB 3.0 T: USB0 B: USB1 MINI_PCIE1 COM1 BLT_VOL1 RoHS RJ-45 USB 3.0 T: USB2...
  • Page 11 No. Description SATA Power Connector (SATA_POW1) USB 2.0 Header (USB6) SATA3 Connector (SATA3_2) SATA3 Connector (SATA3_1) Monitor Switch Header (MONITOR_SWITCH1) USB 2.0 Header (USB4_5) CPU Fan Connector (CPU_FAN1) USB 3.0 Header (USB3_4_5) Chassis Fan Connector (CHA_FAN1) Consumer Infrared Module Header (CIR1) Power LED Header (PLED1) Backlight Power Jumper (BKT_PWR1) System Panel Header (PANEL1)

  • Page 12: I/O Panel

    J3160TM-ITX 1.4 I/O Panel No. Description No. Description DC Jack* LAN RJ-45 Port** USB 3.0 Ports (USB3_01) USB 3.0 Ports (USB3_23) D-Sub Port Microphone (Pink) HDMI Port Front Speaker (Lime) * Please use a 19V power adapter for the DC jack. This jack accepts dual barrel plugs with an inner diameter of 5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.

  • Page 13: Chapter 2 Installation

    Chapter 2 Installation This is a Thin Mini-ITX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 14: Installing Memory Modules (So-Dimm)

    J3160TM-ITX 2.1 Installing Memory Modules (SO-DIMM) This motherboard provides two 204-pin DDR3/DDR3L (Double Data Rate 3) SO- DIMM slots. If only one SO-DIMM module is installed, please install it into DDR3_ It is not allowed to install a DDR or DDR2 memory module into a DDR3/DDR3L slot;...

  • Page 16: Expansion Slots (Pci Express Slots)

    J3160TM-ITX 2.2 Expansion Slots (PCI Express Slots) There is 1 PCI Express slot and 1 mini-PCI Express slot on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 17: Jumpers Setup

    2.3 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.

  • Page 18: Onboard Headers And Connectors

    J3160TM-ITX 2.4 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 19 Serial ATA3 Connectors These two SATA3 SATA3_2 SATA3_1 (SATA3_1: connectors support SATA see p.5, No. 4) data cables for internal (SATA3_2: storage devices with up to see p.5, No. 3) 6.0 Gb/s data transfer rate. SATA Power Connector Please connect a SATA (SATA_POW1) power cable.
  • Page 20 J3160TM-ITX Front Panel Audio Header This header is for GN D OUT2_L (9-pin HD_AUDIO1) connecting audio devices J_SENSE PRESENCE# OUT2_R (see p.5, No. 25) to the front audio panel. MIC_RET MIC2_R OUT_RET MIC2_L 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 21 Chassis Fan Connector Please connect fan cable +12V (4-pin CHA_FAN1) to the fan connector and CHA_FAN_SPEED (see p.5, No. 9) match the black wire to FAN_SPEED_CONTROL the ground pin. CPU Fan Connector This motherboard pro- FAN_SPEED_CONTROL CPU_FAN_SPEED (4-pin CPU_FAN1) vides a 4-Pin CPU fan +12V (see p.5, No.
  • Page 22 J3160TM-ITX Digital MIC Header 1: +5V (5-pin DMIC1) 2: No pin (see p.5, No. 26) 3: SPDIF_OUT/DMIC_ 4: GND 5: DMIC_DATA 6: +3.3V Signal Name Signal Name Home Theater PC HDMI CEC #Power_Button Header SMB_DATA 3.3V Standby (7-pin HTPC1) SMB_CLK No pin (see p.5, No.
  • Page 23 TPM Header This connector supports Trusted F_CLKRUN# (17-pin TPMS1) Platform Module (TPM) system, SERIRQ# +3VSB S_PWRDWN# (see p.5, No. 19) which can securely store keys, LAD0_L LAD1_L digital certificates, passwords, LAD2_L LAD3_L and data. A TPM system also SMB_DATA_MAIN TPM_RST# SMB_CLK_MAIN LFRAME#_L helps enhance network security,...

  • Page 24: Chapter 3 Software And Utilities Operation

    J3160TM-ITX Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 25: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.2.1 UI Overview Category Panel Hot News...

  • Page 26: Apps

    J3160TM-ITX 3.2.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. The most recommended app appears on the left side of the screen. The other various apps are shown on the right.
  • Page 27 Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can find the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon *The trash icon may not appear for certain apps.
  • Page 28 J3160TM-ITX Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will find the mark of "New Version" appears below the installed app icon. Step 1 Click on the app icon to see more details.

  • Page 29: Bios & Drivers

    3.2.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update. Click on to see more details.

  • Page 30: Setting

    J3160TM-ITX 3.2.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.

  • Page 31: Enabling Usb For Windows 7 Installation

    Intel® USB 3.0 eXtensible Host Controller (xHCI) drivers packed into the ISO file. Requirements A Windows® 7 installation disk or USB drive • USB 3.0 drivers (included in the ASRock Support CD or website) • A Windows® PC • Win7 USB Patcher (included in the ASRock Support CD or website) •...
  • Page 32 Select the “Win7 Folder” from Step1 by clicking the red circle as shown as the picture below. Step 4 Select the “USB Driver Folder” by clicking the red circle as shown as the picture below. If you are using ASRock’s Support CD for the USB 3.0 driver, please select your CD-ROM.
  • Page 33 Step 5 Select where to save the ISO file by pressing the red circle as shown as the picture below. Step 6 If you want to burn the patched image to a CD, please check “Burn Image” and select “Target Device to Burn”.

  • Page 34: Chapter 4 Uefi Setup Utility

    J3160TM-ITX Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.

  • Page 35: Navigation Keys

    4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 36: Main Screen

    J3160TM-ITX 4.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview.

  • Page 37: Advanced Screen

    4.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, IntelRMT Con- figuration, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction.

  • Page 38: Cpu Configuration

    J3160TM-ITX 4.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology allows processors to switch between multiple frequencies and voltage points for better power saving and heat dissipation. CPU C States Support Enable CPU C States Support for power saving. It is recommended to keep C1, C6 and C7 all enabled for better power saving.

  • Page 39: Chipset Configuration

    4.3.2 Chipset Configuration DRAM Voltage (1.35V) Use this to configure DRAM Voltage (1.35V). The default value is [Auto]. Primary Graphics Adapter Select a primary VGA. Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up.

  • Page 40: Onboard Lan

    J3160TM-ITX Onboard HDMI HD Audio Enable audio for the onboard digital outputs. Onboard LAN Enable or disable the onboard network interface controller. PCIE1 Link Speed Select the link speed for PCIE1. Deep S5 Configure deep sleep mode for power saving when the computer is shut down.

  • Page 41: Storage Configuration

    4.3.3 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode Selection AHCI: Supports new features that improve performance. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance. Aggressive Link Power Management Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power.
  • Page 42 J3160TM-ITX ASMedia SATA3 Mode IDE: For better compatibility. AHCI: Supports new features that improve performance.

  • Page 43: Intelrmt Configuration

    4.3.4 IntelRMT Configuration Intel RMT Support Enable to load Intel RMT (Ready Mode Technology) SSDT table.

  • Page 44: Super Io Configuration

    J3160TM-ITX 4.3.5 Super IO Configuration Serial Port 1 Enable or disable the Serial port 1. Serial Port Address Select the address of the Serial port. CIR Controller Use this item to enable or disable the CIR controller. The default value is [Enabled].

  • Page 45: Acpi Configuration

    4.3.6 ACPI Configuration Suspend to RAM It is recommended to select auto for ACPI S3 power saving. ACPI HPET Table Enable the High Precision Event Timer for better performance and to pass WHQL tests. PCIE Device Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. Ring-In Power On Allow the system to be waked up by onboard COM port modem Ring-In signals.
  • Page 46 J3160TM-ITX USB Keyboard/Remote Power On Allow the system to be waked up by an USB keyboard or remote controller. USB Mouse Power On Allow the system to be waked up by an USB mouse.

  • Page 47: Usb Configuration

    4.3.7 USB Configuration Legacy USB Support Enable Legacy USB Support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

  • Page 48: Trusted Computing

    J3160TM-ITX 4.3.8 Trusted Computing Security Device Support Enable to activate Trusted Platform Module (TPM) security for your hard disk drives.

  • Page 49: Tools

    Save UEFI files in your USB storage device and run Instant Flash to update your UEFI. Internet Flash ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you. Please setup network configuration before using Internet Flash.

  • Page 50: Network Configuration

    J3160TM-ITX Network Configuration Use this to configure internet connection settings for Internet Flash. Internet Setting Enable or disable sound effects in the setup utility. UEFI Download Server Select a server to download the UEFI firmware.

  • Page 51: Hardware Health Event Monitoring Screen

    4.5 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. CPU FAN1 Type Select 3-pin or 4-pin FAN Type. Chassis Fan 1Type Select 3-pin or 4-pin FAN Type.

  • Page 52: Security Screen

    J3160TM-ITX 4.6 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 53: Boot Screen

    4.7 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device. Ultra Fast mode is only supported by Windows 8.1 and the VBIOS must support UEFI GOP if you are using an external graphics card.
  • Page 54 J3160TM-ITX AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. Boot Failure Guard If the computer fails to boot for a number of times the system automatically restores...

  • Page 55: Launch Storage Oprom Policy

    CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed. Launch PXE OpROM Policy Select UEFI only to run those that support UEFI option ROM only.

  • Page 56: Exit Screen

    J3160TM-ITX 4.8 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit...

  • Page 57: Contact Information

    Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...
