Navman Mivue 6 series User Manual

Safety camera alerts
Caution: For legal reasons, the safety camera function is not available in all countries.
You can receive alerts to warn you about the locations of safety cameras, which will enable you to monitor your speed
through these areas.
Note: Not all features are available for every model.
ƒ When a safety camera appears and is positioned in the detectable direction, you will receive alerts. The screen
will display the visual alert and you will also receive audio warnings (Beep, Voice, or Mute).
ƒ When the alert sound setting is set to Beep:
- When your car approaches a safety camera, you will receive a normal beep alert.
- When your car approaches a safety camera at a speed over the set threshold, you will receive a persistent beep
alert until your car speed drops lower than the appropriate speed limit.
- When your car passes through a safety camera, you will be notified by a different beep alert.
ƒ You can change the settings about how you want to receive the safety camera alerts. See the "System settings"
section for information.
Camera alert types:
Icon Type
Speed and combined safety camera
/
Traffic light and red light camera
Railway crossing and accident black spot alert
Precautions and notices
ƒ For your own safety, do not operate the controls of the product while driving.
ƒ A window mount is needed when using the dash cam in a car. Make sure that you place the dash cam in an
appropriate place, so as not to obstruct the driver's view or deployment of airbags.
ƒ Make sure that no object is blocking the camera lens and no reflective material appears near the lens. Please keep
the lens clean.
ƒ If the car's windscreen is tinted with a coating, it may impact the recording quality.
Safety precautions
About charging
ƒ Use only the charger supplied with your device. Use of another type of charger may result in malfunction and/or
danger.
ƒ This product is intended to be supplied by a LISTED Power Unit marked with "LPS", "Limited Power Source" and
output rated + 5 V dc / 1.0 A.
ƒ Use a specified battery in the equipment.
About the charger
ƒ Do not use the charger in a high moisture environment. Never touch the charger when your hands or feet are wet.
ƒ Allow adequate ventilation around the charger when using it to operate the device or charge the battery. Do not
cover the charger with paper or other objects that will reduce cooling. Do not use the charger while it is inside a
carrying case.
ƒ Connect the charger to a proper power source. The voltage requirements are found on the product case and/or
packaging.
ƒ Do not use the charger if the cord becomes damaged.
ƒ Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or
exposed to excess moisture.
About the battery
CAUTION! This unit contains a non-replaceable internal Lithium Ion battery. The battery can burst or explode,
releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, puncture, or dispose of
in fire or water.
ƒ Use a specified battery in the equipment.
ƒ Important instructions (for service personnel only)
- Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
- Replace only with the same or equivalent type recommended by the manufacturer.
- The battery must be recycled or disposed of properly.
- Use the battery only in the specified equipment.
ƒ Battery clause safety information
Your Navman uses a Lithium-ion battery. It is important to follow the guidelines set out regarding this type of
Battery.
Electronic devices using a lithium – ion battery such as Mobile phones, GPSs and cameras are designed to
operate at a temperature range of approximately 0°C to 50°C. Beyond these temperature limits, there may be a
Adding a safety camera
Note: You can add a custom safety camera only when a GPS fix is established.
Your dash cam allows you to customise the safety camera database. You can add up to 100 custom safety cameras in your
dash cam.
Follow the steps to configure a custom safety camera:
1. To add a custom safety camera in the current location, press on the recording screen.
2. The next time when you pass by the location, you will receive alerts by the dash cam.
3. To view the information of the user-added safety camera, select > SafetyCam > Custom SafetyCam and
then select the safety camera that you want to check.
4. Press to remove the custom safety camera from the dash cam.
Updating safety camera data
Navman does not warrant that all types and locations of safety camera data are available as cameras may be removed,
relocated or new cameras installed.
Occasionally Navman may offer you various sofware updates. Visit the Navman website for available downloads and
follow the instructions to complete update.
risk of battery failure, when these electronic goods are exposed to extreme heat conditions for long periods.
It is recommended that you do not use your Navman in a humid, wet and/or corrosive environment. Do not put, store
or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight and do not
expose it to temperatures over 60°C (140°F). Failure to follow these guidelines may cause the Lithium-ion battery to
leak acid, become hot, explode or ignite and cause injury and/or damage. Do not pierce, open or disassemble the
battery. If the battery leaks and you come into contact with the leaked fluids, rinse thoroughly with water and seek
medical attention immediately. For safety reasons, and to prolong the lifetime of the battery, charging should not
occur at low (below 0°C/32°F) or high (over 45°C/113°F) temperatures.
THE LITHIUM-ION BATTERY CONTAINED IN THE PRODUCT MUST BE RECYCLED OR DISPOSED OF PROPERLY.
IT IS HIGHLY RECOMMENDED YOU USE YOUR NAVMAN ONLY WITH THE SUPPLIED DC POWER LEAD (CAR
CHARGER/BATTERY CABLE) AND AC ADAPTER (HOME CHARGER) FOR BATTERY CHARGING.
For more information on how to recycle your old electronic devices, please contact your local council office. You can
also visit www.navman.com.au / www.navman.co.nz to view our latest trade-in offers.
Caring for your device
Taking good care of your device will ensure trouble-free operation and reduce the risk of damage.
ƒ Keep your device away from excessive moisture and extreme temperatures.
ƒ Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time.
ƒ Do not place anything on top of your device or drop objects on your device.
ƒ Do not drop your device or subject it to severe shock.
ƒ Do not subject your device to sudden and severe temperature changes. This could cause moisture condensation
inside the unit, which could damage your device. In the event of moisture condensation, allow the device to dry out
completely before use.
ƒ The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic screen
protectors designed specifically for use on portable devices with LCD panels may be used to help protect the screen
from minor scratches.
ƒ Never clean your device with it powered on. Use a soft, lint-free cloth to wipe the screen and the exterior of your
device.
ƒ Do not use paper towels to clean the screen.
ƒ Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any
attempt at repair could cause damage to your device and even bodily injury or property damage and will void any
warranty.
ƒ Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your device, its parts
or accessories.
ƒ To discourage theft, do not leave the device and accessories in plain view in an unattended vehicle.
ƒ Overheating may damage the device.
About GPS
ƒ GPS is operated by the United States government, which is solely responsible for the performance of GPS. Any
change to the GPS system can affect the accuracy of all GPS equipment.
ƒ GPS satellite signals cannot pass through solid materials (except glass). When you are inside a tunnel or building, GPS
positioning is not available. Signal reception can be affected by situations such as bad weather or dense overhead
obstacles (e.g. trees, tunnels, viaducts and tall buildings).
ƒ The GPS positioning data is for reference only.
MiVue™ Manager
MiVue Manager™ is a tool for you to view the videos recorded on a dash cam.
Note: Not all features are available for every model.
Installing MiVue Manager
Download the Setup file from http://www.navman.com.au/car-gps-devices/mapping/ or http://www.navman.co.nz/car-
gps-devices/mapping/. Double-click Setup.exe and follow the on-screen prompts to install MiVue Manager.
IMPORTANT! Your computer needs MOV and AVI codecs to play the recording files. Please visit www.navman.com.au or
www.navman.co.nz to install the required codecs.
Playing the recording files
1. Remove the memory card from the dash cam and access the card on the computer via a card reader. You are advised to
copy the recording files to your computer for backup and playback.
2. Start MiVue Manager on the computer.
ƒ By default, MiVue Manager shows the calendar and the file list on the right.
ƒ When a recording file exists, you will see the date marked with " ". Click that date to display the files that were
recorded on that date.
ƒ You can choose the file type to display: Event / Normal / Parking.
ƒ To display all files in the current folder, click All. To return to the calendar view, click Calendar.
3. Double-click the desired file on the file list to start playback.
4. The playback controls are described as follows:
1 2 3 4 5 6 7
1 Skips to the previous/next file on the list.
2 Starts or pauses the playback.
3 Changes the playback speed to 1/4x, 1/2x, 1x (default), 1.5x, or 2x.
4 Mutes or unmutes the volume.
5 Adjusts the volume level.
6 Plays the video in full screen.
7 Displays the playback progress. You can click on a point along the track bar to move directly to a different location
for the playback.
1-Year Limited Warranty Navman will (at Navman's option) repair or replace the affected product. This is a
Customer's sole remedy for contravention of the Navman Warranty, although you
1. DEFINED TERMS.
may have other rights or remedies under applicable laws (including the Consumer
In this document: Guarantees).
(a) "Australian Consumer Law" means the Australian Consumer Law set out in Schedule 2 (b) You will be required to show proof of purchase when you return a product to
to the Competition and Consumer Act 2010 (Cth).
Navman for repair or replacement under the Navman Warranty. A complete and
(b) "Consumer Guarantees" means the consumer guarantees which apply to the supply of
legible copy of the original sales receipt will be required. Any repairs undertaken
products or services under: (A) the Australian Consumer Law, as amended from time by a service centre which is not an Authorised Navman Service Centre will void this
to time, or other similar legislation of a state or territory of Australia; and (B) the New
warranty.
Zealand Consumer Law or other similar legislation.
(c) Except to the extent that the Consumer Guarantees require otherwise:
(c) "Customer" means the purchaser of a Navman product. (i) Navman may refuse to repair or replace products under the Navman Warranty
(d) "Navman Warranty" has the meaning given in section 2 of this document. if: (A) the sales receipt is not provided; (B) the information contained in it is
(e) "New Zealand Consumer Law" means the Consumer Guarantees Act 1993 and Fair
incomplete or illegible; or (C) the serial number of the product has been altered
Trading Act 1986, as amended from time to time.
or removed; and
(ii) Navman will not be responsible for any losses or damage to products incurred
2. NAVMAN WARRANTY.
while the product is being shipped by a Customer to Navman. Insurance is
(a) The Navman Warranty provides benefits which are in addition to other rights and
recommended.
remedies the Customer has under law. This document does not limit, restrict or
(d) Navman recommends the use of a trackable shipping method when returning a
exclude any rights that a person has because of the Consumer Guarantees.
product under the Navman Warranty and that you retain proof of the date you ship,
(b) In addition to any rights that a Customer or any other person has because of the
post or otherwise return a product under the Navman Warranty.
Consumer Guarantees, and subject to section 5 of this document, MiTAC Australia Pty
(e) The repair or replacement of products may result in loss of data. Customers are
Ltd, in Australia, and Navman Technology NZ Ltd, in New Zealand. (both "Navman")
responsible for creating back-up copies of all of their data stored on a product before
warrants that:
returning that product to Navman. If a Customer fails to create adequate back-ups
(i) The hardware device ("Hardware") will be free of defects in material and
of their data, Navman will not be responsible for the loss of that data caused by the
workmanship and will conform to their published specifications; and
repair, attempted repair or replacement of any product.
(ii) its software products and software provided with the Hardware (collectively,
"Software") will be free from media defects and will substantially conform to the
4. EXCLUSION OF IMPLIED WARRANTIES.
thencurrent user documentation provided with the Software (including updates (a) Except for the Consumer Guarantees, Navman excludes all other guarantees,
thereto), in each case for a period of one year from the date of original purchase
warranties and conditions implied by statute, at law, in fact or otherwise (including, if
("Warranty Period") (the "Navman Warranty").
applicable, implied warranties under Article 35 of the United Nations Convention on
(c) Where Hardware or Software is repaired or replaced under this Navman Warranty, Contracts for the International Sale of Goods).
the Navman Warranty will apply to the repaired or replaced Hardware or Software for (b) This section 4 does not exclude, restrict or modify the application of any condition,
the longer of:
warranty, guarantee, right or remedy conferred by or implied under any provision of
(i) 90 days from the date of return shipment of that repaired or replaced Hardware;
any statute where to do so would:
and (i) contravene that statute; or
(ii) the balance of the original Warranty Period applying to that Hardware or Software
(ii) cause any part of this section 4 to be void.
(or the Hardware or Software it replaces).
5. EXCLUSIONS.
(d) Customers must make their own enquiries to determine whether the Software will
(a) This section 5 sets out exclusions and limitations which apply to the Navman Warranty.
meet their requirements, and except where otherwise required by the Consumer
It does not affect the rights of any person under the Consumer Guarantees. The
Guarantees:
Navman Warranty does not cover:
(i) Navman does not warrant that the Software will meet a Customer's requirements
(i) periodic maintenance and repair or replacement of parts due to normal wear and
or that its operation will be uninterrupted, error-free or virus-free; and
tear;
(ii) Customers assume the entire risk of using the Software.
(ii) batteries;
3. CUSTOMER'S REMEDY. (iii) finishes;
(a) In addition to any rights under the Consumer Guarantees, if:
(iv) installations or defects resulting from installation;
(i) the Hardware or Software is defective in contravention of the Navman Warranty
(v) any damage caused by: (A) shipping, misuse, abuse, negligence, tampering,
or otherwise fails to conform to the requirements of the Navman Warranty; and moisture, liquids, proximity or exposure to heat, or improper use; (B) disasters
(ii) on or before the last day of the Warranty Period, the Customer sends the affected
such as fire, flood, wind, and lightning; or (C) unauthorised attachments or
product to Navman (and retains proof of shipping),
modification;
5. During playback, you can check more driving information from the dashboard panel and the G sensor chart that are
displayed below the video playback screen.
ƒ On the dashboard panel, click to display the map screen*.
ƒ G sensor chart displays data in 3-axis waveform about the car's shift forward/backward (X), to the right/left (Y) and
upward/downward (Z).
* The map screen may not display when the computer is not connected to the Internet or when your MiVue model
does not support the GPS function.
6. The tool bar allows you to do the following:
1 2 3 4 5 6 7 8
1
Selects the folder that stores the recording files.
2 Previews and prints the current video image.
3 Saves the selected files to the specified location on your computer.
4 Captures and saves the current video image to the specified location on your computer.
5 Opens the Settings Menu. The Settings items are described as follows:
Change Language: Sets the display language of MiVue Manager.
Change Skin: Sets the colour scheme of MiVue Manager.
Check for Update: Checks if there is any new version of MiVue Manager. Internet access is required for this
feature.
About: Displays the version and copyright information of MiVue Manager.
6 Exports the GPS information of the selected file in the KML format to the specified location on your computer.
7 Uploads the selected file to Facebook.
8
Uploads the selected file to YouTube™.
(vi) service performed or attempted by anyone other than an authorised Navman
Service Centre;
(vii) any products, components or parts not manufactured by Navman; or
(b) any claim in relation to infringement of any patent, trademark, copyright or other
proprietary right, including trade secrets. If the product was purchased for the
purposes of a business, the provisions of the New Zealand Consumer Law do not
apply (in accordance with section 43(2) of the Consumer Guarantees Act 1993).
(c) The opening, dismantling or repair of this product by anyone other than an authorised
Navman Service Centre will void the Navman Warranty.
6. EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Except where otherwise required by the Consumer Guarantees, Navman shall not be
liable to any Customer or any other person for any indirect, incidental or consequential
damages whatsoever, including but not limited to lost profits, damages arising from a delay
or loss of use, or out of the breach of the Navman Warranty or any implied warranty, even
if caused by the negligence or another fault of Navman or out of the negligent usage of a
product. In no event will Navman be held responsible for such damages (except where
otherwise required by the Consumer Guarantees).
7. APPLICABLE CONSUMER LAW
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law and the New Zealand Consumer Law (as applicable). You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
8. COMPLETE AGREEMENT.
This document is the complete, final and exclusive agreement setting out the terms of
the Navman Warranty between Navman and the Customer with respect to the quality
and performance of the Customer's Navman products. It does not affect the rights of any
person under the Consumer Guarantees (other than as specified in section 5(b) of this
document).
9. GOVERNING LAW.
This document is governed by the laws of New South Wales (except where a Customer
ordinarily resides in New Zealand, in which case this document is governed by the laws
of New Zealand), in each case without reference to that jurisdiction's conflict of law
provisions or the U.N. Convention on Contracts for the International Sale of Goods, and
shall benefit Navman, its successors and assigns. This warranty does not affect a person's
statutory rights under applicable laws in force in their jurisdiction, or rights against the
dealer or reseller arising from their sales/purchase contract.
10. NAVMAN'S CONTACT DETAILS. To obtain warranty service directly from Navman:
1. Contact Navman to obtain a Return Materials Authorization number. You can reach
Navman using the Contact Details outlined at 3 below or through your authorized
Navman dealer.
2. Pack the product, a copy of your dated purchase receipt, your address and
telephone number, and any other information Navman requests as part of the return
authorization process (such as any return authorization form you receive) in sturdy
packing material.

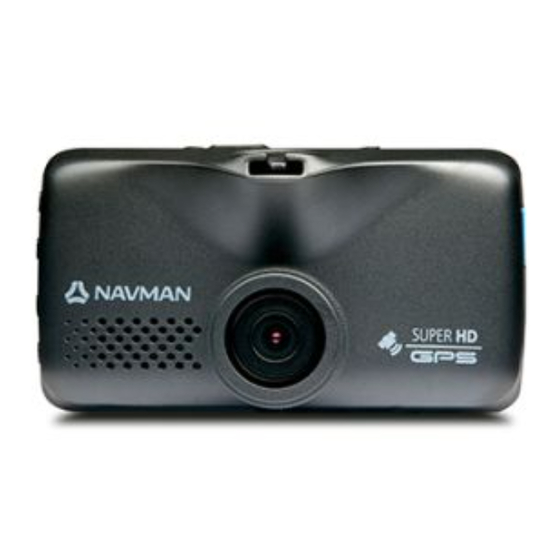

DDR MiVue
Series
User Manual
Revision: R02
(7/2016)
Trademarks
All brand and product names are trademarks or registered trademarks of their respective companies.
Disclaimer
Specifications and documents are subject to change without notice. Navman does not warrant this document
is error-free. Navman assumes no liability for damage incurred directly or indirectly from errors, omissions, or
discrepancies between the device and the documents.
Notes
Not all models are available in all regions.
Depending upon the specific model purchased, the colour and look of your device and accessories may not exactly
match the graphics shown in this document.
Regulatory information
For regulatory identification purposes, Navman DDR MiVue™ 6 Series is assigned a model number of N489.
Marking labels located on the exterior of your device indicate the regulations that your model complies with. Please
check the marking labels on your device and refer to the corresponding statements in this section. Some notices
apply to specific models only. The user needs to switch off the device when exposed to areas with potentially
explosive atmospheres such as petrol stations, chemical storage depots and blasting operations.
WEEE
This product must not be disposed of as normal household waste, in
accordance with the EU directive for waste electrical and electronic
equipment (WEEE – 2012/19/EU). Instead, it should be disposed of by
returning it to the point of sale, or to a municipal recycling collection point.
5 6 1 5 N 4 8 9 0 0 1 4 R 0 2
3. Ship the product and the other required items to Navman (Attention: Warranty
Manager) at the address specified in the Contact Details below, on or up to the end
of the Warranty Period. You should retain proof of shipping to evidence the date of
shipment.
Contact Details:
In Australia: In New Zealand:
MiTAC Australia Pty Ltd Navman Technology NZ Ltd
1300 NAVMAN 0800 GO NAVM
(1300 628 626) (0800 466 286)
www.navmansupport.com.au www.navmansupport.co.nz
Contact address for returned products:
In Australia: In New Zealand:
MiTAC Australia Pty Ltd Service Plus (Navman repair)
(Navman repairs) 690 Great South Road
Unit 5, 43-51 College Street Penrose
Gladesville NSW Auckland 1061
2111
When returning products directly to Navman you must set out:
Sender's name: ............................................................................................
Sender's address: ............................................................................................
Sender's phone: ............................................................................................
Sender's email:
............................................................................................
RMA number (compulsory - please call the support number above for your RMA
number)
If you claim under your warranty by returning the product directly to Navman, you
must pay for shipping and any insurance to get the product to Navman at the applicable
address. Except where otherwise provided by Consumer Guarantees (as defined
below), you assume all risk of loss or damage to the product until it arrives at Navman's
facility. Navman will pay for ground shipping of the new or repaired product back to you
at an address in the applicable country or region and assume all risk of loss or damage to
the product until it arrives at the address you specify. You must request, and pay for, any
different shipping method. Except where otherwise required by Consumer Guarantees
(as defined below), if Navman reasonably determines that the product has not failed
to meet the standards of the warranty, you will be liable for the cost of return shipment
to you, Navman may require payment of such costs before returning the product to
you, and the risk of loss or damage will remain with you notwithstanding Navman's
possession of the product. The Warranty Period will stop running on the day you send
the product to Navman. The remainder of the Warranty Period will begin to run again
when the repaired or replacement product arrives at the address you specify.
