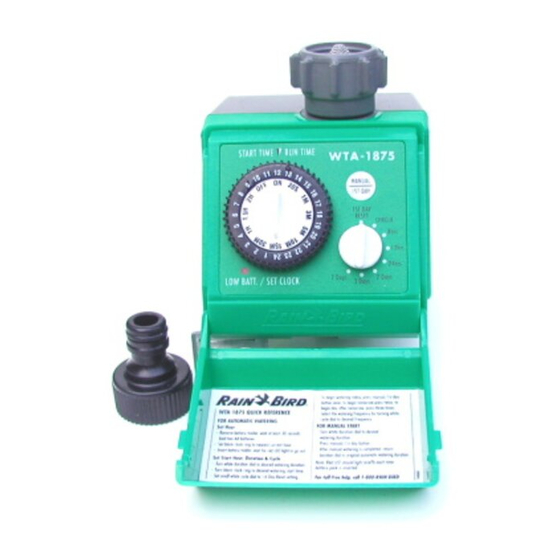

WTA-1875
ELECTRONIC WATER TIMER
Owner's Manual
Please read this Owner's Manual completely
before installing timer.
FIGURE 1: CONTROL PANEL
START TIME
LOW BATT./ SET CLOCK
Clock Ring indicates
start time, sets current
time.
Duration Ring sets
length of watering
time.
®
RUN TIME
Activates manual
mode.
Sets cycle period.
Use to check
internal clock.
1
WTA-1875
WTA-1875
1ST DAY
1ST DAY
RESET
CHKCLK
8 hrs
2 Days
7 Days
3 Days
Indicates low
batteries or
improper dial setting.
12 hrs
24 hrs
Advertisement
Table of Contents
Related Manuals for Rain Bird WTA-1875
Summary of Contents for Rain Bird WTA-1875
- Page 1 ® WTA-1875 ELECTRONIC WATER TIMER Owner’s Manual Please read this Owner’s Manual completely before installing timer. FIGURE 1: CONTROL PANEL START TIME RUN TIME WTA-1875 WTA-1875 1ST DAY 1ST DAY RESET CHKCLK 8 hrs 12 hrs 24 hrs LOW BATT./ SET CLOCK...
- Page 2 FIGURE 2: CONTROL PANEL DIALS Black outer "Clock Ring" is marked for a 24-hour day. It indicates watering start time and will set current time when batteries are installed. White inner dial, "Duration Ring" can set watering times from 30 seconds up to two hours.
- Page 3 STEP 3: SETTING AND CHANGING PROGRAMS Turn CLOCK RING to desired starting time. Turn DURATION RING to desired length of watering time (duration). Turn CYCLE DIAL to desired cycle period for watering. To change the program, reset the rings and dials. CYCLE OPTIONS 1st day reset Refer to "Manual Watering"...
- Page 4 LOW BATT./SET CLOCK light means: 1. Low batteries. Light flashes until batteries are completely used or replaced. Or... 2. Light flashes faster if dials are improperly set. ® Rain Bird Sales, Inc. Customer Support Center 6640 S. Bonney Ave. Tucson, AZ 85706 1-800-RAIN-BIRD...
