Solwise Elite ITG Extera Set-Up Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

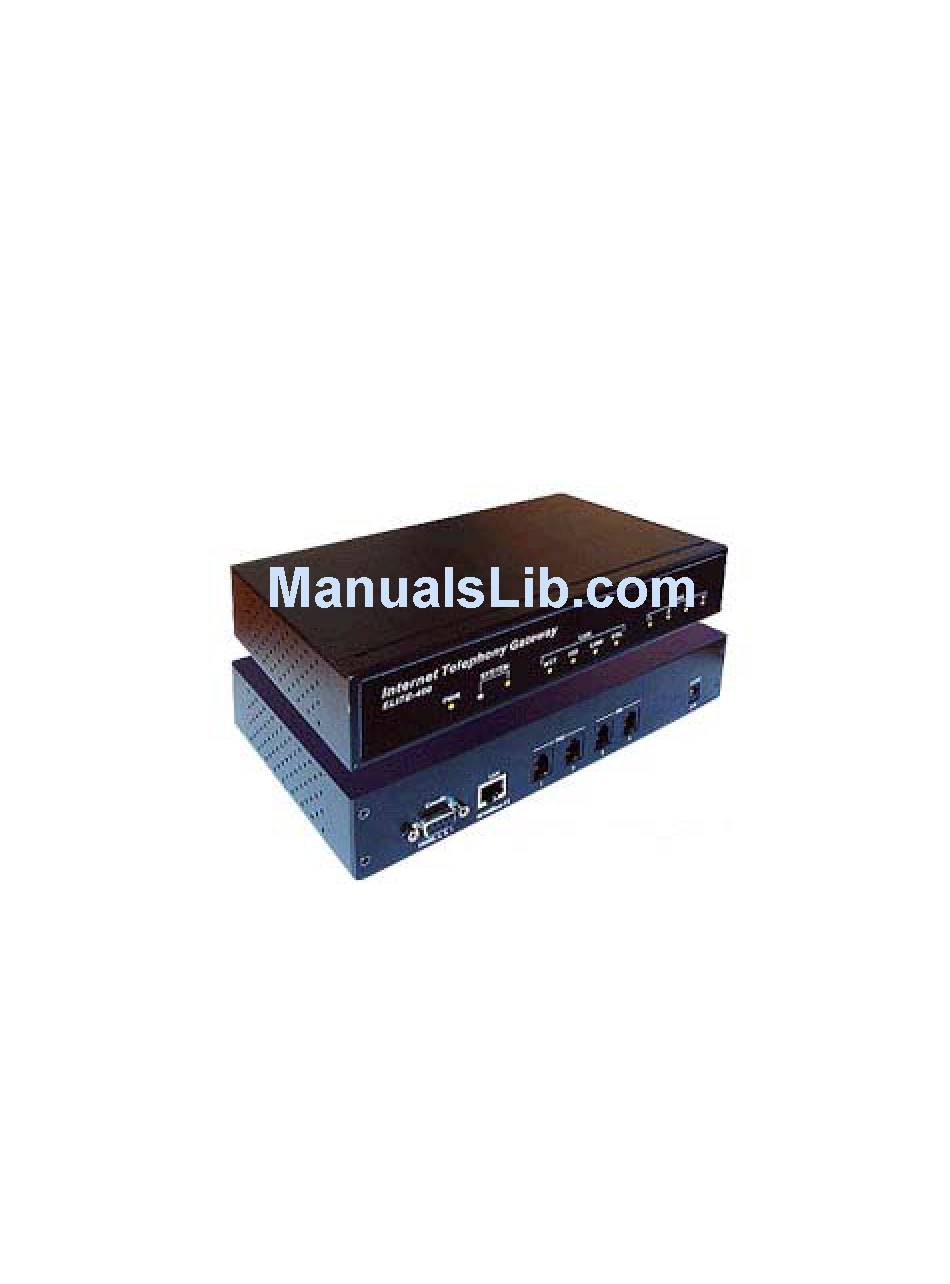

Solwise
Ltd
.
Extra Set-up instructions for
Solwise Elite ITG
VoIP Gateways
www.solwiseforum.co.uk
The Solwise Forum is designed to be the first port-of-call for technical support and sales advice for the
whole Solwise product range.
Please check the forum for coverage on any technical problems you have. Many people have
trodden your path before you, and a quick check on the forum will reduce the pressure on our support
staff.
Oct 10, 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite ITG and is the answer not in the manual?

Questions and answers

Related Manuals for Solwise Elite ITG

Summary of Contents for Solwise Elite ITG

  • Page 1 VoIP Gateways www.solwiseforum.co.uk The Solwise Forum is designed to be the first port-of-call for technical support and sales advice for the whole Solwise product range. Please check the forum for coverage on any technical problems you have. Many people have trodden your path before you, and a quick check on the forum will reduce the pressure on our support staff.
  • Page 2 Solwise Elite VoIP Gateway User’s Guide Notification is hereby given that Solwise Ltd. reserves the right to modify, change, update or revise this document from time to time as required without the prior obligation to notify any person, company or organization.
  • Page 3 Solwise Elite VoIP Gateway User’s Guide Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

  • Page 5: Table Of Contents

    Table of Contents Extra set-up notes for the Elite series VoIP gateways ..........11 Using a ‘Wildcard’ phone number......11 Clearing to defaults...........12 How can I set-up a ‘hotline’?........12 1.3.1 Lets give an example:........12 How can I stop the gateways ‘playing’ the DTMF tones when a call is received?......14 How can I configure the gateway to handle the clear forward signal (caller disconnect) ....14...
  • Page 6 Solwise Elite VoIP Gateway User’s Guide 5.2.4 ping..............49 5.2.5 tel erase_ivr.............49 5.2.6 tel set pcm_gain_level ........50 5.2.7 tel set ring_freq..........50 5.2.8 tel show pcm_gain_level.........51 5.2.9 tel show port ............51 5.2.10 tel show ring_freq..........51 3. IP Configuration Commands........52 5.3.1 arp..............52 5.3.2 net reset............52...
  • Page 7 Solwise Elite VoIP Gateway User’s Guide 5.5.14 set port port out_wait ........64 5.5.15 set port port prof_bit........64 5.5.16 set port port proto..........65 5.5.17 set port port rxgain ........65 5.5.18 set port port tone_out_off......66 5.5.19 set port port tone_out_on......66 5.5.20 set port port tone_out_pwr......67 5.5.21...
  • Page 8 Solwise Elite VoIP Gateway User’s Guide 5.9.1 set port port emw in_wink_digit_ignore..75 5.9.2 set port port emw in_wink_dur......76 5.9.3 set port port emw in_wink_wait_max .....76 5.9.4 set port port emw in_wink_wait_min ....76 5.9.5 set port port emw out_wink_dur_max ....77 5.9.6 set port port emw out_wink_dur_min .....77...
  • Page 9 Solwise Elite VoIP Gateway User’s Guide 5.14 H323 Configuration Commands......101 5.14.1 set h323 alias ..........101 5.14.2 set h323 allow_calls_wo_gk.......101 5.14.3 set h323 alt_dtmf.........102 5.14.4 set h323 auto_answer ........102 5.14.5 set h323 call_name........103 5.14.6 set h323 cisco_t38 ........103 5.14.7 set h323 default_dtmf .........103 5.14.8...
  • Page 10 Solwise Elite VoIP Gateway User’s Guide 5.16.7 show rxtxstat ..........115 5.16.8 show tlevels..........116 5.16.9 show tone............116 5.16.10 show tstat ..........117 5.16.11 show version ..........117 5.16.12 show vpstat ..........118 5.17 Dial Plan Management Commands .....118 5.17.1 Database Update Control Commands .............118 5.17.2...

  • Page 11: Extra Set-Up Notes For The Elite Series Voip Gateways

    Solwise Elite VoIP Gateway User’s Guide 1 Extra set-up notes for the Elite series VoIP gateways Using a ‘Wildcard’ phone number In order to accept incoming calls on your Elite gateway you must first of all create a dial plan which has entries for each number that your callers will use to contact you.

  • Page 12: Clearing To Defaults

    Solwise Elite VoIP Gateway User’s Guide Clearing to defaults In the GW's memory, there are 3 portions to record the different setting values: network setting, atpm setting and configuration (port,coding,h323 etc.). You need to reset (erase) each section separately. After you’ve erased it all you then re-boot the system and the defaults are loaded.
  • Page 13 Solwise Elite VoIP Gateway User’s Guide FXO end FXS end Local Dial Plan Set-up Phone Number Hunt group Destination ID Local Destination Channel Remote Dial Plan Set-up Phone Number Hunt Group Destination ID Remote Destination IP IP address of FXS gateway IP address of FXO gateway To test the dial plan pick up the handset on FXS port 1 and dial 501;...

  • Page 14: How Can I Stop The Gateways 'Playing' The Dtmf Tones When A Call Is Received

    Solwise Elite VoIP Gateway User’s Guide set port 0 dial_in plar 501 Then do config activate config store to activate and store the settings. Now do the tests again but this time you shouldn’t have to do the dialling; the gateways should auto-dial as expected.

  • Page 15: So What's This Got To Do With Voip Gateways

    Solwise Elite VoIP Gateway User’s Guide 1.5.2 So what’s this got to do with VoIP gateways? Imagine you have a site-to-site set-up of an FXO gateway talking to an FXS gateway. So there is a call in progress from a PSTN phone line which is connected to the first port of the FXO gateway and then across to the FXS gateway to a phone on the first FXS port.

  • Page 16: So How Do You Configure The Gateway To A Disconnect Tone Correctly Then

    Solwise Elite VoIP Gateway User’s Guide This is a value to ensure that false polarity reversals are not detected. A good value is 20 (10 less then the cpc_detect value). After entering the commands you need to do config activate config store to activate and store the settings.
  • Page 17 Solwise Elite VoIP Gateway User’s Guide 1.5.4.2 Wiring Up to do the test with an FXO/FXS gateway In the example above the test procedure is going to be make a call from phone 1234, through the PBX to the FXO port (number 1233).
  • Page 18 Solwise Elite VoIP Gateway User’s Guide...
  • Page 19 Solwise Elite VoIP Gateway User’s Guide 1.5.4.3 Wiring Up to do the test with an FXO only gateway In the example above the test procedure is going to be make a call from phone 1234, through the PBX to the FXO port (number 1233).
  • Page 20 Solwise Elite VoIP Gateway User’s Guide 1.5.4.4 Tone detection When the call is disconnected you should see messages similar to the following on the console screen:...
  • Page 21 Solwise Elite VoIP Gateway User’s Guide 1.5.4.5 Entering the detected Tone cadence values So, once your gateway has displayed the detected tone values for the disconnected call you can now enter these into the gateway configuration. At the console prompt use the command show_cp_tone_det to...
  • Page 22 Solwise Elite VoIP Gateway User’s Guide Now use the command cp_tone_det disconnect to enter the new, detected tone values.
  • Page 23 Solwise Elite VoIP Gateway User’s Guide Done!

  • Page 24: Integration Examples For 2 & 4 Port Desktop Version

    Solwise Elite VoIP Gateway User’s Guide 2 Integration Examples for 2 & 4 Port Desktop Version This section discusses the various environments and situations where you can use the Elite Gateway* Desktop Version Application A: FXS Application A has two possible connections. The A-1 shows the connection between the gateway and telephone set (POTS) or FAX machine.
  • Page 25 Solwise Elite VoIP Gateway User’s Guide...

  • Page 26: Integration Examples For 4 & 8 Port Rack Mount Version

    Solwise Elite VoIP Gateway User’s Guide 3 Integration Examples for 4 & 8 Port Rack Mount Version There are three basic environments that the Elite Gateway* can be applied to. They are described in the following sections. Application A: FXS Application A has two possible connections.

  • Page 27: Application C: Fxs/Fxo Extended Combination

    Solwise Elite VoIP Gateway User’s Guide order to reach the person inside the region that the public switch serves. Application C: FXS/FXO Extended Combination Application C has four possible connections. The C-1 connection is a normal trunk connection between the CO switch and PBX...

  • Page 28: Configuration Examples

    Solwise Elite VoIP Gateway User’s Guide Configuration Examples 3.4.1 Scenario 1 3 sets of Elite Gateways are connected to Internet. One of Elite Gateways has an FXO module and the other two are equipped with an FXS module. Telephone address description...
  • Page 29 Solwise Elite VoIP Gateway User’s Guide "0" None None Elite Gateway A hunt group table Group id Type #Members Member ids 1 2 3 4 Elite Gateway A destination table Dest id Mode Destination Local PORT = 0 Local PORT = 1...
  • Page 30 Solwise Elite VoIP Gateway User’s Guide None None None None Elite Gateway B hunt group table Group id Type #Members Member ids Elite Gateway B destination table Dest id Mode Destination Local PORT = 0 Local PORT = 1 Local...
  • Page 31 Solwise Elite VoIP Gateway User’s Guide Address Entry Hunt Grp_Id Min. Digits Max. Digits Prefix strip Prefix Address 0800 None 0801 None 0802 None 0803 None None None None None Elite Gateway C hunt group table Group id Type #Members Member ids...

  • Page 32: Scenario 2

    Solwise Elite VoIP Gateway User’s Guide Local PORT = 2 Local PORT = 3 H.323 Dest = 210.243.230.10/1720 TCP H.323 Dest = 210.243.230.20/1720 TCP Note: An FXO module was added to both Elite Gateway B and Elite Gateway C. 3.4.2...
  • Page 33 Solwise Elite VoIP Gateway User’s Guide Address Entry Hunt Grp_Id Min. Digits Max. Digits Prefix strip Prefix Address None "0" "0" None None None None None Elite Gateway A hunt group table Group id Type #Members Member ids 1 2 3 4...
  • Page 34 Solwise Elite VoIP Gateway User’s Guide H.323 Dest = 210.243.230.30/1720 TCP Elite Gateway B address translation table Address Entry Hunt Grp_Id Min. Digits Max. Digits Prefix strip Prefix Address 0900 None 0901 None 0902 None 0903 None None None None...
  • Page 35 Solwise Elite VoIP Gateway User’s Guide Elite Gateway B destination table Dest id Mode Destination Local PORT = 0 Local PORT = 1 Local PORT = 2 Local PORT = 3 Local PORT = 4 Local PORT = 5 Local...
  • Page 36 Solwise Elite VoIP Gateway User’s Guide None None None None None None Elite Gateway C hunt group table Group id Type #Members Member ids 5 6 7 8 Elite Gateway C destination table Dest id Mode Destination Local PORT = 0...
  • Page 37 Solwise Elite VoIP Gateway User’s Guide Local PORT = 4 Local PORT = 5 Local PORT = 6 Local PORT = 7 H.323 Dest = 210.243.230.10/1720 TCP H.323 Dest = 210.243.230.20/1720 TCP...

  • Page 38: Upgrading Software

    Solwise Elite VoIP Gateway User’s Guide 4 Upgrading Software This section explains how to upgrade your Elite Gateway* when new software revisions become available. Upgrades may improve system functionality or add new features to your Elite Gateway. The Elite Gateway offers two operation modes. Under normal conditions, the Elite Gateway operates in regular operational mode.
  • Page 39 Solwise Elite VoIP Gateway User’s Guide Syntax Description This command has no arguments or keywords. quit The quit command is used to terminate the download mode and return to normal operation mode. Syntax Description This command has no arguments or keywords.

  • Page 40: Cli Documentation

    Solwise Elite VoIP Gateway User’s Guide 5 CLI Documentation Using The Command Line Interface (CLI) The Elite Gateway* has a built-in command line interpreter and provides users with a Command Line Interface (CLI). The Elite Gateway can be configured by entering commands from the CLI.
  • Page 41 Solwise Elite VoIP Gateway User’s Guide Task Prompt Type From the remote host, enter the command followed by the IP address telnet telnet None of the Elite Gateway you want to access. ip_addr When the Elite Gateway prompts " ", enter the user name "adm"...
  • Page 42 Solwise Elite VoIP Gateway User’s Guide This section provides two tables (Table 1 and Table 2) that list all CLI commands supported by the ITG in alphabetical order, and provides for each command a one-line description, and the page number where you can find detailed information.
  • Page 43 Solwise Elite VoIP Gateway User’s Guide fax_hs_redundancy Specifies the packet-level redundancy for high-speed data transmissions for a fax coding profile fax_ls_redundancy Specifies the packet-level redundancy for low- speed data transmissions for a fax coding profile. fax_relay_features Enables/Disables specific fax processing...
  • Page 44 Solwise Elite VoIP Gateway User’s Guide dtmf_duration Specifies the duration the gateway plays out a DTMF tone endpoint_prefix Specifies the H.323 prefix that the ITG uses when registering to an H.323 gatekeeper. endpoint_reg_type Sets the H.323 registration type g723_frame_rate gk_addr...
  • Page 45 Solwise Elite VoIP Gateway User’s Guide em clear_conf_wait_max Sets the maximum duration to wait for an on- hook response on the M-lead after going on- hook on the E-lead em clear_detect Specifies the period of time M-lead needs to be on-hook before call clearing is declared...
  • Page 46 Solwise Elite VoIP Gateway User’s Guide digits will be accepted for incoming calls emw in_wink_dur Specifies the duration of the wink signal on the E-lead for incoming calls emw in_wink_wait_max Sets the maximum delay before beginning the wink on the E-lead after detecting a line...
  • Page 47 Solwise Elite VoIP Gateway User’s Guide shutdown fxs cpc_wait Sets the time to wait, after a FXS port shutting down loop current and before checking for on- hook fxs offhook_db Specifies the time for debouncing the off-hook signal fxs offhook_detect...

  • Page 48: Utility Commands

    Solwise Elite VoIP Gateway User’s Guide tone Displays each element of a CP tone tstat Displays the telephony interface statistics for a telephony port version Displays information that identifies the versions of various software components vpstat Displays the statistic information about the...

  • Page 49: Download

    Solwise Elite VoIP Gateway User’s Guide Syntax Description This command has no arguments or keywords 5.2.2 download Use the download command to enter download mode for reading code image from a TFTP server and program it to flash NVS. Refer to Software Upgrade Utility Commands on page 99 for detailed information on how to upgrade the system software.

  • Page 50: Tel Set Pcm_Gain_Level

    Solwise Elite VoIP Gateway User’s Guide Syntax Description This command has no arguments or keywords 5.2.6 tel set pcm_gain_level The gain control circuitry of the FXO interface ports my adjust the power level of the analog signal the ITG send to all FXO ports and the gain level is configurable.

  • Page 51: Tel Show Pcm_Gain_Level

    Solwise Elite VoIP Gateway User’s Guide to 17 Hz Setting ring frequency to 20 Hz Setting ring frequency to 25 Hz Setting ring frequency to 50 Hz Default 1- 17 Hz Related Command tel show ring_freq 5.2.8 tel show pcm_gain_level The command displays the gain level, which was set by command tel set pcm_gain_level.

  • Page 52: Ip Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide Syntax description This command has no arguments or keywords Related Command tel set ring_freq 3. IP Configuration Commands This section describes the commands to configure and monitor the LAN and IP interface for the ITG.

  • Page 53: Net Set Http

    Solwise Elite VoIP Gateway User’s Guide ip_addr The IP address of the default gateway. IP address of 0.0.0.0 stands for no default gateway. Default 0.0.0.0 Note The new setting will not take effect until the ITG is reset. Related Commands...

  • Page 54: Net Set Ip_Preced

    Solwise Elite VoIP Gateway User’s Guide Default 192.168.0.1 Notes The new IP address will not take effect until the ITG is reset. Related Commands net set gateway net set mask 5.3.6 net set ip_preced The ITG allows you to set the 8-bit Service Type field in the IP header for all the voice packets it sends out.

  • Page 55: Net Set Speed

    Solwise Elite VoIP Gateway User’s Guide Syntax description ip_mask The subnet mask of your network. Default 255.255.255.0 Notes The new setting will not take effect until the ITG is reset. Related Commands net set gateway net set mask 5.3.8 net set speed The ITG allows you set the link speed for its Ethernet interface.

  • Page 56: Net Set Http

    Solwise Elite VoIP Gateway User’s Guide access the ITG from Telnet client. Disable Telnet server. Default Notes The new setting will not take effect until the ITG is reset. 5.3.10 net set http The ITG allows you enable or disable its built-in HTTP server. This command is used to enable or disable the HTTP server.

  • Page 57: Net Show

    Solwise Elite VoIP Gateway User’s Guide Default 5.3.12 net show This command displays all the network settings. net show Syntax Description This command has no arguments or keywords Example The following example shows how to display network settings: Console>net show <Enter> ******************* Net Parameters ******************* Configured IP address = 172.16.3.252.

  • Page 58: Telephony Interface Port Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide Telephony Interface Port Configuration Commands This section describes commands for configuring the telephony interface ports of the ITG. All command in this section share the same syntax as follows: set port {port | all} option [option] . . .

  • Page 59: Set Port Port Call_Limit

    Solwise Elite VoIP Gateway User’s Guide 5.5.2 set port port call_limit This command is used to set a call length limit for calls on a telephony port. If the call length is exceeded, the call is automatically terminated. set port port call_limit seconds...

  • Page 60: Set Port Port Copyof

    Solwise Elite VoIP Gateway User’s Guide Call ID is number is not available Default No caller ID number Related Commands set port port enable_user_cid set port port fxo_caller_id set port port fxs caller_id 5.5.5 set port port copyof This command is used to copy the settings of a telephony port to another telephony port.

  • Page 61: Set Port Port Cp_Tone_Det_Ctrl

    Solwise Elite VoIP Gateway User’s Guide congestion disconnect This commands allows the selection of which configuration for call progress tone detection. port port cp_tone_det_cfg {default alternate} Syntax description Select the default call progress tone default detection configuration alternate Select the alternate call progress tone...

  • Page 62: Set Port Port Dial_In Plar

    Solwise Elite VoIP Gateway User’s Guide Default Related Commands set cp_tone_det set cp_tone_det_cfg set coding profile_id cp_tone_detect 5.5.8 set port port dial_in plar This command is used to configure the number to be dialed in automatically (automatic ring-down) when a telephony port goes off-hook. If no number is entered, operation will be as normal.

  • Page 63: Set Port Port Fax_Prof

    Solwise Elite VoIP Gateway User’s Guide Syntax description Disable fax tone detection. Enable fax tone detection. Enable/Disable fax tone detection according to the fax_tone_detect parameter in the coding profile that is currently loaded. Refer to command “set coding profile_id fax_tone_detect” on page 53 for details about setting the fax tone detection option for a coding profile.

  • Page 64: Set Port Port Out_Type

    Solwise Elite VoIP Gateway User’s Guide Default 5.5.13 set port port out_type The ITG supports tone-dial and pulse-dial. This command is used to select the dial- out characteristic of a telephony port. set port port out_type {tone | pulse} Syntax description...

  • Page 65: Set Port Port Proto

    Solwise Elite VoIP Gateway User’s Guide Coding profile number prof_num is available to the telephony port designated by port Default By factory default, all available coding profiles are available to all telephony ports. 5.5.16 set port port proto This command is used to select the signaling protocol for a telephony port. The ITG detects its hardware and configure the signaling protocol for all the telephony ports automatically.

  • Page 66: Set Port Port Tone_Out_Off

    Solwise Elite VoIP Gateway User’s Guide Syntax description Gain level in dB, ranging from –14 to 14. Default Related Command set port port txgain 5.5.18 set port port tone_out_off This command is used to set the off time for DTMF dial tones from a telephony port.

  • Page 67: Set Port Port Tone_Out_Pwr

    Solwise Elite VoIP Gateway User’s Guide Related Commands set port port tone_out_off set port port tone_out_pwr 5.5.20 set port port tone_out_pwr This command is used to set the power level for DTMF dial tones generated by the ITG. set port port tone_out_pwr power...

  • Page 68: Set Port Port Voice_Prof

    Solwise Elite VoIP Gateway User’s Guide set port port txgain db Syntax description Gain level in dB, ranging from –14 to 14. Default Related Commands set port port rxgain 5.5.23 set port port voice_prof This command is used to set the preferred voice coding profile for a telephony port.

  • Page 69: Set Port Port Em Clear_Conf_Wait_Max

    Solwise Elite VoIP Gateway User’s Guide Default 5000 5.6.2 set port port em clear_conf_wait_max This command is used to set the maximum duration to wait for an on-hook response on the M-lead after going on-hook on the E-lead. set port port em clear_conf_wait_max milliseconds...

  • Page 70: Set Port Port Em Dial_Tone

    Solwise Elite VoIP Gateway User’s Guide Default 2000 5.6.5 set port port em dial_tone This command is used to determine if dial tone should be generated on incoming calls. set port port em dial_tone [on | off] Syntax description Generate dial tone.

  • Page 71: Set Port Port Em Guard_Out

    Solwise Elite VoIP Gateway User’s Guide Default 5.6.8 set port port em guard_out This command is used to set an additional period of time after guard_all when incoming calls will be accepted but outgoing calls will not be initiated for aborted call.

  • Page 72: Set Port Port Em Size_Detect

    Solwise Elite VoIP Gateway User’s Guide 5.6.11 set port port em size_detect This command is used to specify the period of time the M-lead needs to be off-hook before an incoming call is declared. set port port em size_detect milliseconds...

  • Page 73: E&M Delay Start Signaling Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide from 0 to 65535. Default E&M Delay Start Signaling Configuration Commands The E&M delay start signaling configuration commands are used to define parameters specific to E&M delay start interface. These commands apply to E&M Delay Start signaling protocol only.

  • Page 74: Set Port Port Emd Out_Delay_Check

    Solwise Elite VoIP Gateway User’s Guide Syntax description Time in milliseconds, ranging milliseconds from 0 to 65535. Default 5.8.4 set port port emd out_delay_check This command is used to set the period of time after going off-hook on the E-lead before checking the M-lead for the delay signal response.

  • Page 75: Set Port Port Emd Out_Intg_Check

    Solwise Elite VoIP Gateway User’s Guide Syntax description Time in milliseconds, ranging milliseconds from 0 to 65535. Default 5.8.7 set port port emd out_intg_check This command is used to set the Integrity Check mode. If On, the delay signal response is required from the PBX for outgoing calls. If Off, no Integrity Check is performed.

  • Page 76: Set Port Port Emw In_Wink_Dur

    Solwise Elite VoIP Gateway User’s Guide Default 5.9.2 set port port emw in_wink_dur This command is used to specify the duration of the wink signal on the E-lead for incoming calls. set port port emw in_wink_dur milliseconds Syntax description milliseconds Time in milliseconds, ranging from 0 to 65535.

  • Page 77: Set Port Port Emw Out_Wink_Dur_Max

    Solwise Elite VoIP Gateway User’s Guide 5.9.5 set port port emw out_wink_dur_max This command is used to set the maximum duration of the wink response on the M- lead for it to be detected. set port port emw out_wink_dur_max milliseconds...

  • Page 78: Fxo Signaling Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide 5.10 FXO Signaling Configuration Commands The FXO Signaling Configuration Commands are used to define parameters specific to FXO interface. These command apply to Loop Start FXO signaling protocol only. 5.10.1 set port port fxo answer_after This command specifies the number of rings to elapse before a FXO port answering an incoming call.

  • Page 79: Set Port Port Fxo Caller_Id

    Solwise Elite VoIP Gateway User’s Guide 5.10.3 set port port fxo caller_id This command selects if Caller ID will be detected on the FXO port. set port port fxo caller_id {on | off} Syntax description Enable Caller ID detection Disable Caller ID...

  • Page 80: Set Port Port Fxo Loop_Det_Db

    Solwise Elite VoIP Gateway User’s Guide command is used to set this time interval in milliseconds. set port port fxo guard_out milliseconds Syntax description milliseconds Time in milliseconds, ranging from 1 to 60000. Default 2000 5.10.6 set port port fxo loop_det_db The ITG incorporate loop current detector on the FXO interface.

  • Page 81: Set Port Port Fxo Ringing_Inter_Cycle

    Solwise Elite VoIP Gateway User’s Guide from 1 to 1000. Default Related Command set port port fxo ringing_inter_cycle set port port fxo ringing_inter_pulse 5.10.8 set port port fxo ringing_inter_cycle The FXO port detects ringing for signifying an incoming call. A ring is a cycle of ring-on and ring-off signals.

  • Page 82: Fxs Signaling Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide milliseconds Time in milliseconds, ranging from 1 to 6000. Default Related Command set port port fxo ringing_db set port port fxo ringing_inter_cycle set port port enable_user_cid Though FXO ports can detect Caller ID and convey the detected Caller ID information to the called party.

  • Page 83: Set Port Port Fxs Answ_Clear_Detect

    Solwise Elite VoIP Gateway User’s Guide 5.11.1 set port port fxs answ_clear_detect This command is used to set the minimum time to wait, in milliseconds, when the answering party drops the line before declaring on-hook. set port port fxs answ_clear milliseconds...

  • Page 84: Set Port Port Fxs Cpc_Wait

    Solwise Elite VoIP Gateway User’s Guide milliseconds Time in milliseconds, ranging from 1 to 60000. 0 stands for never shutting down loop current Default 5.11.4 set port port fxs cpc_wait This command is used to set the time to wait, in milliseconds, after a FXS port shutting down loop current and before checking for on-hook.

  • Page 85: Set Port Port Fxs Onhook_Db

    Solwise Elite VoIP Gateway User’s Guide condition is declared. set port port fxs offhook_detect milliseconds Syntax description milliseconds Time in milliseconds, ranging from 1 to 1000. Default Related Command set port port fxs offhook_db 5.11.7 set port port fxs onhook_db This command specifies the time in milliseconds to use as a debouncer interval for debouncing the on-hook signal.

  • Page 86: Set Port Port Fxs Ring_Id

    Solwise Elite VoIP Gateway User’s Guide milliseconds Time in milliseconds, ranging from 1 to 1000. Default Related Command set port port fxs onhook_db 5.11.9 set port port fxs ring_id A ringing signal is a repetition of ring-on and ring-off cycles (the so-called cadence).

  • Page 87: Common Coding Profile Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide can be used by any telephony port on the ITG. The ITG has 11 built-in coding profiles, each having a unique profile ID and parameters for a specific voice, fax or modem coder. Among these 11 coding profiles, 5 may be used for voice or fax applications.
  • Page 88 Solwise Elite VoIP Gateway User’s Guide g723_53 G.723.1 5.3 kbps coding g723_63 G.723.1 6.3 kbps coding g729ab G.729 annex A, annex B 8kbps coding fax_t38 Fax Relay in T.38 mode Related Command set coding profile_id usage 5.12.1.2 set coding profile_id cp_tone_detect This command is used to specify a secondary level of control of call progress tone detection.

  • Page 89: Voice Coding Profile Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide 5.12.1.4 set coding profile_id fax_tone_detect This command is used to specify a secondary level of control of V.21 fax tone detection. If the fax tone detection control for a telephony port is set to "As per coding profile" (refer to command “set port port fax_tone_det_ctrl”...
  • Page 90 Solwise Elite VoIP Gateway User’s Guide 5.12.2.1 set coding profile_id adaptive_playout The ITG has a built-in voice packet buffer, which allows the ITG to remove the packet jitter from the incoming packet stream. The ITG also implements an adaptive voice packet playback algorithm, which automatically adjust the time each voice packet is buffered in the voice packet buffer before being played out.
  • Page 91 Solwise Elite VoIP Gateway User’s Guide delay among packets is known as jitter. The voice buffer allows the ITG to remove the packet jitter from the incoming packet stream before decompressing and sending the packet to telephony port for playing out. This command is used to set the size of the voice buffer.
  • Page 92 Solwise Elite VoIP Gateway User’s Guide set coding profile_id adaptive_playout 5.12.2.5 set coding profile_id nom_delay While the “set coding profile_id max_delay” command sets the size of the voice packet buffer, this command sets the average time in milliseconds each voice packet is stored in the buffer.

  • Page 93: Fax Coding Profile Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide threshold Value in dBm, ranging from –20 to +10. Related Commands set coding profile_id vad 5.12.2.8 set coding profile_id vif This command is used to set the size of the Voice Information Field (VIF), in bits, for a voice coder.
  • Page 94 Solwise Elite VoIP Gateway User’s Guide sent across the network, for a fax coder (i.e., determines the size of the high-speed IFPs). set coding profile_id fax_hs_pkt_rate milliseconds Syntax description milliseconds Value in milliseconds 5.12.3.2 set coding profile_id fax_hs_redundancy The T-38 mode command is used to specify the packet-level redundancy for high- speed data transmissions (i.e., T.4 image data) for a fax coder profile.
  • Page 95 Solwise Elite VoIP Gateway User’s Guide Syntax description scanlon Enable concealment of page data errors due to network packet loss. scanloff Disable concealment of page data errors due to network packet loss. fdison Enable prolonging of the second Digital Identification Signal (DIS) retransmission.

  • Page 96: Call Progress Tone Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide 5.12.3.7 set coding profile_id fax_tx_net_timeout This command sets the timeout period after which the ITG will declare a fax cleardown event, if no data is received from the IP network while the gateway is in a local transmit state.
  • Page 97 Solwise Elite VoIP Gateway User’s Guide busy Busy tone congest Congestion tone disconnect Disconnect tone After entering the command, the CLI first prompts you to enter the number of tone elements, then prompts you to enter each tone element in sequence. For each tone element, you’ll need to specify the following parameters:...

  • Page 98: Configuring Cp Tone Detector

    Solwise Elite VoIP Gateway User’s Guide How many sets of tone do you want the whole tone to be? (1~6) 2 <Enter> Please enter set 1 parameters in the following order: num_freq freq1 amp1 freq2 amp2 freq3 amp3 freq4 amp4 duration (-1: forever) 2 480 –240 620 –240 0 0 0 0 250 <Enter>...
  • Page 99 Solwise Elite VoIP Gateway User’s Guide disconnect | disc1 | disc2 | disc2 | disc4 | disc5} Syntax description busy Busy tone ringback Ring-back tone Congestion tone congestion disconnect Disconnect tone type 1 disc1 Disconnect tone type 2 Disconnect tone...
  • Page 100 Solwise Elite VoIP Gateway User’s Guide Console>set cp_tone_det busy <Enter> How many sets of elements do you want the whole CP tone to be detected? (1~8) 2 <Enter> Please enter set 1 parameters in the following order: on/off min.-duration max.-duration on 450 550 <Enter>...

  • Page 101: H323 Configuration Commands

    Solwise Elite VoIP Gateway User’s Guide low_freq Low cutoff frequency, ranging from 150 to 500 Hz. “0” specifies the default of 300. “-“ specifies using the original setting. high_freq High cutoff frequency, ranging from 400 to 1200 Hz. “0” specifies the default of 550. “-“...

  • Page 102: Set H323 Alt_Dtmf

    Solwise Elite VoIP Gateway User’s Guide True Allow calls from gateway that is not registered with a gatekeeper. False Do not allow calls from gateway that is not registered with a gatekeeper. Default true 5.14.3 set h323 alt_dtmf There are two ways VoIP gateway handles DTMF Relay, per H.323 and IMTC specifications.

  • Page 103: Set H323 Call_Name

    Solwise Elite VoIP Gateway User’s Guide Default 5.14.5 set h323 call_name This command is used to set a string that the ITG will encapsulate in the H.323 Setup message it sends to a remote VoIP device when initiating a call.

  • Page 104: Set H323 Display_Name

    Solwise Elite VoIP Gateway User’s Guide IMTC specification. h323v2 Convey DTMF digits per H.323 specification. Default h323v2 Related Command set h323 alt_dtmf 5.14.8 set h323 display_name This command is used to set the display name information that is carried in the H.323 setup messages.

  • Page 105: Set H323 Dtmf_Duration

    Solwise Elite VoIP Gateway User’s Guide 0.0.0.0 5.14.10 set h323 dtmf_duration When the ITG employs IMTC relay mode, users may specify the duration the gateway plays out a DTMF tone. This command is used to set the duration of a DTMF tone, when IMTC DTMF relay technique is employed.

  • Page 106: Set H323 G723_Frame_Rate

    Solwise Elite VoIP Gateway User’s Guide Default 5.14.13 set h323 g723_frame_rate set h323 g723_frame_rate frame_rate Syntax Description frame_rate Default 5.14.14 set h323 gk_addr This command is used to specify the address of the gatekeeper when configured for manual mode. set h323 gk_addr ip_addr...

  • Page 107: Set H323 Gk_Max_Tries

    Solwise Elite VoIP Gateway User’s Guide 5.14.16 set h323 gk_max_tries This command is used to control how many registration attempts will be made before the ITG considers itself to have failed registration. Once this number of unsuccessful attempts have been made, the ITG will only be able to place calls if allow_calls_wo_gk is true.

  • Page 108: Set H323 H245_Timeout

    Solwise Elite VoIP Gateway User’s Guide termmal_type A numerical value designating the H245 terminal type. Typically, setting the H.245 terminal type to a value less than 50 will force slave operation, and a value greater than 200 will force master operation Default 5.14.19 set h323 h245_timeout...

  • Page 109: Set H323 Master_Delay

    Solwise Elite VoIP Gateway User’s Guide Syntax Description Accept incoming calls with H323 Faststart mode Do not accept incoming calls with Set H323 Faststart mode Default Related Command set h323 out_fast_start 5.14.22 set h323 master_delay To be able to interoperate with certain H.323 terminals, such as Microsoft NetMeeting, the gateway can not send out H.323 open logical channel message to its...

  • Page 110: Set H323 Out_Fast_Start

    Solwise Elite VoIP Gateway User’s Guide Default 5.14.24 set h323 out_fast_start This command is used to select the H.323 mode for outgoing calls. set h323 out_fast_start {on | off} Syntax Description Initiating outgoing calls with H323 Fast Start mode Initiating outgoing calls with H323...

  • Page 111: Set H323 Time_To_Live

    Solwise Elite VoIP Gateway User’s Guide set h323 term_id alias Syntax Description term_id Default Null 5.14.27 set h323 time_to_live set h323 term_id milliseconds Syntax Description milliseconds Default 5.15 Configuration Management Command The CLI maintains three areas where the parameters for telephony interface ports, voice and fax coders, and H.323 configuration are stored:...

  • Page 112: Config

    Solwise Elite VoIP Gateway User’s Guide Use set commands to make configuration parameters changes in the Temporary area Use the config activate command to move the new values into the Active area, available for use Use the config store command to save the new Active values in NVS Reset the ITG after changing H.323 settings and storing the setting to NVS.

  • Page 113: Show Coding

    Solwise Elite VoIP Gateway User’s Guide port ID of the telephony port whose call record is to be displayed. Example The following example shows how to display the record of the latest call that telephony port 0 has completed: Console>show call_record 0 <Enter>...

  • Page 114: Show Cp_Tone_Det_Cfg

    Solwise Elite VoIP Gateway User’s Guide disc3 Disconnect tone type 4 disc4 Disconnect tone type 5 disc5 Disconnect tone type 6 Example The following example shows how to display the on/off cadence for disconnect tone: Console>show cp_tone_det disconnect <Enter> The settings for CP detection are: Number of on/off cadence elements: 2 for Disconnect-Tone min.

  • Page 115: Show Port

    Solwise Elite VoIP Gateway User’s Guide show h323 Syntax description This command has no arguments or keywords Example The following example shows how to display H.323 configuration: Console>show h323 <Enter> h323 display_name = 'Customer' h323 h245_term_type = 60 h323 rtp_port_base = 30000...

  • Page 116: Show Tlevels

    Solwise Elite VoIP Gateway User’s Guide 5.16.8 show tlevels This command displays the power level, in 0.1 dBm, of the following signals for a telephony port: Current receive signal level Current transmit signal level Average receive signal level Average transmit signal level...

  • Page 117: Show Tstat

    Solwise Elite VoIP Gateway User’s Guide The settings are: Number of tone elements: 1 for Dial-Tone num_freq freq1 amp1 freq2 amp2 freq3 amp3 freq4 amp4 duration 2 350 -130 440 -130 0 0 0 0 -1 0 0 0 0 0 0 0 0 0 0...

  • Page 118: Show Vpstat

    Solwise Elite VoIP Gateway User’s Guide Example The following example shows how to use the show version command Console>show version Internet Telephony Gateway (ACC) Version: 3.13 Boot Loader Version: 4.12 RTOS Version: 2.5.0/BE H.323 Stack Version: 3.0.9.0 DSP image Version: 8.1.2.1.
  • Page 119 Solwise Elite VoIP Gateway User’s Guide Allowed only in database update mode Related Commands atpm req 5.17.1.2 atpm erase This command erases the dial plan database from the non-volatile memory. atpm erase Syntax description This command has no arguments or keywords Allowed only in database update mode 5.17.1.3 atpm purge...
  • Page 120 Solwise Elite VoIP Gateway User’s Guide atpm req Syntax description This command has no arguments or keywords Allowed only in database update mode Related Commands atpm done 5.17.1.5 atpm restore This command restores the whole dial plan from non-volatile storage to the ATPM address, destination and hung group tables.

  • Page 121: Destination Table Management Commands

    Solwise Elite VoIP Gateway User’s Guide atpm restore 5.17.2 Destination Table Management Commands 5.17.2.1 atpm dadd This command adds a destination entry into the ATPM destination table. A local destination entry is one of the telephony ports on the ITG.

  • Page 122: Hunt Group Table Management Commands

    Solwise Elite VoIP Gateway User’s Guide Allowed only in database update mode Related Commands atpm dadd atpm dfind atpm dlist 5.17.2.3 atpm dfind This command finds and displays an entry in the destination table. atpm dfind dest_id Syntax description dest_id ID of a previously added destination entry to be displayed.
  • Page 123 Solwise Elite VoIP Gateway User’s Guide atpm hadd id {1 | 2} dest_id [dest_id] [dest_id] . . Syntax description Hunt group ID. For each hunt group, you need to assign it a unique identifier between 0 and Hunt type 1. Hunt type 1 hunts destination...

  • Page 124: Address Table Management Commands

    Solwise Elite VoIP Gateway User’s Guide atpm hlist 5.17.3.3 atpm hfind This command finds and displays an entry in the hunt group table. atpm hfind id Syntax description ID of the hunt group to be displayed. Allowed only in database update mode...
  • Page 125 Solwise Elite VoIP Gateway User’s Guide min_digits Minimum number of digits to be collected before the ATPM starting matching the dialed string with entries in the address table. max_digits Maximum number of digits to be collected before the ATPM starting matching the dialed string with entries in the address table.

  • Page 126: Dialing Control Commands

    Solwise Elite VoIP Gateway User’s Guide atpm afind tel# Syntax description tel# Number of a previously added entry in thaddress table to be displayed. Allowed only in database update mode Related Commands atpm aadd atpm adel 5.17.4.4 atpm alist The atpm alist displays all entries in the address table.

  • Page 127: The Trace Utility

    Solwise Elite VoIP Gateway User’s Guide Related Commands atpm sys 5.17.5.2 atpm sys This command to sets the time constraints for collection of dial digits. atpm sys dial_time 1st_digit_wait inter_digit_wait [dial_term_digit] Syntax description dial_time The maximum time, in millisecond, allowed for entry of the entire string of dial digits.

  • Page 128: Spy [ Key ] [Level]

    Solwise Elite VoIP Gateway User’s Guide To track a specific module of the software, a user may set the spy key designating that module and set its filtering level to 2 to display messages of significance levels 2 and higher for this module of software. Decreasing the filtering level increases number of messages, since the trace uuility displays messages of less significance too.

  • Page 129: Spy Dump

    Solwise Elite VoIP Gateway User’s Guide spy [key] [level] Syntax description Spy key specifying which module of code to be tracked. 0 stands for all keys. level Filtering level If the command is entered without specifying the spy key and filtering level, spy keys supported by the ITG and the current filtering level for each key will be displayed.

  • Page 130: Quit

    Solwise Elite VoIP Gateway User’s Guide packets to another node on the network. ping host_ip_address ping –s host_ip_address [count/timeout] Syntax description Causes ping to send one datagram per second, printing one line of output for every response received. host_ip_addr The IP address or IP alias of the host.

  • Page 131: Set Mask

    Solwise Elite VoIP Gateway User’s Guide Syntax description The IP address of the ip_addr ITG. Notes The new IP address will not take effect until the ITG is reset. 5.19.6 set mask Use the set mask command to set the IP subnet mask for the ITG.
  • Page 132 Solwise Elite VoIP Gateway User’s Guide ............................................... Download complete, file size = 2278800 Application code (non-pkzip'd) downloaded successfully Do you want to write downloaded image to flash EEPROM (y/n)? [y] y <Enter> Press <Enter> to start flash EEPROM programming <Enter>...
