Laundryprint

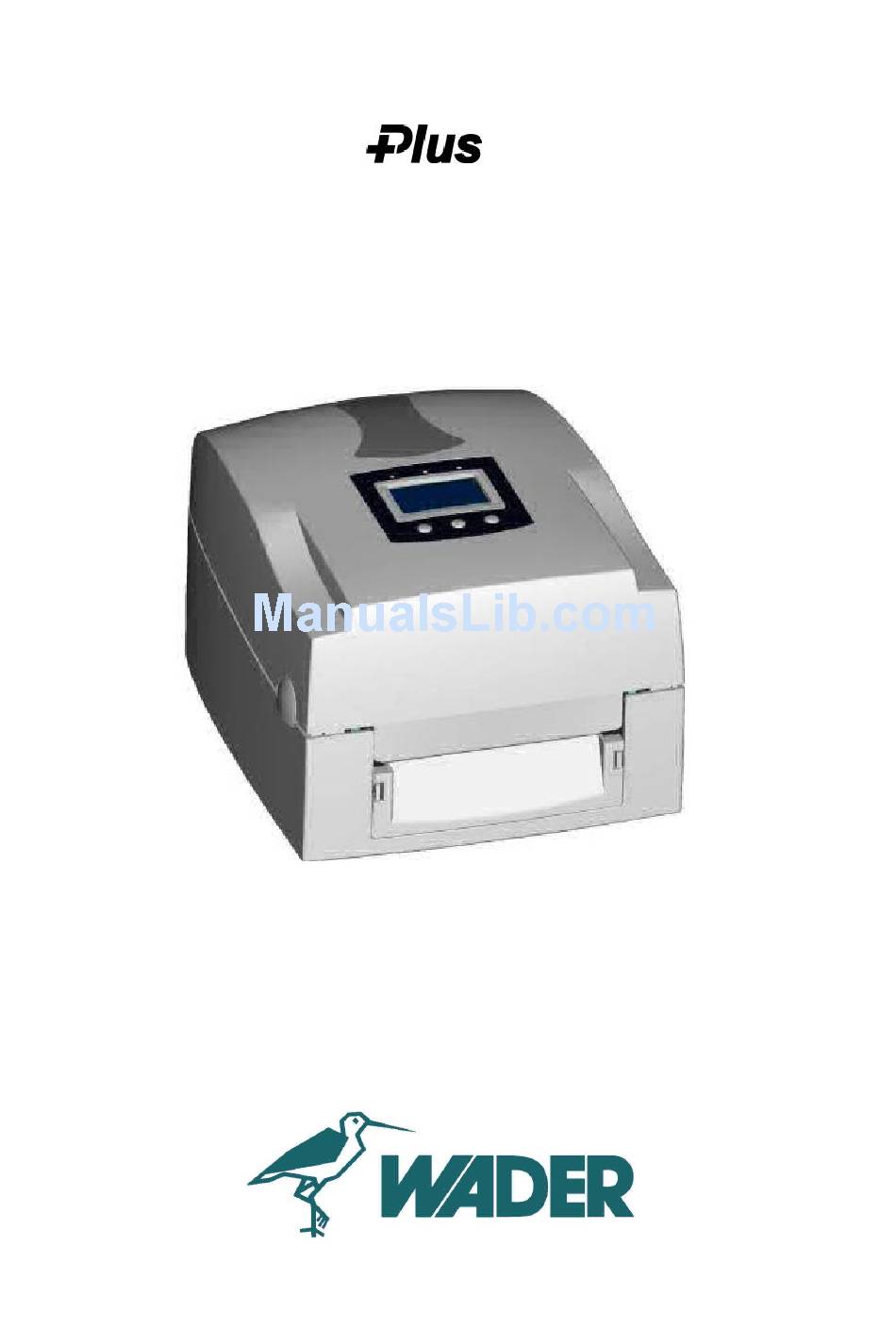

Thermal Label Printing System
Operating Instructions 1.7
Wader Labelling Systems Limited
26 Carham Road, Hoylake, Wirral, England
0151 632 3464
www.wader.co.uk
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Laundryprint Plus and is the answer not in the manual?

Questions and answers

Related Manuals for WADER Laundryprint Plus

Summary of Contents for WADER Laundryprint Plus

  • Page 1 Laundryprint Thermal Label Printing System Operating Instructions 1.7 Wader Labelling Systems Limited 26 Carham Road, Hoylake, Wirral, England 0151 632 3464 www.wader.co.uk...

  • Page 2: Identifying Printer Parts

    Identifying Printer Parts Fig-1 1. Cover open Button 2. Top Cover 3. Label Roll Core 1. Ribbon Rewind Shaft & Empty Ribbon Roll 4, Ribbon Rewind Wheel 2. Locking Tenon 5. LCD Module 3. Card Slot 6. Printing Mechanism 4. Print Head Adjustment Screw 7.

  • Page 3: Getting Started

    Getting Started Stored within the printer are numerous standard label layouts that you can access, enter text & then print. If you have specified a custom designed layout these will be stored in the printer along with the standard layouts (samples and the form name will be enclosed). When the Laundryprint powers up the LCD display will show….

  • Page 4: Commonly Used Keys

    We are now prompted to enter text for line 2 of the label. For this line we have entered THIS IS LINE 2 again after entering the required text press the Return key to precede to line 3 of the label. Text for this line will be A PERSON followed by the Return key.

  • Page 5: Control Panel

    Other Control Displays This is the Laundryprint main screen and is normally displayed if the system is not in keyboard mode. Exiting out of keyboard mode may be the result of pressing the Esc key too many times or non detection of a keyboard (whilst exiting label edit mode) connected.

  • Page 6: Ribbon Installation

    Ribbon Installation It is recommended to use only approved Wader laundry thermal ribbons with this system. Place the printer on a horizontal surface, and open the top cover by pressing the Cover Open Buttons on both sides Loosen and then lift the upper print mechanism by pressing the...
  • Page 7 Tape Installation (For additional information on die-cut tape see page 8) Open the top cover Insert the label roll core into by pressing the the label roll. cover open buttons on both sides. Note the core holder is stepped for altering label roll heights. Assemble the label stop plates on both sides of the roll.
  • Page 8 Die Cut Tape. If you are using die-cut (gap labels) feed the tape forward or print two test labels to allow the printers internal auto sensor function to align the tape correctly. This procedure is required only when the Printhead is unclamped and lifted clear of the tape. If you are experiencing problems with the tape gap alignment first check the sensor positioning (see below) then try an auto sensing calibration.
  • Page 9 Maintenance – Thermal Printhead Cleaning Troubleshooting & LED Indicators Fig-10 Power on the printer, ♦ Check the power connector is plugged but the LED does not correctly light up LED light turns red ♦ Check for software setting or program (power/status) after command errors printing stops...
