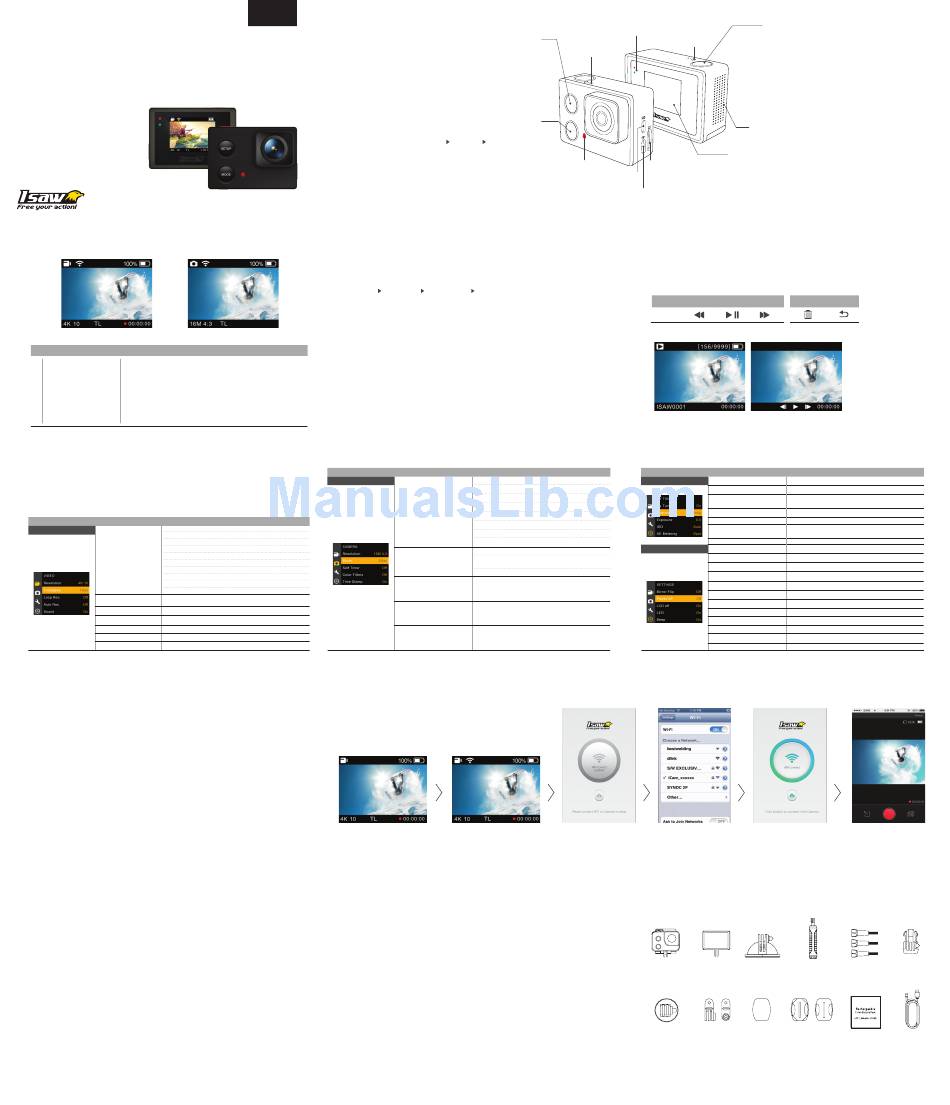

Isaw EDGE User Manual

USER'S Manual
EDGE
+ Please visit our website to download our multi-language manual
www.isawcam.com/
ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH
PORTUGUêS / русский / ITALIANO
한국어 / 中国 / 日本
2. LCD icons
1 2 3 4 1
5 6 7
No. Function
1
Mode Shows the current shooting mode (video or photo)
2 WiFi Shows the WiFi connection status
3 Memory capacity
Shows the usable memory capacity in percentage (%)
4 Battery Shows the battery capacity status option
5 Resolution While shooting videos or photos, it shows the current recording resolution
6 Shooting mode While shooting videos or photos, it shows the current shooting mode
7 Recording Time
While shooting videos or photos, it shows the current recording time
7. User setup menu
- You can select basic settings and detailed setting options through the user setup menu.
1. Press SETUP to enter the user setup menu.
2. User setup menu is divided into four categories (video, photo, My Tune, settings)
3. Press and hold MODE to move category.
4. Press SETUP and MODE to browse that category.
5. Press REC to select and confirm the setting option within the sub-menu.
Function Sub menu
Video 4K 3840 x 2160 10fps MJPEG
2.7K 2704 x 1524 15fps MJPEG
1440P 1920 x 1440 30fps
1080P 1920 x 1080 60fps
1080P 1920 x 1080 30fps UltraView
Resolution
1080P 1920 x 1080 30fps
1200P 1600 x 1200 30fps
720P 1280 x 720 120fps
720P 1280 x 720 60fps
720P 1280 x 720 30fps
Time lapse 0.5s, 1s, 2s, 3s, 5s, 10s, 15s, 30s
Time lapse
Take pictures at the selected interval to create an accelerated video.
Loop Rec. Loop 1m, 3m, 5m
Auto start On / Off. If ON, starts to record after the selected time when the camera is switched on (1s, 5s, 10s)
Mic On / Off. If ON, sound will be captured and added to the video recording.
Color filters Shoot in Vivid colors, Natural colors, Sepia filter, Black &White
Time Stamp
On / Off
8. Recharging the battery
- The LCD will flash the low battery icon when the battery is too low and almost depleted.
- The camera will save the file, if it is recording, and then turn off.
Then, you must recharge your battery.
- It will take about 150 minutes to fully charge the battery via USB.
- You can use an AC charging adapter (optional accessory) for a quicker recharge.
1. Turn off the camera.
2. Connect the camera USB port to your computer via USB cable.
3. The blue LED will be on and the battery will start recharging.
4. The LED will be off when the battery is fully charged.
9. Smartphone control
With the WiFi function of ISAW Cameras, you can control the camera with your smartphone.
- Compatible with iOS ver. 6.0 or higher, Android OS Jelly Bean or higher.
- Before you connect the camera, download the 'ISAW Viewer ll' application on your smartphone.
- Search for 'ISAW VIEWER ll' in iPhone App Store or Google Play Store
* While your smartphone is connected to the camera, camera button operation will be disabled.
*'ISAW VIEWER' will be upgraded with more features as further updates are released.
11. Transferring data to a computer
- If the camera is connected to a computer or an AC adapter while it is powered off,
the camera starts to recharge the battery.
- If the camera is connected to a computer while it is powered on, the camera
changes to file-transfer mode.
- While the camera is connected to an AC adapter or a car charger for recharge,
the camera can record while it is recharging.
1. Turn on your ISAW Camera.
2. Connect the camera to a computer via a USB cable.
3. The camera LCD will display 'USB Ready' .
4. Go to 'my computer' in the PC.
5. Locate 'removable disc' .
6. Double click 'DCIM' folder and search video or photo files.
12. Firmware Update (www.isawcam.com)
- You can always find the latest firmware updates of ISAW products on the website.
www.isawcam.com
- Firmware upgrade may not possible if the battery is too low.
Recharge the battery up to two third of the gauge for a safer upgrade.
1. Format the memory card, and copy the firmware file to the root directory of the Micro SD card.
2. Insert the Micro SD into ISAW Cameras and turn the camera on.
3. The firmware upgrade will start automatically, and the camera will turn off when upgrade is finished.
( *Do NOT turn off the device or remove the battery during the firmware upgrade. )

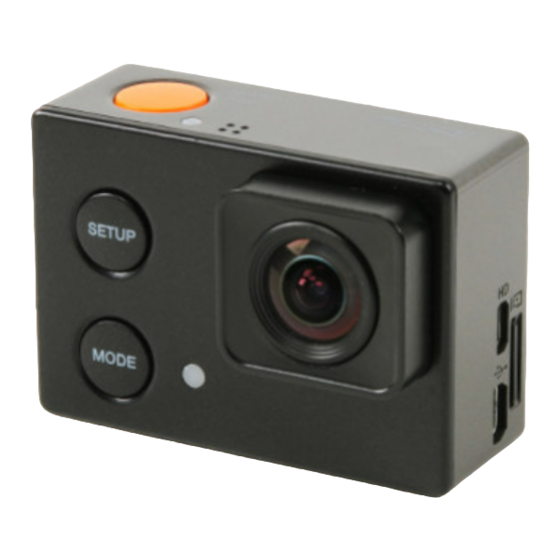

1. Name of parts
ENGLISH
Mode changes as Video Mode
3. Start the camera
1) Open the battery cover and insert an ISAW Li-ion battery.
2 3 4
2) Insert a SD card into the SD card slot.
3) Press the power button and hold 2 seconds.
4) The camera turns on and the LCD monitor shows the camera image.
5) Mode changes as
( Video mode
4. Video recording
- While the camera is on, press REC to start recording videos as per the established settings.
5 6
- When the camera starts to record, the LED blinks and the LCD displays the recording time.
- Press REC again to stop the recording.
Description
- You can choose various resolutions and recording options in the Video section of the User
setting menu section (see 7. User setup menu)
5. Photo shoot
- While the camera is on, press MODE to change to photo camera mode.
- Press REC to take a photo.
- You can choose various photo sizes and capture options in the Photo section of the User
setting menu section (see 7. User setup menu)
- In time-lapse mode press REC to start the time-lapse and REC again to stop it.
Function
Description
10. Connect your ISAW Camera to a smartphone
- Turn on the 'WiFi' on your camera
13. Features and specifications
- Super slim 1080p 60fps Action camera
- 4K 10fps recording, 2.7K 15fps recording supported (MJPEG)
- UltraView for a wider and immersive 1080p recording
- 40m waterproof housing
- Sony Exmor 16MP CMOS sensor
- 170° wide-angle field of view (FOV)
- 1.5" built-in LCD view finder
- Built-in WiFi with enhanced application viewer
- High speed recording (720p 120fps slow motion)
- Time lapse video, time lapse photo
- Burst shot photos (max. 5 shots in 16MP)
- Multi langage menu (Eng, Esp, Fra, Deu)
- Rechargeable Li-ion battery
- Battery running time : max. 100 minutes of continuous recording
(* recording time may vary, depends on environmental condition.)
- Recharging time : 150 minutes
- Easy graphical user interface in LCD display
Setup button
Press this button to enter/exit the setup menu
Press this button to browse the setup menu
Mode button
Press this button to change camera mode
Press this button to browse the setup categorymenu
Photo Mode Playback mode in turn
WiFi On/Off
Press this button and hold for 2 seconds to turn on or turn off the WiFi
Photo mode Playback mode Video mode) in turn.
Sub menu Description
16M RAW 4608 x 3456 4:3
16M 4608 x 3456 4:3
12M 4032 x 3024 4:3
8.5M 3384 x 2538 4:3
Resolution
7.3M 3120 x 2340 4:3
5M 2592 x 1944 4:3
3M 2048 x 1536 4:3
2M 1608 x 1206 4:3
Manual
Time lapse 2s, 3s, 5s, 10s, 15s, 30s, 60s
Capture options
Take pictures at the selected interval to create an accelerated video.
Burst : Take 5 (16M) photos with a single press of the button
Self timer Delays the photo by the selected time: 2s, 10s.
Color filters Shoot in Vivid colors, Natural colors, Sepia filter, Black &White
Time Stamp On / Off
- WiFi signal is activated - 'ISAW Viewer ll' is not connected to camera.
- WiFi is ready to connect - Setup WiFi connection between
LED
LED
Internal MIC
LCD
LED Micro SD slot
HDTV OUT
USB
6. Playback mode
- Press MODE hold to change to playback mode
- You can view recorded videos or photos through the LCD screen of the camera.
1. In playback mode, press SETUP to choose a file to view.
2. Press REC to view the file.
3. While the file is playing you can use the control panel by pressing:
Button MODE(2s) REC.
Control
Function Sub menu
My Tune
My Tune
Sharpness
Exposure
ISO
AE Metering
White balance
WDR
Settings
Mirror Flip
Power off
LCD off
LED
Beep
TV
Delete all
Format
Default
Time
Language
Information
NB : New settings and parameters are added via updates of the firmware. Make sure to use the latest firware for an optimal experience.
Check www.isawcam.com for the latest firmware updates.
- Enter ' WiFi Setup' of smartphone.
- Select 'iCam_YYXXXXXX' in WiFi setting.
the camera and the smartphone. - The default password is '1234567890'
14. Package Includes
Waterpoof housing Open frame
Tripod mount Pivot arm
Power On/Off
Press this button and hold for 2 seconds to
turn on or turn off the camera
Recording On/Off
Press this button to take photo or
to start or stop recording
Select menu in setup mode On/Off
In the setup menu, press this button to
confirm the selected menu
Speaker
+ The blue LED is on when the battery is charging.
SETUP SETUP (2s) MODE
Description
When turned on, below settings will be restored to their last value. Turn off to set to auto.
Strong, Normal, Soft
+2, +1.7, +1.3, +1, +0.7, +0.3, 0, -0.3, -0.7, -1, -1.3, -1.7, -2
Set the correction of the exposure
ISO 50, 100, 200, 400, 800, 1600
center, average, spot
Set the white balance to a different type of light
Auto, Daylight, Cloudy, Tungsten lamp, Fluorescent lamp
On /Off
On /Off (Flips the image vertically)
Off / 3m / 5m / 10m
Off / 1m / 5m / 10m
On /Off
On /Off
Choose frequency PAL (50Hz) or NTSC (60hz)
Cancel / Confirm (Delete files under 'DCIM' folder only)
Cancel / Confirm (Delete all files and format SD card)
Cancel / Confirm
Set the current time (YYMMDD:HHMM)
English, French, Spanish, German
Shows the current S/W version
- Run 'ISAW Viewer ll' application on your - Control the camera through the control
smartphone. panel of the smartphone application.
- Tap 'Connect' in the application to - Show LIVE screen display
connect your ISAW camera. - Start/Stop video recording
- The smartphone screen will display the - Start/Stop photo shooting
live screen of the camera. - File viewer
- File download
- User settings
Universal Suction Hand grip Screw Release buckle
Mount
Adhesive tape Flat & Curved Battery USB cable
adhesive mount
