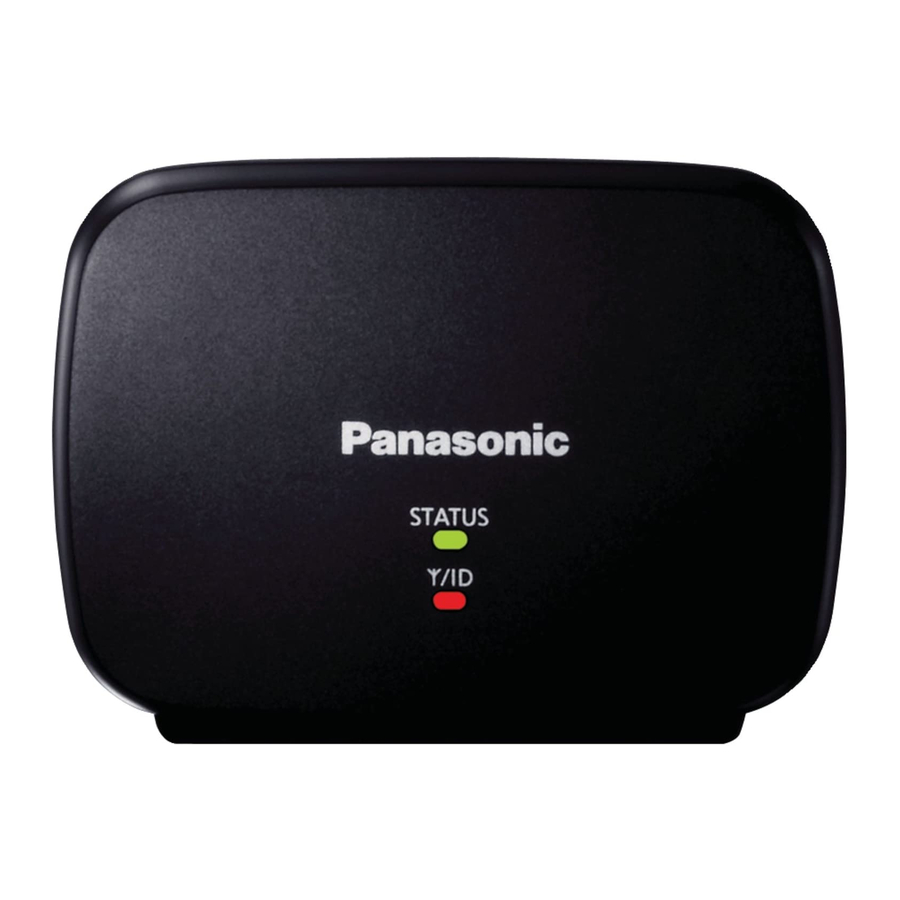

Installation Guide for Range Extender
By installing this unit, you can extend the range of your phone system to include
areas where reception was previously not available.
The unit extends the range in all directions, allowing several floors to be covered.
Important:
L This unit is an accessory unit for use with Panasonic Digital Cordless phones.
L This unit is pre-registered to the base unit.
L This leaflet only describes the steps needed to install and use the unit. Refer to the
base unit's operating instructions for accessory information, important information
for safety, FCC and other information (for U.S.A. users only), and Industry Canada
Notices and other information (for Canada users only).
For best performance
Placement
L Install the unit within base unit range in an indoor environment. We recommend
installing the unit in a raised position (such as on a wall).
L Avoid positioning the unit close to objects that will interfere with reception, such as
thick walls, radiators, metal shelving, etc.
L For maximum distance noise-free operation, place the unit away from electrical
appliances such as TV, radio, personal computer, or other telephone equipment.
L Keep an appropriate distance from the base unit to maximize the range of your
phone system. Find the appropriate location by checking the w indicator. If the w
indicator lights red or amber, re-position this unit in a place where the w indicator
lights green.
Base unit range
Printed in China
Model No.
Handset
Range extender
Base unit
PNQW1965ZB
Range Extender
KX-TGA405
KX-TGA405C
Range extender range
