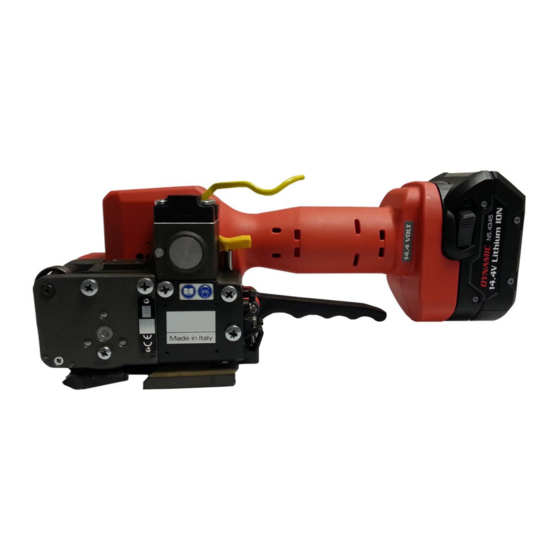

- Page 1 Dynamic 2100 Battery Powered Plastic Strapping Tool OPERATION MANUAL Machine Battery Powered Plastic Strapping Tool Model Dynamic 2100 Date April 2018 Issue FPA001...
-
Page 2: Table Of Contents
5.2 Dispensing Strap 5.3 Strap Warnings 5.4 Strap Breakage Hazard 5.5 Cutting Tensioned Strap 5.6 Environment Protection 6. Maintenance and Trouble Shooting 6.1 Suggested Maintenance 6.2 Warranty Periods 6.3 Fromm Service Solutions 6.4 Possible troubleshooting causes and remedies 7. Contact Fromm Packaging... -
Page 3: General Information
4. Recharge battery only with the charger specified by the manufacturer. 5. When a problem does occur, please check the troubleshooting section for more information and advice. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 1... -
Page 4: Specification
DYNAMIC 2100/19/0.65-1.05 19 mm 0.65 - 1.05 mm 3000 N 230 mm/s 43.3223 DYNAMIC 2100/19/1.06-1.27 19 mm 1.06 - 1.27 mm 3000 N 230 mm/s Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 2... -
Page 5: Tool Description
Charge the battery. The control board is overheated, the tool has to blinking cool down, the switches are locked. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 3... -
Page 6: Operation Description
Displaying of the Status of the Battery Charge Green blinking Full Green yellow blinking ¾ full Yellow blinking ½ full Yellow – red blinking ¼ full Red blinking Empty Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 4... -
Page 7: Adjustments
Warning! The plastic strap which will be welded must be free from oil, grease and other dirt. Dirty plastic straps can’t be welded correct. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 5... -
Page 8: Inserting The Strap
The tool must not be removed from the strap as long as the cooling time is not finished. Disregard of this regulation is causing insufficient seal efficiencies, which can cause severe injuries. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 6... -
Page 9: Removing The Tool
Clean strap gripping parts from strap abrasion regularly using compressed air. Do not use any mechanical tool for cleaning. When cleaning the surface of the tool do not use water or aggressive solvents. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 7... -
Page 10: Safety Notices
8. It is forbidden to exceed the limits of use and operation with regards to weights and sizes of loads. 9. For use with plastic (PET) strapping only. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 8... -
Page 11: Safety Rules For Strapping Tools
Do not dispose of used batteries in the household refuse, water or by burning them. For disposal of the batteries the local laws and prescriptions must be observed. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 9... -
Page 12: Maintenance And Trouble Shooting
Customers located outside metropolitan areas we offer phone support and can organise onsite technical support when needed. Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 10... -
Page 13: Possible Troubleshooting Causes And Remedies
Loose pinion in planet shaft Loose pinion on tensioning motor Defective tensioning motor Replace tensioning motor Defective circuit board Replace circuit board Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 11... - Page 14 Replace busbar P32.1108 Contact problem of the Check contacts and fix internal wires them if required or change defective parts Defective gear bearing Replace bearing Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 12...
- Page 15 Check the battery and few strappings (displaying change defective batteries empty battery) Gear noise Tensioning or welding Check component parts gear is worn and replace defective ones Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 13...
-
Page 16: Contact Fromm Packaging
7. CONTACT FROMM PACKAGING AUSTRALIA For any questions please contact Fromm Packaging Australia Phone: 1800 023 890 Email: info@fromm-pack.com.au Postal Address: PO Box 4016, Mt Ommaney QLD 4074 Dynamic 2100 Battery Strapping Tool Operation Manual | FPA001 | Apr 2018 | Page 14...
