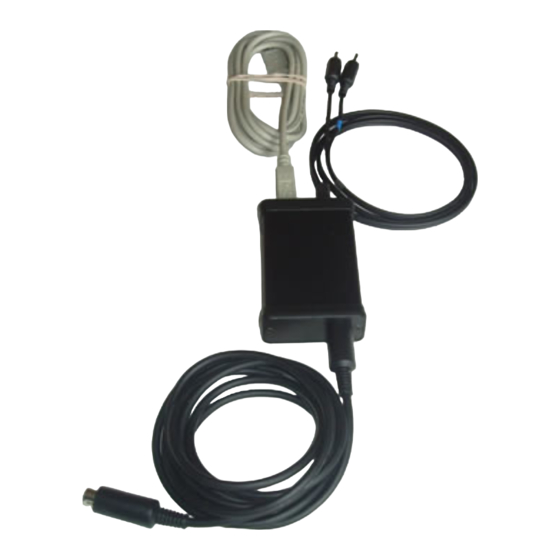

Instructions for using the

DigiMaster USB Audio–Data Interfaces.

Table of Contents

Need help?

Do you have a question about the DigiMaster Audio-DATA interfaces and is the answer not in the manual?

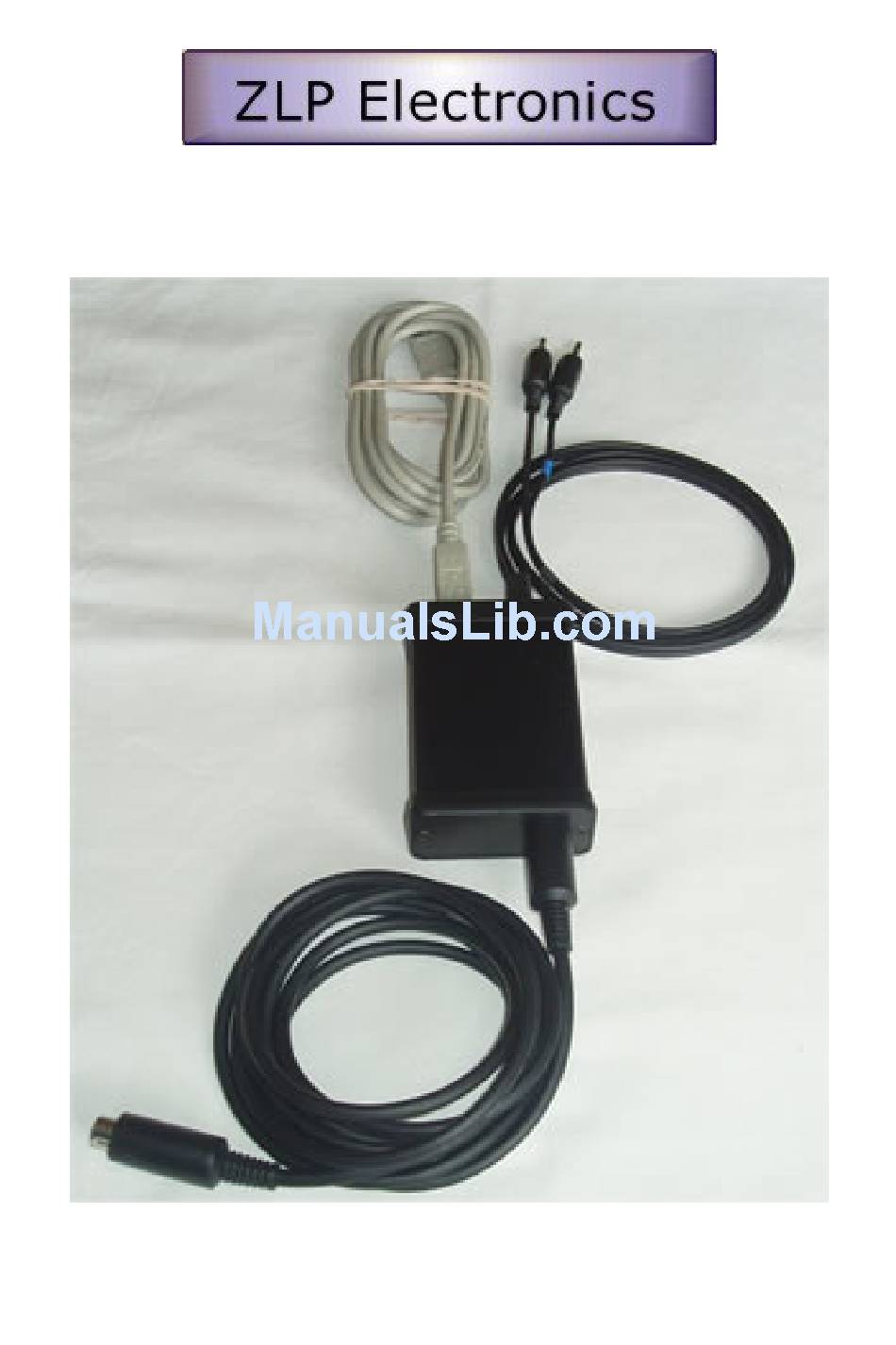

Page 1 Instructions for using the DigiMaster USB Audio–Data Interfaces.
Page 2 USB interface BEFORE you start your software, otherwise your software will not be able to find the driver to control the interface. For ALL models of the DigiMaster Audio-DATA interfaces, it is important that you configure your software to activate your radios PTT via the interface. NOT via the CAT.
Page 3 DigiMaster DUAL Channel USB Audio-Data Interface. The dual channel usb interface provides the user with two independent “virtual” comports. Channel “A” is normally installed by Windows as the lower numbered virtual comport. Channel “B” is normally installed by Windows as the higher numbered virtual comport. The audio interface is controlled by channel A.
Page 5 Please be CAREFUL when plugging in mini din plugs. If you push an 8 pin plug into a 6 pin socket you will damage the plug! Plug damage caused in this way is not covered by your warranty. The Audio from the PC The audio from the PC connects to the unit via the stereo lead with blue marker.
Page 6 Adjusting the input level Simply use Windows volume control, recording properties to adjust your mic or line in levels. If your input level is high, then the line input is proffered over the mic input. If you are using your mic input, ensure that any "mic-boost" is turned off. Also ensure that any software type of graphic equalizer is also switched off.
