Powerline PL-C001P User Manual

OPERATING MODES

Mode 1: 12V mode (14.4V +/- 0.25V)
This mode is intended especially for 12V batteries with a capacity below 24Ah.
To select this mode, press the MODE button (5)
automatically (1A+/-10%), LED 2 (12V) lit and LED 4
When the battery is fully charged (14.4V +/- 0.25V), LED 4
maintenance charging.
Mode 2: 6V mode (7.2V +/- 0.25V)
This mode is intended especially for 6V batteries with a capacity below 24Ah.
To select this mode, press the MODE button (5)
automatically (1A+/-10%), LED 1 (6V) is lit and LED 4
When the battery is fully charged (7.2V +/- 0.25V), LED 4
maintenance charging.
Regeneration function:
This function is designed to regenerate deep-discharged batteries. It cannot be directly selected.
If a deep discharged rechargeable battery is connected to the charger, the regeneration mode is the first mode to start.
Low charging currents are used to try and bring the deep discharged rechargeable battery to a normal battery voltage
again. When the battery reaches a normal voltage, the charger will continue charging using the regular process.
Defective rechargeable batteries
The charger recognises defective rechargeable batteries automatically. In this case the selected charging programme
will not be started. LED 3 lit.

MODE SELECT

• Press the MODE button (5) to activate or deactivate the selected mode.

CLEANING

Disconnect the battery charger from the battery and the mains voltage before cleaning it.
Clean the outside of the product with a clean, dry, and soft cloth.
Do not use aggressive cleaning agents to avoid discolouration.

SPECIFICATIONS

Operating voltage: 100-240V~/50/60Hz
Charge end voltage: 7.2V or 14.4 V (+/- 0.25 V)
Charging current: Max. 1A
Rechargeable battery type: Any 6V or 12V lead-acid batteries (SLA batteries, AGM / gel)
Battery charge capacity: 1.2 - 24Ah
Battery maintenance capacity: 1.2 - 40Ah
Protection type: IP65 (casing)
until LED 2 (12V) lights up. The charging process starts
is flashing when the charging is in progress.
lights up. The device automatically switches to
until LED 1 (6V) lights up. The charging process starts
is flashing when the charging is in progress.
lights up. The device automatically switches to
4
USER MANUAL
PL-C001P
6V / 12V 1A
AUTOMATIC CHARGER
© Powerline Industrial Ltd. All rights reserved.
------------------------------------------------------------------------------------------
OPERATING INSTRUCTIONS
PL-C001P (6/12 Volt, 1 Ampere)

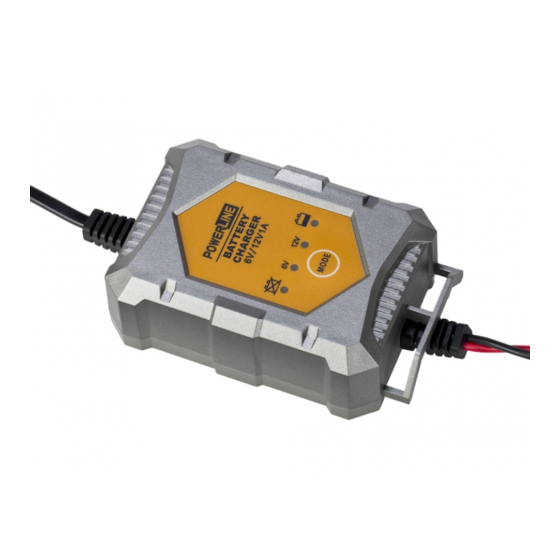

Intelligent Battery Charger

INTENDED USE

The product is designed to charge and maintain 6 or 12-V lead-acid batteries with a capacity of 1.2Ah - 24Ah. The
charger has been optimised to maintain the battery of your motorcycle or car when it is not being used over longer
periods of time, for example over the winter. The charger is designed to charge Gel, AGM, and standard lead-acid
batteries.
Any use other than that described above will damage this product and involves the risk of short circuits, fire, electric
shock, etc.

PACKAGE CONTENTS

Battery charger
Operating instructions
Cable with battery clamps
Cable with o-ring connectors

SAFETY INSTRUCTIONS

Please read through the operating instructions completely before operating the device. They contain
important information for correct operation. The warranty/guarantee will be void if damage is incurred
resulting from non-compliance with these operating instructions! We assume no liability for any
consequential damage! We do not assume any liability for damage to property or personal injury caused by
improper use or the failure to observe the safety instructions!
General
The unauthorized conversion and/or modification of the product is inadmissible for safety and approval reasons
(CE).
The battery charger may only be operated with a supply voltage of 100-240V~/50/60 Hz.
The product is not a toy. It is not suitable for children. Pay particular attention when children are present!
The product may only be set up, used or stored in places that are not accessible to children. Danger to life!
This product is only suitable for charging 6 and 12V lead-acid batteries. Never use it to charge different
rechargeable batteries (e.g. NiCd, NiMH, LiPo) or even normal batteries! There is a risk of fire and explosion!
Maintenance, adjustments and repair work may only be carried out by a specialist/specialised workshop. Only use
original spare parts to repair the device. Using other spare parts can lead to significant material damage or
personal injury!
Do not leave packaging material lying around carelessly. It might become a dangerous toy for children!
If you notice any damage, do not use the battery charger anymore.
1
EN
