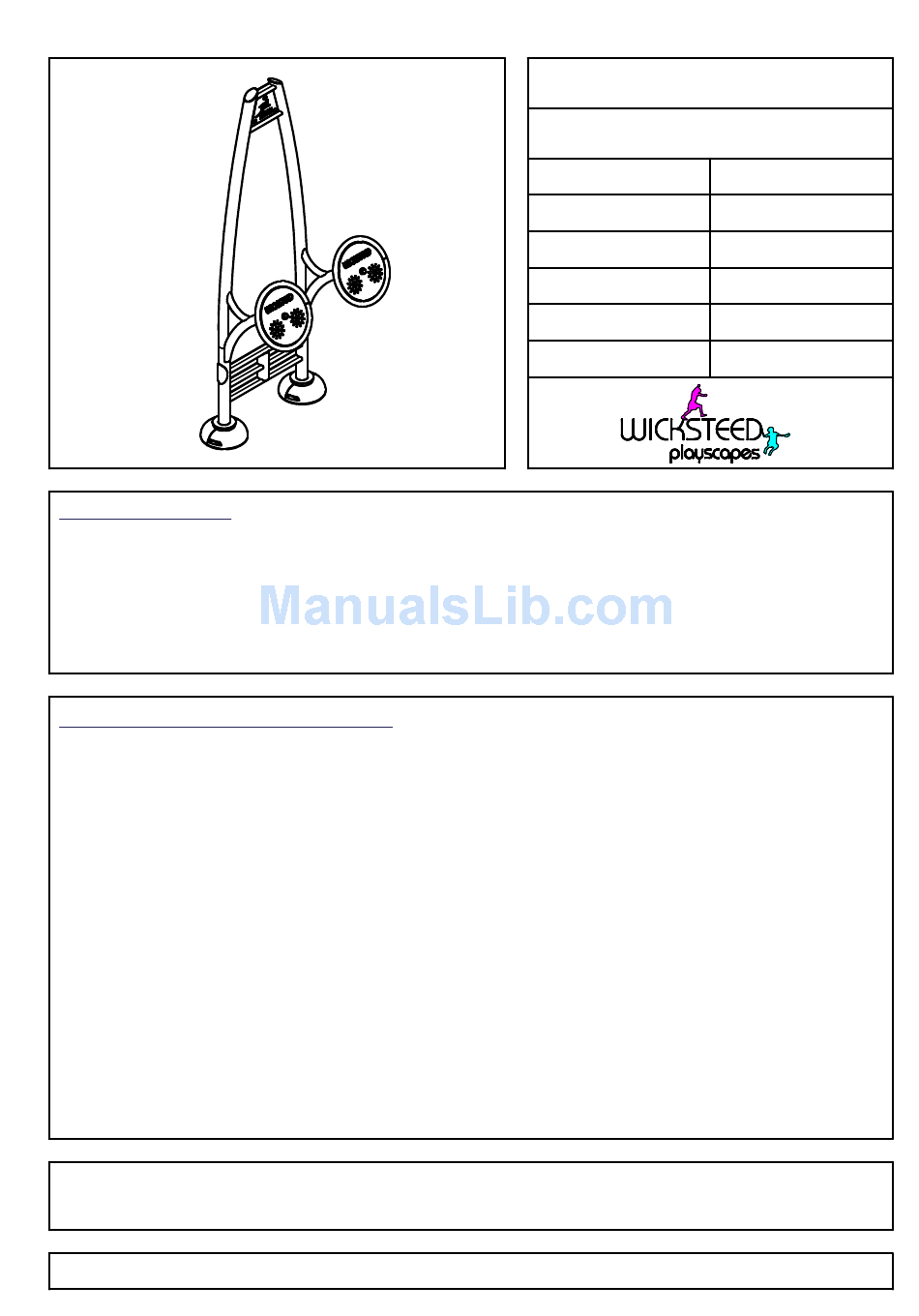

Wicksteed 6210-030 Installation Instructions Manual

SPECIFICATION
Solid steel components to EN 10087:1998
Steel plate to EN 10025-2:2004
Steel CHS to EN 10255-2:2004
Welding to EN ISO 14341:2011
HDPE to EN ISO 14632: 1998
INSTALLATION INSTRUCTIONS
1 Read installation instructions thoroughly before commencing installation of unit.
2 Excavate one hole 1300 x 600 x 600 deep - see page 2.
3 Position and assemble the below ground fixing with spragging irons (see page 2) centrally in the
excavated hole so the eight bolts are pointing upwards ensuring that the top plate is flush with the
finished surface level.
4 Check alignment of bolts and backfill the holes with concrete (0.45 cu Metres) (4 parts gravel, 2 parts
sand & 1 part cement) ensuring the below ground fixing is perpendicular to the finished surface level.
5 Allow the concrete to set for 48 hours.
6 Position the unit on the below ground fixing and fit using one M20 washer and two M20 nuts per bolt
as shown on page 3. Ensure unit is perpendicular to the ground surface.
7 Ensure all moving parts move freely without obstruction. If all parts are functioning correctly cover the
base of the unit with the two halves of the Base Castings and fasten with two M10 x 30 Pent button
head screws.
Note
Use Installation Aid (3720-184) for Below Ground Fixing.
Ensure all installation aids are removed before first use.
Note
Fitness Legacy Zone
Two Wheel Spinner
PROD. CODE
SIZE
AGE RANGE
F/ FALL HEIGHT
HEAVIEST PART
TOTAL WEIGHT
Polyester powder paint to EN 13438:2005
Standard fixings to BS 3692:2001 and
BS 4190:2001
Non-standard fixings are anti-vandal and
corrosion resistant
6210-030
1150x2560x810mm
14 to Adult
< 600mm
Approx 95Kg
Approx 144Kg
6210-030
Page 1 of 8
