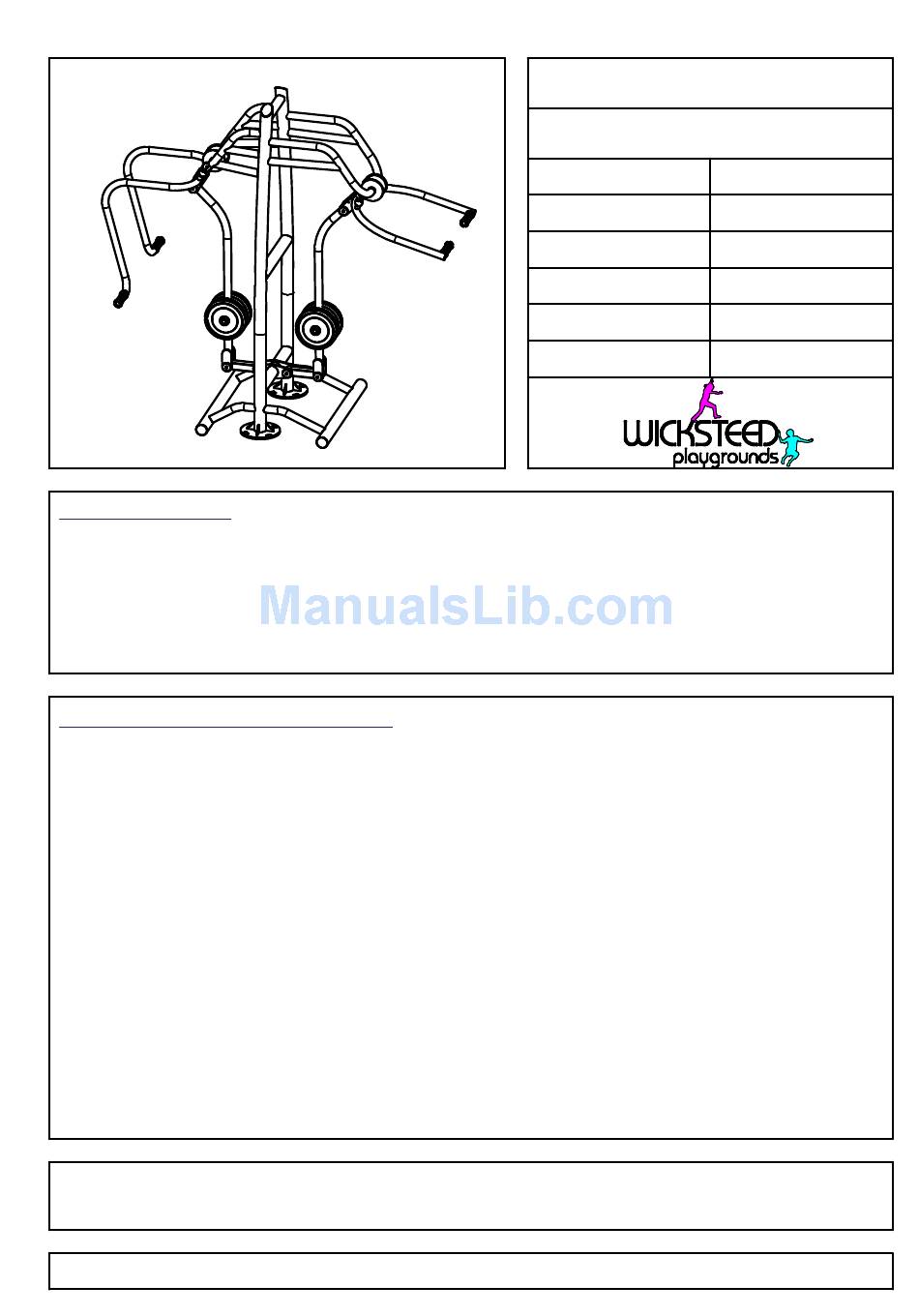

Wicksteed 6210-059 Manual

Inclusive chest press & pull-down exerciser combo outdoor gym
Hide thumbs

Advertisement

Quick Links

Download this manual
SPECIFICATION
Steel plate to EN 10025
Steel CHS to EN 10219
Steel RHS to EN 10219
Welding to EN ISO 14341:2011

INSTALLATION INSTRUCTIONS

1 Read installation instructions thoroughly before commencing installation of unit.
2 Excavate one hole 1300 x 1000 x 600 deep - see page 2.
3 Position and assemble the below ground fixing with spragging irons (see page 2) centrally in the
excavated hole so the eight bolts are pointing upwards ensuring that the top plate is flush with the
finished surface level.
4 Check alignment of bolts and backfill the holes with concrete (0.76 cu Metres) (4 parts gravel, 2 parts
sand & 1 part cement) ensuring the below ground fixing is perpendicular to the finished surface level.
5 Allow the concrete to set for 48 hours.
6 Position the unit on the below ground fixings and fit using one M20 washer, one M20 spring washer
and one M20 nut per bolt as shown on page 3. Ensure unit is perpendicular to the ground surface.
Ensure all moving parts move freely without obstruction. Centre punch thread in two places on all
eight M20 Bolts and then fit nut cap (see page 3).
Note
Use Installation Aid (3720-184) for Below Ground Fixing.
Ensure all installation aids are removed before first use.
Note
Fitness Legacy Zone
Inc Chest Press & Inc Pull Down
PROD. CODE
SIZE
AGE RANGE
F/ FALL HEIGHT
HEAVIEST PART
TOTAL WEIGHT
Polyester powder paint to EN 13438:2005
Standard fixings to BS 3692:2001 and
BS 4190:2001
Non-standard fixings are anti-vandal and
corrosion resistant
6210-059
1135x2260x2400mm
14 to Adult
<600mm
Approx 266Kg
Approx 311Kg
6210-059
Page 1 of 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6210-059 and is the answer not in the manual?

Questions and answers

Related Manuals for Wicksteed 6210-059

Summary of Contents for Wicksteed 6210-059

  • Page 1: Installation Instructions

    Fitness Legacy Zone Inc Chest Press & Inc Pull Down PROD. CODE 6210-059 1135x2260x2400mm SIZE AGE RANGE 14 to Adult F/ FALL HEIGHT <600mm HEAVIEST PART Approx 266Kg Approx 311Kg TOTAL WEIGHT SPECIFICATION Steel plate to EN 10025 Polyester powder paint to EN 13438:2005...
  • Page 2 Below Ground Fixing Details (2 off) Foundation Detail (Care must be taken in abnormal conditions) 1300 700 Ctrs Concrete Spragging Iron FSL = Finished Surface Level 6210-059 Page 2 of 15...
  • Page 3 Chest Press & Pull Down Unit to Below Ground Fixing Details Centre punch thread in two places on all eight M20 Bolts 6210-059 Page 3 of 15...
  • Page 4 Minimum and Training Spaces (5320) 2660 2660 R1500 Minimum Space R1000 Training Space Training Space 6210-059 Page 4 of 15...
  • Page 5 17.0 Sq. Metres 20mm Wetpour 15.5 Linear Metres Wetpour Edging R1550 6000 Grass Mats 3000 (1500 x 1000mm) 16 off Total 5500 2730 Safety Tiles (1000 x 1000mm) 19.0 Sq. Metres 40mm Thickness 18.0 Linear Metres of Tile Edging 6210-059 Page 5 of 15...
  • Page 6 Fixing Details for Maintenance Main Assembly 6210-059 Page 6 of 15...
  • Page 7 1.10 1.11 1.13 1.2.10 1.2.4 1.2.5 1.2.9 1.13 1.2.13 1.10 1.2.5 1.2.7 1.2.4 1.2.3 1.11 1.2.12 1.2.10 1.2.2 1.2.3 1.2.2 1.2.1 1.2.8 1.2.14 1.2.6 1.2.11 1.2.15 * = For use with Beige/Green Standard Colour Panel 6210-059 Page 7 of 15...
  • Page 8 Chest Press Lever Assembly to Handle Assembly and Main Frame 1.11 1.10 1.13 1.11 1.10 1.12 1.13 see sheet 9 1.10 1.4.1 1.11 1.11 1.4.3 1.4.2 1.10 1.12 1.4.3 1.4.2 1.12 1.10 1.11 1.12 1.11 1.10 6210-059 Page 8 of 15...
  • Page 9 1.5.3 1.5.2 1.5.2 1.5.4 1.5.3 1.5.4 1.5.1 1.5.4 1.5.4 1.5.9 1.5.10 1.5.6 1.5.11 1.5.12 * 1.5.5 1.5.7 1.5.8 1.5.5 1.5.8 1.5.10 1.5.6 1.5.9 1.5.7 1.5.11 = For use with Beige/Green 1.5.12 * Standard Colour Panel 6210-059 Page 9 of 15...
  • Page 10 Fixing Details for Maintenance Pull Down Handle Assembly to Main Frame Assembly 1.13 1.10 1.11 1.11 1.10 1.13 1.3.4 1.3.10 1.3.5 1.3.9 1.3.5 1.3.13 1.3.4 1.3.10 1.3.7 1.3.12 1.3.3 1.3.2 1.3.2 1.3.3 1.3.6 1.3.11 1.3.8 1.3.14 1.3.15 * = For use with Beige/Green Standard Colour Panel 6210-048 Page 10 of 15...
  • Page 11 Pull Down Lever Assembly to Handle Assembly and Main Frame 1.10 1.11 1.13 1.13 1.10 1.10 1.11 1.12 sheet 12 1.11 1.11 1.4.1 1.10 1.12 1.4.3 1.4.2 1.12 1.4.2 1.4.3 1.12 1.10 1.11 1.10 1.11 6210-059 Page 11 of 15...
  • Page 12 1.6.3 1.6.2 1.6.4 1.6.2 1.6.3 1.6.4 1.6.1 1.6.4 1.6.4 1.6.9 1.6.10 1.6.11 1.6.6 1.6.12 * 1.6.5 1.6.7 1.6.8 1.6.5 1.6.8 1.6.10 1.6.6 1.6.9 1.6.7 = For use with Beige/Green 1.6.11 1.6.12 * Standard Colour Panel 6210-059 Page 12 of 15...
  • Page 13 1.3.11 2212-214 M8 NORD LOCK WASHER 1.3.12 2191-009 M8 Binx Nut 1.3.13 2176-129 M10 x 50 Pent Button Head 1.3.14 2611-031_Cap Black Poepplemann Cap 1.3.15 2611-033_Cap Green Poepplemann Cap Parts List Continued on Page 14 6210-059 Page 13 of 15...
  • Page 14 M10 x 30 LG HEX HD SCREW 1.6.10 2212-212 M10 NORD LOCK WASHER 1.6.11 2611-031_Cap Black Poepplemann Cap 1.6.12 2611-033_Cap Green Poepplemann Cap 3033-149 Spindle 3033-150 Spindle 3033-151 Spindle Parts List Continued on Page 15 6210-059 Page 14 of 15...
  • Page 15 460mm Spragging Iron 2175-181 M20 x 55 HT HEX HD SCREW 2215-512 M20 WASHER 2mm THK 2212-206 20mm SPRING WASHER 2192-012 M20 nyloc nut 2613-021 M20 Nut Cap COMPILED Minor SIG. DATE: 06/01/17 DATE: 06/01/17 6210-059 Page 15 of 15...
