AsReader ASR-R250G Series Quick Start Manual

Hide thumbs Also See for ASR-R250G Series:

Advertisement

Quick Links

Download this manual See also: User Manual
Updated: 8/10/2017
ASR-R250G-xx Series
Quick Start Guide
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASR-R250G Series and is the answer not in the manual?

Questions and answers

Related Manuals for AsReader ASR-R250G Series

Summary of Contents for AsReader ASR-R250G Series

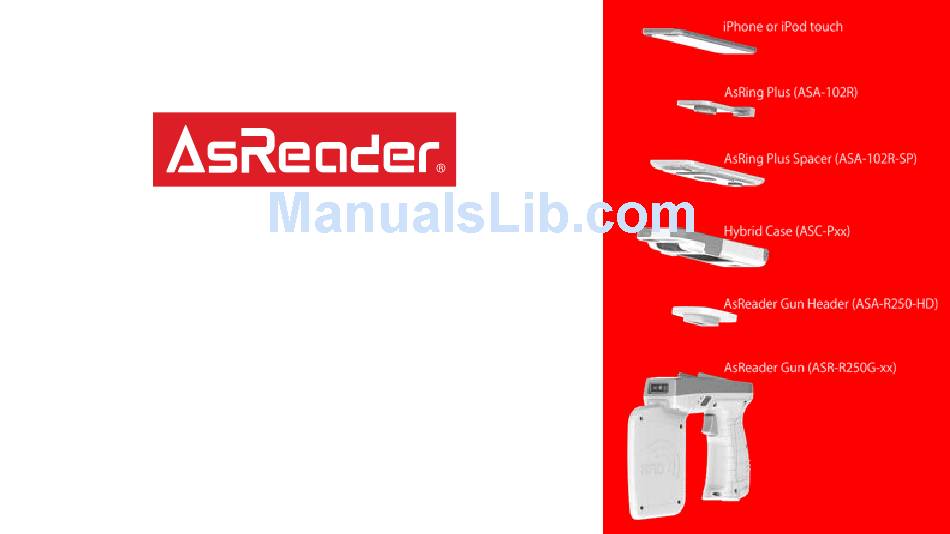

  • Page 1 Updated: 8/10/2017 ASR-R250G-xx Series Quick Start Guide Manual...
  • Page 2 ASR-R250G-xx Parts – Page 1/2 Antenna ‘RESET’ Button ‘POWER’ Button LED: MODE Indicator LED: POWER Indicator ‘MODE’ Switch Trigger Magconn Charging Terminal...
  • Page 3 ASR-R250G-xx Parts – Page 2/2 Top-view Bottom-view Back-view Font-view Header Connection Antenna Magconn Charging Trigger microUSB Charging Port Barcode Engine Antenna Point Terminal (Also used for Firmware Updates (ASR-R250G-2x Series only) from a PC)
  • Page 4 How to Assemble – Page 1/7 (Preparation) This section is for assembling the ASR-R250G-xx Series parts for use. Please prepare the following parts to assemble: a) Gun (ASR-R250G-xx) b) AsRing+ (ASA-102R) c) Header (ASA-R250-HD) d) Spacer (ASA-102R-SP) e) A compatible iOS Device f) Case* (ASC-xxx-x) *Silicone ASC-P6-W case shown. Hybrid cases also available.
  • Page 5 How to Assemble – Page 2/7 (Connect Header to Gun) Slide Header firmly onto the ASR-R250G-xx as shown (Steps 1-2). Step 1 Step 2 Connector PUSH FIRMLY Face-Down Face-Up Connection Point Top View of Gun Slide Header onto Gun Make sure Header is firmly attached to the Gun.
  • Page 6 How to Assemble – Page 3/7 (Combine AsRing+ and Spacer) Set up the AsRing+ and Spacer as shown (Steps 1-4). Step 1 Step 2 Step 3 Step 4 Place AsRing+ on top of Spacer. Slide top of AsRing+ into Spacer. Slightly bend the Spacer to fit the Make sure none of the AsRing+ sides AsRing+ into place one side at a time. are sticking out.
  • Page 7 How to Assemble – Page 4/7 (iPod touch in Hybrid Case) Attach the assembled AsRing+/Spacer to the iOS device as shown (Steps 1-2). For iPod Touch with an ASC-P5H, ASC-P7H, or ASC-P7PH Hybrid case, follow Steps 0-2 (below). For any device with a Silicone-only ASC-T5, ASC-P6, or ASC-P6P case, jump to ‘How to Assemble – Page 5/7’ For iPhone or iPad with a Hybrid ASC-P5H, -P7H, -P7PH, -PM3H, or -PA2H case, jump to ‘How to Assemble – Page 6/7’ Step 0 Step 1 Step 2 Spacer-Sheet Insert Spacer-Sheet as shown. Connect Lightning Connector to Make sure the parts are (iPod Touch/ASC-P5H only*) iOS device. securely connected.
  • Page 8 How to Assemble – Page 5/7 (Using Silicone-only Case) Silicone Case: If a Silicone-only case is being used, please follow the instructions below (Steps 1-3). Silicone-only Case Step 1 Step 2 Step 3 Silicone-only Case Silicone-only Case Insert device into case Slide remaining sides Make sure device is correctly starting at the bottom. into the case. inside the case.
  • Page 9 How to Assemble – Page 6/7 (Using Hybrid Case) Hybrid Case: If a Hybrid case is being used, please follow the instructions below (Steps 1-5). If using an iPod Touch with an ASC-P5H, ASC-P7H, or ASC-P7PH case, make sure Step 0 on ‘How to Assemble – Page 4/7’ was followed before proceeding. Hybrid Case Hybrid Case Hybrid Case Hybrid Case Hybrid Case Step 1 Step 2 Step 3 Step 4 Step 5 Separate the silicone part Place unit into silicone Make sure all sides of Place the unit into the plastic Slide the left side in and part by aligning (1) bottom, (2) from the plastic part. part starting at the base. the device are properly make sure all sides are right-hand side, then (3) top. inside the case. properly in place.
  • Page 10 How to Assemble – Page 7/7 (The final step) Finally, attach the magnetic part of the AsRing+ to the top of the Header as shown (Steps 1-4). Step 1 Step 2 Step 3 Step 4 Magnetic connection of AsRing+. Magnetic connection of Header. Attach the parts as shown. Picture of completely assembled Gun.
  • Page 11 ASR-R250G-xx Apps – Page 1/1 The AsReaderGUN App allows Essential apps for the ASR-R250G-xx and AsRing+ are the the user to scan RFID tags and following: then read, write, or lock the 1) AsReaderGUN (Gun Demo App) memory on the tags. Also 2) AsRing+ (for AsRing+ Firmware Updates) supports barcode scanning for 3) AsTagFinder* ASR-R250G-2x Series Gun models. The AsRing+ Firmware Update App can be downloaded from iTunes at: The AsRing + App is necessary to https://itunes.apple.com/us/app/asring/id1266524849?mt update the AsRing+ to the latest firmware version. The AsReaderGUN App can be downloaded from: http://developer.asreader.jp/sdk/gun/index_en.html The AsTagFinder App allows users This link also includes sample code, SDK, SDK reference to locate RAIN RFID tags with the guide, firmware update files, and manuals for the Gun and ASR-R250G-xx. AsTagFinder shows AsRing+. the X, Y, & Z: horizontal & vertical directions and distance to pinpoint the tag. Also, several tags can be searched at the same time. *Please contact us for more information about the AsTagFinder App.

  • Page 12: How To Charge

    How to Charge – Page 1/1 1) Please prepare the following parts: 3) Connect the Magconn-microUSB Adapter to the Magconn Charging Terminal. A. ASR-R250G-xx (to be charged) B. microUSB-to-USB cable 4) Connect the microUSB-to-USB cable to a C. Magconn-microUSB Adapter powered charging port via the USB connection. 2) Connect the Magconn-microUSB Adapter (C) and (Apple chargers are recommended.) the microUSB-to-USB cable (B). Step 4 Step 1 Step 2 Step 3...
  • Page 13 Basic Use Guide – Page 1/4 Before using the ASR-R250G-xx, please complete the previous steps: 1. Assemble the ASR-R250G-xx 2. Download the apps 3. Charge the ASR-R250G-xx Next, turn the ASR-R250G power on by pressing and holding the ‘POWER’ button. The Gun should vibrate and make a beep sound. Open the AsReaderGUN App and check that you have the latest versions* of: ‘Firmware Version’ ‘AsRing+ Version’ *Use the latest Firmware for the best performance. For information on how to update the firmware on the Gun and AsRing+, please see http://developer.asreader.jp/sdk/gun/index_en.html to download our Firmware Update Manuals.
  • Page 14 Basic Use Guide – Page 2/4 In the AsReaderGUN App, tap ‘Inventory’ and pull the trigger on the Gun (or tap Click to Read/Write/Lock Tag ‘Inventory’) to begin scanning for RFID tags. A figure-8 movement of the gun is recommended to scan the most tags. Change Options here Tags Per Second (scanned) Show/Hide the Options above. Total Number of Unique Tags Set Mask Filters Total Number of Scans Clear Scanned Tags Alternate “soft-trigger” button...
  • Page 15 Basic Use Guide – Page 3/4 This section only applies to the ASR-R250G-2x Series for barcode use. Select ‘Barcode Scan’ on the main page and pull the Gun trigger (or tap ‘Start Scan’) to begin scanning barcodes. List of Scanned Barcodes Rescan Time: This setting is used to set a time between each scan. ‘Not Used’ will set the Gun to only read one barcode per trigger pull (‘Start Scan’ press). Alternate “soft-trigger” button Total Number of Scans Clear Scanned Tags...
  • Page 16 Basic Use Guide – Page 4/4 More settings can be changed by selecting ‘RFID Option’ or ‘Barcode Option’. Main Menu RFID Options Barcode Options...

  • Page 17: Troubleshooting Guide

    Troubleshooting Guide – Page 1/1 If the Gun has issues such as a beep sound or vibration that does not stop, even when the ‘POWER’ button is pressed, please use the ’RESET’ button. *Use a ballpoint pen or something similar to press it. ‘RESET’ button* If the Gun isn’t connecting, the first thing you should PUSH FIRMLY check is that your Header is firmly attached to the top of the Gun. Check that Header is firmly in place. Please contact us if you experience any other issues with the ASR-R250G-xx.
