INTRODUCTION

Dear Customer,
We thank you for choosing Honda when purchasing your tiller.
This manual has been designed to familiarise you with your new
machine and enable you to use it in optimum condition and to
maintain it.
From our constant concern to have you benefit as fully as possi-
ble from technological advances, new equipment and materials
and our own experience, we are constantly updating our models;
For this reason we may alter the characteristics and information
contained in this manual without notice and with no requirement to
provide an update.
The illustrations in this manual show the most representative
model for the subject concerned.
If you encounter any problems or have any questions regarding
the machine, please contact your dealer or an approved Honda
retailer.
Keep this manual within easy reach so that you can consult it at
any time and ensure that the manual is handed over with the
machine if you sell it.
We recommend that you read the warranty document so that you
fully understand your rights and responsibilities.
The warranty document is a supplied separately by your dealer.
No reproduction of this publication, in whole or in part, is permitted
without prior written authorisation.

SAFETY INSTRUCTIONS

For your safety and ease of use, we strongly recommend that you
read this manual through completely.
Pay attention to these symbols and their meaning:
This indicates that there is a significant risk of severe physi-
cal injury or even death, if the instructions are not followed
carefully.
PRECAUTIONS REQUIRED:
• This indicates that there is a possibility of physical injury or
damage to the equipment if the instructions are not followed
carefully.
NOTE : Source of useful information.
HOW TO IDENTIFY YOUR MACHINE
Your machine's model is shown on the "ID label" and comprises a
series of letters and figures (see page 3).
Write down your machine's serial number here
Write down your machine's model here
2009 - Honda France Manufacturing S.A.S. - Pôle 45 - Rue des Chataîgniers
45140 ORMES - FRANCE - All rights reserved.
3RV40600
00X3R-V40-6000
K1
Printed in France
UseR'S MANUAL
Original manual

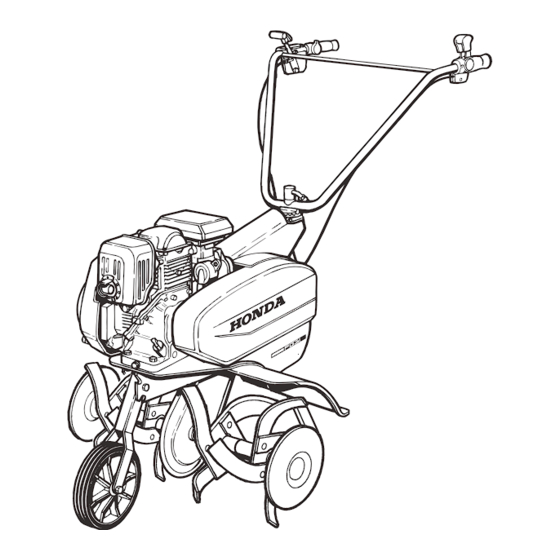

FG315
Motor hoe

CONTENTS

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Machine Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Fixing the spur. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Fitting tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Maintaining The Air Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Engine maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Addresses of the main Honda dealers . . . . . . . . . . . . . . . 6
CE conformity declaration . . . . . . . . . . . . . . . . . . . . . . . . . 8
