Service and installation manual

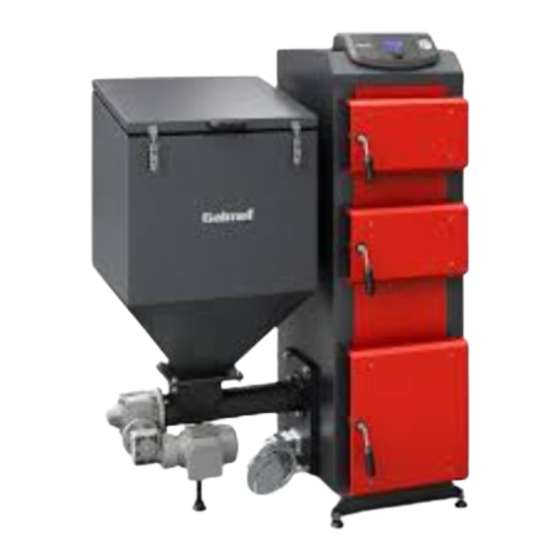

C.H. boiler Galaxia KWE
With a tank (hopper):
PC
RK
Left
Right
Straight feeder - fixed retort
Straight feeder - rotary retort
Slanted feeder - fixed retort
Slanted feeder - rotary retort
Please read the instructions carefully before beginning the installation and use of the product.
Made in Poland
Controller:
eLider
Original Instruction
QC
kW
www.galmet.eu
Advertisement
Table of Contents
Related Manuals for Galmet Galaxia KWE-12
Summary of Contents for Galmet Galaxia KWE-12
- Page 1 Straight feeder - fixed retort Straight feeder - rotary retort Slanted feeder - fixed retort Slanted feeder - rotary retort Please read the instructions carefully before beginning the installation and use of the product. Made in Poland Original Instruction www.galmet.eu...
-
Page 2: Table Of Contents
7.3. Feeder temperature sensor ....................................13 7.4. Fuel bin cover opening sensor ..................................12 Troubleshooting ..........................................17 Declaration of Conformity ......................................18 Examination certificate .......................................19 Certificate............................................20 Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 3: General Information
Combustion of substitutive fuels may result in shortening of the boiler life span. CAUTION! Coal must be dry! Maximum fuel moisture 4.4%. © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 4: Technical-Operational Parameters Of The Galaxia Kwe Boiler
Stand-by power consumption Electric connection/protection 230V~/50 Hz, 6,3A/250V~ Protection degree Noise emission (EN ISO 12100:2010) < 66 Operation with a blowing fan Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 5: Dimensions Of The Galaxia Kwe Boiler
Galaxia KWE-30 Galaxia KWE-40 in boilers with slanted feeder, a 30 mm should be added because of the legs below the boiler. © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 6: Technical Specification
16. Door guard 34. Burner guard 52. Thermomanometer 35. Burner cleaning hole 17. Door frame sealing 18. Burner door insulation 36. Screw conveyer Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 7: Boiler Water Body
(32) is obtained by placing a water and high temperature 1200oC resistant sealing. M10 that are located on the air chamber circumference (34) are used to center the combustion box pan towards the bend (the chamber and loosing tightness in respect to the combustion box pan). © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 8: Boiler Equipment
- safety (page 28 of the controller instruction manual); - settings (page 12 of the controller instruction manual); - alarms (page 29 of the controller instruction manual). Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 9: Assembly
After installing the boiler in the boiler room check aligning of setting of feeder elements. If the boiler was stored in conditions of high humidity do not start the boiler controller until it is completely dry. © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 10: Boiler Setting
According to the safety principles and operating manual of the DVB, JVB valves, correct valve operation must be checked by turning the hand wheel on the valve. Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. - Page 11 Drawing 6 - Galaxia KWE boiler with cooling coil Drawing 7 - Galaxia KWE boiler with relief-cooling valve © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler...
-
Page 12: Connecting Of Boiler To Chimney And Installation
The fuel should burn on a mound above the edge of the burner ring. The flame of burning fuel should be bright, steady with no flickering ends. Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 13: Resupplying Of Fuel
- cover with grease and mount in the feeder the screw shaft in the place of co-working with the gear motor © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 14: Boiler Cleaning
- presence of cinders inside the retort bend due to incorrectly selected volume of air - adhesion of slag to the retort bend narrowing the bend cut section - corroded screw on 2÷4 coil Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 15: Conditions Of Safe Operation
The boiler can be operated only by a person who is acquainted with the content of the boiler and controller instruction manual. © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 16: System Of Protections
The next level of boiler protection is the fuel bin cover opening sensor. At the moment of opening the cover, power supply to the feeder and fan is interrupted, it prevents smoke leaving the bin during re-loading the fuel. After the cover is closed power supply is returned. Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 17: Troubleshooting
It concerns both the device itself as well as the accessories marked with this symbol. These products should not be disposed of with unsorted municipal wastes. © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 18: Declaration Of Conformity
This is furthermore confirmed by an independent research unit. Głubczyce 17.05.2016 .................. (Place and date) (Signature of an authorized person) Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. -
Page 19: Examination Certificate
10. Examination certificate © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler... -
Page 20: Certificate
11. Certificate Service and installation manual - C.H. Water Boiler © All rights reserved - Galmet Sp. z o.o. Sp. K. - Page 21 Notes © All rights reserved - Galmet Sp. z o.o. Sp. K. Service and installation manual - C.H. Water Boiler...
- Page 22 48-100 Głubczyce, Raciborska 36 tel.: +48 77 403 45 00 fax: +48 77 403 45 99 service: +48 77 403 45 30 serwis@galmet.com.pl Technical Support: +48 77 403 45 65 kotly@galmet.com.pl 25/07/2016 © „Galmet Sp. z o.o.” Sp. K. www.galmet.eu...
