Supply
5.125 V User Voltage, Analog Reference,
Buffers for User IO
3.3 V FPGA I/O, USB ports, Clocks,
Ethernet, SD slot, Flash, HDMI, User
Voltage, LCD, touch panel, OLED
1.0 V FPGA, Ethernet Core
1.8 V FPGA Auxiliary, Ethernet I/O, USB
OTG
1.5 V DDR3
1.8 V XADC Analog
3.3 V Audio Analog
10 V Analog Output Stage
-5 V Analog Output Stage
1.25 V XADC Precision Reference
2.5 V Reference for DAC and ADC
19.2 V LCD Backlight
4.28 V Digital User IO Buffers
5 V User Voltage
User Voltage
8 | ni.com | NI Digital System Development Board User Manual

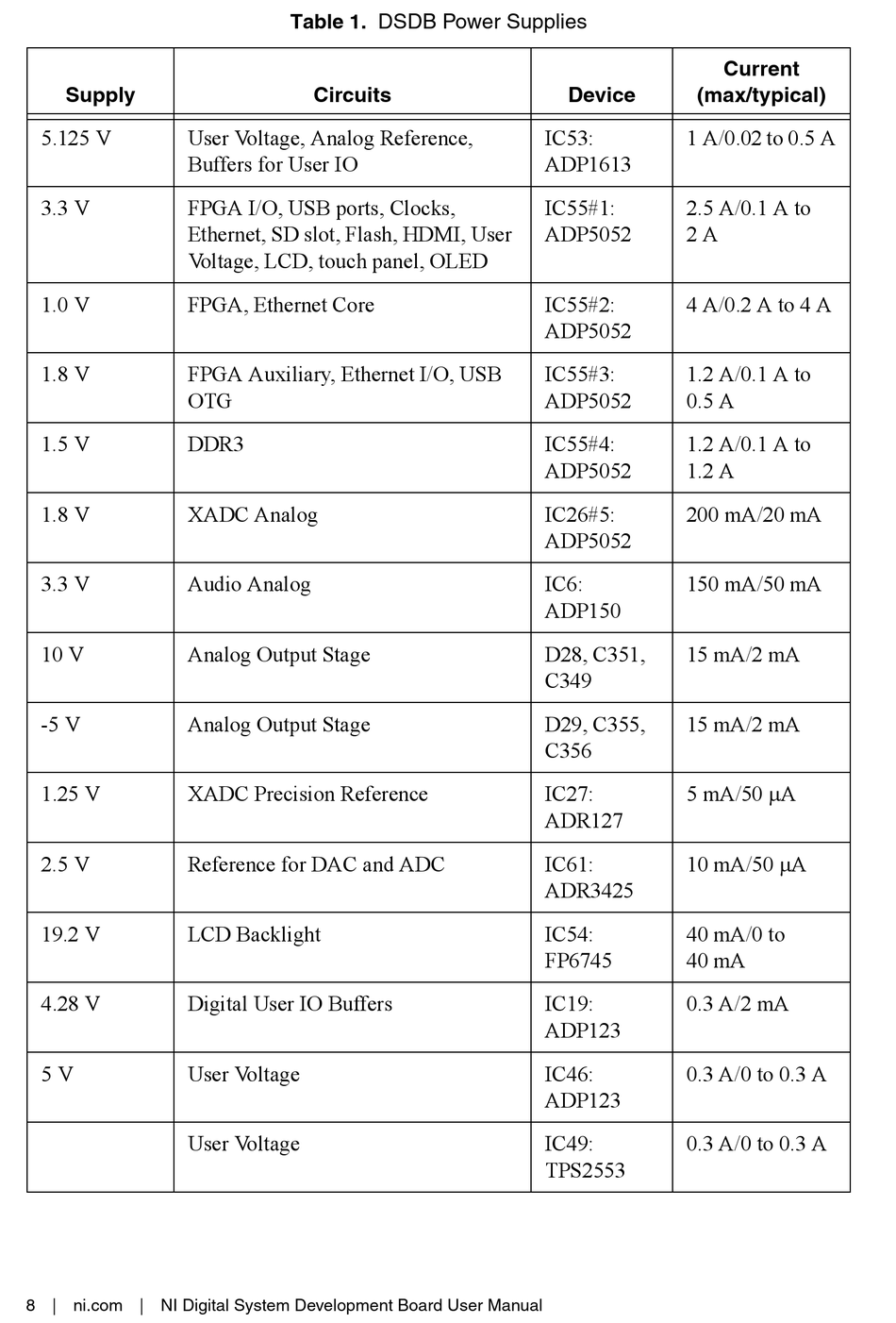

Table 1. DSDB Power Supplies
Circuits Device (max/typical)
IC53: 1 A/0.02 to 0.5 A
ADP1613
IC55#1: 2.5 A/0.1 A to
ADP5052 2 A
IC55#2: 4 A/0.2 A to 4 A
ADP5052
IC55#3: 1.2 A/0.1 A to
ADP5052 0.5 A
IC55#4: 1.2 A/0.1 A to
ADP5052 1.2 A
IC26#5: 200 mA/20 mA
ADP5052
IC6: 150 mA/50 mA
ADP150
D28, C351, 15 mA/2 mA
C349
D29, C355, 15 mA/2 mA
C356
5 mA/50 A
IC27:
ADR127
10 mA/50 A
IC61:
ADR3425
IC54: 40 mA/0 to
FP6745 40 mA
IC19: 0.3 A/2 mA
ADP123
IC46: 0.3 A/0 to 0.3 A
ADP123
IC49: 0.3 A/0 to 0.3 A
TPS2553
Current
