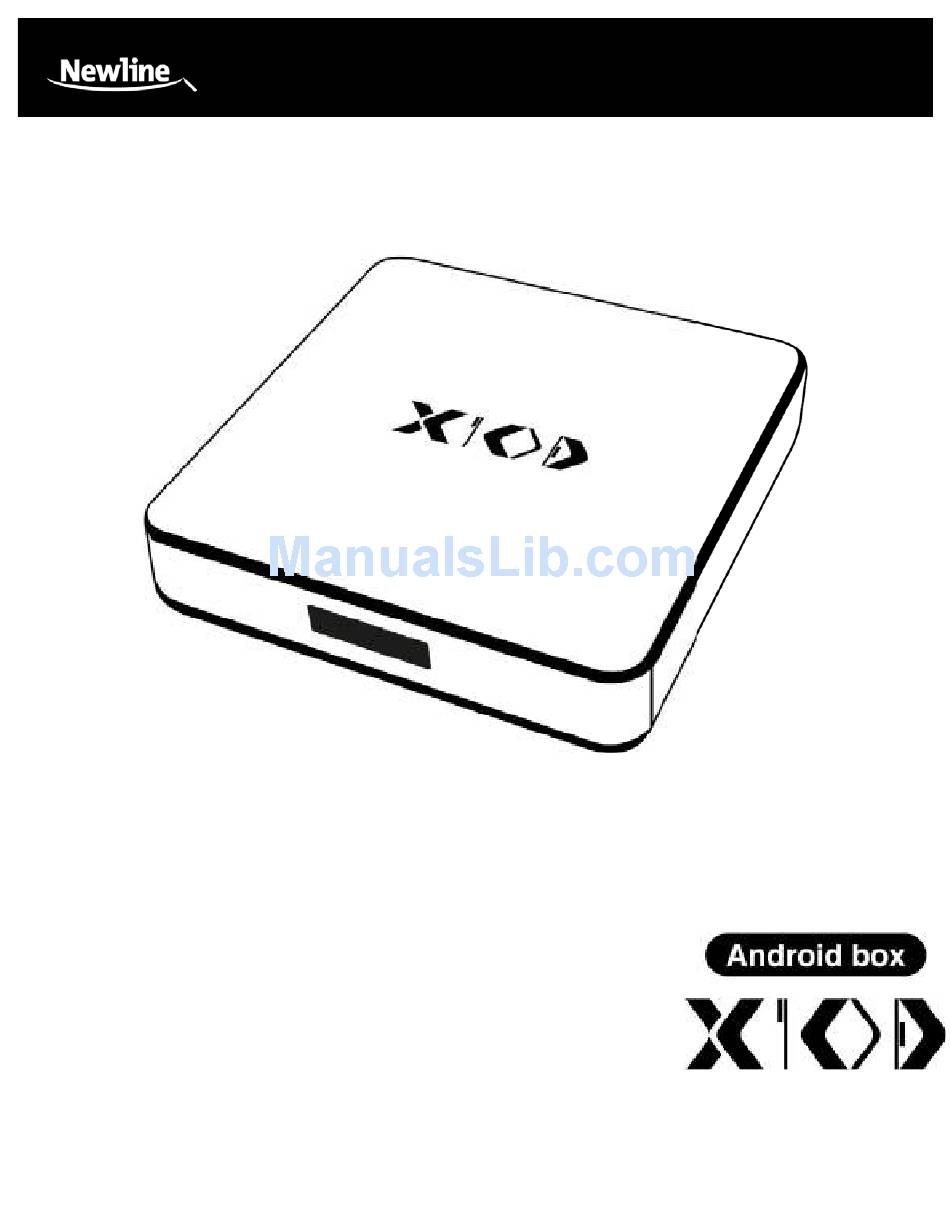

- Page 1 Instruction manual Ver1.0 Technical specifications and appearance are subject to change without notice.
-
Page 2: Table Of Contents
Safety Instruction 1. Overview 2 . Installation Before installation Installation 3 . Get Started Start X10D Standby mode Wake Up 4 . Operating X10D Home screen overview Main toolbar Main toolbar overview Browser File viewer Shortcut Application list Google Play... - Page 3 Welcome to the world of Newline. Thank you for choosing Newline Android box X10D. Please use this document to get the most out of the product. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: About This Document
About This Document This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. NOTE Indicates a potentially hazardous situation that, if not avoided, could result in equipment damage, data loss, performance deterioration, or... - Page 5 WARNING Do not open the cover or change the product on your own. High voltage components are installed in the product. When you open the cover, high voltage, electric shock, or other dangerous situations may occur. If inspection, adjustment, or maintenance is required, contact the local distributor for help.
- Page 6 CAUTION Do not install the product in high temperature environments. ● Do not install the product near a heat source, such as a radiator, a heat reservoir, a stove or other heating products. ● Do not expose the product to direct sunlight, which may cause high temperatures and subsequent faults in the product.
-
Page 7: Overview
Overview No. Part Function Description For connecting USB devices such as mouse, keyboard and USB flash memory. (FAT32). For connecting USB devices such as mouse, keyboard and USB/OTG USB flash memory. (FAT32). Micro SD card slot Support 1 GB/ 2 GB/ 4 GB/ 8 GB/ 16 GB/ 32 GB. DC/5V For connecting AC adapter or power cable. -
Page 8: Installation
Step 3. Plug the AC adapter to the 110-240 V power outlet fully and plug the connector into X10D power input port or plug the power code to power output port on Newline IFPD and the other end to X10D power input port. -
Page 9: Get Started
When mouse is connected, move the mouse and it will wake X10D up. ● If screen lock is active in X10D, swipe up the screen and enter the key. After entering the correct key, it goes to the last page before getting in to the standby mode. -
Page 10: Operating X10D
Operating X10D Home screen overview No. Part No. Part Logo (Shortcut to Logo & Floating toolbar Wallpaper Setting) Date & time (Shortcut to Main toolbar Date&time setting) Indicators Bottom toolbar Main toolbar Main toolbar overview ◆... -
Page 11: Browser
File viewer ◆ X10D supports connection to USB flash memory and Micro SD card. Enter the File Viewer application, you can preview all files in the internal storage and external storage devices connected via USB ports and select, copy, paste, delete and search for files. - Page 12 File viewer Page No. Part No. Part Device list Menu bar Filter bar File list Device List Click left side of the screen and the device list will be shown as in the figure below. The device list includes internal storage, external storage such as USB flash memory and Micro SD card, network SMB, and network NFS.
-
Page 13: Shortcut
Menu Bar Click right side of the screen and Menu bar will be shown as in the figure below. The menu bar contains basic functions for file operation, including multi-select, copy, paste, delete, cut, favorite, refresh, rename, new, view, and setting. Shortcut ◆... -
Page 14: Application List
Application list ◆ Click All Apps icon and the application list will be shown. The application list contains default apps and the apps users installed. Click the icon to activate the app or press and hold for other menu including Uninstall, Clear data, Info, Top and Sort. -
Page 15: Floating Toolbar
Floating toolbar Floating toolbar provides various shortcut introduced below. Floating toolbar Icon Function Return to previous menu/Exit. Manage currently running applications. Return to the main page. Browse all applications. Minimize/Maximize the floating toolbar. Enabling and disabling the floating toolbar: Click the icon on the home page to access the Application List submenu. - Page 16 Icon Function Icon Function Hide the toolbar. Return to the Home screen. Decrease the sound volume. Manage currently running applications. Increase the sound volume. Take a screenshot. Press: Go into the standby mode. Return to the last menu/exit. Press and hold: Reboot the Android box.
-
Page 17: System Setting
Item Function Wi-Fi Enter Wi-Fi submenu, and users can connect to Wi-Fi. Enter Ethernet submenu, turn on Ethernet setting and X10D can Ethernet automatically obtain the LAN IP address or set static IP address according to requirements. Enter Display submenu to set font size, logo, and wallpaper. - Page 18 Accessible Enter Accessible information submenu to set up accessibility. information Enter About X10D submenu to view various status including network About X10D status, firmware version and system version. Users can also update the firmware or do factory reset. Enter Power management submenu to set the time to standby Power management mode.
-
Page 19: Specifications
Specifications Model X10D CPU: Rockchip, RK3368 Octa Core up to 1.5 GHz (Cortex-A53 64 bit) Processor GPU: SG X 6110; support 4 K x 2 K H.265/ H.264. Memory 2 GB DDR3. Internal Storage 16 GB eMMC. Operating System Android 6.0.1, Built in Google Play Store, Support OTA function. -
Page 20: More Information
More information For more information Please visit our website (www.newline-interactive.com) Contact Us for Support Please email us at support@newline-interactive.com. Our company is devoted to product innovation and technology enhancement. Therefore, we may change product spec and information without notice. Product pictures in the manual are for reference only, please refer to actual products.
