Summary of Contents for KVMSwitchTech VGA-MTX-88A

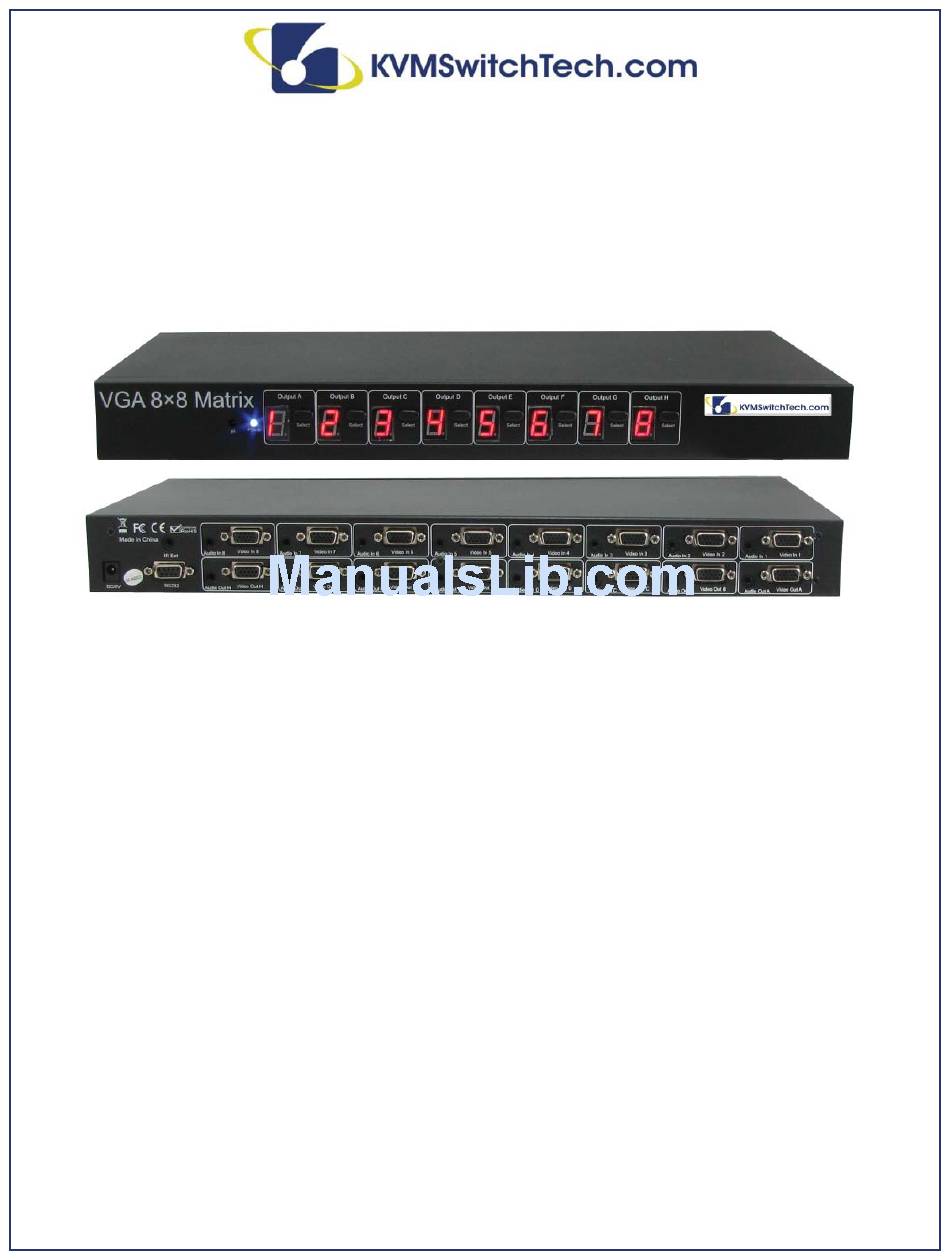

- Page 1 VGA-MTX-88A 8x8 VGA Matrix Routing Switch with Audio INSTRUCTION MANUAL VGA-MTX-88A VGA Matrix Routing Switch with AudioSeries Document Version: 1.2 118 W. Streetsboro Street, Ste. 125 | Hudson, OH 44236 | Toll Free: (866) 865-7737...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
DVRs. Every source is accessible at all times by any display by selecting it with an IR remote, front panel buttons or through RS-232 port. PACKAGE CONTENTS VGA-MTX-88A VGA Matrix Routing Switch with Audio Remote Control IR extender (Infrared Extender) -
Page 4: Features
FEATURES & SPECIFICATIONS FEATURES Allows any VGA display with audio to view any source with audio at any time Allows any source with audio to be displayed on multiple displays with audio at the same time Each display’s inputs can be switched with the IR remote control, front panel buttons or through RS-232 Supports highest video resolution 1920x1200, 1080p at 60Hz Supports highest video Amplifi... -
Page 5: Panel Description
PANEL DESCRIPTIONS FRONT BACK... -
Page 6: Connection And Operation
CONNECTION AND OPERATION CONNECTION Before installation, please make sure all devices you wish to connect have been turned off. 1) Connect all source devices to the video and audio inputs on the Matrix Routing Switch with Audio 2) Connect the VGA displays and audio receivers to the outputs on the Matrix Routing Switch with Audio. 3) Connect the 5VDC power supply to the Matrix Routing Switch with Audio. - Page 7 CONNECTION AND OPERATION Instruction form Instruction Function This order enables you know which inputs and outputs are available and the connection of inputs and outputs. Turn on power of the product POFF Turn off power of the product Select input 4 for output B respectively A1,A2,A3,A4,A5,A6,A7,A8 Select input 1-8 for output A respectively B1,B2,B3,B4,B5,B6,B7,B8...
-
Page 8: Connection Diagram
CONNECTION DIAGRAM... - Page 9 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER KVM Switch Tech, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
