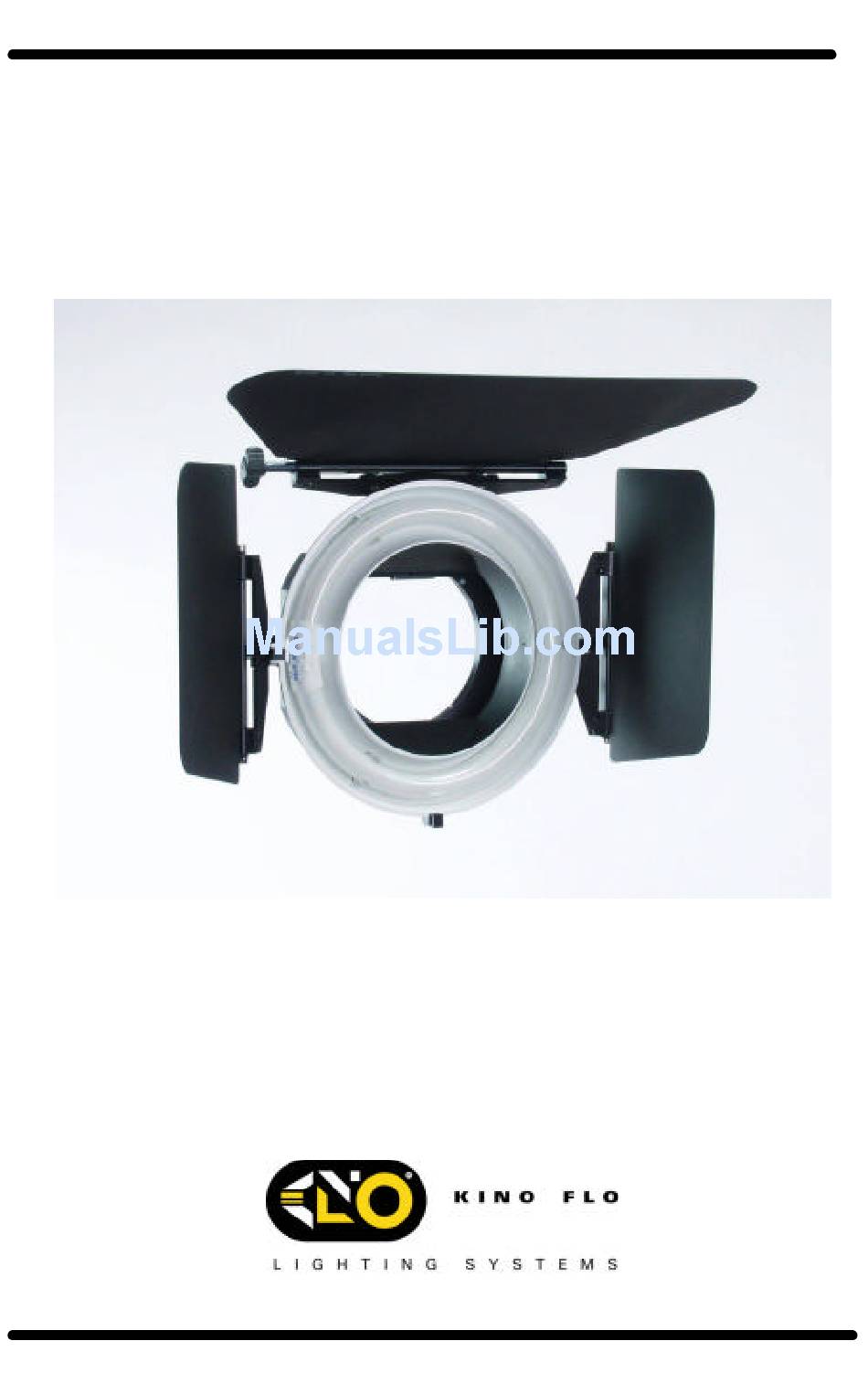

  • Page 1 Operation Manual Kamio System → →...
  • Page 2 The Kamio Kit consists of: 1 Kamio Fixture 2 Kamio Sunshade 1 Kamio Eyebrow 1 Kamio Ballast 12VDC 1 Power Supply 120/230 VAC to 12VDC Gel Template Gel Frames 1 Travel case 1 12’ Head extension...
  • Page 4 The Kamio Ring Light is designed to mount directly to the camera lens. An expandable clamping ring is designed to fit lenses with an outside diameter of 112mm. ( eg.Panavision Primo Primes). Turn the locking screw to clamp down on the lens. Lens adapter rings are available to accommodate various smaller lens diameters.
  • Page 5 IMPORTANT: Prior to using the filter frame, remove translucent protective plastic coating from both sides. Use the steel gel template to cut a filter to the correct size. The filter is then taped to the transparent filter frame. g! To Warning! To Ensure Proper Operation ALWAYS TURN OFF THE BALLAST BEFORE connecting or disconnecting lamps, harnesses or Head Extension Cables.
  • Page 6 Note:112mm permanently fixed to Kamio fixture. Fits Panavision→ Primo Primes ……Other sizes available on request. GFR-KAM ….. 4” x 5.65” Filter Holder X04-25 …. 25’ Single Extension Kino Flo, Inc. 10848 Cantara St., Sun Valley CA 91352 Tel: 818 767-6528 Fax: 818 767-7517 www.kinoflo.com...
