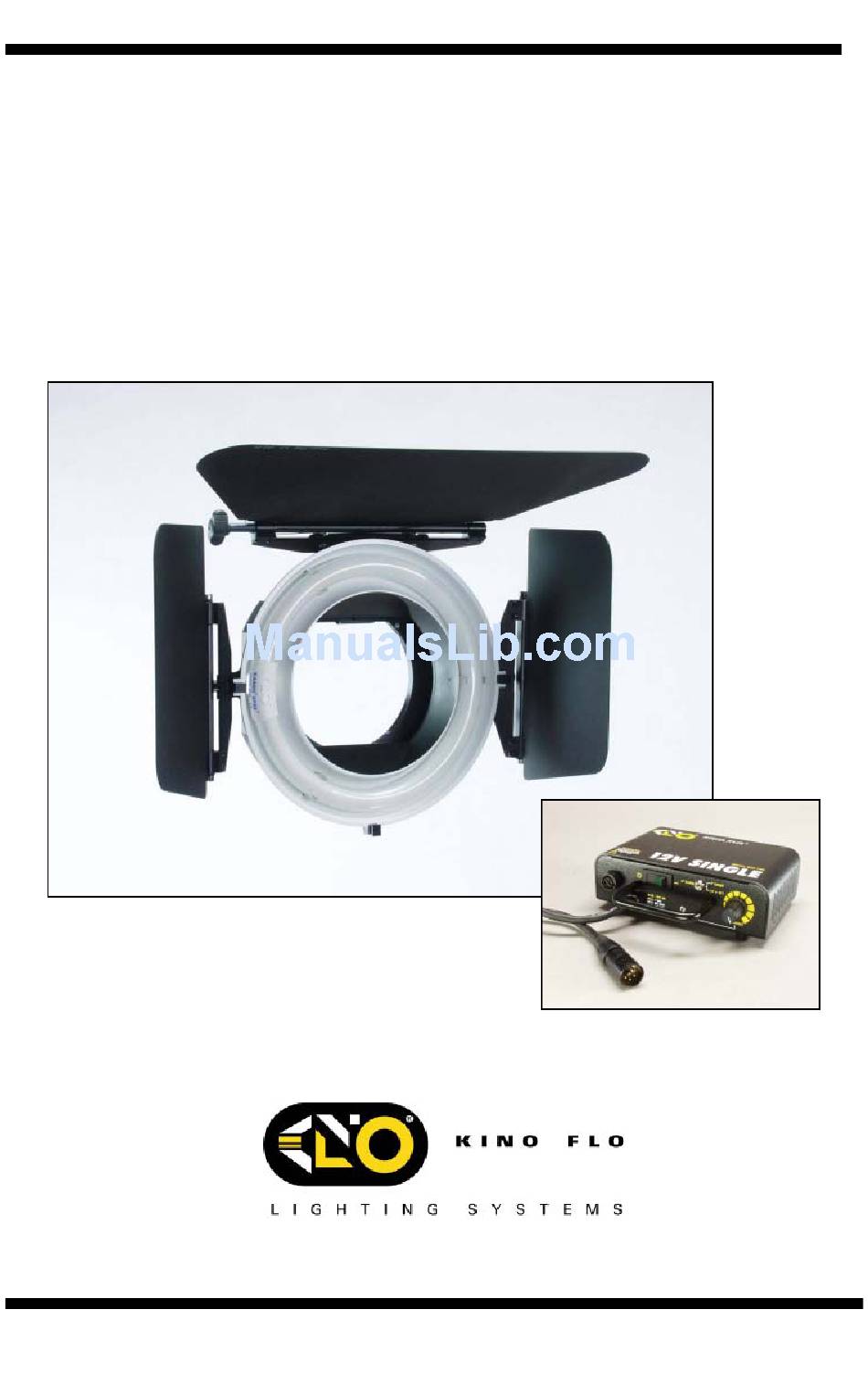

- Page 1 Operation Manual Kamio Remote System ® KIT-KAM1 11/19/03...
- Page 2 KAM6……. Kamio 6 Ring-Light w/2-station Filter Tray & Detachable 6ft harness. KAM6-S…..Short Doors, 2Pk “Sun Shade”. KAM6-L…..Long Barndoor, “Eyebrow”. BAL-140/X4….12V Single Ballast w/4 pin XLR Connector. PWS-136/X4… 6.5 amp/AC Power Supply w/4pin XLR. (Edison and European IEC power cords included). GFR-KAM6…..
- Page 4 The Kamio Ring Light is designed to mount directly to the camera lens. An expandable clamping ring is designed to fit lenses with an outside diameter of 112mm. ( eg.Panavision Primo Primes). Turn the locking screw to clamp down on the lens. Lens adapter rings are available to accommodate various smaller lens diameters.
- Page 5 IMPORTANT: Prior to using the filter frame, remove translucent protective plastic coating from both sides. Use the steel gel template to cut a filter to the correct size. The filter is then taped to the transparent filter frame. Warning! To Ensure Proper Operation ALWAYS TURN OFF THE BALLAST BEFORE connecting or disconnecting lamps, harnesses or Head Extension Cables.
- Page 6 A) Lamp Output…. Lamp harness connects the ballast to the lamp. B) Power Switch… Lights up green when power is present. On/off power switch. C) TRIM …………… Adjusts the bottom end of the dimming curve. D) Lamp Select……Sets the appropriate lamp size. E) DIMMER …..……...
- Page 7 Turn the DIMMER clockwise for maximum light output. TRIM adjustments alter the dimming range based on the lamp type selected. For example the TRIM pot can be used to make a lamp fade to black or to stop at a predetermined low light setting. Use a slotted screwdriver to turn the TRIM pot.
- Page 8 FIL-KAM6 ….. 4” x 5.65” Filter Holder. (also accepts 4” x 4” filters) X04-25 …. 25’ Single Extension. Kamio Lens Adapters KAM-80 ….80mm / fits Zeiss Super Speed Lenses KAM-84…..84mm / fits Panavision Digital Primes KAM-85 ….85mm / fits many Canon & Fujinon zooms KAM-87 ….87mm / fits Zeiss T3 10:1 zoom KAM-95 ….95mm / fits Zeiss Ultra &...
- Page 9 Mount Type: clip onto lens Filter Stations: 2 Weight with lamp: 1lb. / .45Kg Weight with lamp and barn doors: 2.07lb / .939Kg Kino Flo, Inc. 10848 Cantara St., Sun Valley CA 91352 Tel: 818 767-6528 Fax: 818 767-7517 www.kinoflo.com...
