CV350-10XB/10X

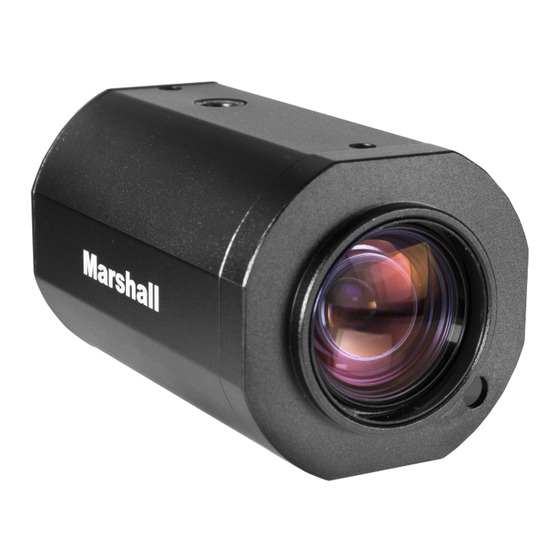

Compact 10X Autofocus Camera (Full-HD)
CV350-10X: 1080P25/30, 1080i50/60, 720P50/60, 1080P50/60
CV350-10XB: 1080P29.97, 1080i59.94, 1080P59.94, 720P59.94
Precautions
Do not use the camera if fumes, smoke or a strange odor is emitted
!
from the unit, or if it seems to not function correctly. Disconnect the
power source immediately and consult your supplier.
WARNING
Always follow the instructions in the installation guide when
applying power. Fire and equipment damage can occur if power
is applied incorrectly. For the correct power supply, refer to the
CAUTION
CAUTION
Do not install or operate in small, unventilated areas. Heat build up
CAUTION
To prevent damage, do not drop the camera or subject it to strong
CAUTION
shock or vibration.
If installed close to a TV, radio transmitter, magnet, electric motor
CAUTION
interfere with or distort the image.
Whether or not the camera is used outdoors, never point it toward
the sun. Use caution when operating the camera in the vicinity of spot
CAUTION
Do not use the camera in extreme environments where high
temperatures or high humidity exists. Use the camera under
conditions where temperatures are between 14°F ~ 122°F (-10°C ~
CAUTION
50°C), and humidity is below 90%.
Regulatory Notice
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Features
• 1/3" Progressive 2.1 Megapixel CMOS
• 10x Optical Zoom, F=4.7mm ~ 47mm, F1.6 ~ F3.0
• 3G/HD-SDI(BNC), HDMI
• 0.2Lux (Color), 0.1Lux (B/W), 0.005Lux (DSS On)
• Optical Multi Coated ICR Filter
• 3D-DNR, Privacy Masking
• Defog, HLC, WDR, DIS, NegArt, Freeze, B&W
• Full OSD control
• 12VDC
Quick Start Guide
10x Auto Focus Lens
Remote Control IR Receiver
Z/F & Menu
Controls Key
1. PWR +
2. PWR -
3. RS485 +
4. RS485 -
1. POWER +
2. POWER -
3. RS-485 +
4. RS-485 -
Zoom, Focus & Menu Controls
MENU On, One Push AF Key
Menu On: Press and hold menu key for 2seconds to display menu.
Menu Mode: To select data or exit from menu, press menu key.
One Push AF: To adjust focus position, press and release menu key when One Push AF mode is enabled.
Focus NEAR: Press and hold right key for continuous optical focus near.
MENU: To change menu parameter, press right key while menu is displayed.
Focus Far: Press and hold left key for continuous optical focus far.
MENU: To change menu parameter, press left key while menu is displayed.
Zoom TELE: Press and hold up key for continuous optical zoom in(Tele).
MENU: To move up menu item, press up key while menu is displayed.
Zoom WIDE: Press and hold down key for continuous optical zoom out(Wide).
MENU: To move down menu item, press down key while menu is displayed.
Marshall Electronics

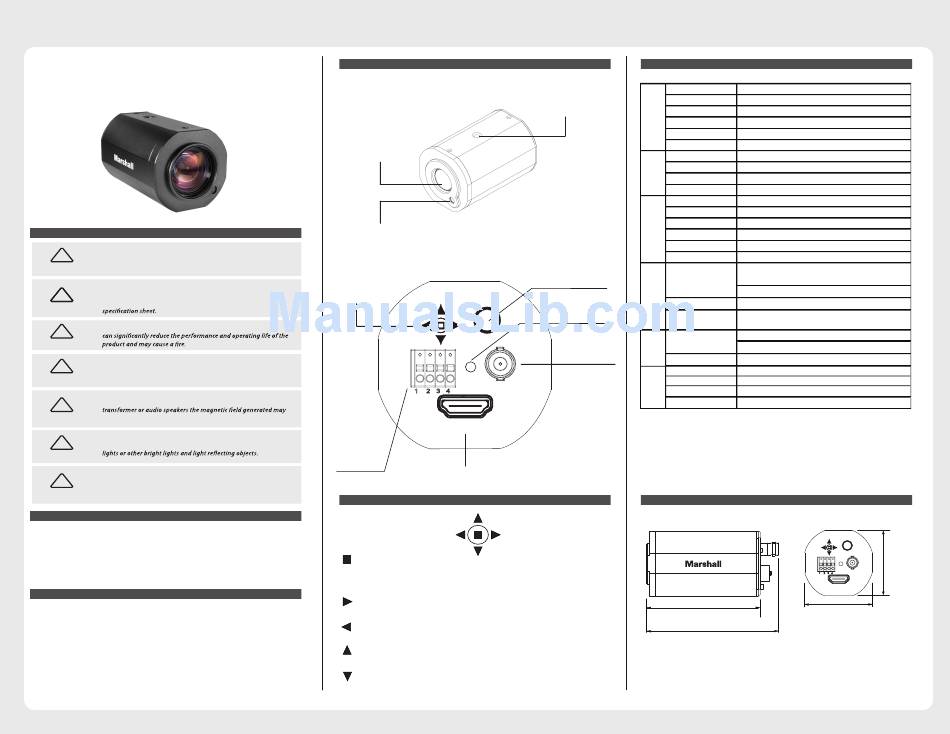

Hardware Overview
Front
Hole for wall or
ceiling mount
Rear
Remote Control
IR Receiver
Power LED
3G/HD-SDI Output
3G/HD-SDI
1
2 3 4
HDMI
HDMI Video Output
Specifications
Image Sensor
1/3" Progressive CMOS (Approx. 2.1 mega)
Scanning System
16:9 Progressive
Sync. System
Internal
Sensor
Effective Pixel
1920(H) x 1080(V)
Min. Illumination
0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on)
Horizontal Resolution
1000TVL
Lens
10x Optical Zoom, F=4.7~47mm, F1.6 ~ F3.0
Zoom
10x optical zoom x 12x digital zoom = 60x
Optics
Focus
Near/Far, Auto/Manual/One Push
Angle of View(H)
57.7 degrees(WIDE), 6.4 degrees(TELE)
Back Light Compensation
WDR/BLC, HLC(High Light compensation)
Exposure
Auto / Manual
White Balance
Auto(3,000°K~8,000°K) / ATW(1,900°K~11,000°K) / Manual
Functions
Day & Night System
AGC / TDN(ICR)
Electronic Shutter
NTSC: 1/30~1/30000, PAL: 1/25~1/30000, DSS( ~ 1/1sec)
Functions
Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS, NegArt, Freeze, B&W
SMPTE 292M(1.485Gbps): 1080P@29.97, 1080i@59.94, 720P@59.94
SMPTE 424M (2.97Gbps): 1080P@59.94
SDI Output
Video
800mVp-p, 75Ω, unbalanced generator(single-ended)
Output
CVBS (NTSC/ PAL)
-
HDMI 1920x1080p@59.94, 1920x1080i@59.94,
HD Output
1920x1080p@29.97, 1280x720p@59.94
PELCO-P/D, SONY-VISCA protocol
RS485
Control
8bits data, 1 stop bit, no parity, 2400~115200bps
Interface
D/N input
OPEN(floating): Day mode, CLOSE: Night mode
Operation Temperature
-20℃ ~ 60℃
Power Input
12VDC (7V to 15VDC)
General
Power consumption
Max 6W (4.8W Lens inactive, 5.5W Lens active)
Dimensions (D x W x H)
Weight
375g (0.82Lbs)
95.0 x 60.5 x 58mm (3.74 x 2.38 x 2.28")
Dimensions
1. PWR +
2. PWR -
4. RS485 -
1
93.7mm
95.0mm
Design and specifications are subject to change without notice.
LCDracks.com
58mm
3G/HD-SDI
2 3 4
HDMI
60.5mm
