Telldus PAN11-1B Manual

PAN11-1B/-2B/-3B/-5B/-8B
Smart energy plug in switch
P
This plug-in ON/OFF switch PAN11 is a security enabled wireless switch, based on
Z-Wave Plus technology. Z-Wave Plus
TM
Plus logo can also be used with it regardless of the manufacturer, and can also be
used in other manufacturer's Z-Wave
the connected load is possible with other manufacturer's wireless Controller. Each
switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to
ensure that the signal is received by its intended destination by routing the signal
around obstacles and radio dead spots. Because PAN11 supports Security Command
Class, it can learn with Secured controller. Its functionality and supported command
classes is identical when included as a secure and non-secure device.
This plug-in ON/OFF switch is able to detect instance wattage (3000W/CE/CN,
1500W/UL/TW/JP) and overload current (14.5A) of connected lights or appliances.
When detecting overload state, the Switch will be disabled and its On/Off button will
be lockout of which LED will flash quickly. However, unplug and re-connect the
switch will reset its overload condition to normal status.
TM
Adding to Z-Wave Network

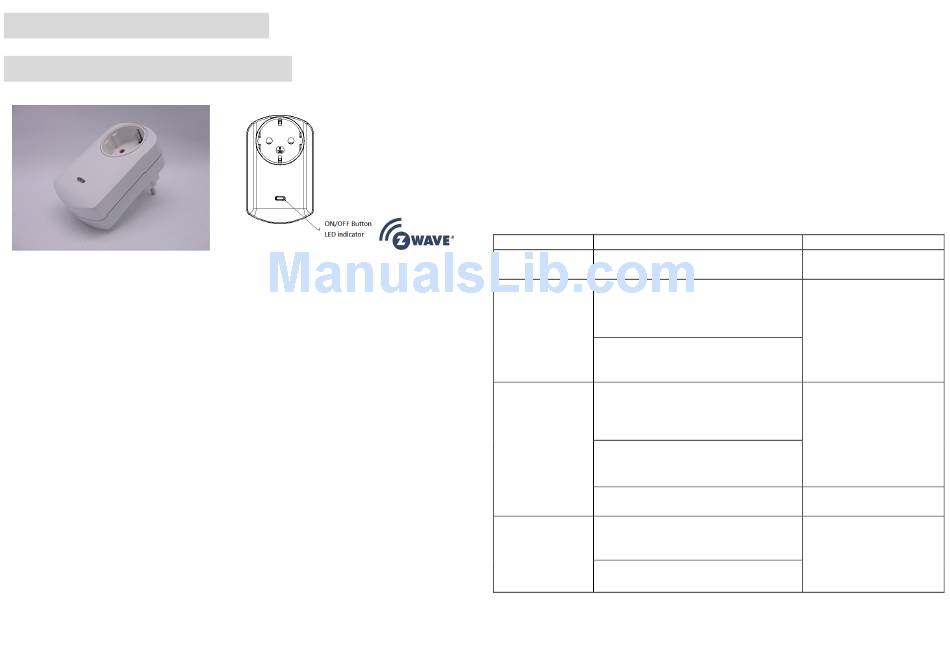

In the front casing, there is an On/Off button with LED indicator which is used to toggle
switch on and off or carry out inclusion, exclusion, reset or association. When first
power is applied, its LED flashes on and off alternately and repeatedly at 0.5 second
TM
enabled devices displaying the Z-Wave
TM
enabled networks. Remote On/Off control of
intervals. It implies that it has not been assigned a node ID and start auto inclusion.
Auto Inclusion
The function of auto inclusion will be executed as long as the switch does not have
Node ID and just plug the switch into a wall outlet.
Note: Auto inclusion timeout is 2 minute during which the node information of explorer
frame will be emitted once several seconds. Unlike "inclusion" function as shown in
the table below, the execution of auto inclusion is free from pressing the On/Off button
on the Switch.
The table below lists an operation summary of basic Z-Wave functions. Please refer to
the instructions for your Z-Wave
function, and to include/exclude/associate devices
Function
No node ID The Z-Wave Controller does not allocate
a node ID to the Switch.
Inclusion 1. Put your Z-Wave controller into
inclusion mode by following the
instructions provided by the
controller manufacturer.
2. Pressing On/Off button three times
within 2 seconds will enter inclusion
mode.
Exclusion 1. Put your Z-Wave controller into
exclusion mode by following the
instructions provided by the
controller manufacturer.
2. Pressing On/Off button three times
within 2 seconds will enter exclusion
mode.
Node ID has been excluded.
Reset 1. Pressing On/Off button three times
within 2 seconds will enter inclusion
mode.
2. Within 1 second, press On/Off
button again for 5 seconds.
1
TM
Certificated Primary Controller to access the Setup
Description
LED 2-second on,
2-second off
LED 0.5s On, 0.5s Off
(Enter auto inclusion)
Use this procedure only in
the event that the primary
controller is lost or
otherwise inoperable.
Annotation
