Huba Control 699 Operating Instructions Manual page 4

Installation arrangement
http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-M
Notice: Mount the transmitter with minimum 10 mm distance to
magnetic material. If this is not possible there is a failure of up to
minus 1 Pa for transmitters mounted on sheet steel.
ZP = Push Zero point reset.
The installation position is variable
by using the zero point reset button.
Pressure variations are resettable
after installation.
Ensure the power supply is not
interrupted when storing customer settings (ZP reset,).

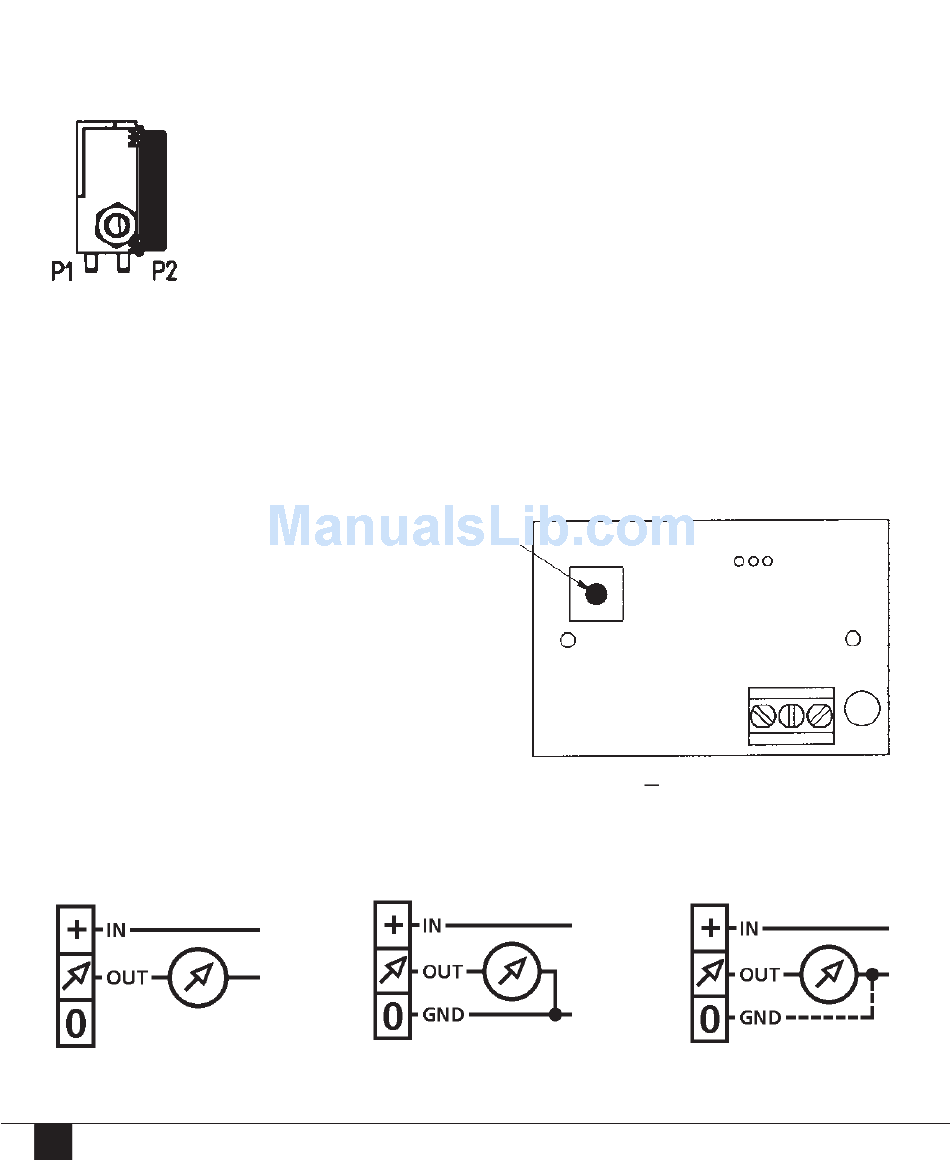

Connection diagrams
p://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MA
2 wire
4
Recommended installation arrangement:
vertical, with pressure connections facing downward,
drain of possible condensed water (factory calibration).
3 wire
ZP
Huba Control AG - 699/full - Edition 08/2012 - 114507
Universal
2 and 3 wire
