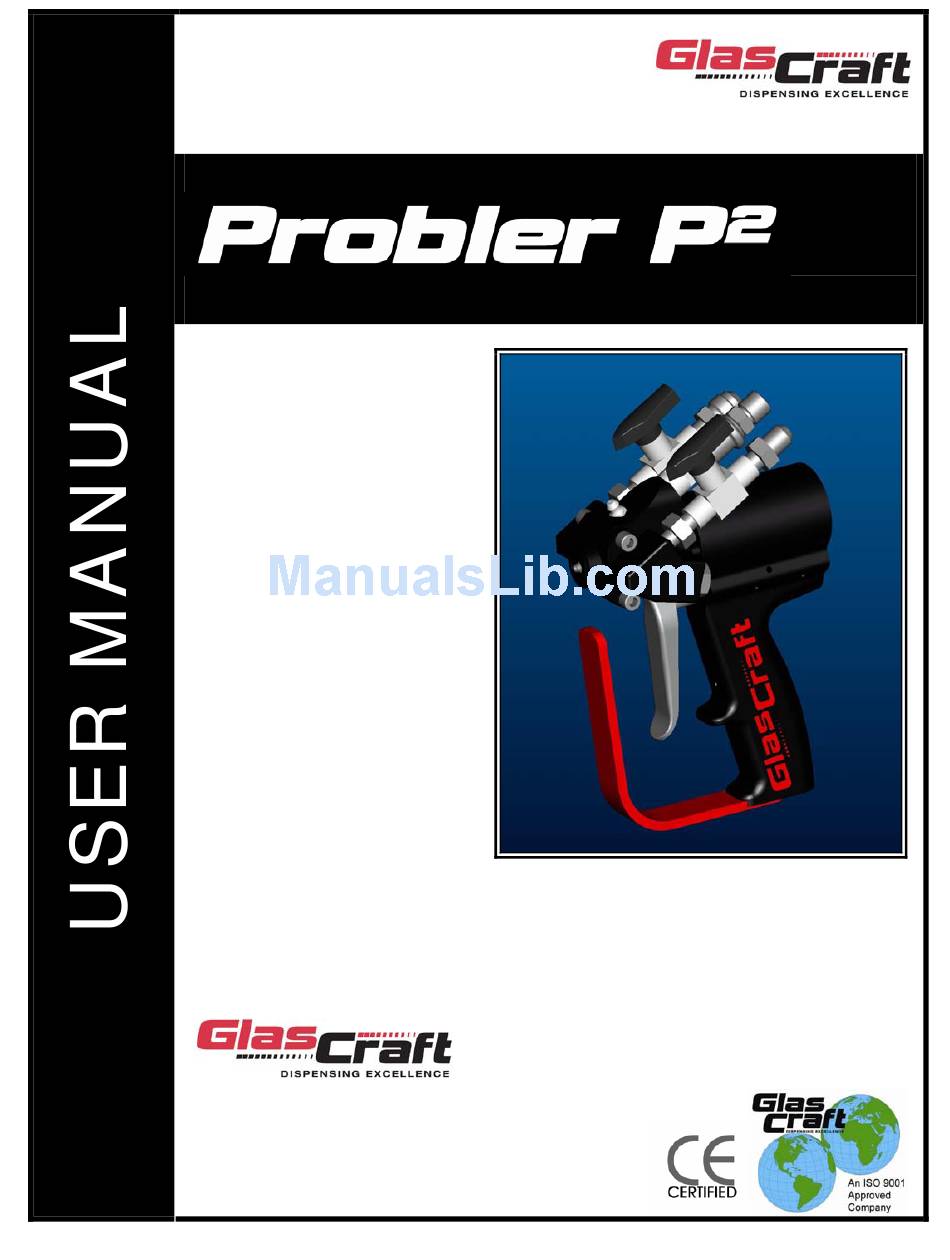

GLASCRAFT Probler P2 User Manual

Dispense gun
Hide thumbs Also See for Probler P2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Dispense Gun
INCLUDES:
23950-00
DISPENSE GUN
nd
5845 WEST 82
STREET
INDIANAPOLIS, INDIANA 46278 U.S.A.
Phone (317) 875-5592
Fax
(317) 875-5456
E-Mail sales@glascraft.com
Web
www.glascraft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Probler P2 and is the answer not in the manual?

Questions and answers

Related Manuals for GLASCRAFT Probler P2

Summary of Contents for GLASCRAFT Probler P2

  • Page 1 Dispense Gun INCLUDES: 23950-00 DISPENSE GUN 5845 WEST 82 STREET INDIANAPOLIS, INDIANA 46278 U.S.A. Phone (317) 875-5592 (317) 875-5456 E-Mail sales@glascraft.com www.glascraft.com...

  • Page 2: Table Of Contents

    23950-00 PROBLER P SPRAY GUN Safety Notes SAFE HANDLING and USE OF URETHANE FOAM EQUIPMENT Limited Warranty Policy Installation ON GLASCRAFT EQUIPMENT If You Have An Equipment Problem Operation PREOPERATION CHECK LIST PROBLER P OPERATING REQUIREMENTS For Your Reference GUN OPERATION...

  • Page 3: About This Manual

    The information in this document is intended only to indicate the components and their normal working About This Manual relationship typical use. Each assembly should be directed by a GlasCraft distributor or made from the Before operating, maintaining servicing GlasCraft assembly instructions provided.

  • Page 4: Parts & Illustrations

    PARTS & ILLUSTRATIONS Cleaning Drill Chart ROUND MIXING MIXING CHAMBER NOZZLE MIXING CHAMBER SIDE CHAMBER CLEANING DRILL HOLE CLEANING DRILL 23960-00 14963-17 0.052 14963-21 0.029 23960-01 14963-11 0.057 14963-16 0.042 23960-02 14963-12 0.071 14963-17 0.052 23960-03 14963-15 0.086 14963-13 0.0595 23960-04 14963-19 0.094...

  • Page 5: Service & Repair Parts Kits Cont

    PARTS & ILLUSTRATIONS Service & Repair Parts Kits Continued 23980-00 23981-00 HARDWARE KIT 04-05 PREMIUM REPAIR KIT 15845-00 3/16” Ball Driver 23974-05 O-Ring 15845-01 5/32” Ball Driver 23974-06 O-Ring 17672-00 Pin Vise 23974-07 O-Ring 23971-00 Screen Filter 23974-08 O-Ring 14693-19 Drill Bit 23974-09 O-Ring...

  • Page 6: Spray Gun

    23950- PROBLER P SPRAY GUN 7716-06C 23963-00 7554-26 7554-25 7554-06 23953-00 7554-05 9936-20F 2253-04 7554-27 23960-XX 23951-00 23974-12 23968-00 7554-29 23961-00 23966-00 8212-12F 7554-43 9869-19 17259-16F PG-18 23977-XX PG-19 23952-00 7554-16 23964-00 23967-00 23965-00 8301-12C 23962-00 16832-00 8560-23 7704-08C PG-15-01 7554-10 7554-07 8462-08...

  • Page 7: Spray Gun

    23950- PROBLER P SPRAY GUN PARTS LIST SHT1 Part No. Description 23960-XX MIX CHAMBER 13867-08 O-RING 13867-11 O-RING 16832-00 AIR SWITCH ASSEMBLY 17259-16F SET SCREW 18383-00 BALL 18383-02 BALL 2253-04 LUBE FITTING 23951-00 AIR PISTON 23952-00 AIR PISTON 23953-00 CYLINDER SPACER 23954-00 AIR VALVE INSERT 23955-00...

  • Page 8: Safety

    Operating Safely GlasCraft hopes that this manual is helpful to the user and recommends that the precautions in this manual In operating urethane foam equipment safely, user be included in any such program. should make every effort to: Urethane foam systems are comprised of several 1.
  • Page 9 Halogenated Hydrocarbon Solvents. promoting HHC solvents for use in coating systems. The increasing use of HHC solvents is increasing the Some GlasCraft spray equipment includes aluminum risk. Because of their exemption from many State or galvanized components and will be affected by Implementation Plans as Volatile Organic Compounds Halogenated Hydrocarbon Solvents.
  • Page 10 Steps to NOTE counteract such effects should be started immediately. GlasCraft is aware of NO stabilizers available to Apply Tincture of Green Soap, full strength, to the prevent Halogenated Hydrocarbon solvents from contaminated area. If Tincture of Green Soap is not...
  • Page 11 OPERATION PROCEDURES, CALL YOUR chemical vapors should be exhausted to atmosphere GLASCRAFT DISTRIBUTOR OR GLASCRAFT, INC. in such a manner and at a sufficiently low concentration that personnel outside the plant are not NOTICE exposed to dangerous concentrations of chemical vapors.

  • Page 12: Installation

    INSTALLATION On GlasCraft Equipment All GCI OEM fittings are as follows: A SIDE - # 6 JIC Hoses – Female Swivel Fitting System and Gun – Male Fitting B SIDE - # 6 SAE Hoses – Female Swivel Fitting ISOCYANATE System and Gun –...

  • Page 13: Operation

    MAXIMUM Static Fluid Pressure - 3200 PSI If the Gun is being used for short periods of spraying, WARNING GlasCraft recommends that the purge air be left ON. The material Shut-Off Valves, P/N PG-15-01 can be The GlasCraft Probler P Gun is designed and left in the OPEN position during these periods of time.

  • Page 14: Initial Start-Up Procedure

    WARNING If purge air is to be turned OFF, BOTH MATERIAL SHUT-OFF VALVES, P/N PG-15-01, MUST BE TURNED TO THEIR "OFF" POSITION BEFORE TURNING "OFF" THE PURGE AIR ! Failure to follow this procedure will possibly result in the Gun Head becoming encased with mixed product. For proper purging following use, the Air Switch must be left OPEN for at least 15 SECONDS after the Trigger has been released.

  • Page 15: Spray Technique

    CAUTION The Polyol will expand in the Hose if any normal operating pressures are bled off whenever the material is above approximately 75 degrees F. Hot Polyol hoses should never be bled, by any method, to zero pressure for two reasons. 1.

  • Page 16: Daily Shut-Down Procedure

    Gun back and forth in a slow, even motion, WARNING overlapping the previous pass about 50 to 75 percent. DO NOT SPRAY OVER RISING FOAM! The ideal Before removing Side Blocks make certain that both gun-to-surface distance is about 18 to 24 inches. Be Gun Material Valves are in the fully OFF positions! sure to point the Gun directly at the surface to be Refer to Figures 4 and 5.

  • Page 17: For Experienced Users

    Daily Shut-Down Extended Shut-Down Procedure For experienced users This procedure should be performed when the system is to be stored for an extended period of time (i.e. Once you have used the Gun with a product and winter shut-down, etc.). System, and you have become comfortable with techniques on how all the variables are affecting your Perform DAILY SHUT-DOWN PROCEDURE steps.

  • Page 18: Service

    GENUINE GlasCraft section.) REPLACEMENT PARTS from your authorized GlasCraft distributor. Piston Throw Adjustment 6. Inspect all threads for wear or damage and replace as required. The P2 Gun Piston Throw is factory set and as a rule, should not require adjustment. The Piston Throw 7.

  • Page 19: Installing P2 On Equipment Other Than Glascraft

    3. Remove Side Blocks, P/N 23955-00 and P/N Installing P2 on Equipment other 23956-00. than GlasCraft 4. Remove one of the Side Block Seal Housings, P/N 23959-00 from Side Block. WARNING 5. Leave Seal, P/N 23973-00 in Housing and Do not place any part of the body in the path of the rinse with suitable solvent.
  • Page 20 3. Unscrew and remove two of the fittings from one side of the Hose Junction Block, P/N 19434-00. (See Fig. 6) ISOCYANATE POLYOL 19434-00 Fig. 6 4. Install Pipe Bushings, P/N 7966-31, into Hose Junction Block. 5. Install the original equipment’s swivel fittings into the corresponding pipe bushing on the Hose Junction Block.

  • Page 21: Options & Accessories

    OPTIONS & ACCESSORIES 23961-00 Front Tip 23974-12 O-Ring STANDARD ROUND SPRAY AIR CAP PG-14 18378-00 Seal Retaining Nut 23963-00 23976-00 Gun Head FLAT SPRAY KIT CONFIGURATION 23974-12 O-Ring LPA2-147-XX Tungsten Airless Tip 23972-00 23047-XX Flat Spray Adapter Non Atomized Tip * Not Included in Kit POUR 23960-XX...

  • Page 22: Notes

    NOTES __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________...
  • Page 23 NOTES __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________...
  • Page 24 NOTES __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________...

  • Page 25: Limited Warranty Policy

    Purchaser, when used individually or in concert with any other part, equipment, device, component or process, does not infringe on any patent rights of any third party. GlasCraft only warrants that it has no specific knowledge of any such infringement.

  • Page 26: If You Have An Equipment Problem

    MATERIAL PUMP AIR MOTOR MAIN AIR LINE PRESSURE at SYSTEM MAIN AIR LINE VOLUME COMPRESSOR SIZE COMPRESSOR to SYSTEM SUPPLY LINE SIZE INCHES Have a general equipment or operation question? You can contact the GlasCraft Service Department via E-Mail at service@glascraft.com...

  • Page 27: For Your Reference

    S y s t e m s a n d E q u i p m e n t S y s t e m s a n d E q u i p m e n t For more information concerning any of these GlasCraft products, contact your local authorized GlasCraft distributor, or...
  • Page 28 Quality and Performance… GENUINE GLAS-CRAFT 5845 WEST 82 STREET INDIANAPOLIS, INDIANA 46278 U.S.A. Phone (317) 875-5592 (317) 875-5456 www.glascraft.com E-Mail sales@glascraft.com GC-1386 REVISION A...
