Hardware Description

Front View

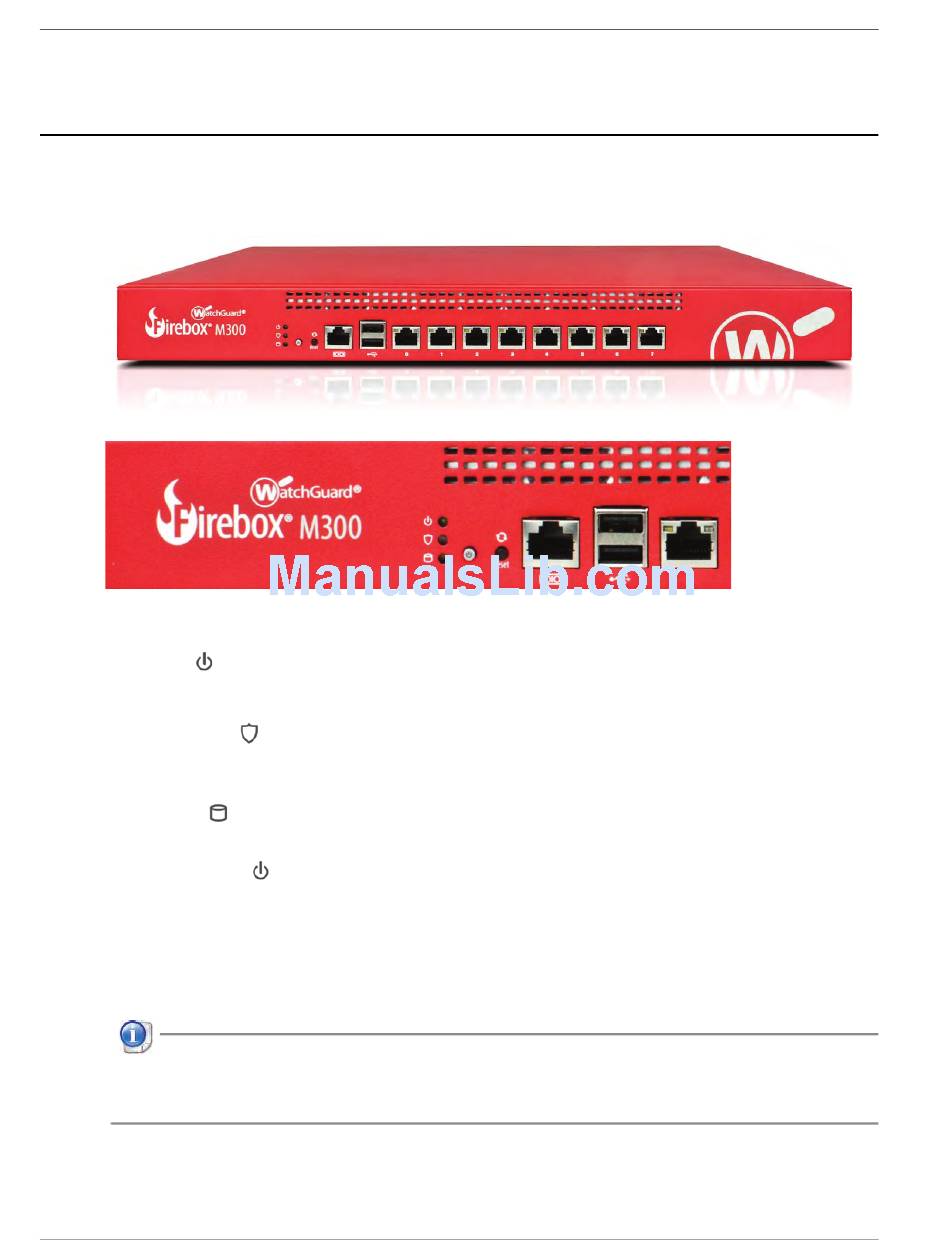

Firebox M300 front panel:
Left front:
Buttons and Indicators
Power ( )
The power indicator is green when the device is powered on.
Arm/Disarm (
When the device is armed and ready to pass traffic, this indicator is green. When the device is
powered on, but not ready to pass traffic, this indicator is red.
Storage (
When there is activity on the internal storage, this indicator is yellow.
Power Button (
The Power button is lit to indicate power status. It is green when the Firebox is powered on, and red
when power is available, but the Firebox is powered off.
When the button is red, press this button to power on the Firebox. When the button is green, press
and hold the power button for five seconds to power off the Firebox. The Firebox does not power off
if you briefly press the power button.
Early hardware revisions (M200 Rev. A–G and M300 Rev. A–D) do not have a front power button.
The hardware revision is the last letter on the barcode sticker on the rear of the Firebox, to the right
of the WatchGuard serial number sticker.
