Globalmediapro SMR-650
16 x 16 Modularized Hybrid 3G-SDI Matrix
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMR-650 and is the answer not in the manual?

Questions and answers

Related Manuals for Globalmediapro SMR-650

Summary of Contents for Globalmediapro SMR-650

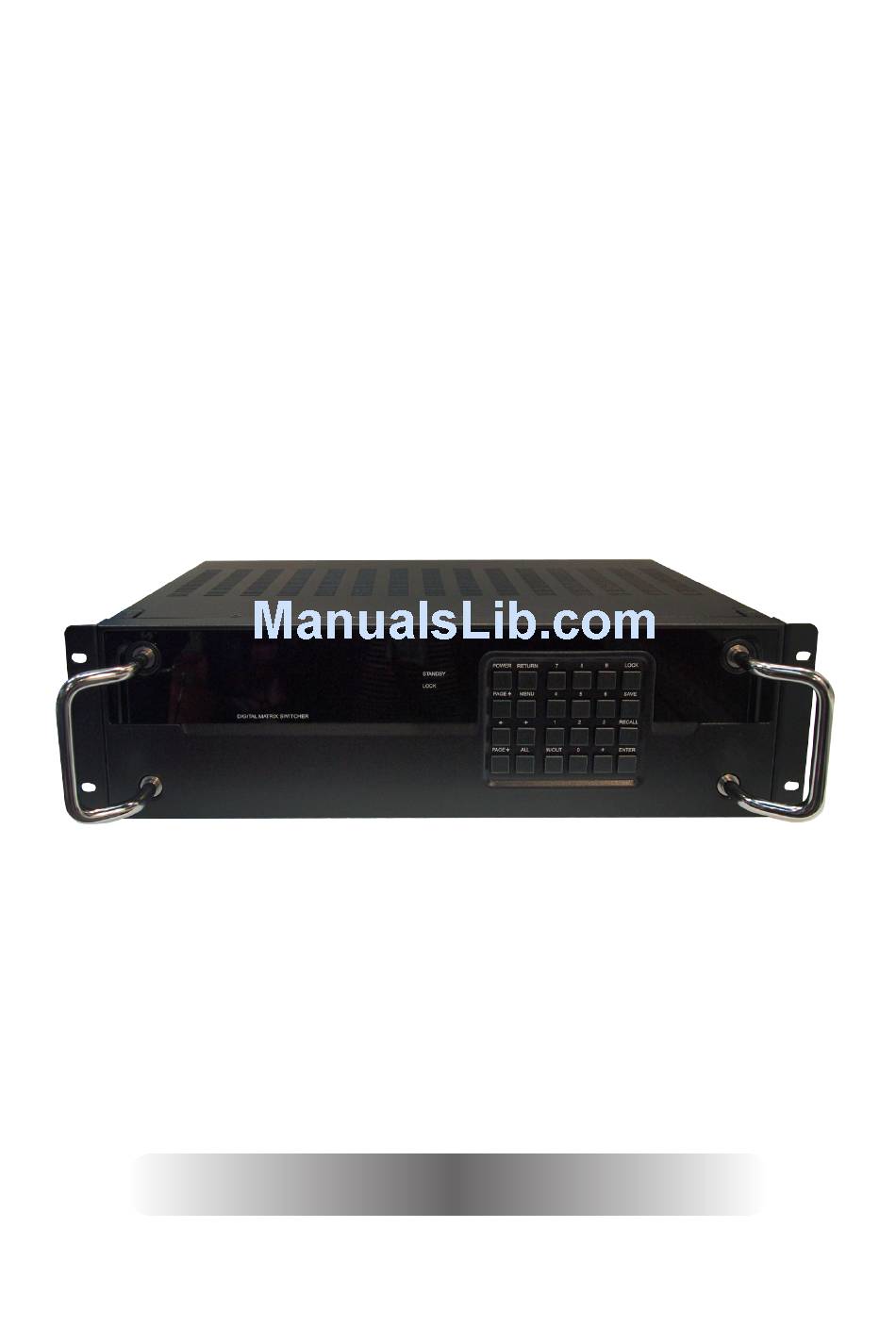

  • Page 1 Globalmediapro SMR-650 16 x 16 Modularized Hybrid 3G-SDI Matrix Operation Manual Operation Manual...

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3. Remote Control .......6 6.4 RS-232 Protocols .......7 6.5 Get IP Address ........7 6.6 RS-232/Telnet Commands .....8...

  • Page 3: Introduction

    1. INTRODUCTION The 16 x 16 modularized Hybrid 3G-SDI matrix can route sixteen SDI sources to any sixteen SDI displays, providing bandwidth up to 2.970Gb/s for 3G-SDI video support. The device is of special modularized design which can maximize the flexibility of professional applications.

  • Page 4: Features

    5. FEATURES • Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s • Supports SDI input/output modes: • SD-SDI(SMPTE 259M-C, at bitrates of 270 Mbit/s) • HD-SDI(SMPTE 292M, at bitrates of 1.485Gbit/s and 1.485/1.001 Gbit/S) • 3G-SDI (SMPTE 424M/425M – AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) •...

  • Page 5: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER RETURN LOCK STANDBY LOCK PAGE MENU SAVE DIGITAL MATRIX SWITCHER RECALL PAGE ENTER OUT/IN 9 11 12 16 15 LCM: Displays the setting information of each input and output and other setting information according to the selection. STANDBY LED: This LED will illuminate when the power is switched off.
  • Page 6 MENU: Press this button to enter into the menu selection. There are total 9 functions included. 1. Firmware version 2. IP Address: This address is for login telnet and Web GUI 3. DHCP/AUTO IP ON/OFF (ON:DHCP enable, OFF: Static IP enable) 4.

  • Page 7: Rear Panel

    6.2 Rear Panel INPUT INPUT INPUT INPUT OUTPUT OUTPUT OUTPUT OUTPUT 100-240VAC 50/60 Hz RS232 CONTROL INPUT 1~16: Connect source equipments such as digital camera or broadcast video recorder up to 16 sets with SDI cables. OUTPUT 1~16: Connect SDI display TV/monitors with SDI cables up to 16 displays.

  • Page 8: Remote Control

    6.3. Remote Control Power: Press this button to switch the device on or to standby mode. OUTPUT 1~0: Press a desire output setting port number and press enter. ENTER OUTPUT ENTER: OUTPUT Press this button every time after a output number is selected then follow an input selection.

  • Page 9: Rs-232 Protocols

    6.4 RS-232 Protocols Remote Controller SMR-650 Definition Definition ► ◄ Baud Rate : 19200 bps Data Bit : 8 bits Parity : None Stop Bit : 1 bit Flow Control: None 6.5 Get IP Address There are 2 ways to get IP address, by auto and by static setting.

  • Page 10: Rs-232/Telnet Commands

    6.6 RS-232/Telnet Commands Commands Description QUIT Quit telnet connection Show all commands RESET DEFAULT Factory Reset Current Firmware version PORT I:n O:n I:Input O:output n:port number PORT I n O n I:Input O:output n:port number PORT O:n I:n I:Input O:output n:port number PORT O n I n I:Input O:output n:port number POWER OFF...

  • Page 11: Telnet Control

    6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"...
  • Page 12 list the available commands. Type “GET IP CONFIG” To show all IP configurations. To reset the IP, type “SET IP MODE n” and to use a set static IP. Note: Any commands will not be executed unless followed by a carriage return and LF.

  • Page 13: Web Gui Control

    6.8 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's IP Status and Matix Setting.

  • Page 14: Specifications

    7. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s Input Ports 16 x BNC (SD/HD/3G-SDI) Output Ports 16 x BNC (SD/HD/3G-SDI) HDMI Support Resolution 480i/576i, 720p@50/59.94/60, 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30 SDI Support Timing SD-SDI: SMPTE 259M-C, 270 Mbit/s...
  • Page 15 SD/HD/3G Eye Diagram SD-576I HD-720P...
  • Page 16 3G-1080P...

  • Page 17: Connection And Installation

    8. CONNECTION AND INSTALLATION 16 x SDI Camera SDI Camera INPUT INPUT INPUT INPUT...
  • Page 18 16 x SDI Monitor SDI Monitor RS-232 Equipped PC or Notebook OUTPUT OUTPUT OUTPUT OUTPUT 100-240VAC 50/60 Hz RS232 Wireless Router (with Internet Connection) CONTROL Smartphone or Tablet...
