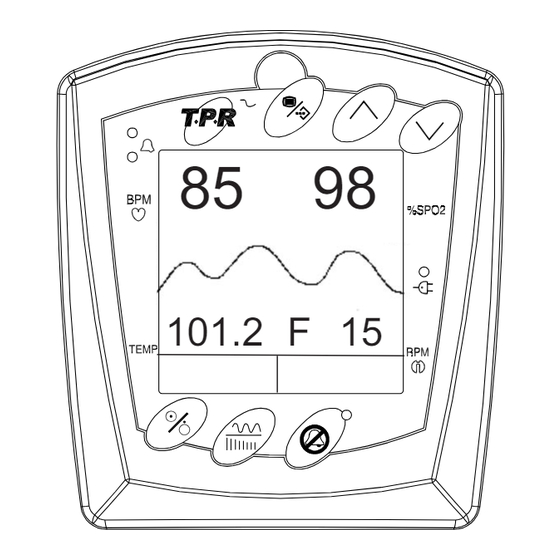

- Page 1 SurgiVet V3395 - Pulse Oximeter, Respiration & Temperature Operation Manual 101.2 URGI N7 W22025 J OHNSON UITE , WI 53186 AUKESHA V1907 ATALOG 2, J 2002 ERSION ©2002, S URGI...
-
Page 3: Table Of Contents
Table of Contents SurgiVet V3395--Pulse Oximeter, Respirations, & Temperature Operation Manual Warranty & Service Information ..........................iii Proprietary Notice..............................iii Limited Warranty..............................iii Loaner Device (Domestic Sales Only)........................iii Service Support...............................iii Chapter 1: Introduction Intended Use ................................ 1-1 Symbol Definitions .............................. 1-1 2 Warnings, Cautions, and Notes........................1-1 General Warnings .............................. - Page 4 Table of Contents Attach the Sensor to the Patient..........................5-6 Reflectance R/E Sensor ............................5-7 Chapter 6: Respiration Respiration Theory of Operation ..........................6-1 Respiration Menu ..............................6-1 Chapter 7: Temperature Temperature Theory of Operation ........................7-1 Temperature Menu ............................7-1 Units ................................7-1 Chapter 8: Trends Trends Menu.................................8-2 Chapter 9: Printer Printer Menu.................................9-1...
-
Page 5: Warranty & Service Information
Information contained in this document is copyrighted by SurgiVet, Inc. and may not be duplicated in full or part by any person without prior written approval of SurgiVet. Its purpose is to provide the user with adequately detailed documentation to efficiently install, operate, maintain and order spare parts for the device supplied. -
Page 7: Chapter 1: Introduction
Chapter 1: Introduction Chapter 1: Introduction Intended Use The SurgiVet V3395 Plus is a low cost portable Pulse Oximetry, respiration, and temperature monitor. It non-invasively and continuously monitors and displays arterial blood oxygen saturation of arterial hemoglobin (SpO ), pulse rate, plethysmogram, temperature and respiration. It may be used in the veterinary hospital or clinical environment. -
Page 8: General Warnings
Tape applied too tightly may cause inaccurate readings and blisters on the patient's skin (lack of skin respiration, not heat, causes the blisters). 1 Microfoam® is a registered trademark of the 3M Company. Operation Manual SurgiVet V3395... -
Page 9: Cautions
The monitor’s AC rating is shown on the external power supply. If the rating is not correct, do not use the monitor; contact SurgiVet’s service department for help. CAUTION: Should the device become wet, wipe off all moisture and allow sufficient time for drying before operating. -
Page 10: Oximetry
If necessary, shield the sensor area (with a surgical towel, for example). Respiration & Temperature NOTE: Use only sensor supplied with, specifically intended for use with this device. Operation Manual SurgiVet V3395... -
Page 11: Chapter 2: Description Of Measurements, Controls And Features
The monitor continuously measures and displays the respiration rate. Power: The SurgiVet V3395 operates on power from an external power supply. In addition, the monitor contains an internal NiMH battery that will allow operation for approximately 2 hours. However, the monitor should remain on the external power supply whenever possible. - Page 12 Keys The front panel keys control the monitor's functions. Dedicated keys are provided for turning the monitor on and off, silencing alarm and alert tones, selecting waveforms or trends, and selecting menus. Operation Manual SurgiVet V3395...
-
Page 13: Lcd Display
If more than one message must be displayed on the same line, then they alternate once per second. Waveforms, Trends, Menus The waveform is displayed here. A trend graph or a menu can be displayed in place of the waveform. Operation Manual SurgiVet V3395... -
Page 14: Keys
) to move among menu items or to adjust the value of a selected item. If a Trend is displayed, the ARROW ( ) keys cycle between trended parameters. If a plethysmogram is displayed, the ARROW ( ) keys adjust the display’s contrast. Operation Manual SurgiVet V3395... -
Page 15: Top Panel
The monitor’s AC rating is shown on the external power supply. If the rating is not correct, do not use the monitor; contact SurgiVet’s service department for help. Side Panel FIGURE 2.5: SIDE PANEL... -
Page 17: Chapter 3: Setting Up The Monitor
To cancel either two minute or indefinite alarm silence and enable alarm and alert tones: Momentarily press B; the Alarm Silence LED turns off. Working With Menus ALARMS TEMPERATURE TRENDS VOLUME PRINTER OXIMETER RESPIRATION [EXIT] 101.2 F SPO2 SENSOR! FIGURE 3.1: MENU Operation Manual SurgiVet V3395... - Page 18 To exit all menus quickly and return to the previous monitoring screen: Press NOTE: If menus are shown and you do not press menu keys for 20 seconds, the waveform display will return, and any current menu selections will be accepted. Operation Manual SurgiVet V3395...
-
Page 19: Working With System-Wide Settings
2. In the parameter’s menu, select the monitor on/off item. 3. Press and use the ARROWS ( ) to adjust the setting. 4. Press to accept the selection. 5. Select [EXIT] or press to exit menus. Operation Manual SurgiVet V3395... -
Page 21: Chapter 4: Alarms
During a low priority alarm: The low priority alarm LED (yellow) flashes. A message is shown on the display (subject to the display priority). Dashes indicate the measurement is unavailable. Note: The low priority alarm tone sounds (if not silenced). Operation Manual SurgiVet V3395... -
Page 22: Working With The Alarms Menu
ALARMS HIGH %SPO2 RATE RESP [EXIT] (alarm menu) 101.2 F SPO2 SENSOR! FIGURE 4.2: ALARM MENU LOW and HIGH Indicates the low and high alarm limit for each measurement. Allows the alarm limits to be adjusted. Operation Manual SurgiVet V3395... -
Page 23: Adjusting Or Viewing Alarm Limits
• A unique tone, a burst of 5 beeps, sounds as soon as the low battery condition is detected, and every 30 seconds thereafter while the condition persists. • The low battery audible cannot be disabled by the key. Operation Manual SurgiVet V3395... -
Page 25: Chapter 5: Oximetry
(or lower) the SpO value, the higher (or lower) the pulse beep pitch. The V3395 flexible alarm system lets you choose alarm parameters and audible tone volumes. You can select the high and low alarm limits for SpO and pulse rate, and independently choose the volume for alarm and pulse beep tones. -
Page 26: Oximeter Display
Messages Oximeter alarm and alert messages appear on the first line of the message area at the lower left of the display. For details on the oximeter messages, see Oximeter Messages later in this chapter. Operation Manual SurgiVet V3395... -
Page 27: Oximeter Menu
Normal 16 beats/16 seconds, 16 beats/8 seconds, 4 beats/8 seconds, 8 beats/8 seconds. To adjust or view the averaging settings, do the following: 1. Select the OXIMETER item from the Main menu. 2. Select the AVERAGING item. Operation Manual SurgiVet V3395... -
Page 28: Oximeter Messages
SpO2 SEARCH” NOTE: If the message “ stays up for 10 seconds or more, a system alert will sound. SMALL PULSE Indicates the oximeter signal strength is low. Try repositioning the sensor on the patient. Operation Manual SurgiVet V3395... -
Page 29: Attaching The Patient - Oximetry
For “Y” sensors, wrap sensors, and disposable sensors: Align the sensor’s red light with the detector so they are less than 1/8 inch away from each other. Make sure the SpO2 SENSOR! message is displayed on the message area of the LCD Display. Operation Manual SurgiVet V3395... -
Page 30: Clean Or Disinfect The Reusable Sensor
Attach the sensor and FIGURE 5.5: ATTACHING CLIP TO ANIMAL clip to the patient’s tongue. Make sure the light source is topside of the tongue. 1 Microfoam® is a registered trademark of the 3M Company. Operation Manual SurgiVet V3395... -
Page 31: Reflectance R/E Sensor
(2) pulse strength bars are displayed. If not, adjust sensor by rotating or withdrawing approximately one (1) centimeter for maximum mucosal wall contact. Anchor sensor cable to tail to FIGURE 5.7: ANCHORING OF RECTAL SENSOR prevent inadvertent mispositioning.. Operation Manual SurgiVet V3395... -
Page 33: Chapter 6: Respiration
Respiration Theory of Operation The V3395 uses a thermistor mounted in the luer –lock fitting to measure respiration. The thermistor is inserted into the tracheal tube adapter, to place sensor in the middle of the air stream. The sensor is heated and detects breath by cooler air moving across the sensor. -
Page 35: Chapter 7: Temperature
Chapter 7: Temperature Temperature Theory of Operation The V3395 uses standard (YSI 400 Series) thermistors to measure the temperature of the patient. These thermistors have a large predictable variation of resistance with temperature. The monitor measures resistance of the thermistor in the sensor and converts it to the equivalent temperature in degree of Celsius or degrees of Fahrenheit as selected by the operator. -
Page 37: Chapter 8: Trends
To view a different trend, press an ARROW key until the desired trend is displayed. Press to view the plethysmogram. Trend times and scales are selected with the TRENDS menu item (see Trends Menu). Operation Manual SurgiVet V3395... -
Page 38: Trends Menu
Trend data will not be lost if this selection is set back to No before [EXIT] is selected. NOTE: “Yes” means all trended Trend information will also be lost if the monitor is powered down data will be erased when the trend menu is exited. Operation Manual SurgiVet V3395 Plus... -
Page 39: Chapter 9: Printer
IEC 601-1-1 systems requirements. Anyone connecting additional equipment to the signal input port or signal output port configures a medical system, and, therefore, is responsible that the system complies with the requirements of the system standard IEC 601-1-1. Operation Manual SurgiVet V3395... -
Page 40: Output Examples
SAMPLE OUTPUT: DATA LOG INTERVAL: 30 sec. PULSE 60BPM %SPO2 100% SIGNAL RESP 30RPM TEMP 37.0°C PULSE 60BPM %SPO2 100% SIGNAL RESP 30RPM TEMP 37.0°C Operation Manual SurgiVet V3395... -
Page 41: Chapter 10: Routine Maintenance
Chapter 10: Routine Maintenance Operator’s Maintenance SurgiVet products have been designed to operate continuously for long periods without maintenance. However, in order to ensure a continued high level of performance and safety operation, the routine maintenance information in this section MUST be observed. -
Page 42: Cleaning And Disinfecting The Monitor
Storage Facility: Indoor Temperature: -40 - 75° C (-40 - 167° F) Relative Humidity: 10-95%, non-condensing Periodic None required. Inspection: Special Procedures: Store the monitor and accessories in the original packing materials and shipping carton. 10-2 Operation Manual SurgiVet V3395... -
Page 43: Chapter 11: Troubleshooting
“buffer” to motion. d. Ambient light d. Shield with towel. If the monitor is still not functioning properly, contact SurgiVet’s service department for help. SurgiVet, Inc. Phone: (262) 513-8500 N7 W22025 Johnson Toll Free: (888) 745-6562... -
Page 45: Appendices
For ordering information, contact the customer service department at the address or phone number below: SurgiVet, Inc. Phone: (262) 513-8500 N7 W22025 Johnson Road, Ste A Toll Free: (888) 745-6562 Waukesha, WI 53186 Fax: (262) 513-9069 email: sales@surgivet.com Web Site: http://www.surgivet.com Operation Manual SurgiVet V3395 Appendices-1... -
Page 46: Appendix B: Specifications
Sensitivity level 100, used for larger animals Sensitivity level 10, used for small animals Rate 5 to 150 BrPM (breathes per minute) Accuracy > of +/-2% or +/-2 BrPM over full range Bandwidth 0.16 to 2 Hz Appendices- Operation Manual SurgiVet V3395... - Page 47 0 to 60 °C, 32 to 140 °F Range Accuracy +/-1 °C Alarms No alarms for temperature Environment Temperature Operating -- 0°C to 55°C Storage -- -40°C to 75°C Relative Humidity Operating -- 15-95% (non-condensing) Storage -- 10-95% (non-condensing) Operation Manual SurgiVet V3395 Appendices-3...
