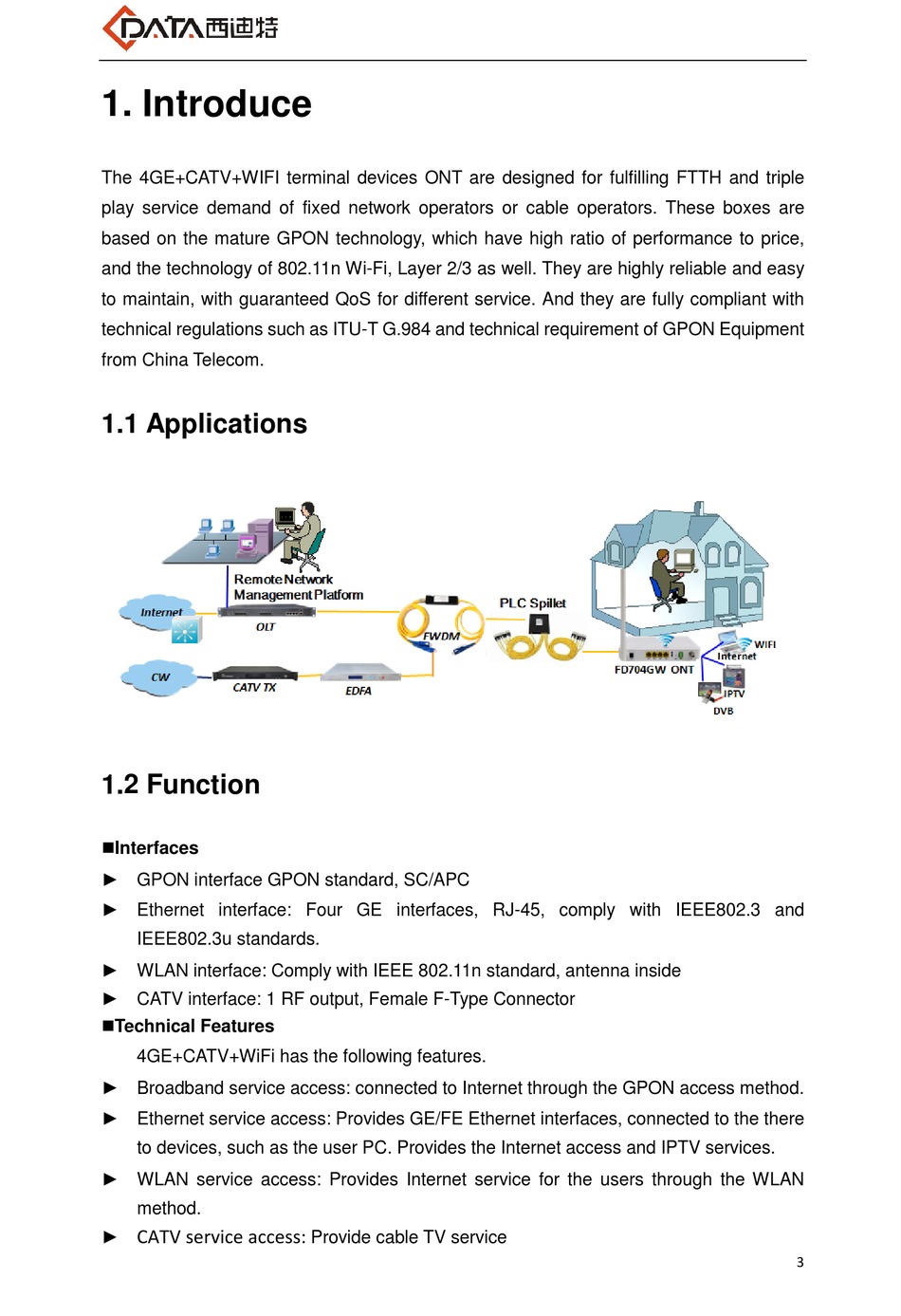

1. Introduce

The 4GE+CATV+WIFI terminal devices ONT are designed for fulfilling FTTH and triple
play service demand of fixed network operators or cable operators. These boxes are
based on the mature GPON technology, which have high ratio of performance to price,
and the technology of 802.11n Wi-Fi, Layer 2/3 as well. They are highly reliable and easy
to maintain, with guaranteed QoS for different service. And they are fully compliant with
technical regulations such as ITU-T G.984 and technical requirement of GPON Equipment
from China Telecom.

1.1 Applications

1.2 Function

Interfaces
► GPON interface GPON standard, SC/APC
► Ethernet interface: Four GE interfaces, RJ-45, comply with IEEE802.3 and
IEEE802.3u standards.
► WLAN interface: Comply with IEEE 802.11n standard, antenna inside
► CATV interface: 1 RF output, Female F-Type Connector
Technical Features
4GE+CATV+WiFi has the following features.
► Broadband service access: connected to Internet through the GPON access method.
► Ethernet service access: Provides GE/FE Ethernet interfaces, connected to the there
to devices, such as the user PC. Provides the Internet access and IPTV services.
► WLAN service access: Provides Internet service for the users through the WLAN
method.
► CATV service access:
Provide cable TV service
