ACOPOWER PS5B-P1 User Manual

Portable power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

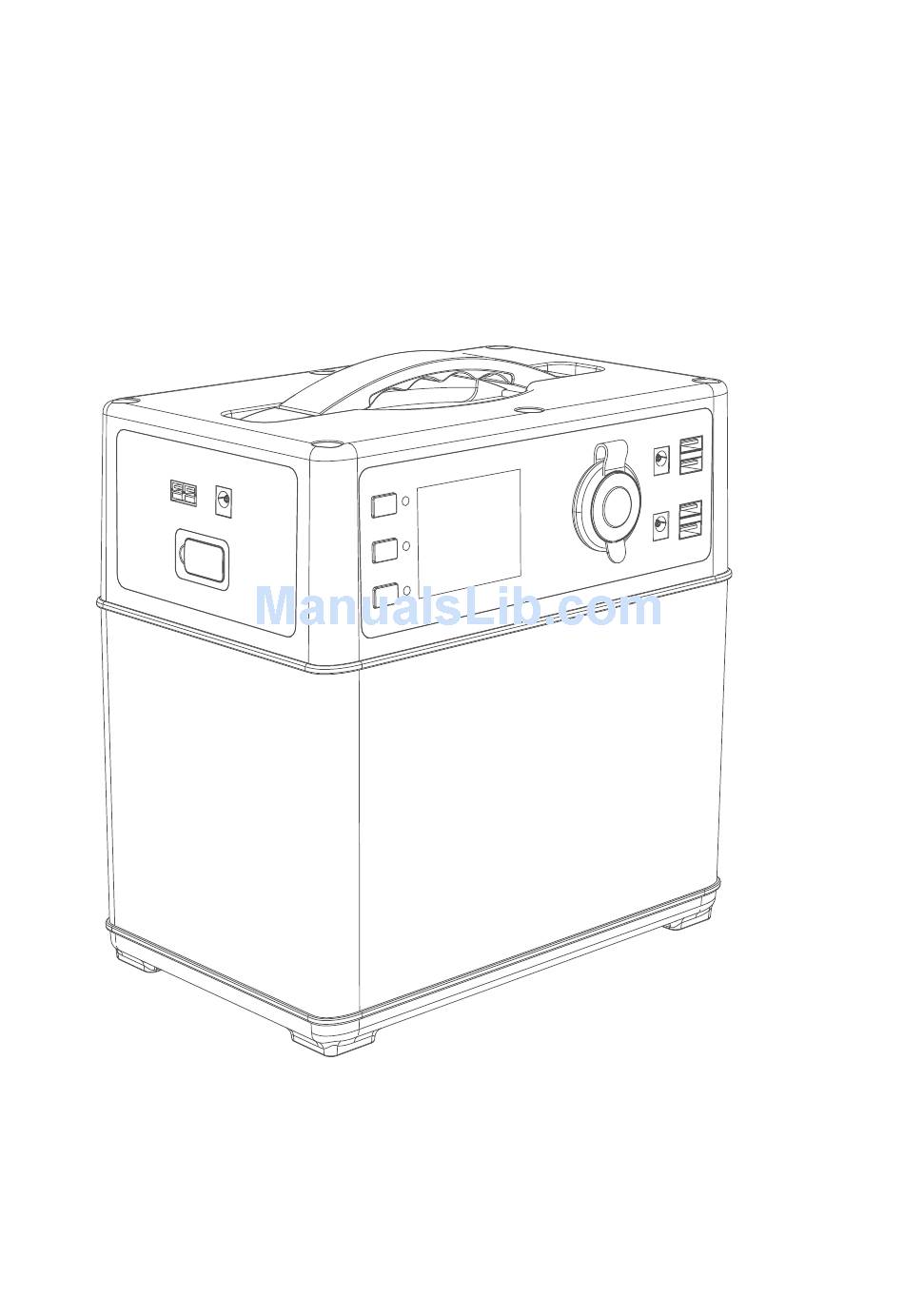

ACOPOWER Portable Power Supply
User Manual
CHARGE ME NOW
Before reading through the rest of the manual, plug your portable power supply into the
wall AC.outlet for charging. You should store your portable power supply with energy
inside always.

Advertisement

Table of Contents
loading

Summary of Contents for ACOPOWER PS5B-P1

  • Page 1 ACOPOWER Portable Power Supply User Manual CHARGE ME NOW Before reading through the rest of the manual, plug your portable power supply into the wall AC.outlet for charging. You should store your portable power supply with energy inside always.

  • Page 2: Table Of Contents

    PS5B-P1 TABLE OF CONTENTS This product series are designed to keep you powered while you're doing what you love. Whether you're climbing a mountain, living in your van while you travel the world, or camping in your backyard we will keep you powered. Welcome to the solar life.

  • Page 3: Get To Know Your Gear

    PS5B-P1 1. Get To Know Your Gear 1. Handle 8. Power On/Off Indicators 2. Solar Charging Port 9. LCD Display 3. Car/Adapter Charging Port 10. USB Outputs 4. Car Jump Starter Output 11. DC12V Output for LED Lamp 5. Master Power On/Off Button 12.

  • Page 4: Unpacking

    PS5B-P1 1. Master Power On/Off Button 2. DC Power On/Off Button 3. AC Power On/Off Button 4. Master Power On/Off Indicator 5. DC Power On/Off Indicator 6. AC Power On/Off Indicator 7. Battery Capacity 8. Charging Power 9. DC ON/OFF 10.

  • Page 5: What It Powers

    PS5B-P1 Unpacking your Portable Power Supply AC Charger Car Charging Cable Solar Charging Jump Starter Alligator Cable Clip Cable 3. What it Powers LAMP Smartphone LAPTOP 5 Recharges TV 3 Hours 100+ Hours 30+ Recharges 4. Charging Your Portable Power Supply ■...

  • Page 6: Charging From Solar

    PS5B-P1 status and the number under INPUT shows the real-time charging power. Once It is fully charged, all battery segments will be lit and remain solid. Charge your Portable Power Supply when there is only a battery segment! ■ Charging from Solar...

  • Page 7: Charging From The Wall

    PS5B-P1 ■ Charging from the Wall Before using or storing, plug your PPS into the wall until it is fully charged. charging from wall outlet powering your laptop or other devices Using the included AC Wall Charger, plug your Portable Power Supply into any wall outlet. You will know the Portable Power Supply is charging when battery segments in the BATTERY DISPLAY are blinking and the number below INPUT on LCD changes.

  • Page 8: Using Your Portable Power Supply

    PS5B-P1 5. Using your Portable Power Supply ■ What to power from your Portable Power Supply USB: Smartphones, MP3 Players, Digital Cameras, E-readers, Tablets, etc. DC 12V 6mm Ports: Two ports for LED lights mainly DC 12.6V Car Socket: Car on-board Fridges, 12V appliances, etc.

  • Page 9: Storage And Downtime Maintenance

    PS5B-P1 If you’ll be living off-grid in sub-zero conditions, you can drain power from Portable Power Supply. But never charge your PPS in sub-zero conditions, which will damage the lithium ion battery and battery capacity may not be recovered. Low Temperature Charging Protection: when there is charging input in sub-zero conditions, the system would stop chargingautomatically;...
  • Page 10 PS5B-P1 Notice 1. Before starting, make sure the red and black clips are clamped tightly to car battery poles and keep the two clips with enough safety distance, to prevent the two from falling off or collision because of the engine vibration after car starting.

  • Page 11: Frequently Asked Questions

    PS5B-P1 Battery Type Lithium ion Battery Cell Li-ion 18650 Battery Battery Capacity 400Wh Battery Voltage 9V~12.6V Dimension L230×W140×H235(mm) N.W. 5.2Kg Warranty 2 Years General Charge 0~45℃ Operation Discharge -10℃ ~60℃ Environment Humidness 10%~90% Note:Jump starter function with higher cost is optional.

  • Page 12: Troubleshooting

    PS5B-P1 Second, you will need to check the capacity for the individual output ports. For example, the AC port is monitored by an inverter that allows for 300W of continuous power. This means if your device is a pulling more than 300W for an extended period of time, the Portable Power Supply’s inverter will shut off.
  • Page 13 PS5B-P1 Failure Failure Cause Troubleshooting Code Check the ambient temperature if higher System over-temperature protection than 45℃ . Output will start again if Portable Power Supply cools down. Battery Over Voltage Protection Disconnect the charger and restart it Battery Damage Protection...

  • Page 14: Contact

    PS5B-P1 12.6V10A Output Over Current Check if the output overload or short- Protection circuit 12.6V10A Output Over Load Protection Check if the output overload Check if the output overload or short- 12V6A Output Over Current Protection circuit 12V6A Output Over Load Protection Check if the output overload USB5V No.1 Output Over Current...
