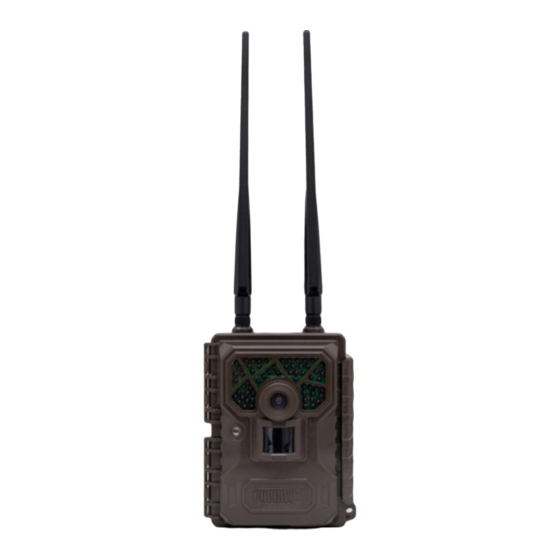

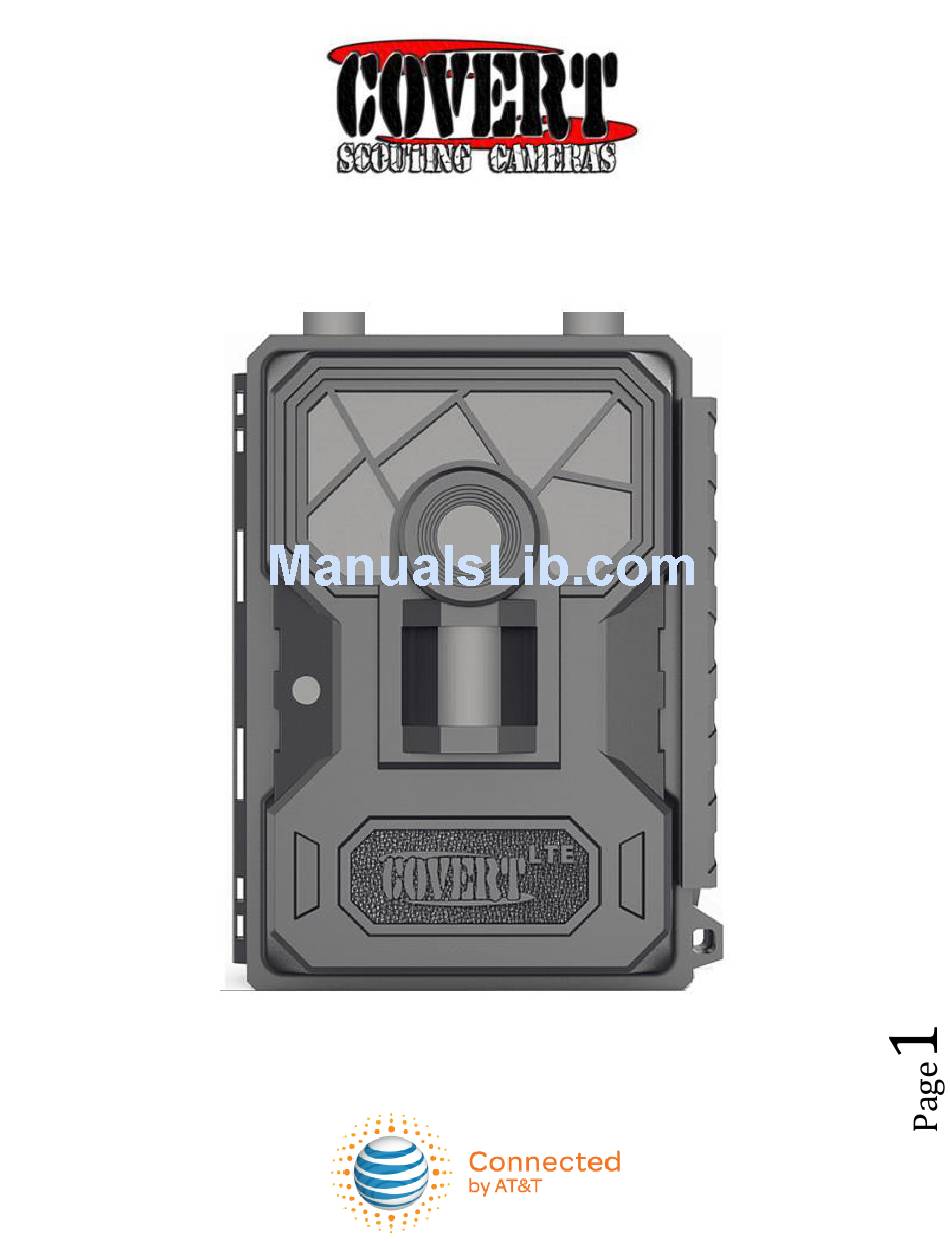

- Page 1 2018 AT&T Code Black LTE Covert Scouting Camera Instruction Manual Watch the set-up video on our website at: www.covertscoutingcameras.com...
- Page 2 What you will need to set this camera up: -Internet Access to Choose Your Plan. https://secure.covert-wireless.com -At least 4 AA Batteries -SD Card...
-
Page 3: Table Of Contents
Table of Contents Camera Button Control Diagram ......5 Installing the Batteries ..........6 Downloading the Mobile App ........7 Purchasing Your Plan ..........7 Setting up the Wireless Network ......9 Sending a Test Photo ..........11 Customizing Camera Settings ........12 Troubleshooting ............18 Tricks and Tips on Field Setup .......20 Warranty Policy .............21 International Warranty Policy .......23 Technical Specifications .........29... - Page 4 Check out our other products on our website at: www.covertscoutingcameras.com We hope you enjoy hassle free performance from this quality product for years to come. Covert Scouting Cameras, Inc. 4338 Highway 2376 Lewisburg, KY 42256...
-
Page 5: Camera Button Control Diagram
Camera Button Control Diagram: Figure 1 1. Invisible IR Flash 2. Lens 3. Light Sensor 4. Power Switch 5. PIR Sensor 6. Keyboard 7. HD Display Screen 8. LTE Main Antenna 9. LTE Diversity Antenna... -
Page 6: Installing The Batteries
Installing the Batteries: Your Code Black LTE can function short term on 4- AA batteries. Improved battery life on 8-AA, but we suggest you use 12-AA batteries to get the most out of your cameras battery life. Using Covert rechargeable NiMH, 2300mAh, AA batteries will extend the battery life significantly when paired with a Covert Solar Panel. -
Page 7: Downloading The Mobile App
Downloading the Mobile App: Search "Covert Wireless" in your Google Play Store or Apple App Store. Figure 2 Figure 3 Accessing the Web Portal: Open your web browser to: www.covert-wireless.com Purchasing Your Plan: Follow these simple steps to activate or renew an AT&T plan: Open your web browser to: https://secure.covert-wireless.com... -
Page 8: Installing The Sd Card
3. Enter the IMEI for your Covert Code Black LTE found on the inside white label of the camera and on the outer packaging. Figure 4 4. Follow the prompts to select your rate plan, enter your personal/billing information and complete your purchase. Installing the SD card: Now that you have activated your AT&T plan, you will need to install a SD card in the bottom of the... -
Page 9: Setting Up The Wireless Network
Figure 5 Setting Up the Wireless Network: NET Tab: While finding the network connection, you will see the words Searching Signal in red on the screen. The camera will then say Connecting to Server as it is connecting to our web-portal. Once you see AT&T in the top right corner, you are ready to move Quick Tip: If your camera doesn’t connect successfully, first make sure your SIM card is active... - Page 10 Download Firmware: Anytime your camera needs a firmware update, it will be automatically pushed to your camera. When you go check your camera, we encourage you to press the menu button and scroll to FW Update. Press OK. This will download the latest firmware version in case there’s been an update.
-
Page 11: Sending A Test Photo
Sending a Test Photo: Definition: This is a great way to make sure that your camera is working properly before leaving your camera set up remotely. 1) Press the ► button that says SHOT one time to manually take a photo with the camera. 2) Press the OK button. -
Page 12: Customizing The Camera Settings
Figure 7 Figure 6 Customizing the Camera Settings Camera Mode Settings: Photo Mode: You can change Photo Size, set the Flash power, and Photo Burst in Custom Settings. Video Mode: You can further set the Video Size and Video Length. Picture+Video Mode: You can further set the Custom Settings, Video Size and Video Length. - Page 13 NOTE: Make sure to press OK to save your settings. If you do not press OK, your setting will return back to the previous setting. Trigger Mode Settings: PIR Sensitivity: The camera is triggered by heat and motion. • • Auto •...
- Page 14 • 5-60 minutes in steps of 5 minutes • 1-8 hours in 1-hour intervals • 12, 16, 20, 24 hours 4-hour intervals Start-Stop Setting Figure 9 Figure 10 Select “ON” or “OFF”. Select the time you want your camera to operate. You can customize the weekdays and the start-stop time.
-
Page 15: System Settings
System Settings: Set Clock: The clock is set automatically from the wireless network. You can choose different date display formats. NOTE: Military time is the only available option. Password: Select “On” and enter a 4-digit code to protect the camera from unauthorized use. Be sure to note the password and store the code in a safe place. - Page 16 *If you forget your password, please contact Covert Scouting Cameras at support@dlccovert.com or call 877-462-1799 for an RA #. We require warranty registration to verify your camera. This must be completed within 10 days after your purchase. Proof of purchase will be required. Rename: Rename your camera in the nickname box (see below) using the web-portal by visiting: https://secure.covert-wireless.com/...
- Page 17 Formatting the SD Card: Delete all data off your memory card. Be sure that you won’t need the data any more. Default: With a reset to factory settings, all your customized settings will be lost. Software Version: Indicates the software version for manufacturer’s use and troubleshooting only.
-
Page 18: Troubleshooting
Troubleshooting: COMMON ERROR MESSAGES: Reasons for error: Login Fail: 1. The service in your area is insufficient to run the camera. 2. You need to add money to your AT&T account. 3. Make sure that your antenna is attached securely. Send Fail: 1. - Page 19 3. 3. Network busy can also mean you don’t have an active plan with Covert Wireless. If it’s a cellular service issue you may need to purchase a booster antenna from Covert Scouting Cameras to help boost the signal. These can be very effective in boosting the signal to your camera in a poor signal area.
-
Page 20: Tricks And Tips On Field Setup
Suggestions to remedy 1) Install new SD card 2) Replace batteries Tricks and Tips on Field Setup: • For best results, mount the camera approximately 3 feet off the ground facing straight forward, as level as possible. • To enhance the flash, we recommend positioning the camera in an area with a backdrop to reflect the maximum amount of light. -
Page 21: Warranty Policy
Covert Scouting Cameras Warranty: Covert Scouting Cameras warranties this product for a period of two (2) years from the date of purchase. This warranty only covers manufacturer’s defects and does not cover damage caused by misuse or abuse of the product. - Page 22 Please explain to the technician what issues you are having with your camera. 2. If you are asked to return your camera to Covert Scouting Cameras, you will be responsible for the cost of shipping to Covert Scouting Cameras. In return, Covert will provide fast and exceptional service as well as incur the cost of shipping back to you.
-
Page 23: International Warranty Policy
-RA# on outside of package -Return address -Telephone and Email address -Brief description of the problem -Copy of proof of purchase 4. Please make sure all the accessories are removed (i.e. SD Cards, batteries, solar panels SIM cards, straps, ETC.) before shipping. All accessories received by Covert Scouting Cameras will NOT be returned. - Page 24 3. Covert is not responsible for lost or damaged products incurred during the shipping process. 4. Insurance for returns is at the discretion of the customer. Additional charges apply for return shipping. In the maintenance of the product, Covert Scouting Cameras may use new or like-new assemblies or products for equal or improved quality.
- Page 25 the product unless directed by a Covert representative. b. Damage, malfunction or degradation of performance resulting from improper use or connection to incompatible equipment or memory. c. Damage, malfunction, or degradation of performance caused by the use of non- Covert supplies or consumables or the use of Covert supplies not specified for use with this product.
- Page 26 operating specifications set forth in the user manual. g. Damage, malfunction or degradation of performance resulting from failure to properly prepare and transport the product as prescribed in published product materials. h. Any failure to register the product warranty within 10 days of purchase. To replace items that have been refilled, are used up, abused, misused, or tampered with in any way.
- Page 27 THE ABOVE WARRANTIES ARE GIVEN BY COVERT WITH RESPECT TO THIS PRODUCT AND ITS RELATED ITEMS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. COVERT AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY SIMILAR STANDARD IMPOSED BY APPLICABLE LEGISLATION.
- Page 28 TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS WARRANTY STATEMENT, IN NO EVENT SHALL COVERT AND ITS VENDORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS) WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY AND IRRESPECTIVE OF WHETHER COVERT OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH...
-
Page 29: Technical Specifications
Appendix One: Technical Specifications Picture Resolution 12MP Lens F/NO=3.0 FOV (Field of View)=52° Flash Power Full, Low Display Screen 2.0” LCD Memory Card Up to 64 GB Video Resolution VGA, QVGA PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low) Trigger Time >0.65s Weight Less than 1 Pound (with out batteries Operation/Storage Tem. - Page 30 1-8 hours (in 1 hour increments)； Photo Burst 1–10 Video Length 1–60s Power Supply 4AA, 8AA or 12AA Stand-by Current < 0.25 (<6mAh/Day) Power Consumption 600 videos (interval=5min, video Length=10s）; >800 MMS (use 12*AA batteries) Low Battery Alert LED Indicator Mounting Rope/Belt/Python lock Dimensions 5.6”x4.75”x3 Operation Humidity 5% - 90%...
