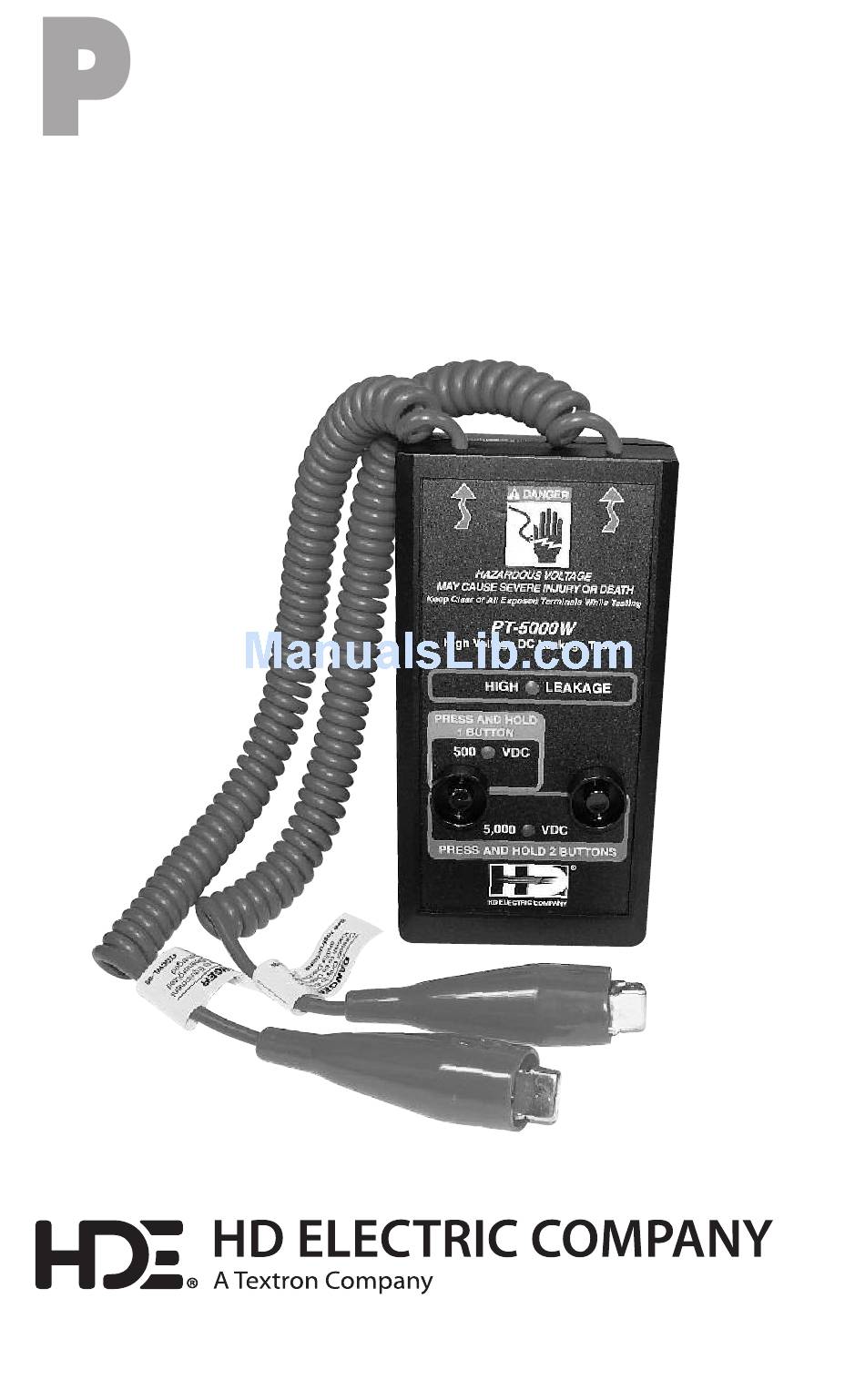

- Page 1 T-5000W PORTABLE DUAL HIGH VOLTAGE TESTER Operating & Instruction Manual 1475 Lakeside Drive • Waukegan, Illinois 60085 U.S.A. • 847.473.4980 f a x 8 4 7 . 4 7 3 . 4 9 8 1 • w e b s i t e : w w w. H D E l e c t r i c C o m p a n y. c o m...
-
Page 2: General Description
GENERAL DESCRIPTION This portable dual high voltage tester can test both primary and secondary insulated systems and components. The test voltage is selected by the user at either 500VDC or 5,000VDC. This HD Electric tool is designed for use only on cables or equipment that has been verified to be both deenergized and discharged. - Page 3 APPLICATIONS The PT-5000W is a general purpose insulation tester for both primary voltage and secondary voltage insulation systems and components. Most important is that the proper voltage is selected for the system or components to be tested. For secondary voltage systems rated to 600V select the 500VDC test range.
- Page 4 primary to ground on two bushing one bushing to ground transformer across two bushings secondaries to ground center tap must be ungrounded one bushing from primaries to secondaries...
- Page 5 Testing across the two bushings of a two bushing capacitor or from bushing to ground on a one bushing capacitor will place a substantial charge on the capacitor and the PT-5000W will indicate leakage current until the capacitor is fully charged. Because of the built in 30 second time limit, capacitors tested in this manner can only be charged up to 500VDC and should only be tested with the 500VDC range.
-
Page 6: Specifications
SPECIFICATIONS TEST VOLTAGE: 500VDC or 5,000VDC nominal TEST CURRENT: 100 microamps indicated on 5,000VDC range and 1,000 microamps indicated on 500VDC range, 2,000 microamps maximum. BATTERY: 9V lithium or alkaline IMPORTANT SAFETY INFORMATION Read and understand these instructions prior to use. These operating instructions are not a substitute for proper training in the use of this equipment. - Page 8 (1) year (ten (10) years for HDE Capacitor Controls) from the date of shipment (the“Warranty Period”). Should any failure to conform with this warranty be found during theWarranty Period, you must notify HD Electric Company of your claim within thirty (30) days of discovery, and within the Warranty Period.
