IES3020G-4GS
Industrial Ethernet Switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】
IES3020G-4GS is an industrial grade and unmanaged Ethernet
switch which supports 16 Gigabit Ethernet Ports and 4 Gigabit
SFP slots. Standard Industry design can satisfied every
requirement of the industry scene. All components used industry
grade, it takes products high reliability. It provided wide voltage
power supply input. The switch accorded to CE, FCC standard
and Industry grade 4 design requirement, support 2 channel DC
power input and -40～75℃ working temperature, can meet all
kinds of Industrial environment requirement and provide the
solution of the economy.
【Packing list】
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Feature】
Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3ab,
IEEE802.3z
Support 16 10/100/1000Base-T(x) RJ45 Ethernet ports and 4
Gigabit SFP slots
Support MAC address auto-learning, auto-aging
Support 10K MAC address
Support 56Gbps backboard bandwidth
Support redundancy DC power supply(12～48VDC)
Industrial grade 4 design, -40-75℃ work temperature
IP40 protection grade, DIN-Rail mounting

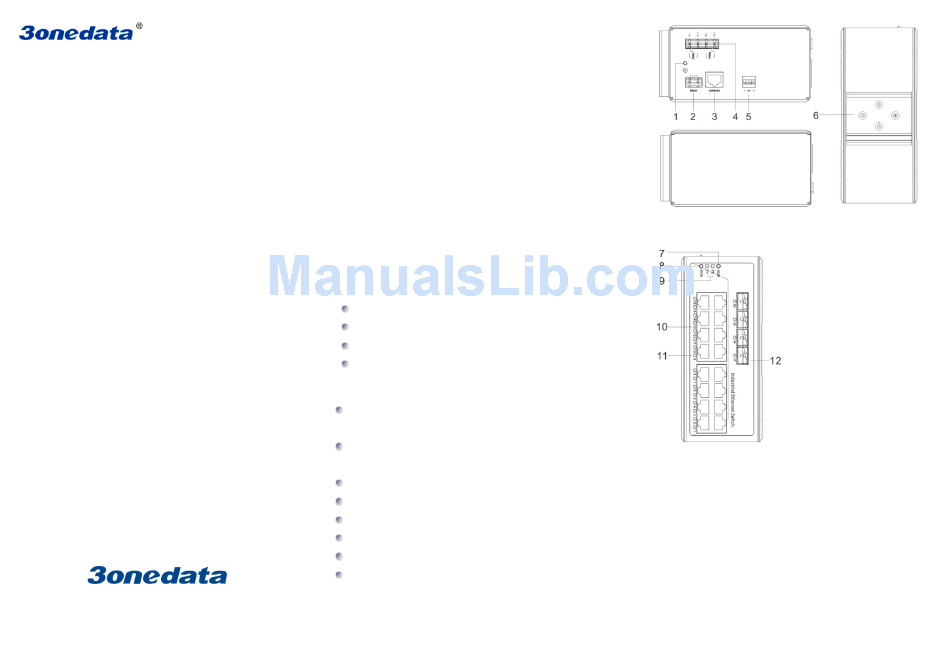

【Panel layout】
Vertical view and bottom view
- 1 -
Front panel view
1. Ground screw
2. Console port
3. 2-pin terminal block for relay output
4. Power input terminal block
5. DIP switches
6. DIN-Rail mounting kit
7. Relay alarm LED
8. System running LED
9. Power indicator
10. 10Base-T/100Base-TX/ 1000Base-TX Ethernet port
Rear view
