IES1024 Series
Industrial Ethernet switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
Summarize
IES1024 series is an industrial grade and unmanaged industrial
Ethernet switch. The industrial Ethernet switch consists of 24 Fast
Ethernet ports. Support Fast Ethernet copper ports and optical
fiber port option. The industrial Ethernet switches provide an
economical solution for your industrial Ethernet connection. The
switch with a single power series and redundancy power series of
two products can be optional. Dual power supply product support
redundancy backup function. The single power supply products
do not support the redundancy function.
The switches have an operating temperature range of -40 to 75°C,
and are designed with low consumption and without fan. The
rugged hardware design makes the switch perfect for ensuring
that your Ethernet equipment can withstand the rigors of
industrial applications.
Packing list
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch
1
User manual
1
Warranty card
1
Power cable
1
Rackmount ears
2
Feature
High performance network exchange technology
Support IEEE802.3, IEEE802.3u, IEEE 802.3x
Support 8K MAC address
Support 12.8Gbps switching fabric capacity
10/100BaseT(X)(RJ45)
Store and Forward switching process type
Plug-and-play, auto MDI/MDI-X connection
Support auto negotiation speed, F/H duplex mode, and auto
send data control
- 1 -
Support MAC address learning, aging automatic
Support single or redundancy power supply (100
240VAC/DC)
Reliable Industrial grade design
Industrial grade 4 design, -40-75 work temperature
No fan deign
IP30 protection grade
19 inch rack mounting

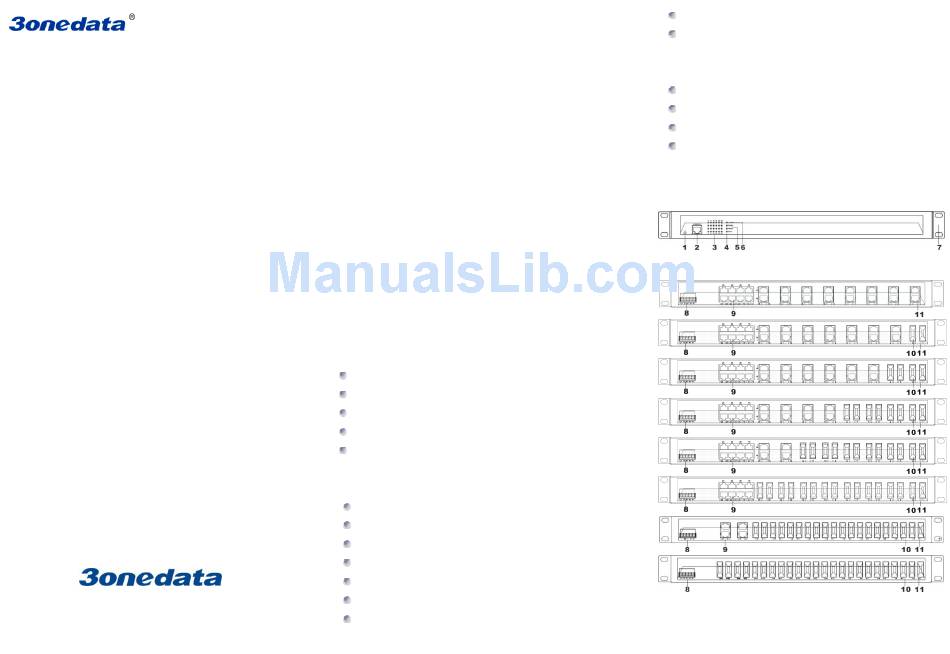

Panel layout
Front view
Rear view
1. Restore factory settings
2. Console port
3. Link/ACT LED
