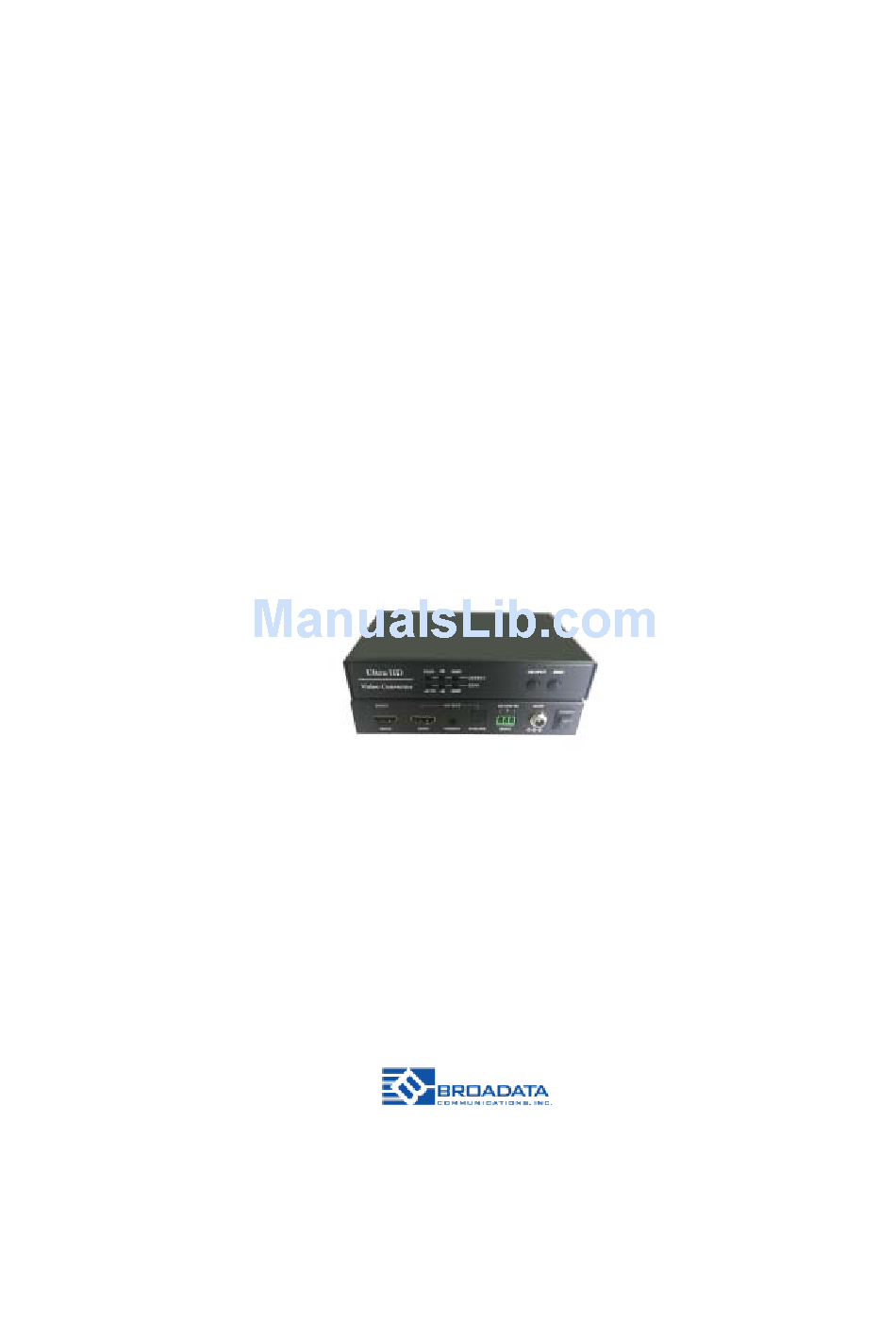

- Page 1 ETWEEN P AND ESOLUTION BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2017 Broadata Communications, Inc.
- Page 2 LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
-
Page 3: Table Of Contents
LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........5 2.0 OPERATION CONTROL AND FUNCTIONS ....6 2.1 FRONT PANEL ..............6 2.2 REAR PANEL ..............7 3.0 MAINTENANCE AND TROUBLESHOOTING ....8 3.1 MAINTENANCE ...............8 3.2 TROUBLESHOOTING ............8 4.0 SPECIFICATIONS ............9... -
Page 4: Product Description
LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler 1.0 PRODUCT DESCRIPTION Features • An HDMI 2.0 scaler with 1080p up-scale to 4K, or 4K down-scale to 1080p • Frame rate conversion is not supported • Supports HDMI video resolutions up to 3840x2160@60Hz and 4096x2160@60Hz with 4:4:4 YUV •... -
Page 5: Operation Control And Functions
LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler OPERATION CONTROLS AND FUNCTIONS 2.1 Front Panel PASS 4K 1080p OUTPUT EDID OUTPUT EDID AUTO 4K 1080p 1. OUTPUT: Select output resolution between PASS, 4K, 1080p. a. PASS: bypass input with any formats to output b. -
Page 6: Rear Panel
LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler 2.2 Rear Panel DC5V OUTPUT RX GND TX INPUT HDMI HDMI STEREO TOSLINK RS-232 1. HDMI Input: Supports HDCP 2.2/HDMI 2.0, 4K 60 4:4:4. 2. HDMI Output 3. 3.5 mm Audio Extraction Output 4. -
Page 7: Maintenance And Troubleshooting
There is no operator maintenance other then keeping the units clean. 3.2 Troubleshooting If the LB-H2-2K4K/SCL units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If a problem exists on the fiber link, please check your fiber connectors for improperly cleaned fiber cables and connectors. -
Page 8: Specifications
LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler 4.0 SPECIFICATIONS Input One (1) HDMI port Output One (1) HDMI port One (1) Analog Audio port (3.5mm jack) One (1) Toslink port Control Buttons for selecting output resolution and EDID modes... -
Page 9: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 5.2 Return/Repair Service The Link Bridge LB-H2-2K4K/SCL System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. -
Page 10: Limited Warranty
HDMI 2.0 Scaler 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... -
Page 11: Appendix: Input/Output Resolution
LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler 7.0 APPENDIX: INPUT/OUTPUT RESOLUTION Scale Up Scale Down Broadata Technical Support, (800) 214-0222... - Page 12 LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler Broadata Technical Support, Sales@Broadatacom.com...
- Page 13 LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler Broadata Technical Support, (800) 214-0222...
- Page 14 LB-H2-2K4K/SCL User Manual Link Bridge HDMI 2.0 Scaler Broadata Technical Support, Sales@Broadatacom.com...
- Page 15 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LB-H2-2K4K/SCL...
