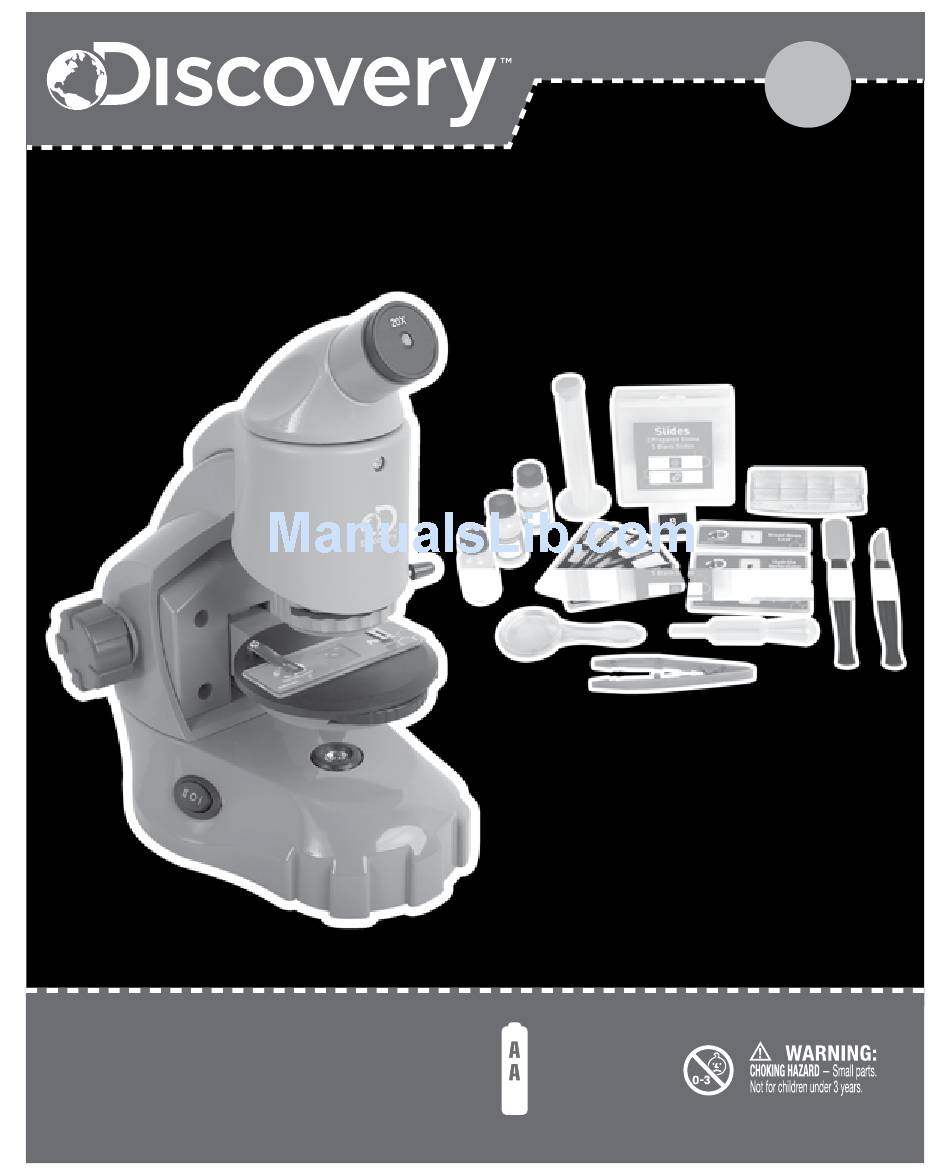

- Page 1 AGES INSTRUCTION MANUAL Zoom Power Zoom Power Lab Microscope Lab Microscope NOT INCLUDED Biological Experiments Gear...
- Page 2 CONTENTS Microscope parts: 01 Eyepieces (Interchangeable 20x and 40x) 02 4x Zoom 03 Focus Wheel 04 Stage 05 Metal Stage Clips 06 Color Filter Wheel 07 Objective 08 Illumination On/Off Switch 09 Dimmer control 10 Base and Battery Compartment Additional contents: 11 (3) Prepared Slides and (5) Blank Slides 12 Slide Covers 13 Slide Case...
- Page 3 CONTENTS WARNING CHOKING HAZARD – Small parts. Not for children under 3 years.
- Page 4 INSTRUCTION MANUAL Welcome To The World Of Microscopy! With the Discovery Zoom Lab Microscope Set, you can use magnifications ranging from 20x to 160x to see the extraordinary details in ordinary objects! Its 4x zoom feature lets you smoothly transition between powers to fully explore your subject without losing focus. This versatile microscope also has both upper and lower illumination to expand the types of specimens you can investigate.
-
Page 5: Troubleshooting Table
Magnification Guide How Do I Adjust My Eyepiece Objective Power Microscope Correctly? Place the microscope in a suitable location as described above, and sit in a comfortable viewing position. Always start each observation with the lowest magnification. Put in the 20x eyepiece and zoom all the way out by sliding the zoom control. -
Page 6: Safety Warnings
Now you can select a higher magnification by moving the zoom control. By rotating the zoom control in stages, you create a steady increase of magnification without overpowering the view of the object. This microscope includes two eyepieces to offer an even broader range of magnifications. - Page 7 SAFETY WARNINGS Read and follow the instructions, safety rules, and first aid information. SAFETY WARNINGS • This microscope set is • Choking hazard: Children Do not immerse the battery should only use device intended for children compartment in water. under adult supervision. older than age 8.
- Page 8 ©2017 Discovery Communications, LLC. Discovery™ and the Discovery™ logo are trademarks of Discovery Communications, LLC, used under license. All rights reserved. discoverykids.com ©2017 Explore Scientific, LLC, a Journey North Company. 1010 S. 48th Street, Springdale AR 72762 All rights reserved. explorescientificusa.com | exploreone.com | 866.252.3811 Made in China CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963...
